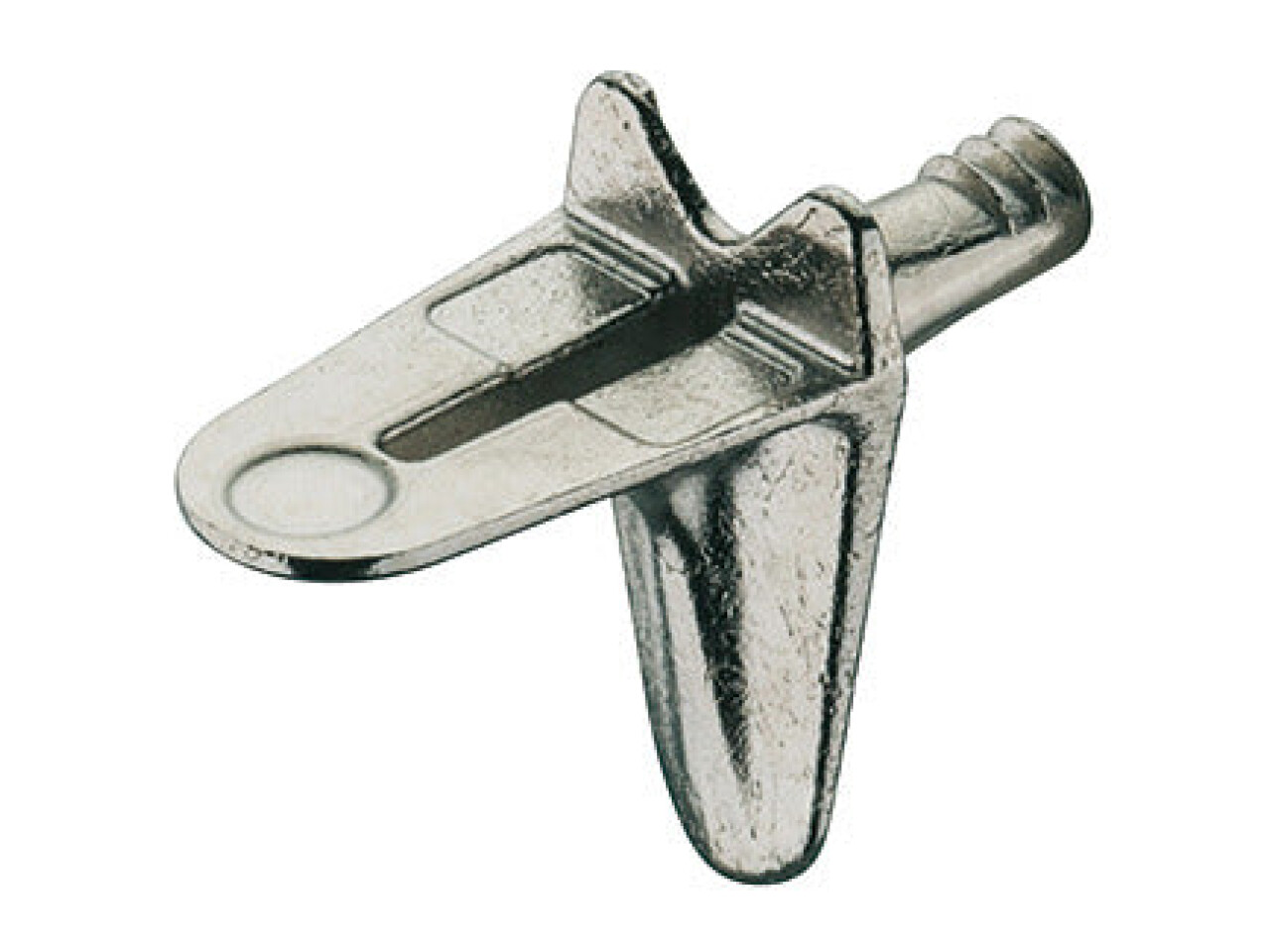

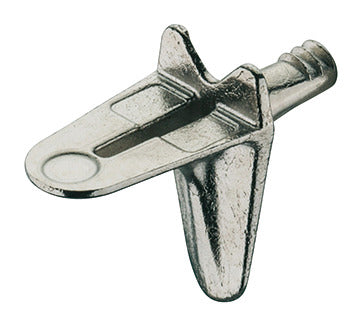

Shelf Support D3mm Plug 75kg ZA NP

Part Number: 282.25.717
With twin grooves, Nickel plated
Price:
£5.57
Per 100 Pack
VAT excluded

Note on load bearing capacity 9.4 kg per pieceTested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test,... Read More

Product Information

Product Details

Note on load bearing capacity

9.4 kg per piece
Tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 37.6 kg load bearing capacity when using 4 shelf supports kg


Specifications

Application

For wooden shelves

Installation

For Mounting in drilled hole

For drill hole Ø

3.00 mm

Support size

1.50 mm

Pin length

7.30 mm

Version

With twin groove

Material

Zinc alloy

Load bearing capacity per item

9.40 kg

Load bearing capacity with 4 shelf supports

37.60 kg
