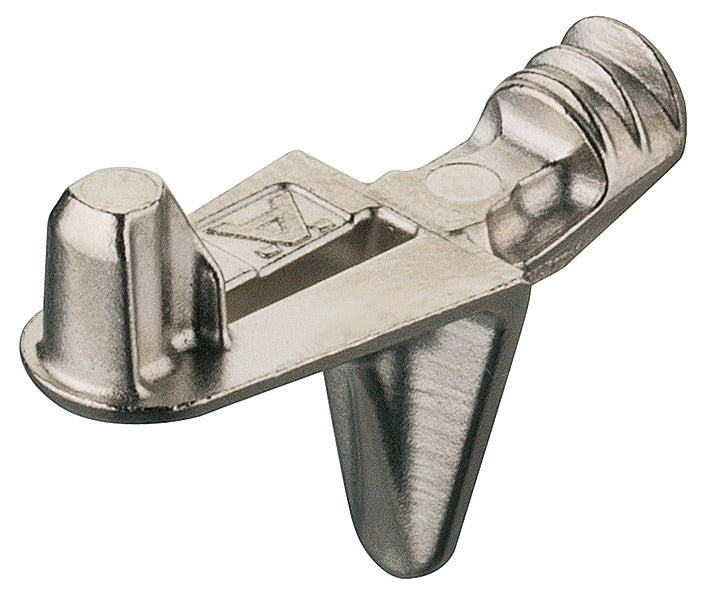

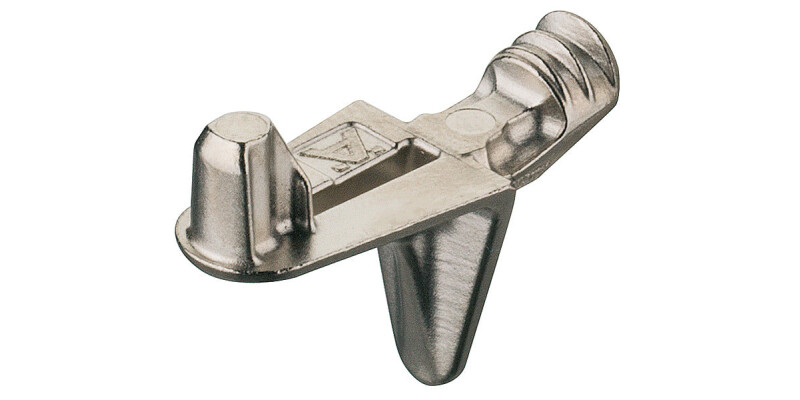

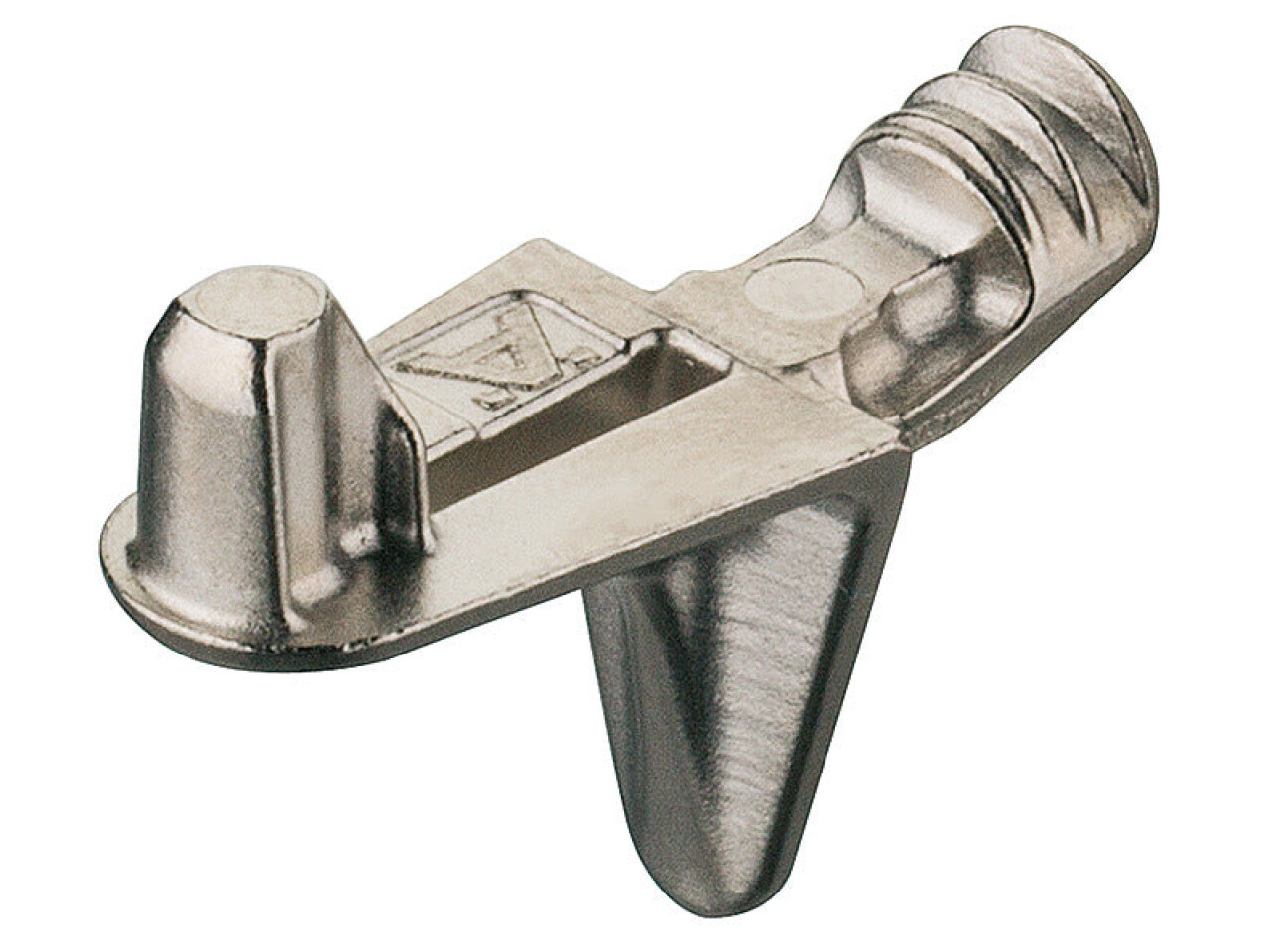

Shelf Support D5mm w Lug Plug ZA NP
Part Number: 282.24.727
Zinc alloy, Nickel plated
Price:
£8.76
Per 100 Pack
Shelf-fixing lug prevents shelf from being pulled out horizontally Note on load bearing capacity Tested to DIN... Read More
Product Information
Product Details
Shelf-fixing lug prevents shelf from being pulled out horizontally
Note on load bearing capacity
Tested to DIN EN 16337:2013-08 with 1.7 kg striking cap, i.e. 62.4 kg load bearing capacity when using 4 shelf supports
Specifications
Application
For wooden shelves
Installation
For Mounting in drilled hole
For drill hole Ø
5.00 mm
Distance fixing lug
10.00 mm
Support size
1.00 mm
Pin length
7.30 mm
Version
With fixing lug as shelf security feature
Material
Zinc alloy
Load bearing capacity per item
15.60 kg
Load bearing capacity with 4 shelf supports
62.40 kg
Adherence to standards
DIN EN 16337:2013-08
