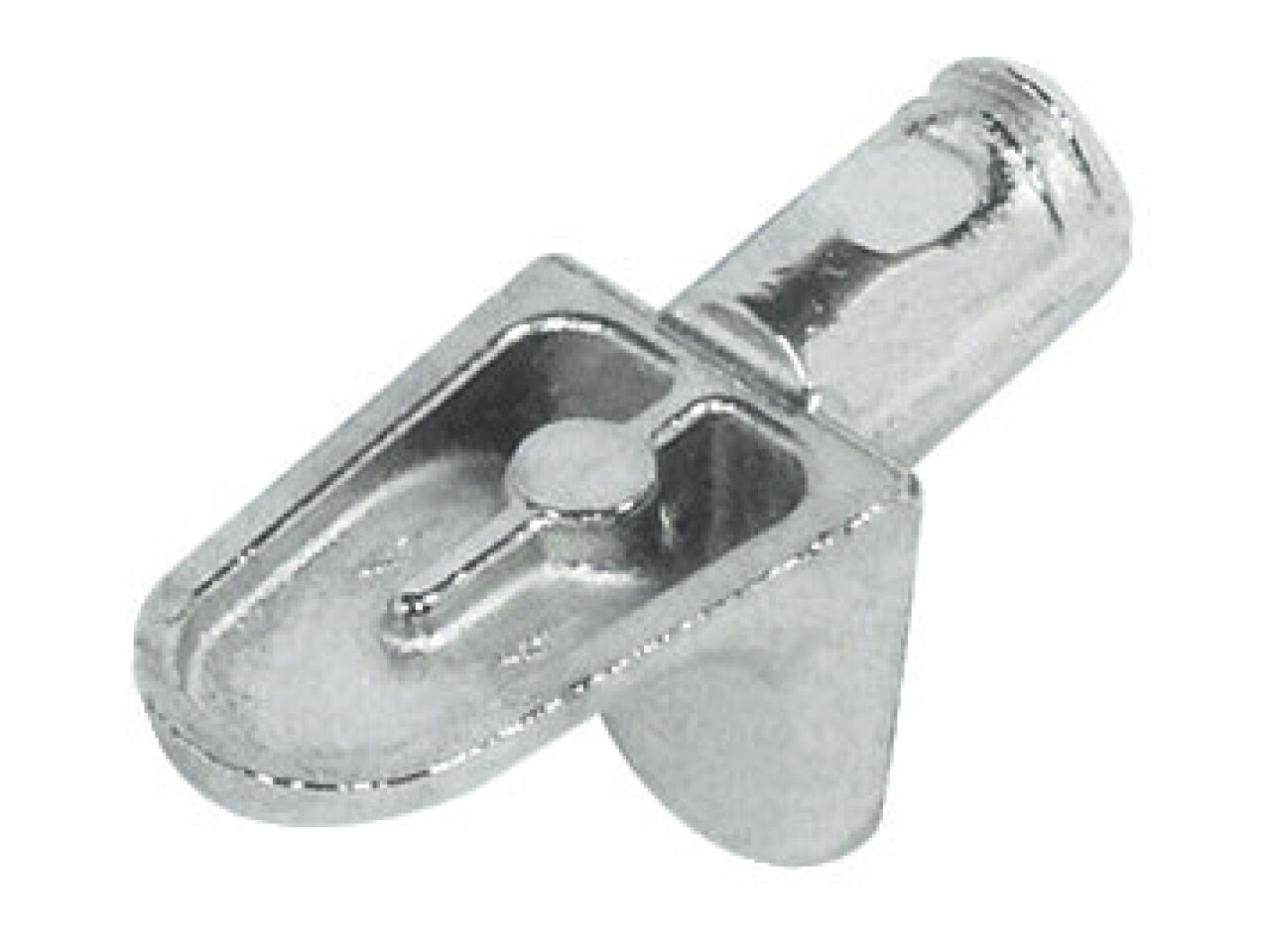

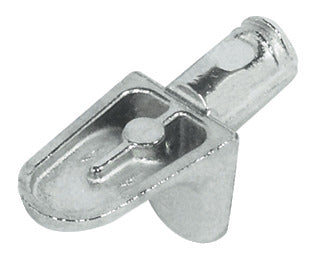

Shelf Support D5mm Plug 125kg ZA NP
Part Number: 282.24.710
Zinc alloy, Nickel plated
Price:
£10.02
Per 100 Pack
Note on load bearing capacity 12.5 kg per piece, i.e. 50 kg load bearing capacity when using 4 shelf... Read More
Product Information
Product Details
Note on load bearing capacity
12.5 kg per piece, i.e. 50 kg load bearing capacity when using 4 shelf supports
Tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test

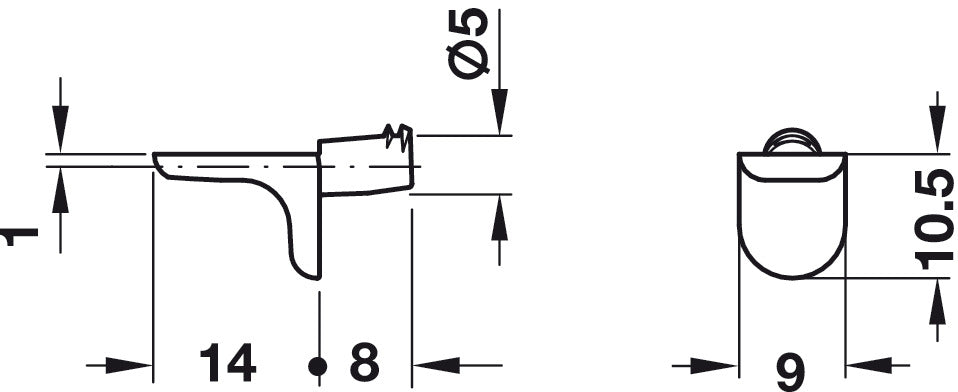

Specifications
Application
For wooden shelves
Colour/finish
nickel plated
Installation
For Mounting in drilled hole
For drill hole Ø
5.00 mm
Support size
1.00 mm
Pin length
8.00 mm
Version
Without shelf security feature
With twin grooves
Material
Zinc alloy
Load bearing capacity per item
12.50 kg
Load bearing capacity with 4 shelf supports
50.00 kg
