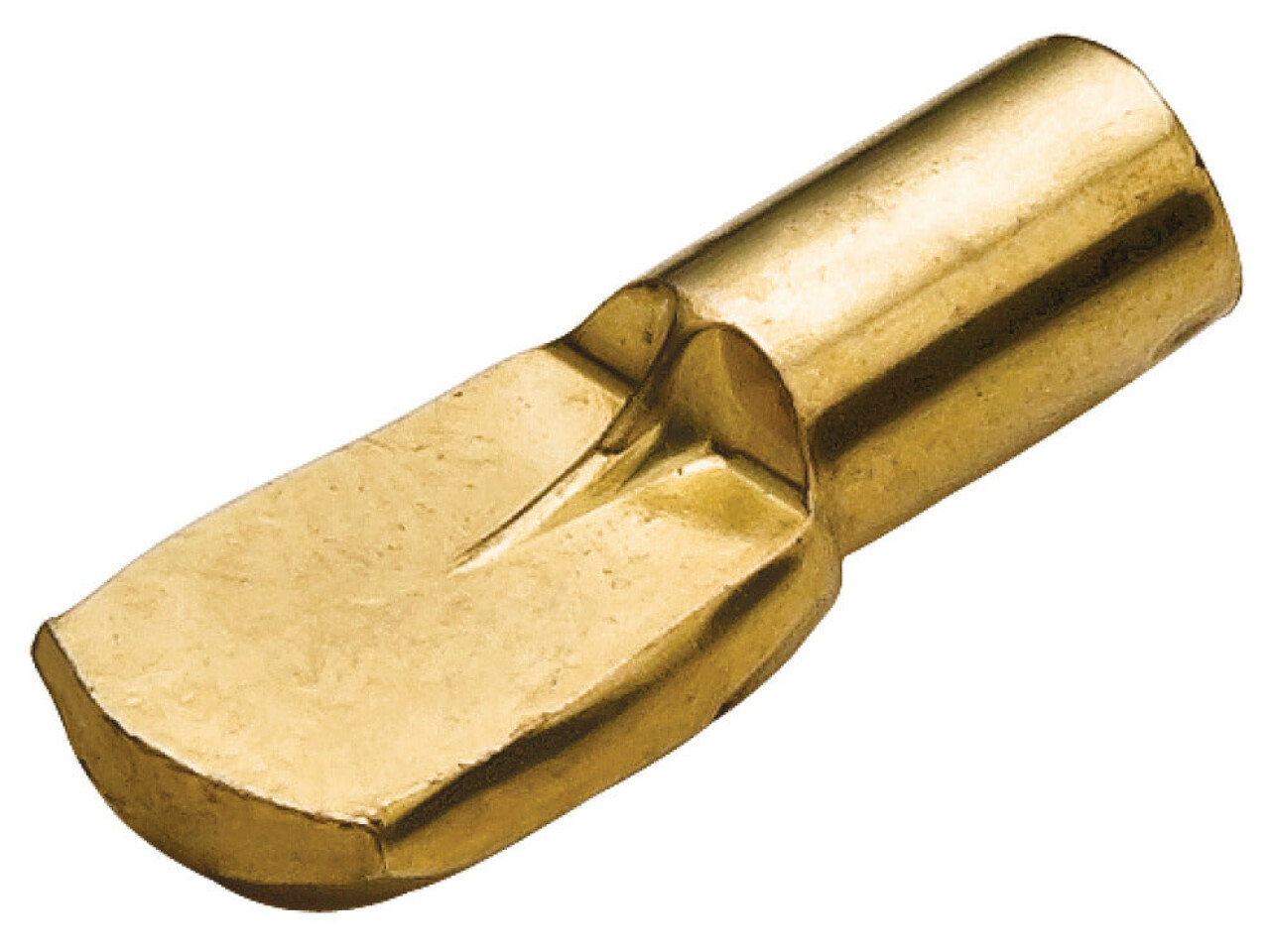

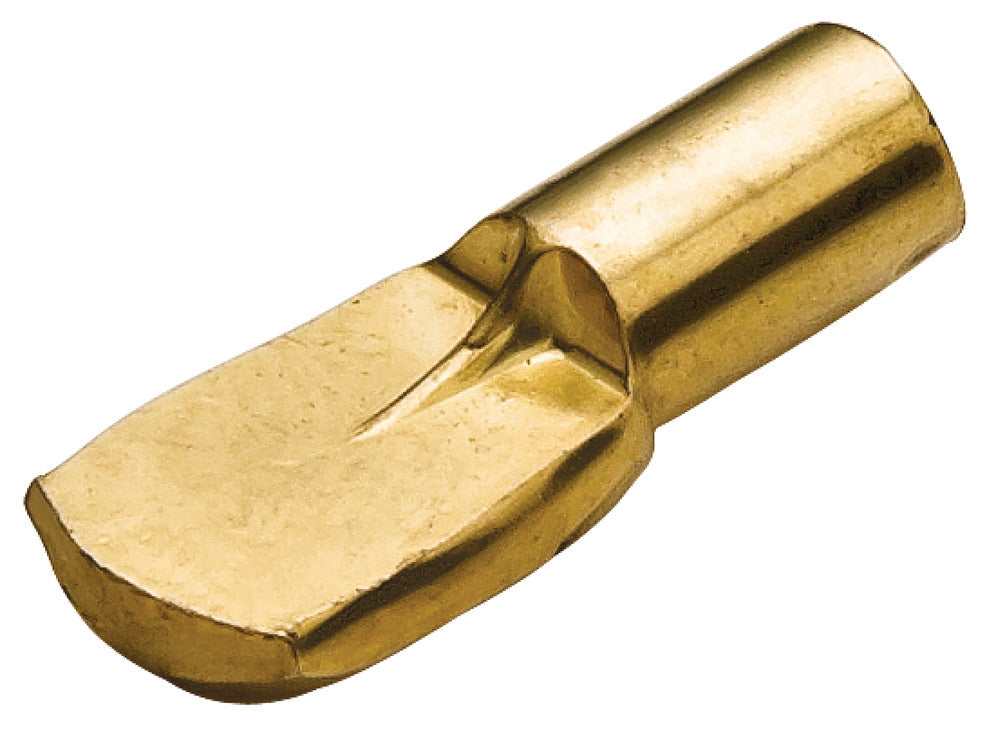

Shelf Support D5mm Plug St BP
Part Number: 282.04.512
Load-bearing capacity 80 kg, Brass plated
Price:
£3.67
Per 100 Pack
Note on load bearing capacity Load carrying capacity applies to 4 shelf supports bearing an evenly distributed... Read More
Product Information
Product Details
Note on load bearing capacity
Load carrying capacity applies to 4 shelf supports bearing an evenly distributed load. Testing was carried out according to DIN EN 1727: 1998-06 “Mechanical safety requirements for shelf supports"
Specifications
Application
For wooden shelves
Colour/finish
Installation
For insert fitting

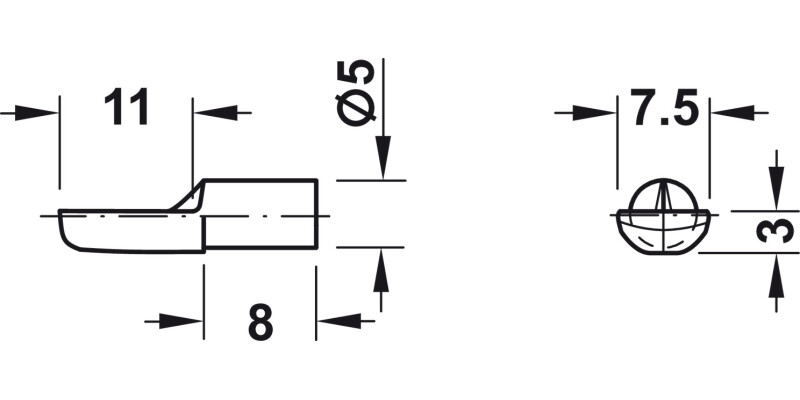

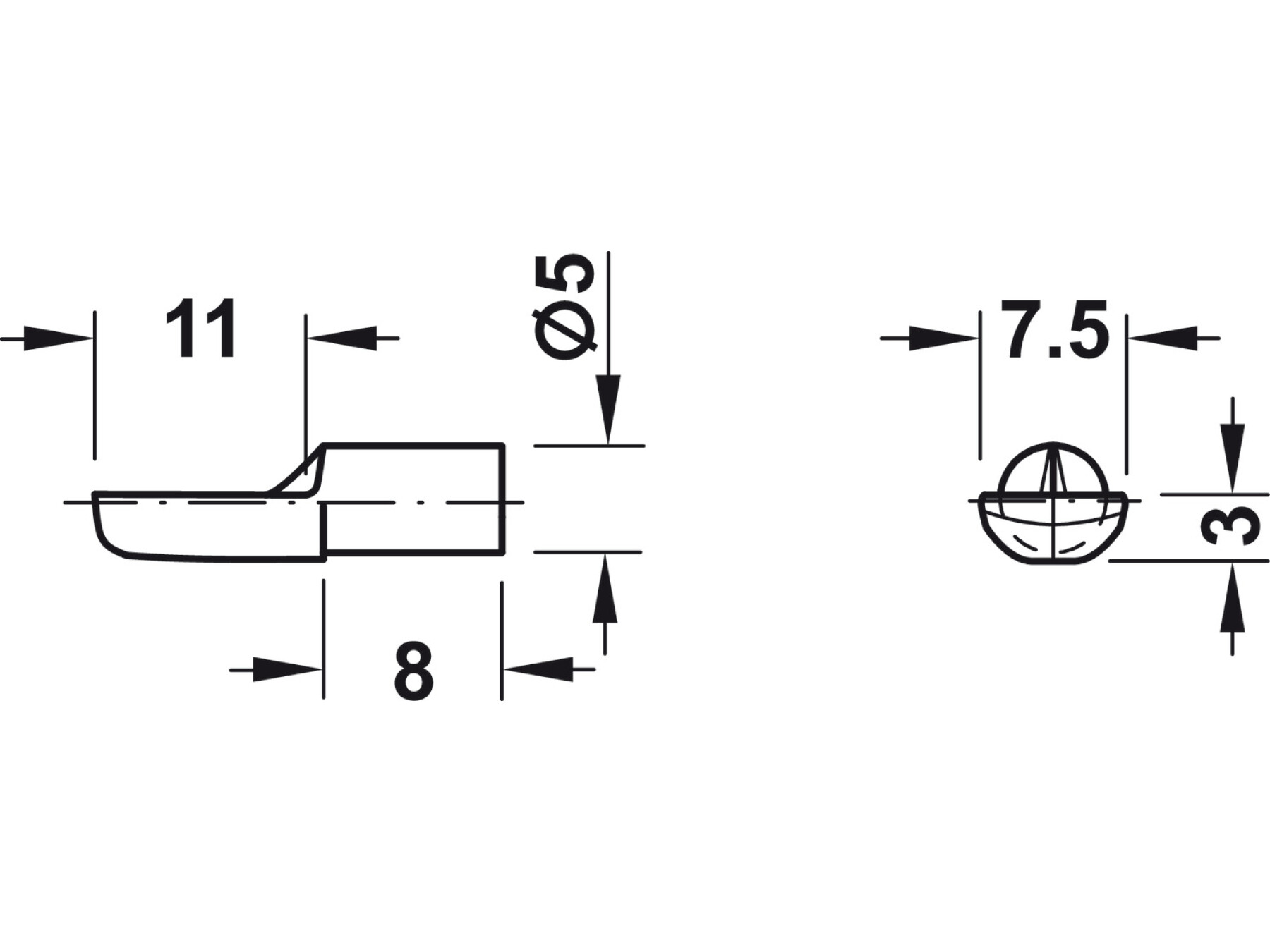

For drill hole Ø
5.00 mm
Pin length
8.00 mm
Version

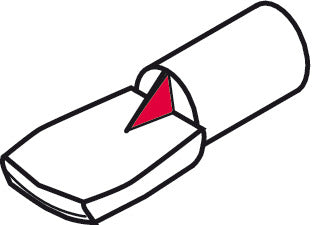

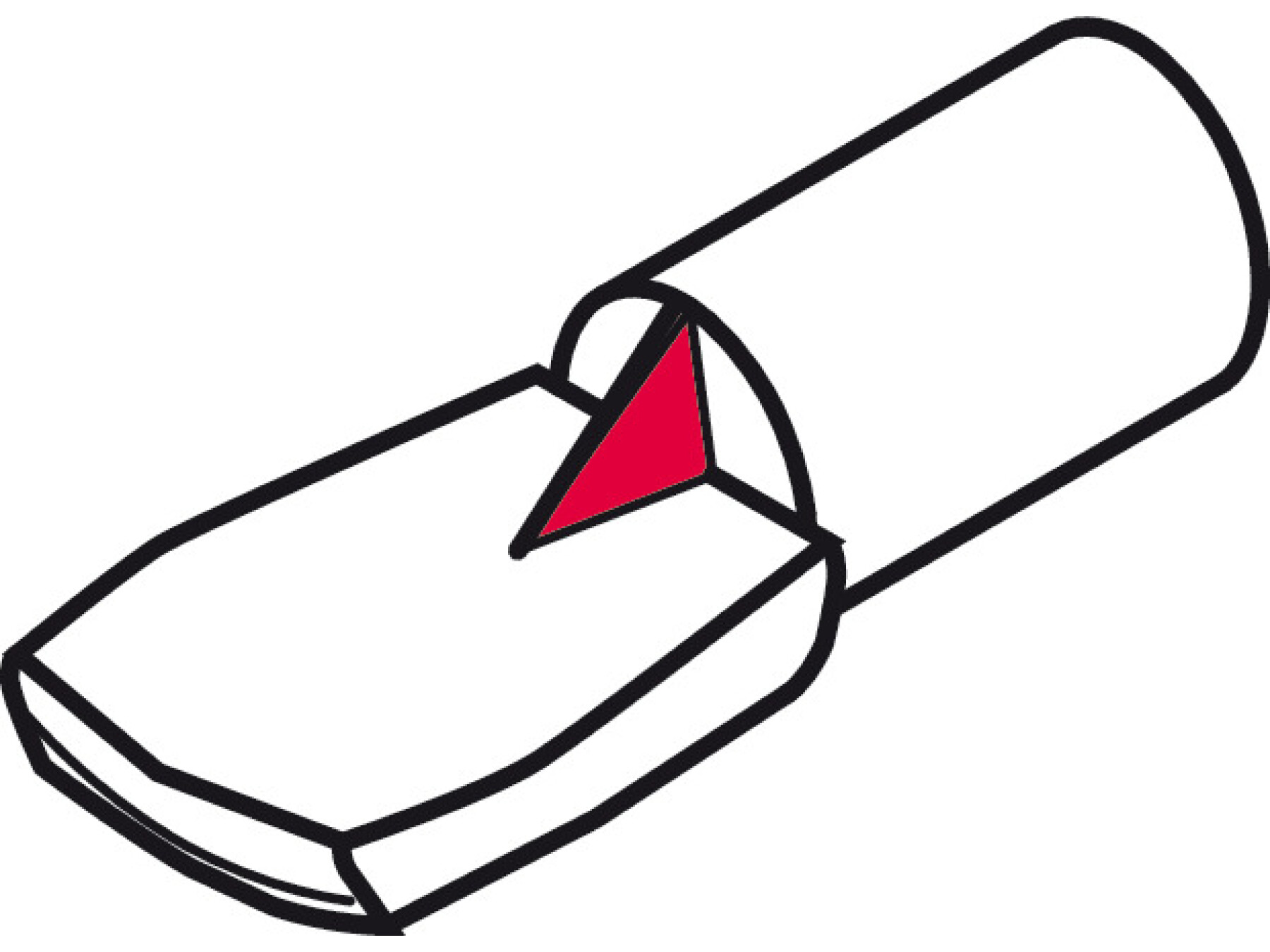

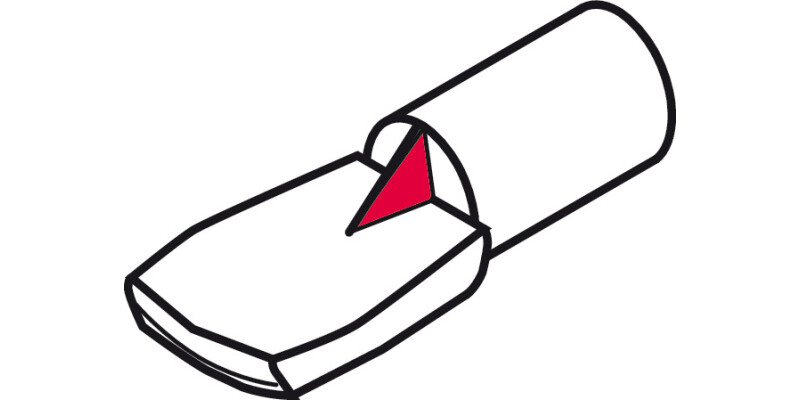

Fin on shelf support cuts into the shelf and reduces the possibility of movement
Material
Steel
Load bearing capacity with 4 shelf supports
80.00 kg
