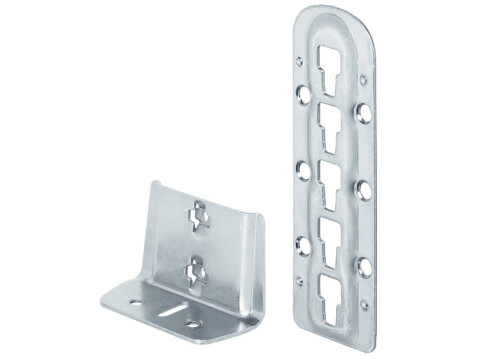

Bed Fitting SF Adjustable St Blue Galv
Part Number: 273.41.550
Steel, Height: 140 mm, blue galvanized
Price:
£1.13
Per Item
AdjustableFor single or double bedsSupporting fitting, also suitable for securing central tie bars by reversing... Read More
Product Information
Product Details
Adjustable

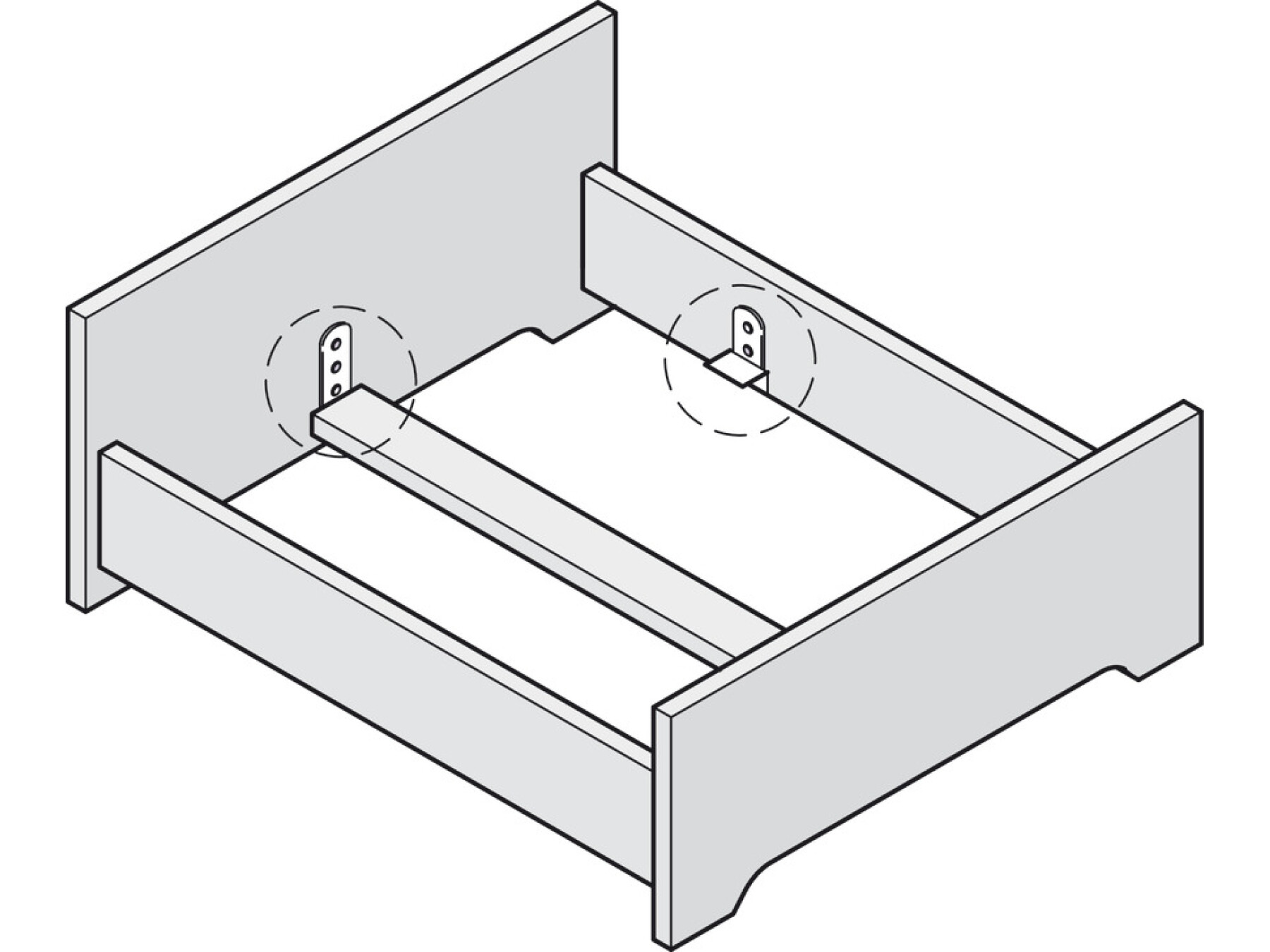

For single or double beds

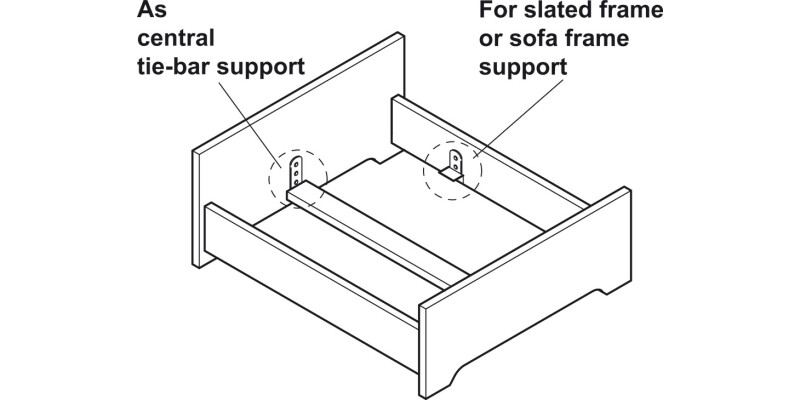

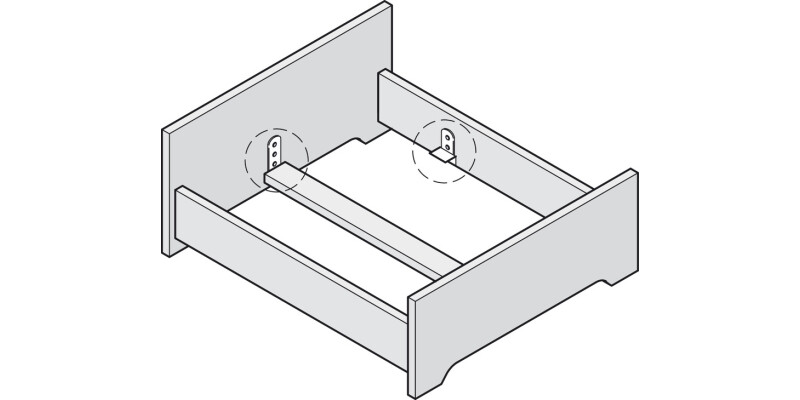

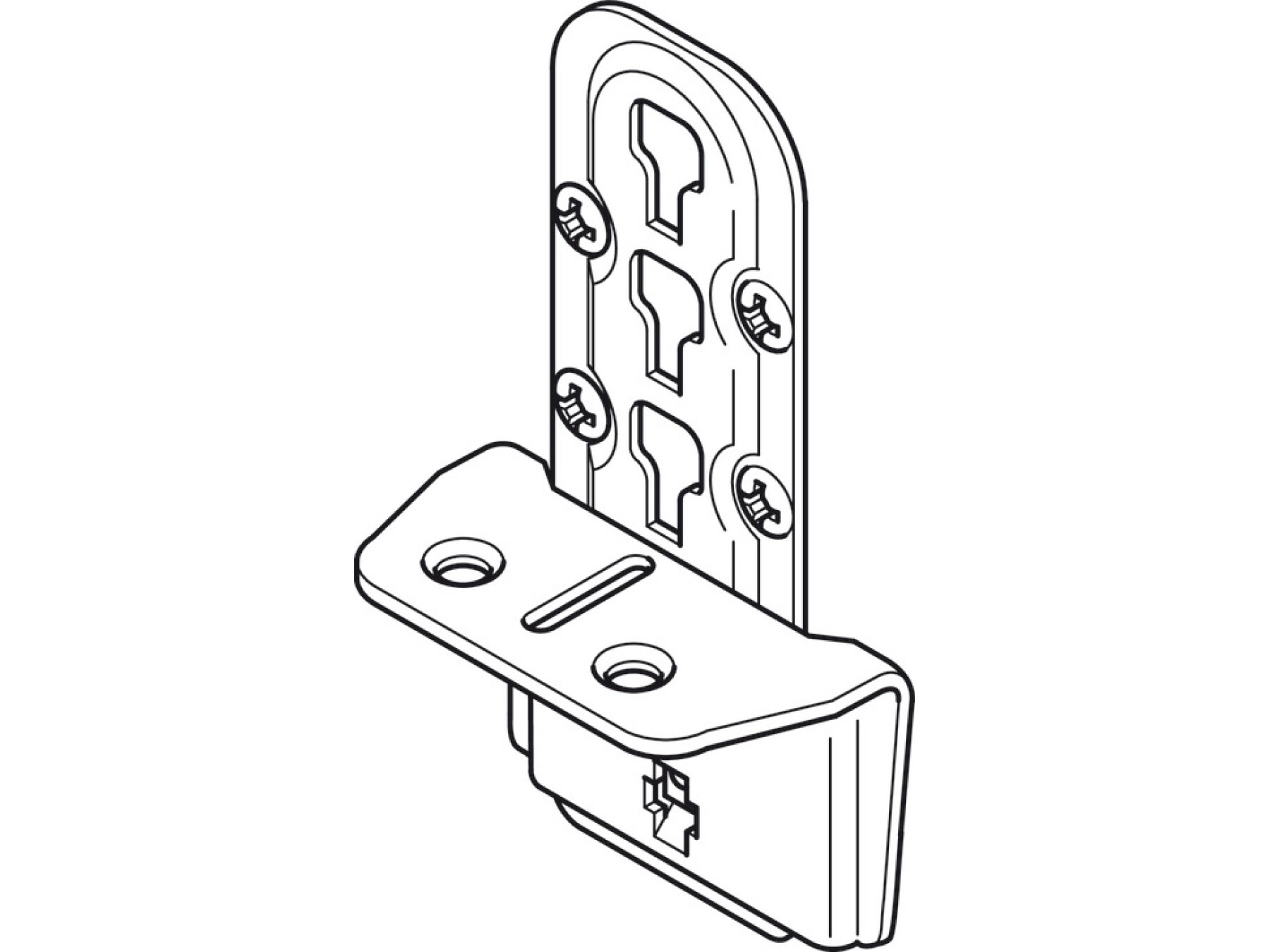

Supporting fitting, also suitable for securing central tie bars by reversing the bracket
Allows for the retrospective adjustment of slatted bases for mattresses and upholstered furniture
Installation reference:

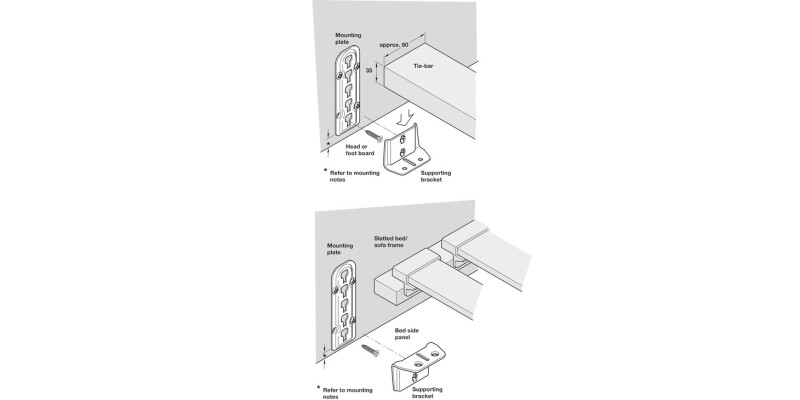

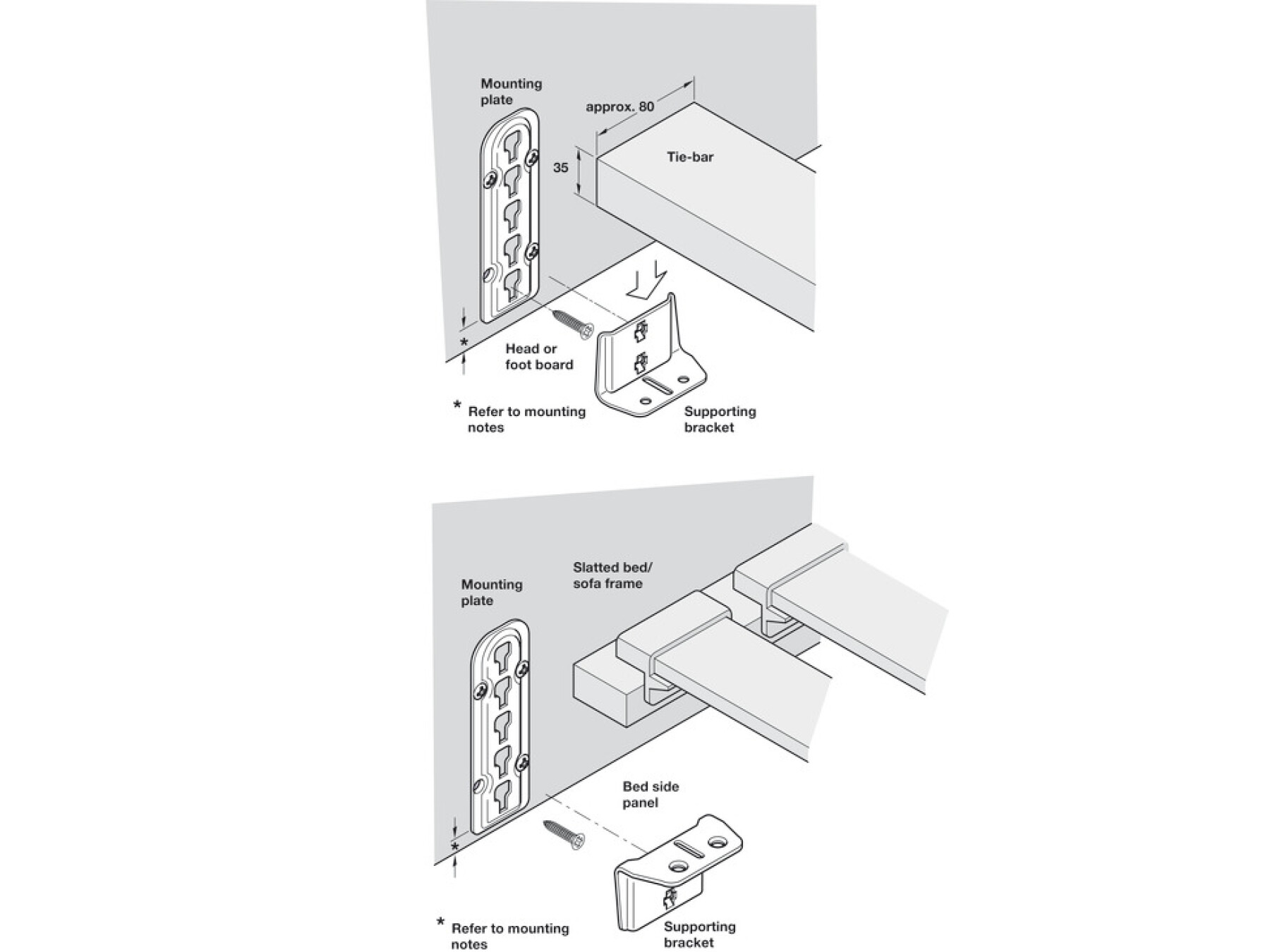

When used on double beds with a 35 mm thick central tie-bar, the mounting plates must be mounted on the head and foot section 5 mm higher than those on the side panels so that the supporting surfaces of the brackets and the central tie-bar are level.
Installation note
When used on double beds with a 35 mm thick central tie-bar, the mounting plates must be screwed to the headboard and the foot section 5 mm higher in comparison to the side panels so that the supporting surfaces of the bracket and the central tie-bar are on one level.

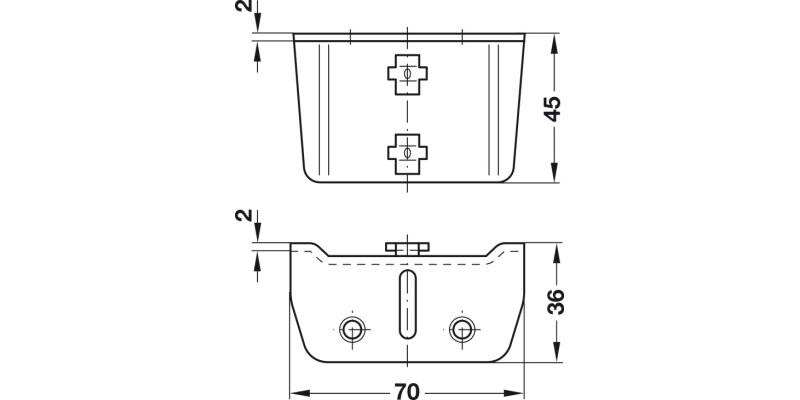

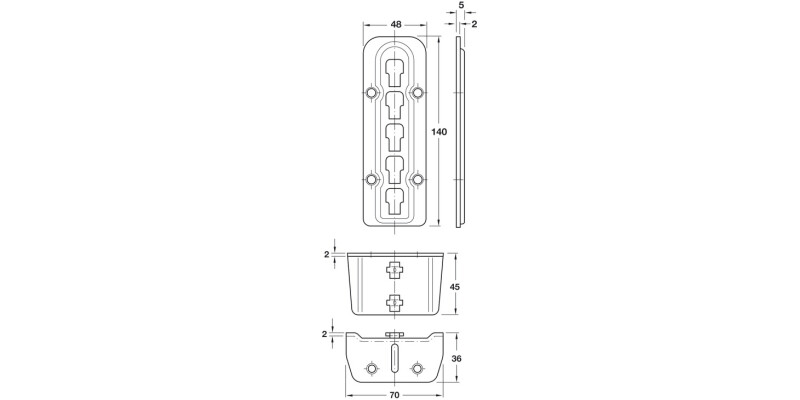

Specifications

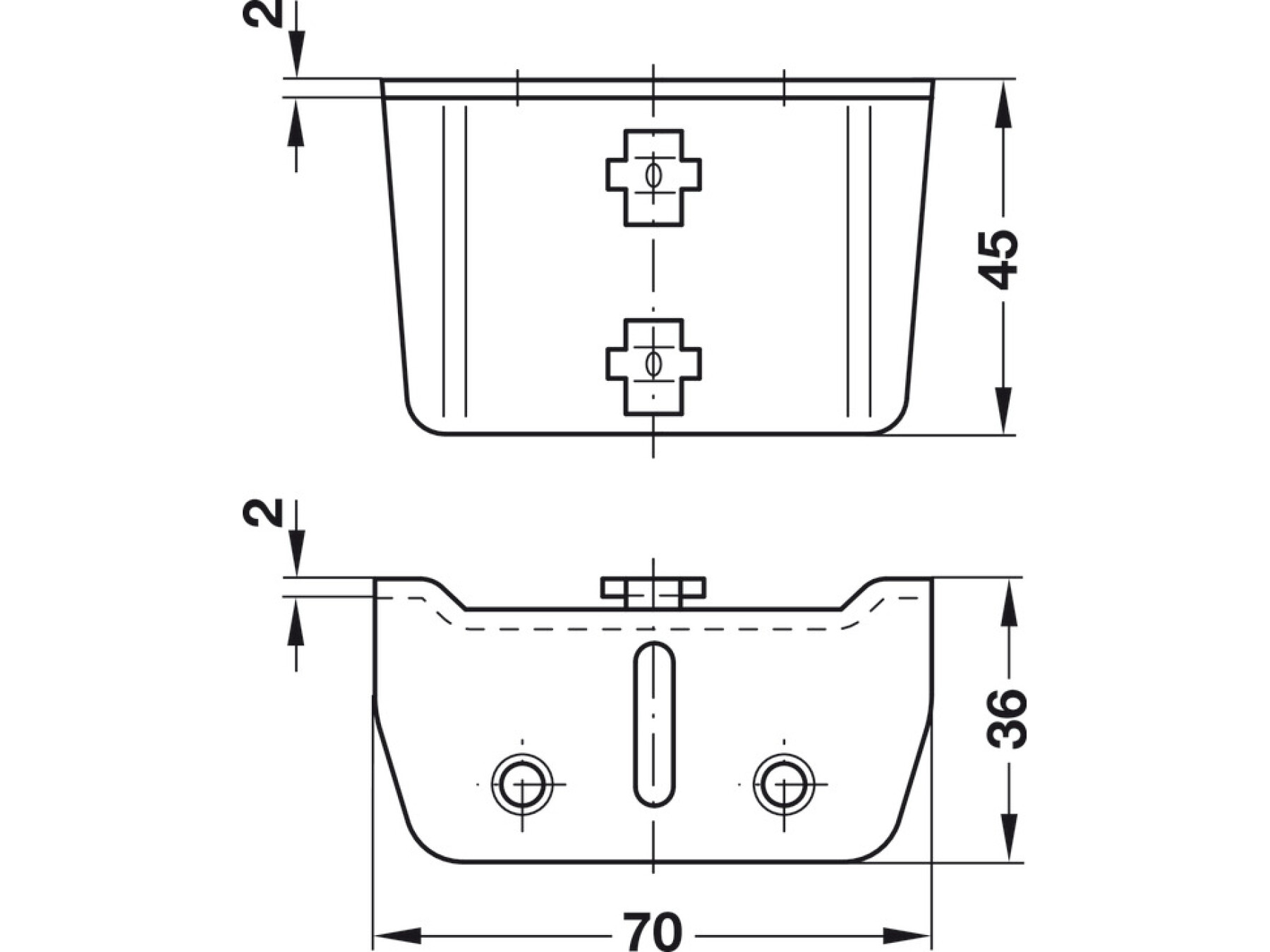

Height
140.00 mm
Colour/finish
blue zinc plated
Area of application
Bed connecting fittings
Material
Steel
Adjustment facility
Height can be adjusted triple, four snap-in settings
Installation
For screw fixing
Bed connector type
central-tie bar, slatted frame
Order reference
Fixing screws to be ordered separately
Supplied with

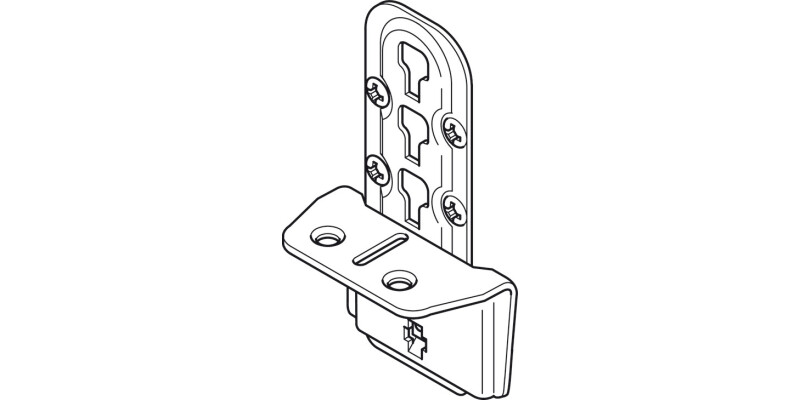

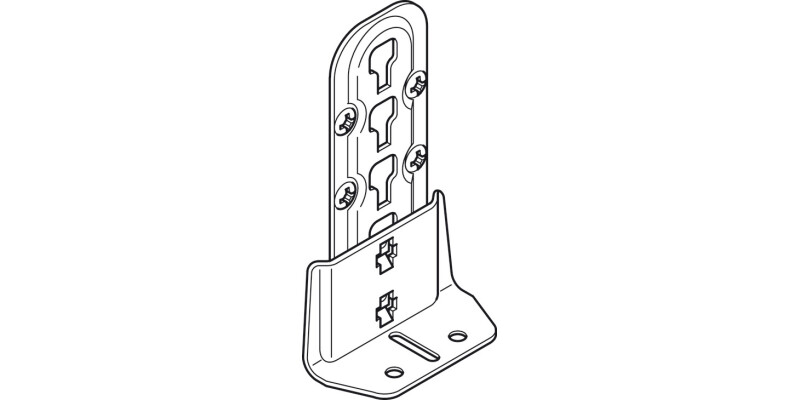

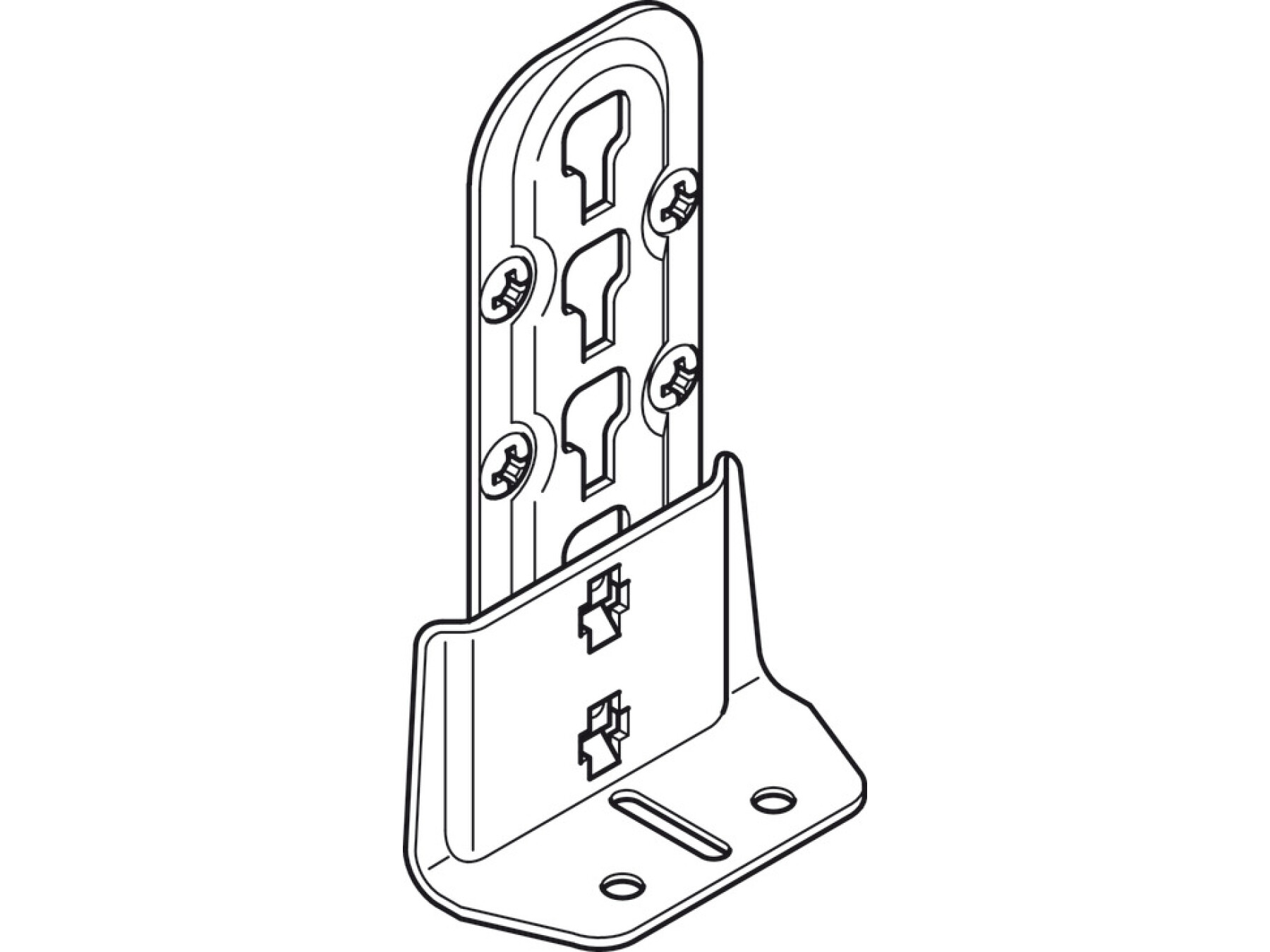

Set consists of:
1 x mounting plate
1 x bracket support
Warranty/Guarantee information
