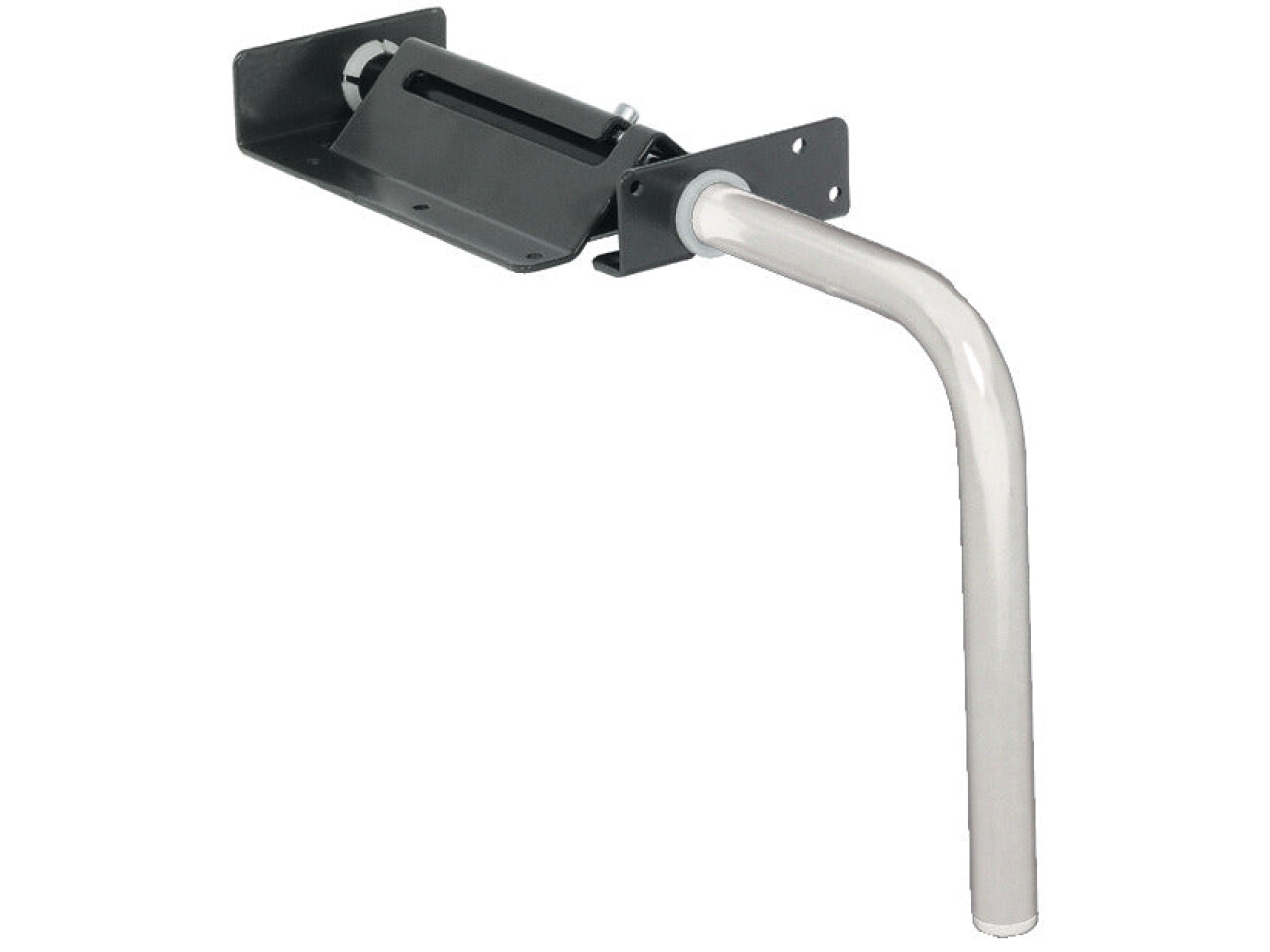

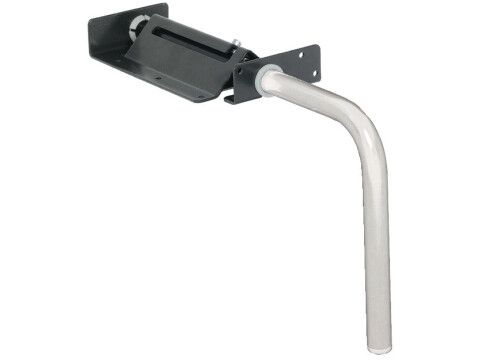

Bed Lift Folding Feet
Part Number: 271.95.361
Steel, Anthracite RAL 9011 finish
Price:
£135.41
Per Item
Folding feet are necesssary to support the bed when loweredThe L-shaped foot is extended and turned through... Read More
Product Information
Product Details
Folding feet are necesssary to support the bed when lowered

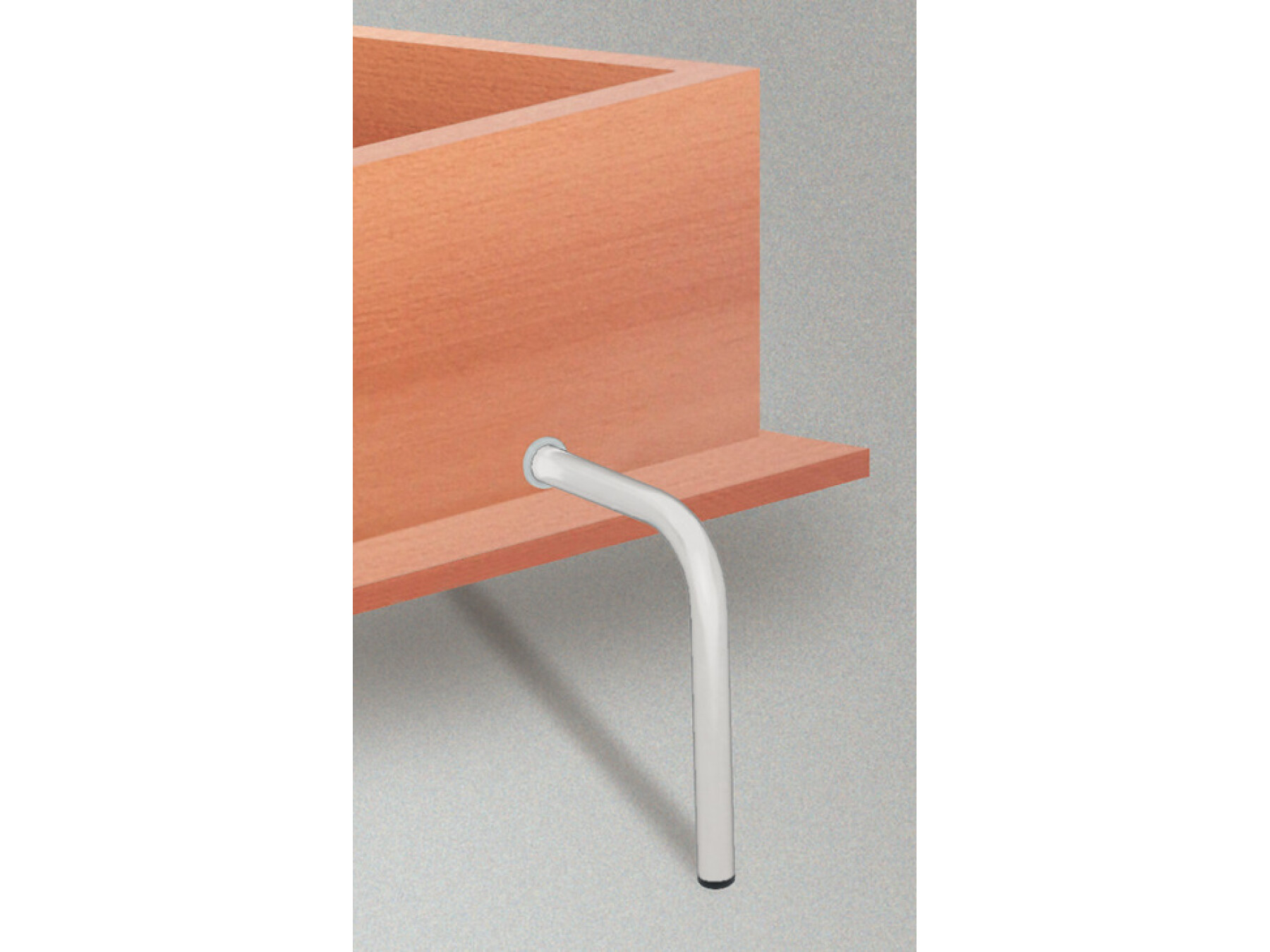

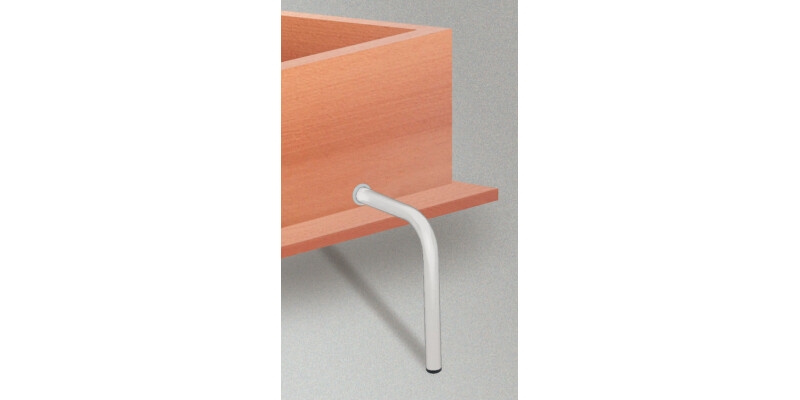

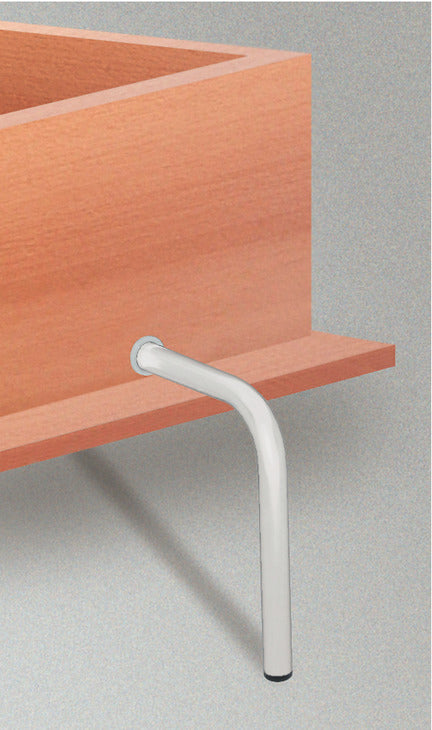

The L-shaped foot is extended and turned through 90° when the bed is lowered and returned in the reverse manner when the bed is stowed

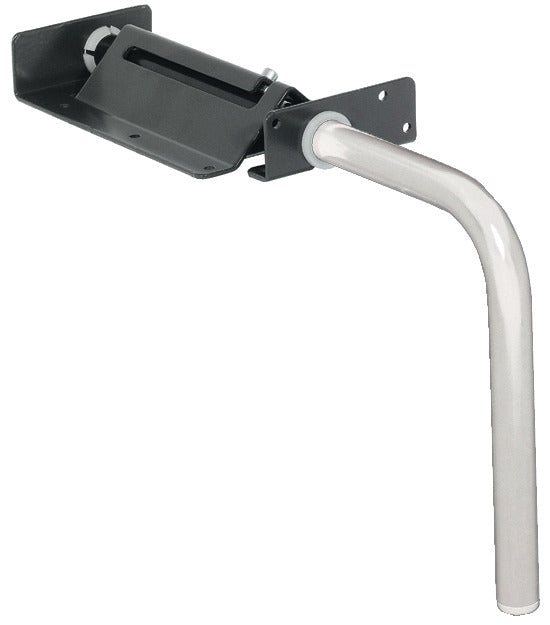

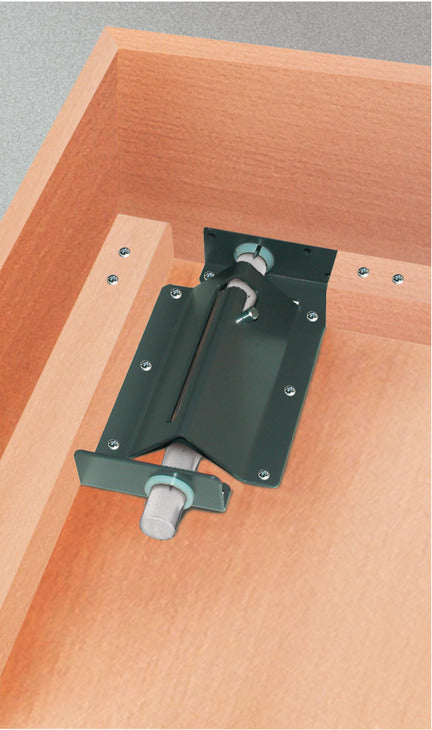

The guide tube incorporates a mounting plate which is screw mounted to the inside of the wooden frame or bed panel
Colour/finish
Mounting plate: Black, RAL 9011
Angular bracket: White aluminium, RAL 9006, Silver RAL 9006 tube, anthracite RAL 9011 fitting
Installation note

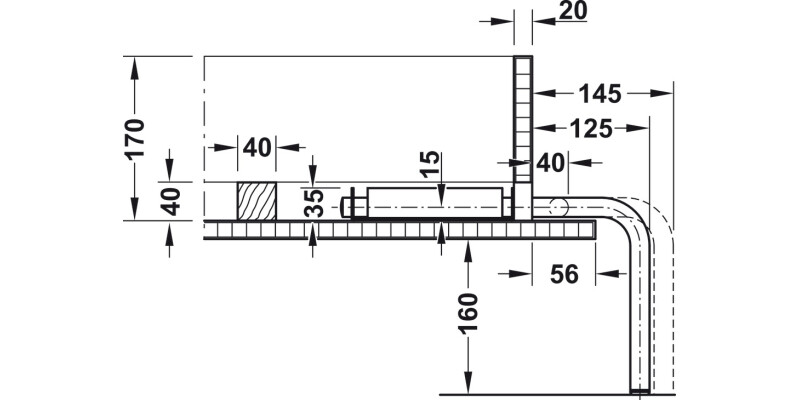

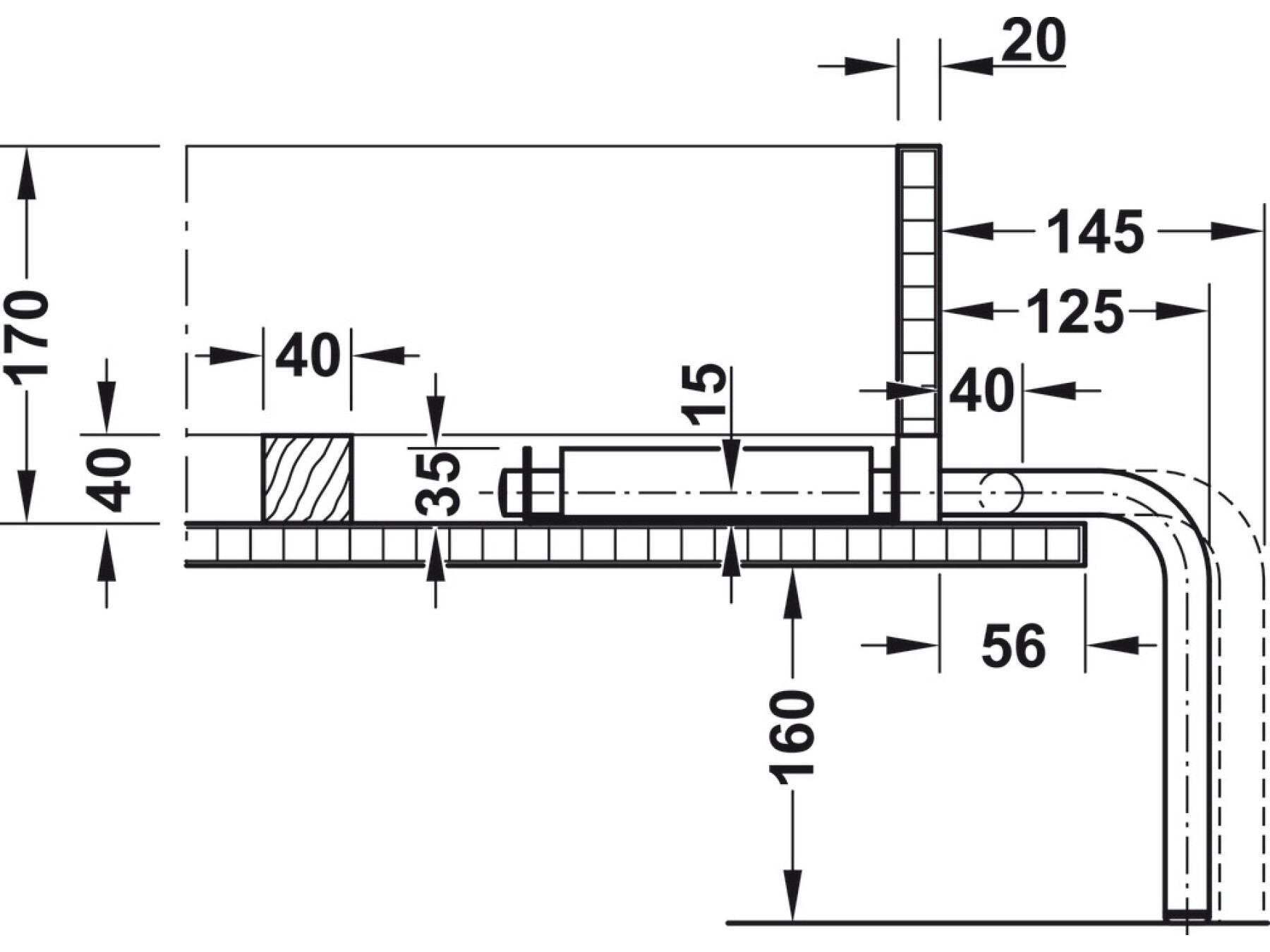

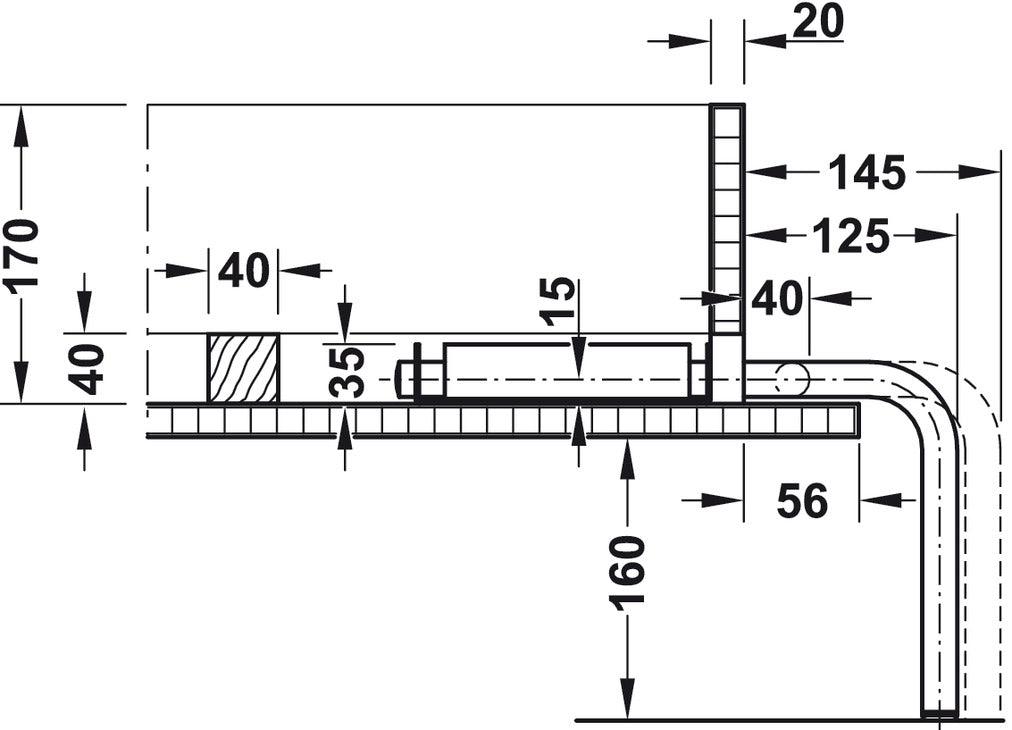

Screw the mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.
Screw mounting plate of the angular bracket to the foot of the bed frame and the rear of the front panel. Attach squared timber measuring at least 40 x 40 mm surrounding the frame for the slatted frame support.
Specifications
Area of application
Foldaway bed
Material
Steel
Version
With mounting plate
Installation
Screw fixing
