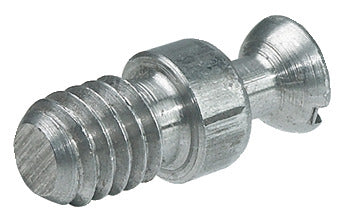

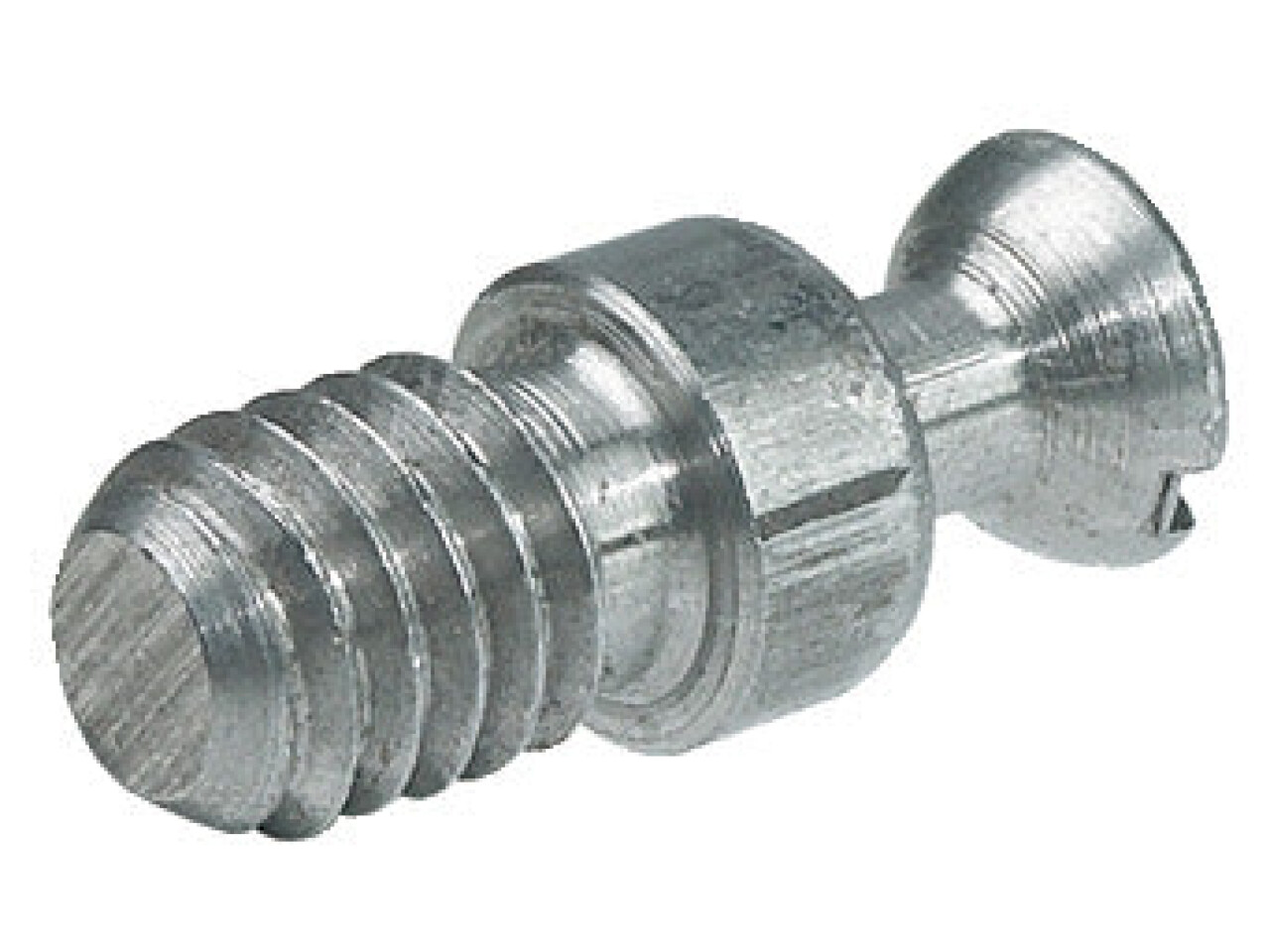

Rafix Connect Bolt M6x7.5mm St Bright
Part Number: 263.21.120
Bright
Price:
£14.52
Per 100 Pack
Area of application For direct screw-in installation in Ø 8 mm holes or for press-fit installation in Ø 10 mm... Read More
Product Information
Product Details
Area of application

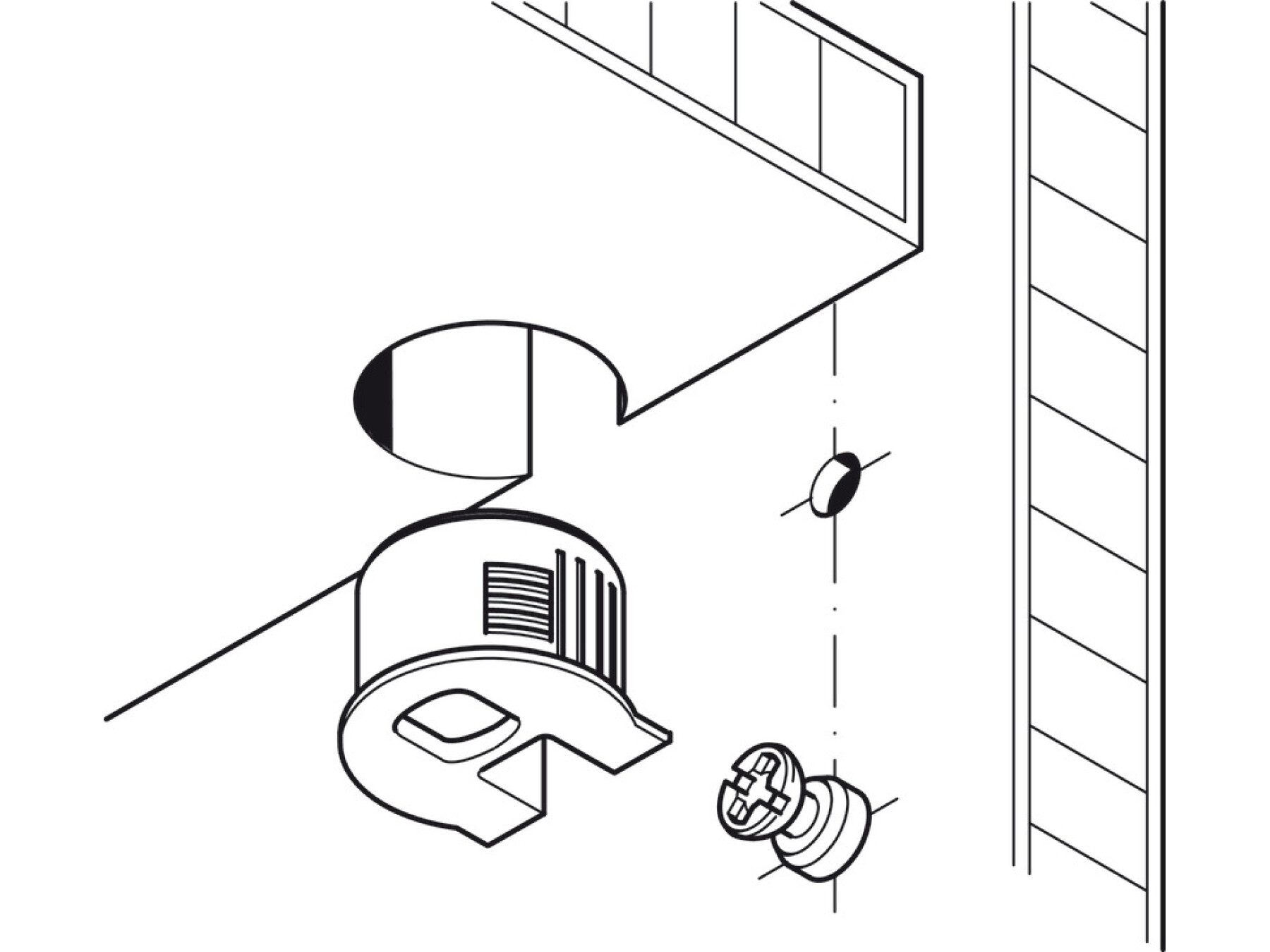

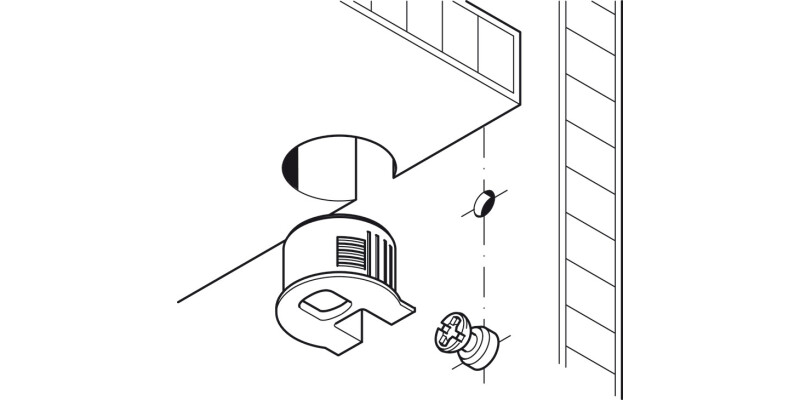

For direct screw-in installation in Ø 8 mm holes or for press-fit installation in Ø 10 mm holes when used with dowels
Order reference
Order Rafix-20 and Rafix-20 TAB housings separately
Red jig, Unitool drilling jig and Variantool-N drilling jig are available if required
Order Screw in sleeves and dowels with M6 internal thread separately
Specifications

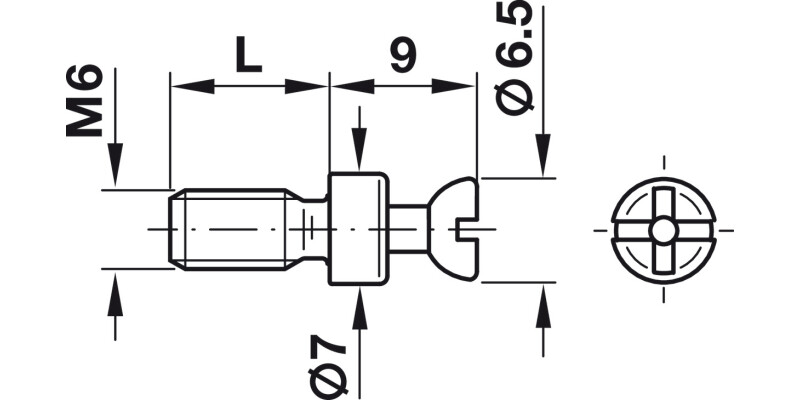

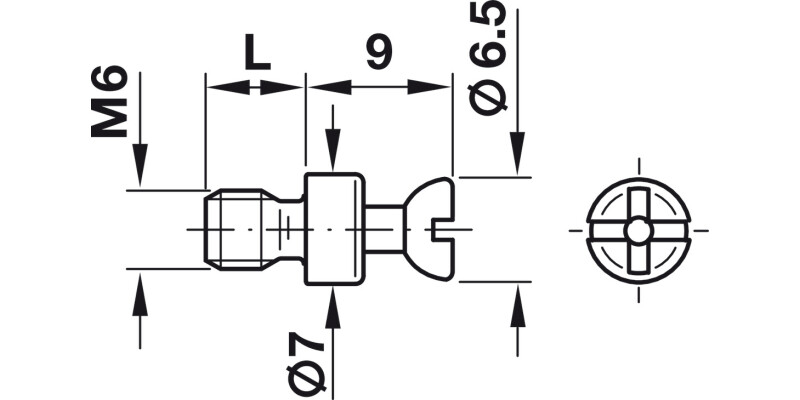

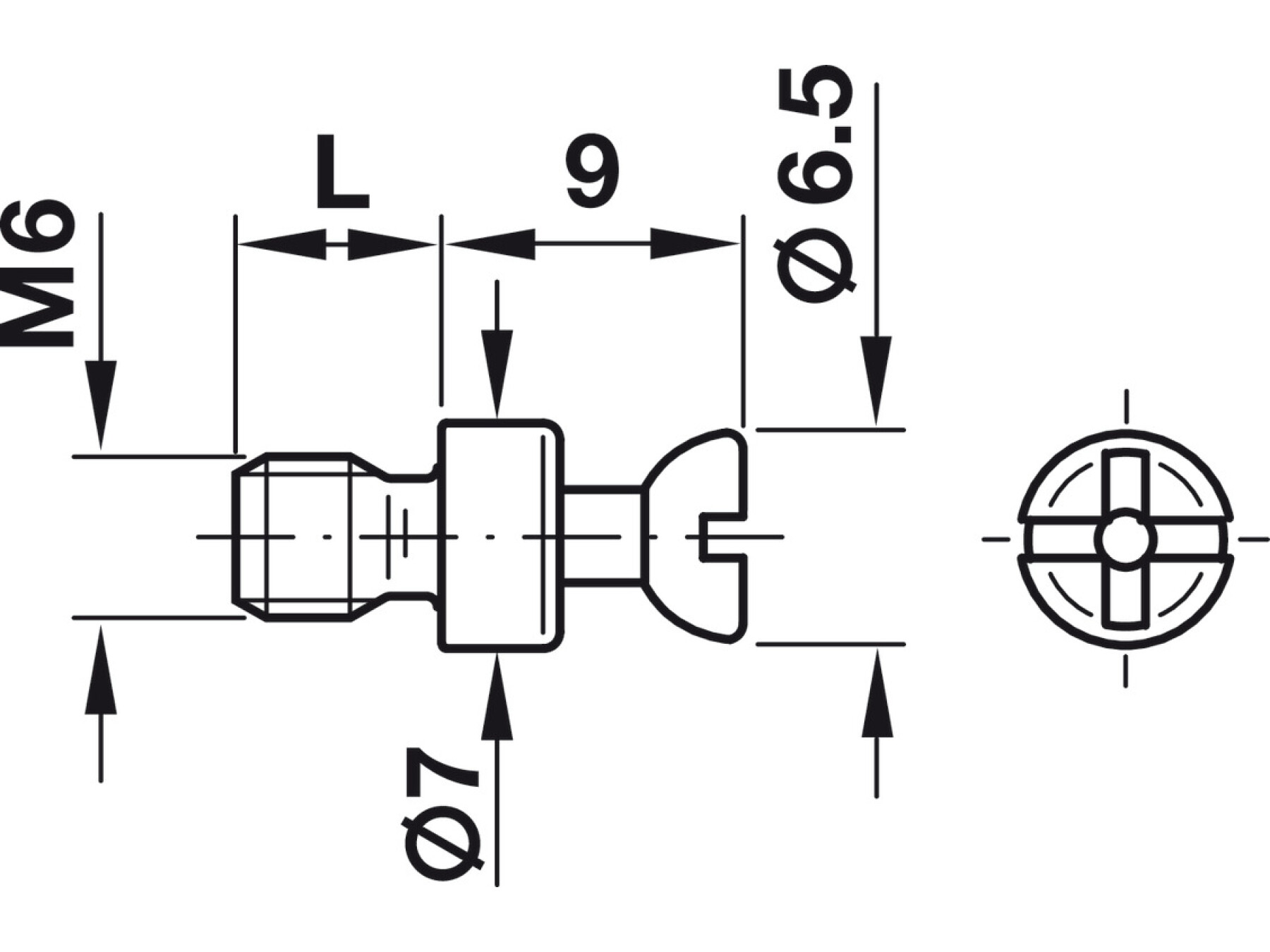

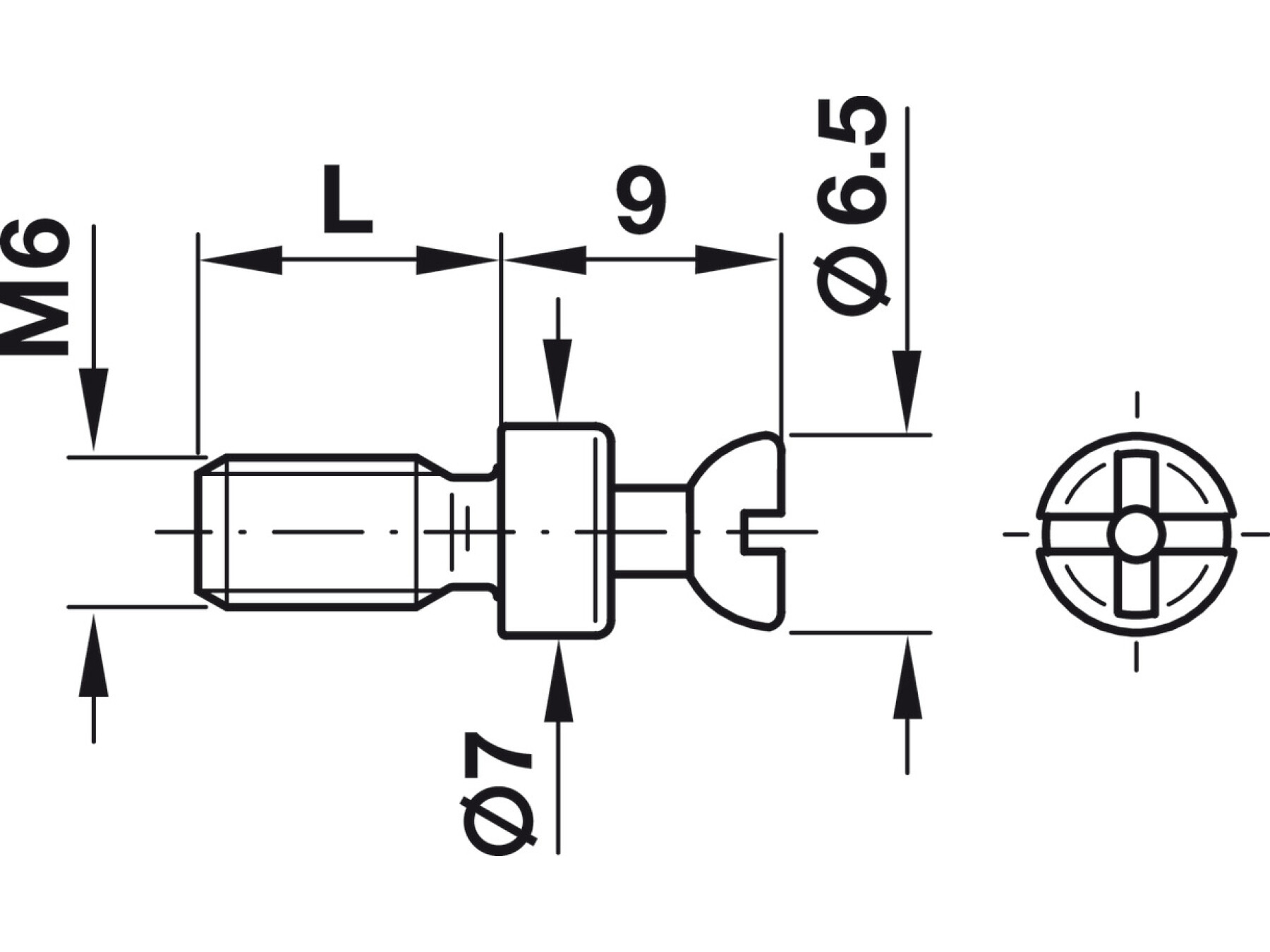

Thread
M6
Thread length
12.00 mm
Colour/finish
blank
Material
Steel
Drive
PZ2 cross slot, Flat blade
Installation

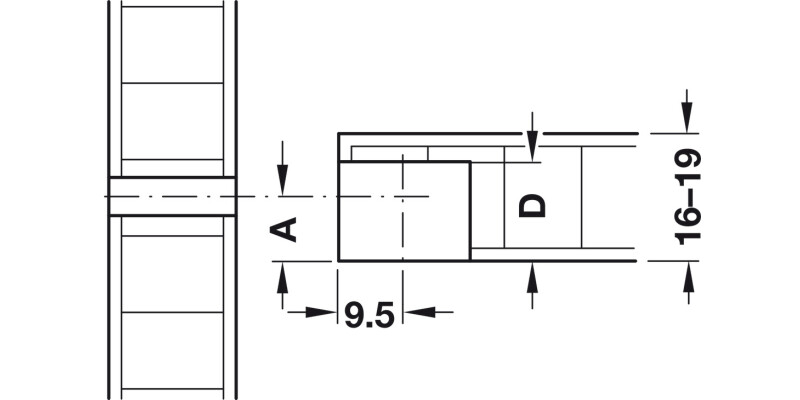

For screwing into sleeves for drill hole Ø 10 mm
