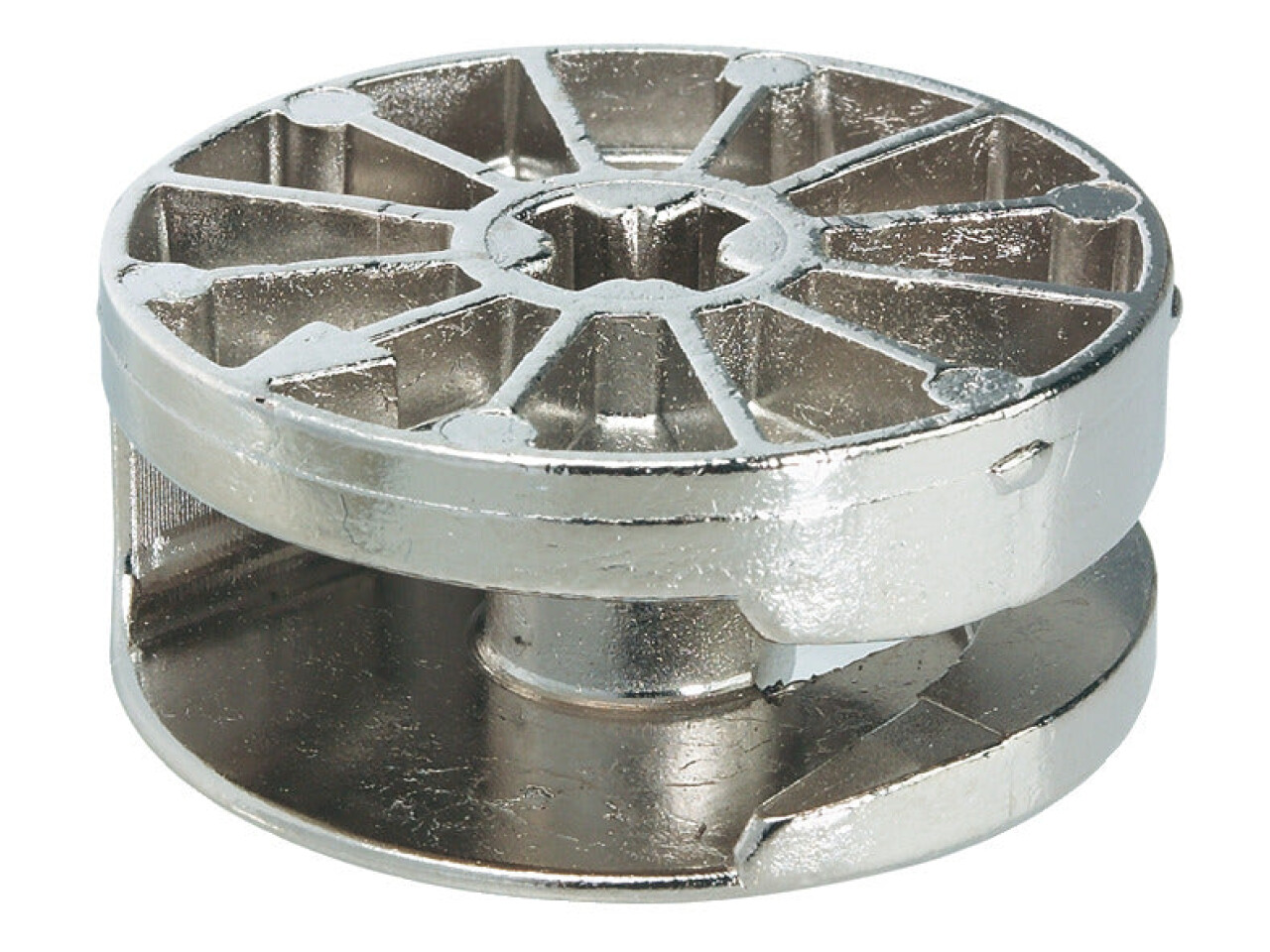

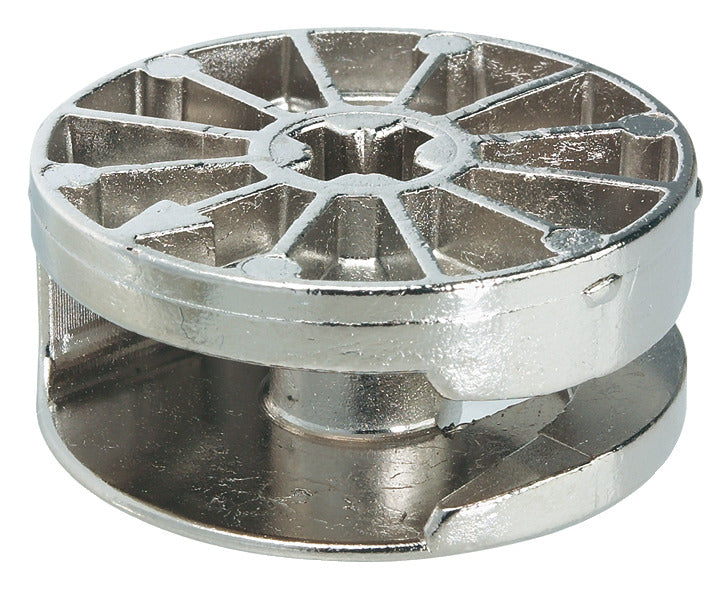

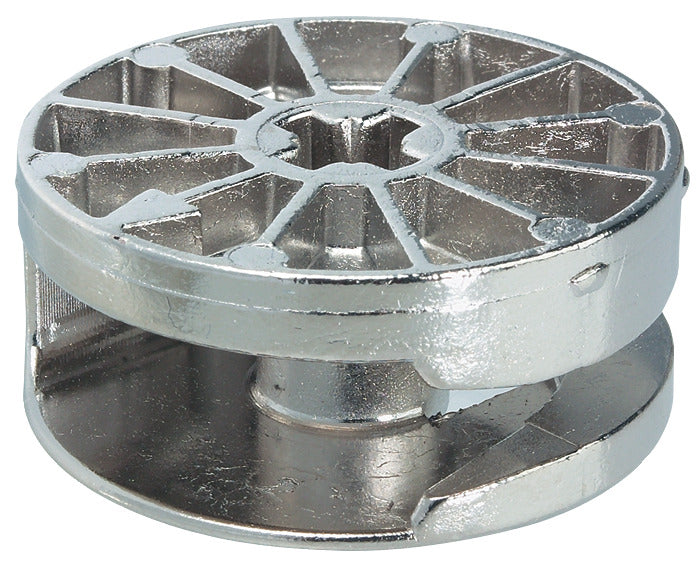

Maxifix Housing PZ3 D35mm ZA NP
Part Number: 262.87.713
PZ3, nickel plated finish
Price:
£0.92
Per Item
The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet... Read More
Product Information
Product Details

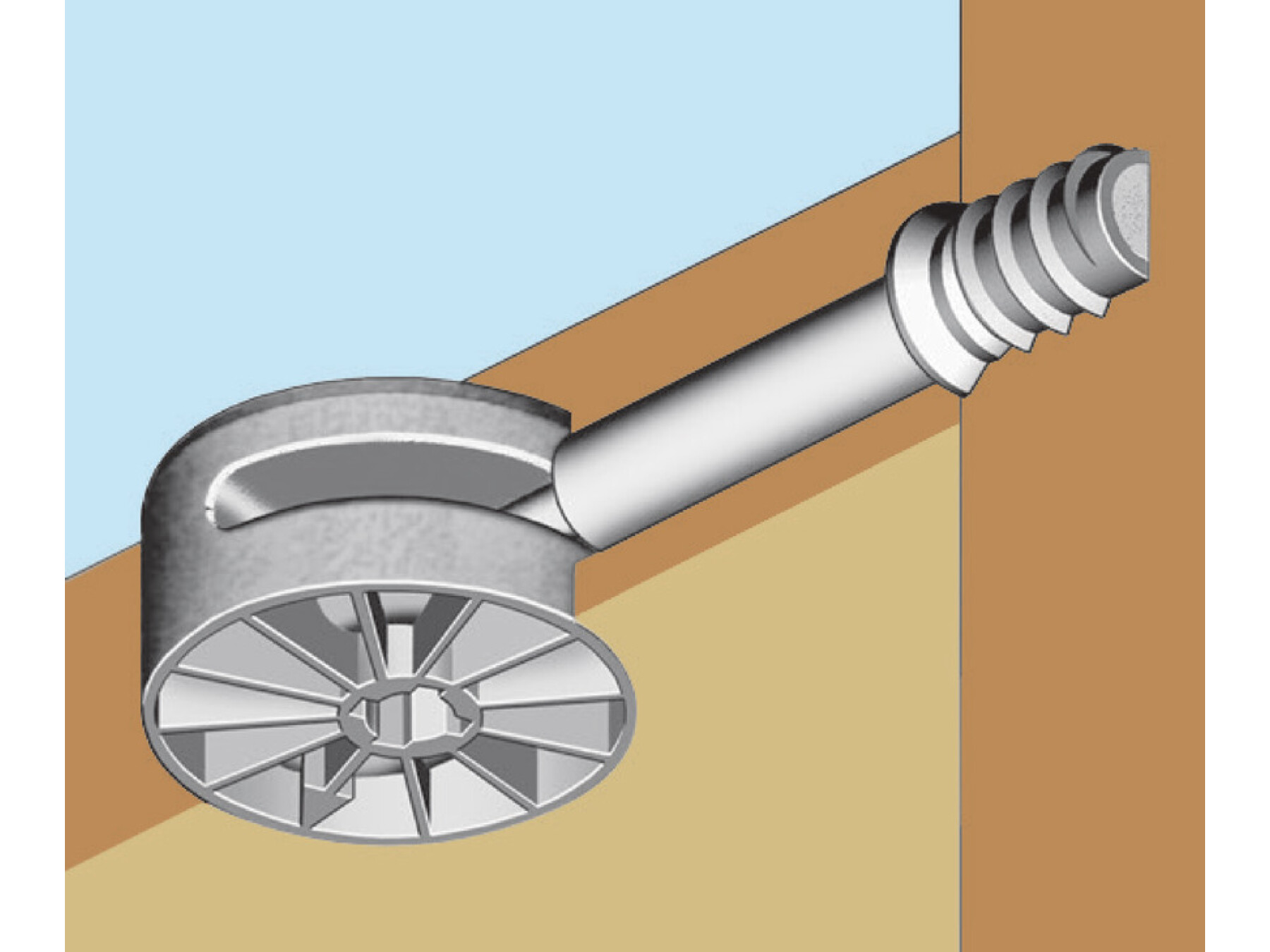

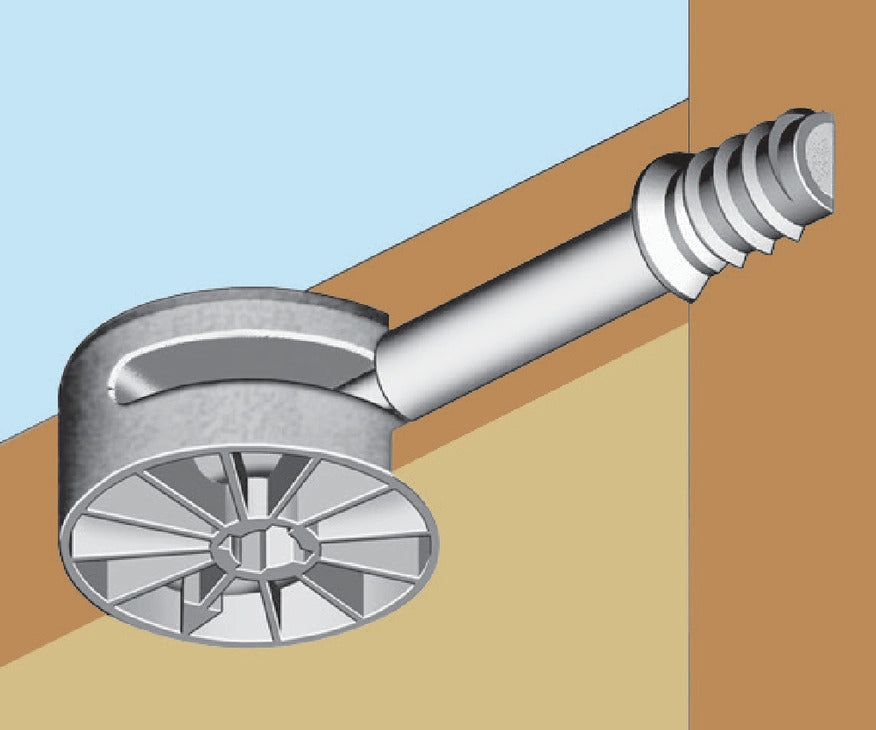

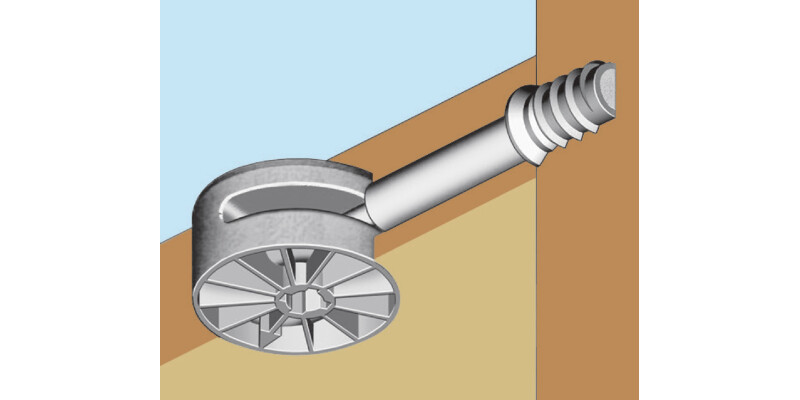

The Maxifix connector system is particularly suitable for permanently load bearing connections, e.g. for cabinet and bedroom construction, as well as in counter or post furniture construction

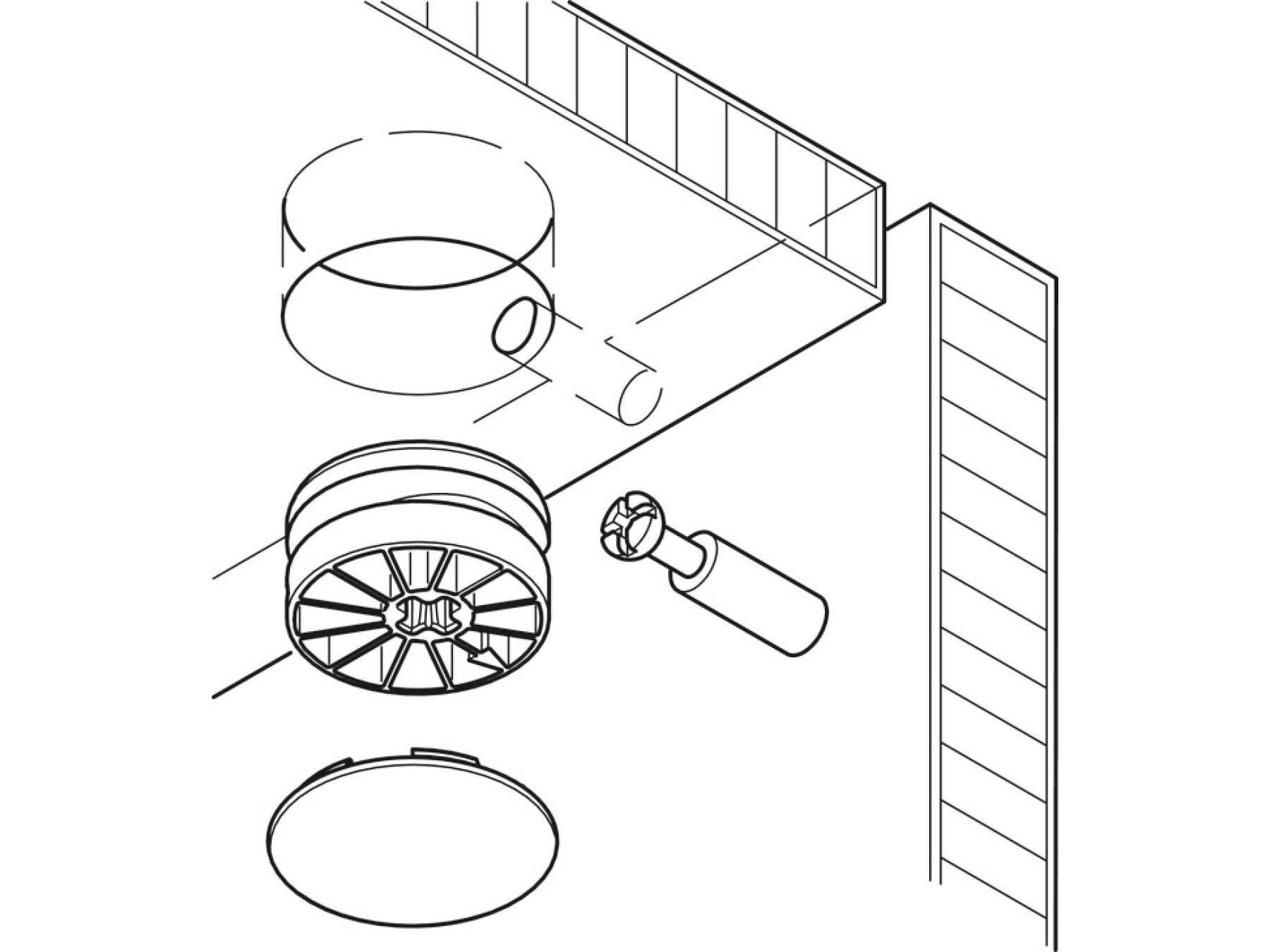

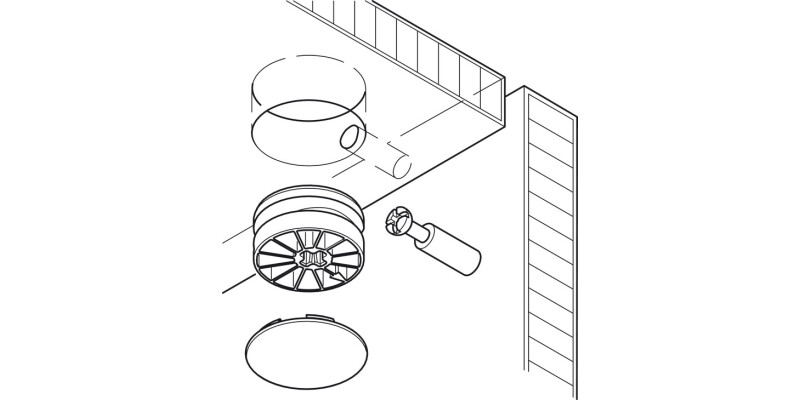

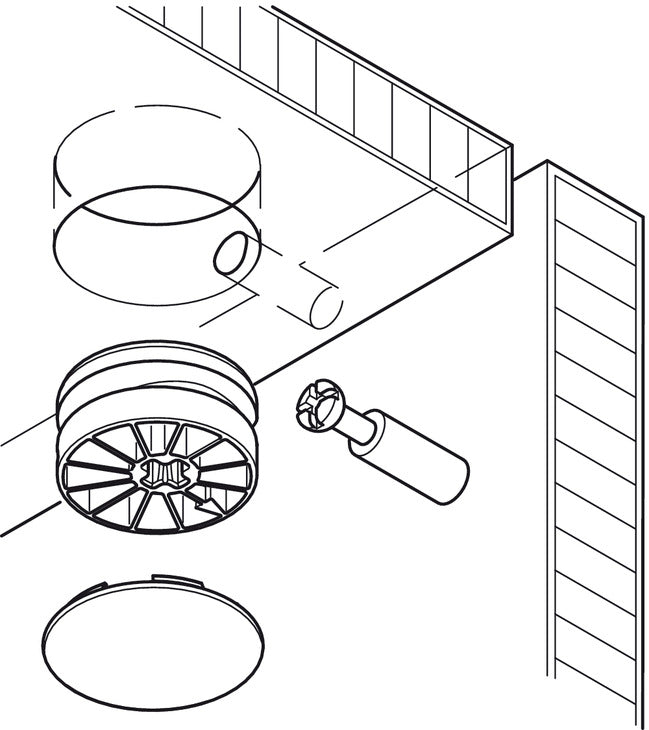

Installation

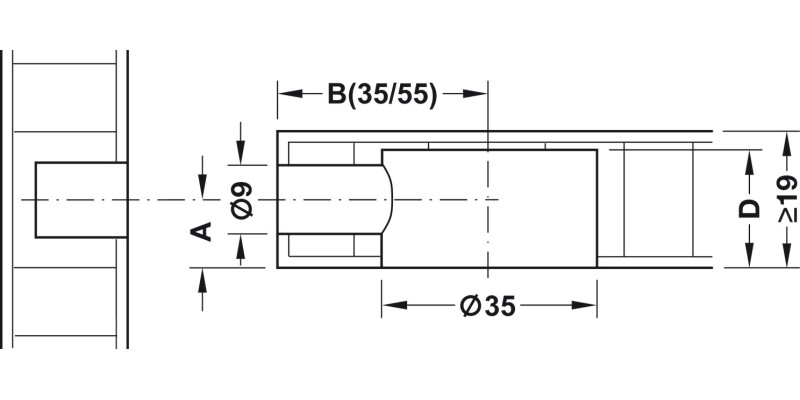

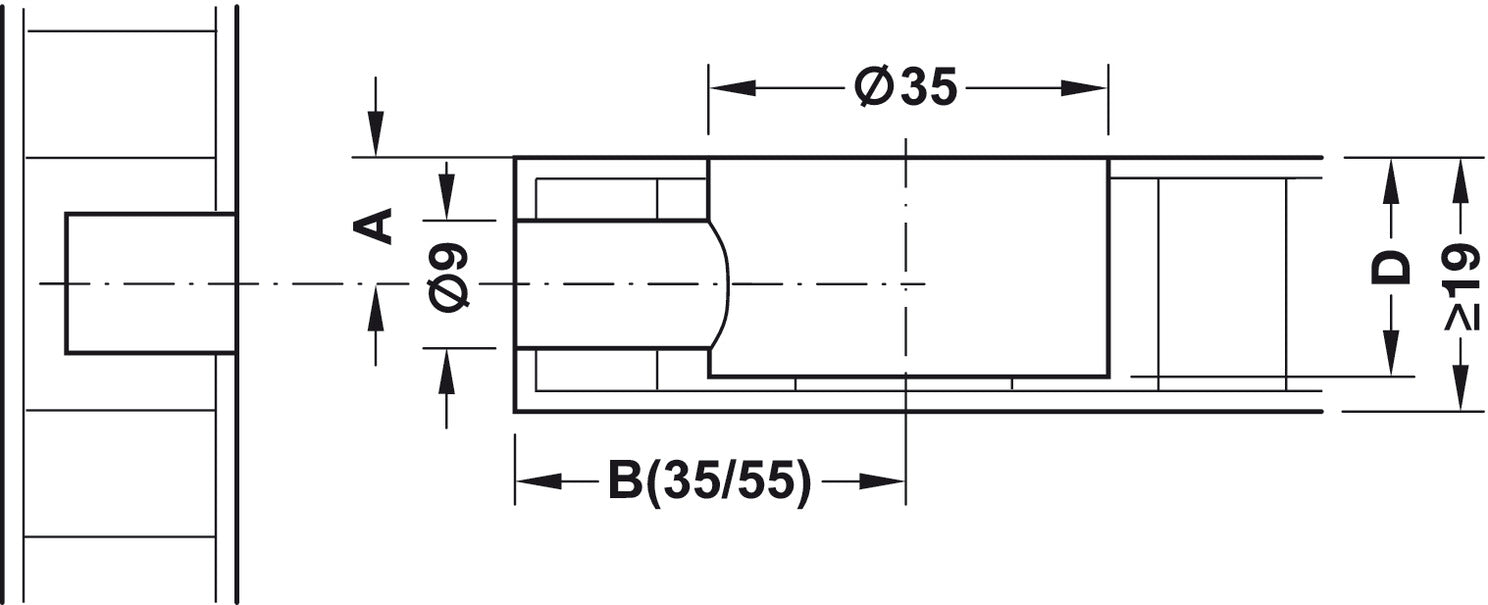

Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness).
Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt.

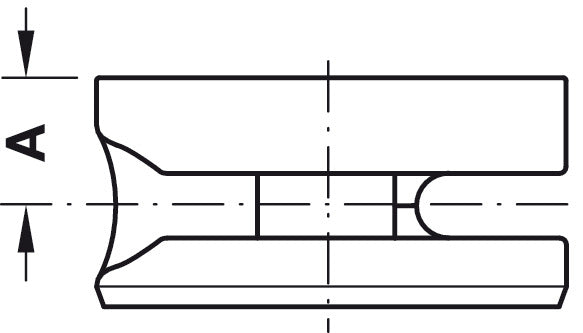

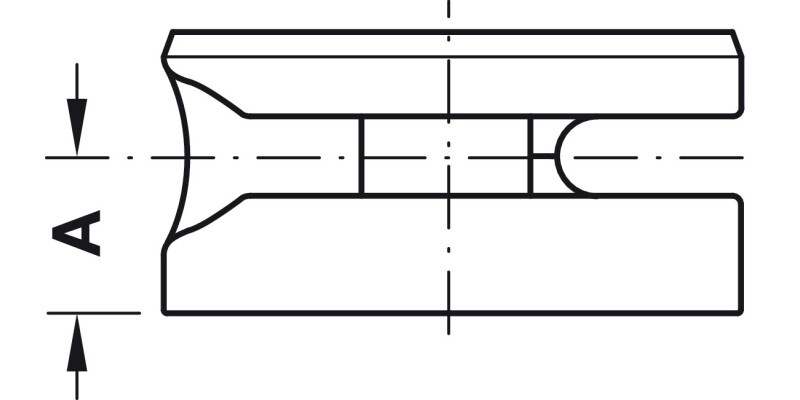

Dimension A: Distance between centre of bolt hole and top edge, corresponds to half of the wood thickness (with 19 mm thick wood).
Specifications
For wood thickness
≥19 mm

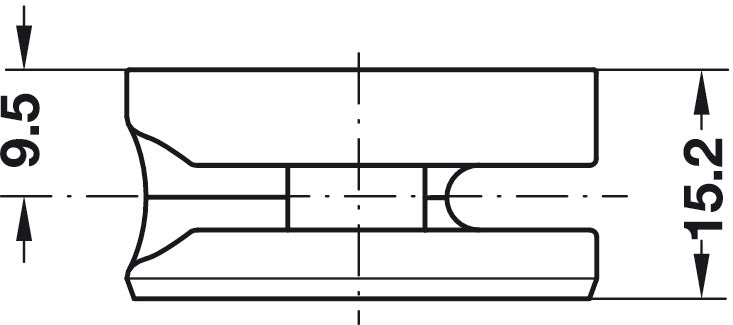

Drilling depth
15.5 mm
Dim. A
9.50 mm

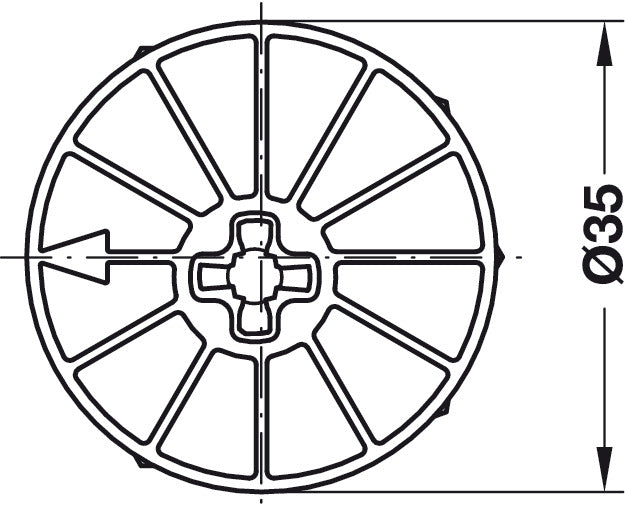

Drill hole Ø housing
35.00 mm
Area of application
For extremely stable connections subjected to heavy loads
Material
Zinc alloy
Suitable for
Connecting bolt with drill hole Ø 9 mm.
Hafele Lifetime Guarantee
25 years
