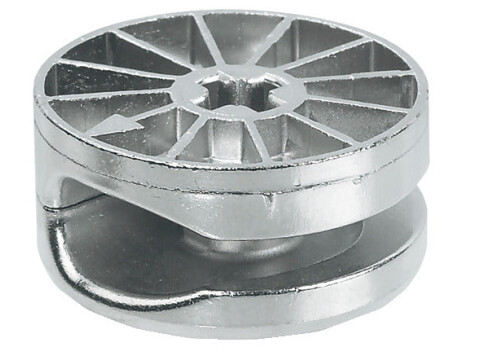

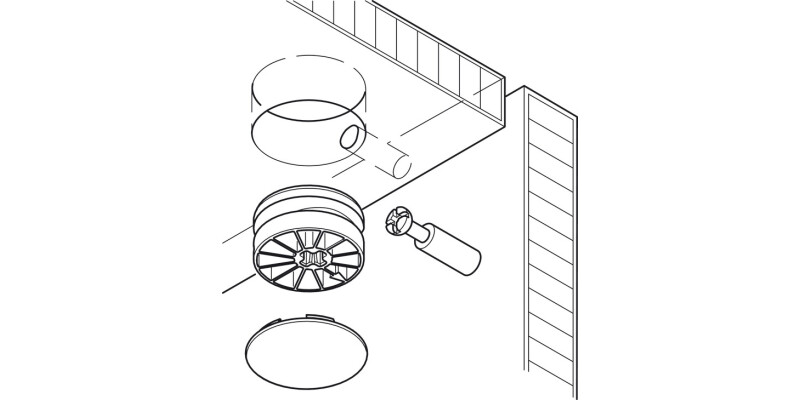

Maxifix Housing ZA NP PZ3 35mm
Part Number: 262.86.713
PZ3, nickel plated finish
Price:
£13.54
Per 10 Pack
Order reference Order Maxifix connecting bolts separatelyRed jig for Maxifix housings and Variantool-N drilling... Read More
Product Information
Product Details
Order reference
Order Maxifix connecting bolts separately
Red jig for Maxifix housings and Variantool-N drilling jig for series-drilled holes for connecting bolts are available if required

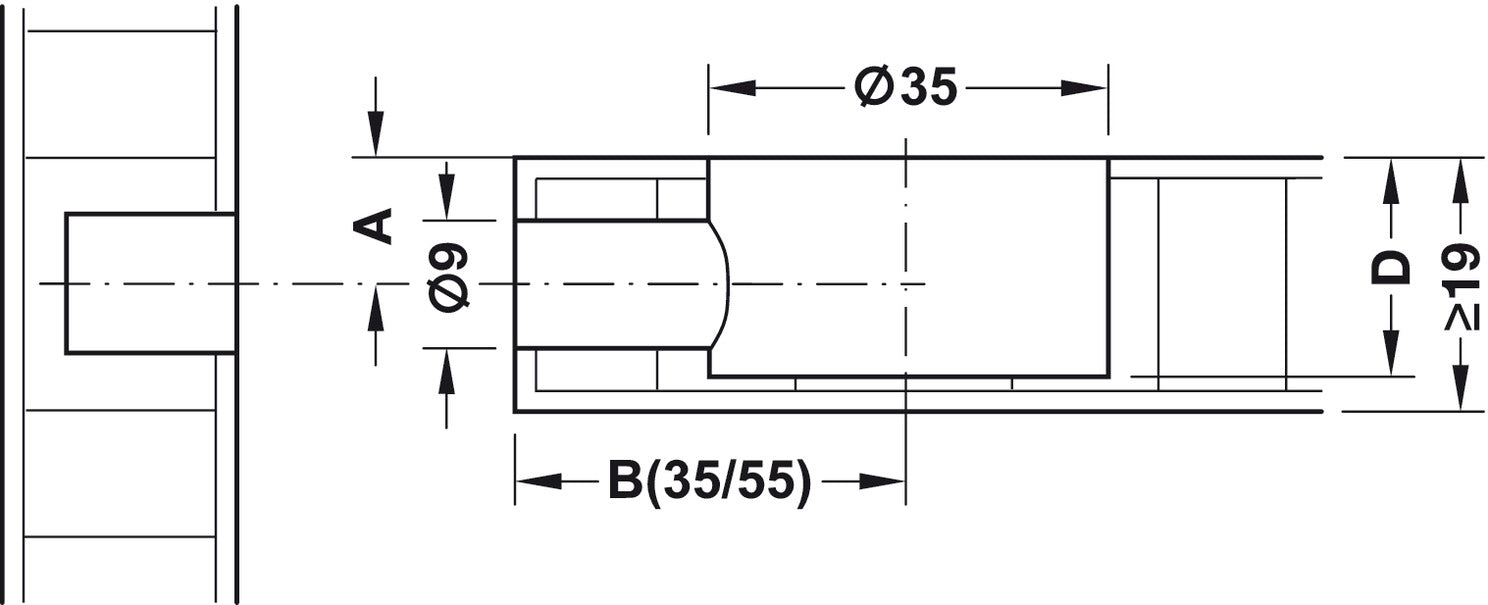

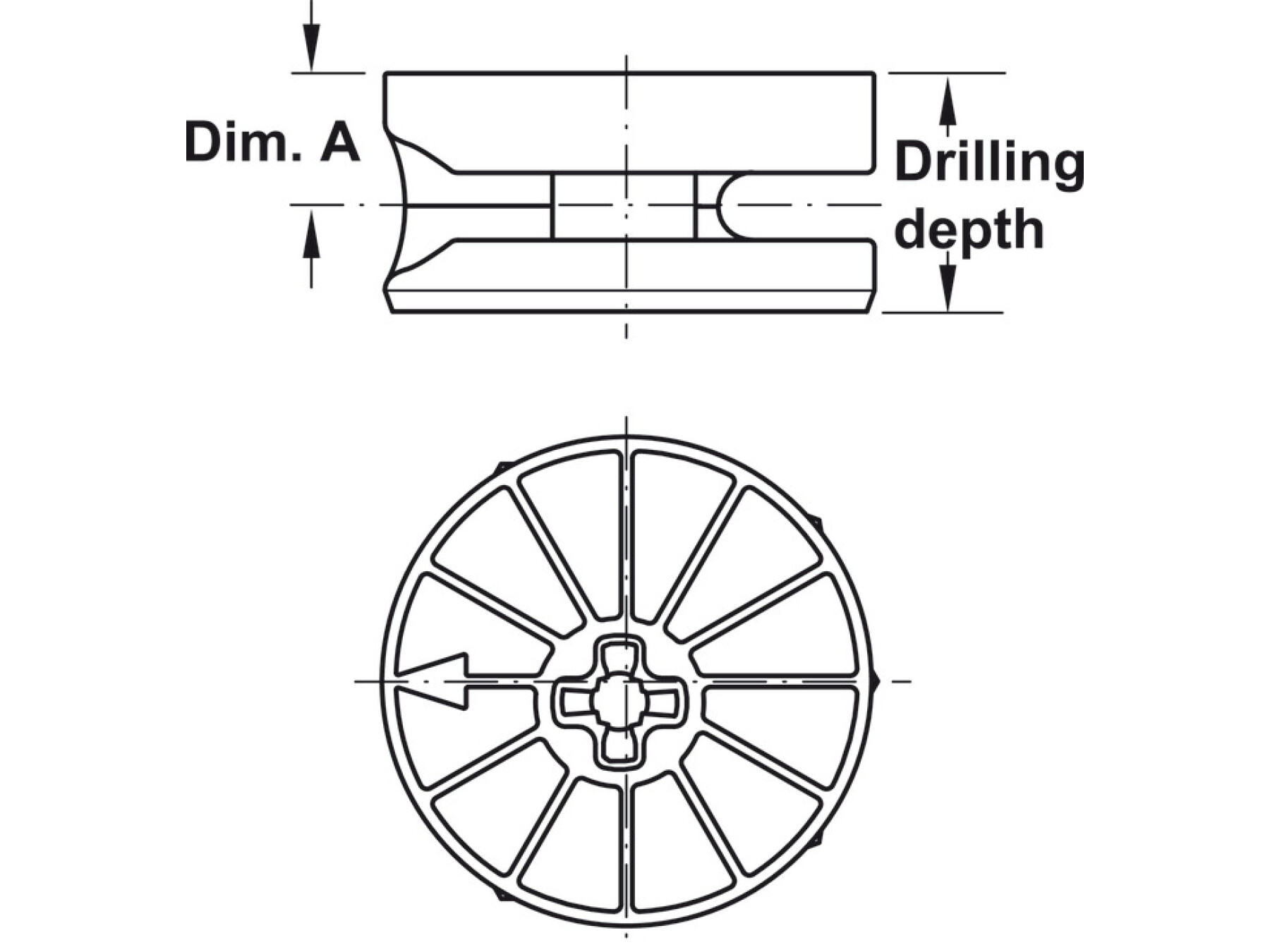

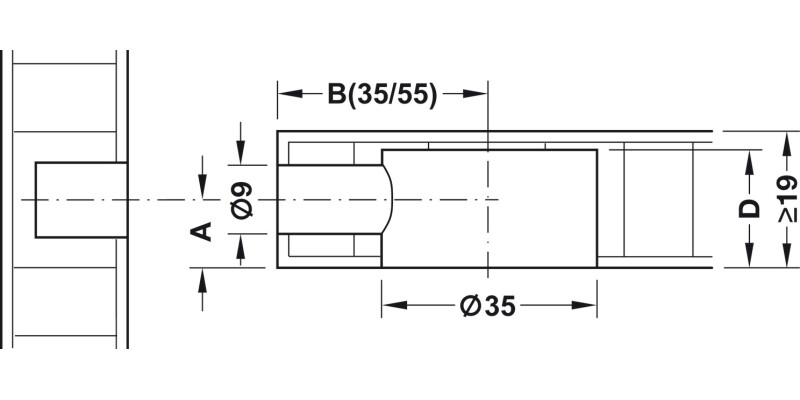

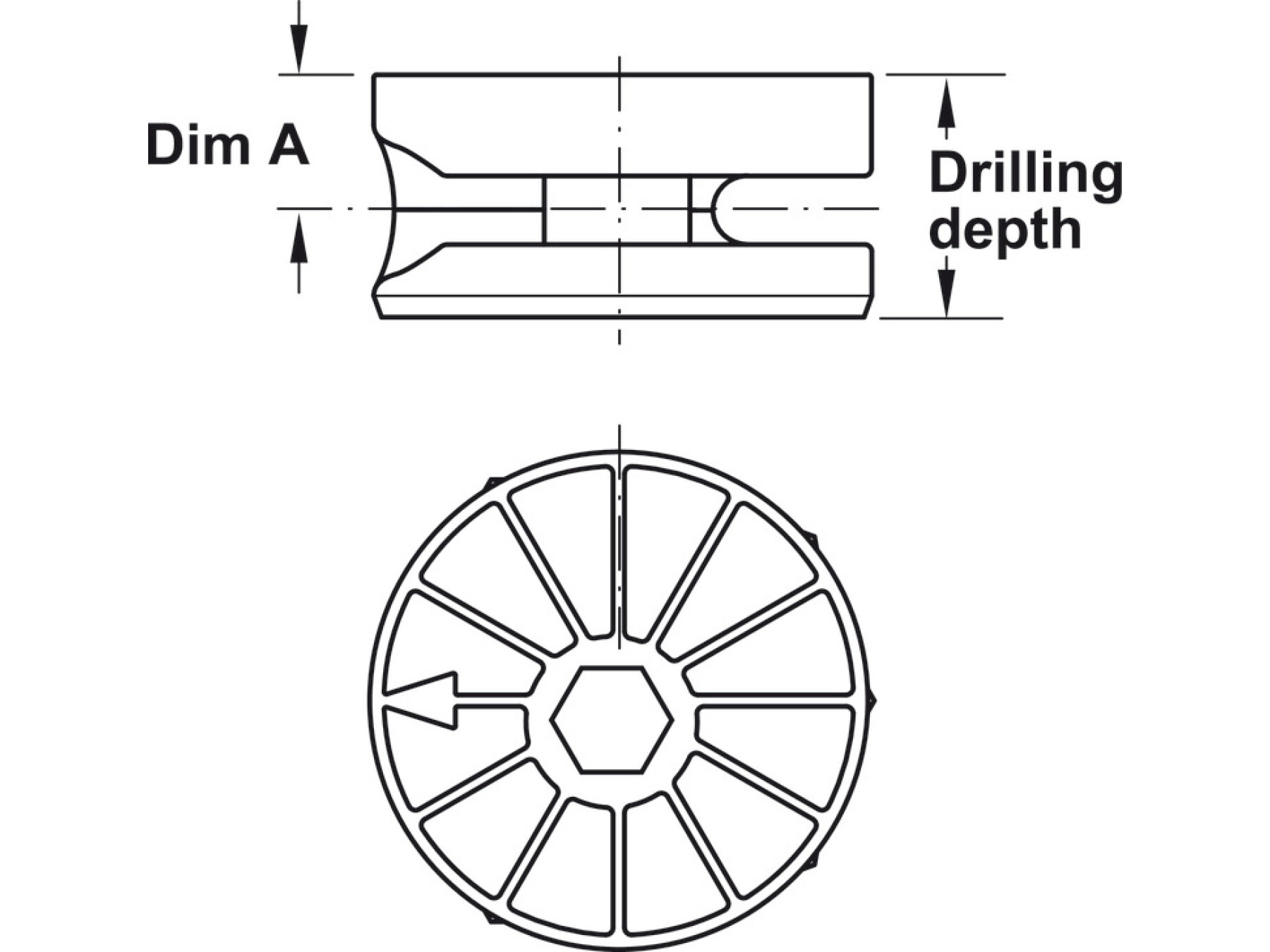

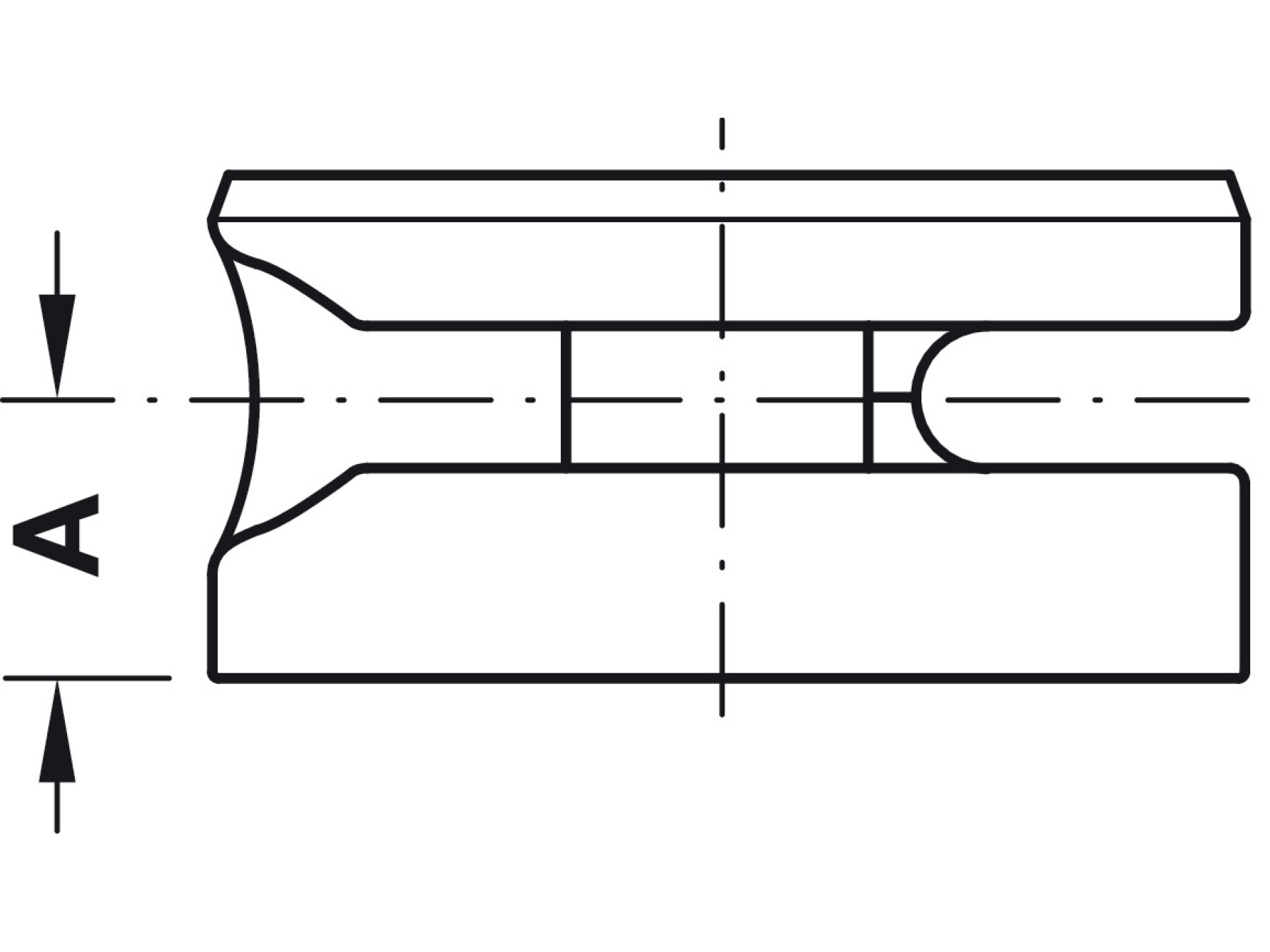

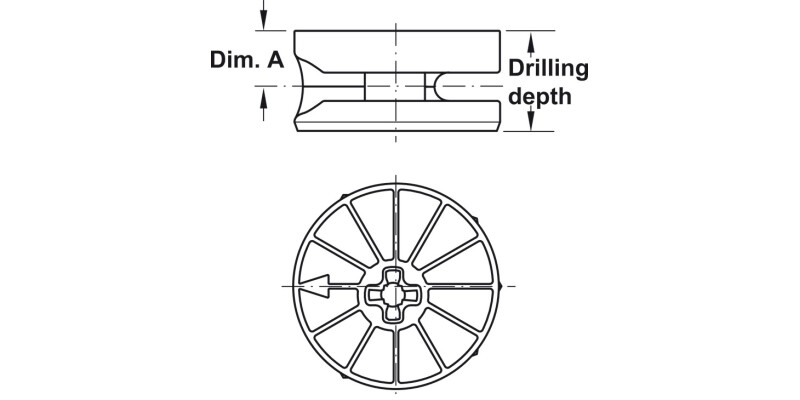

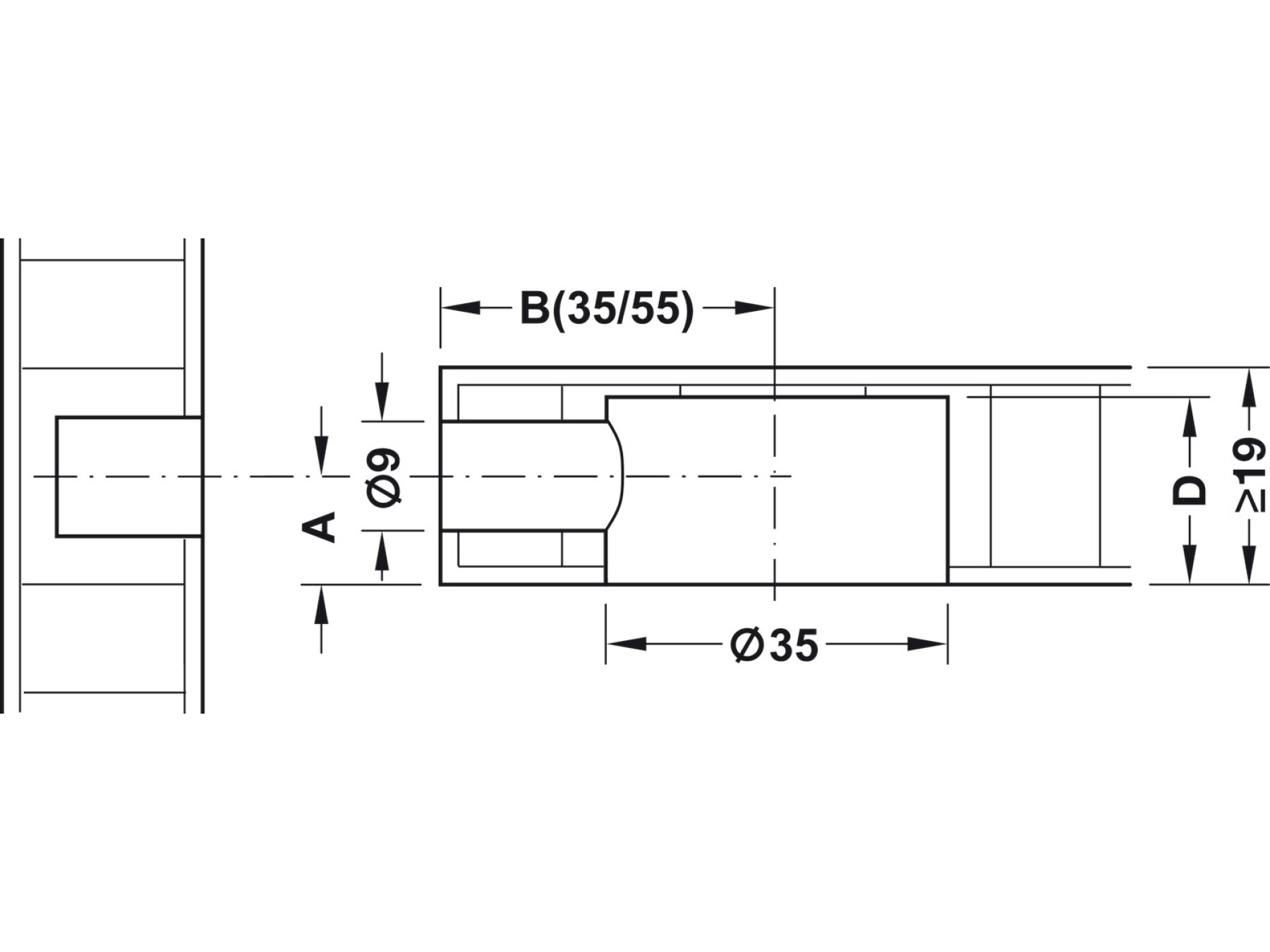

Dimension A: Distance between centre of bolt hole and top edge, corresponds to half of the wood thickness (with 19 mm thick wood).
Specifications
For wood thickness
≥24 mm
Drilling depth
17 mm
Drill hole Ø housing
35.00 mm
Area of application
For extremely stable connections subjected to heavy loads
Material
Zinc alloy
Installation
For use in wood
Hafele Lifetime Guarantee
25 years
