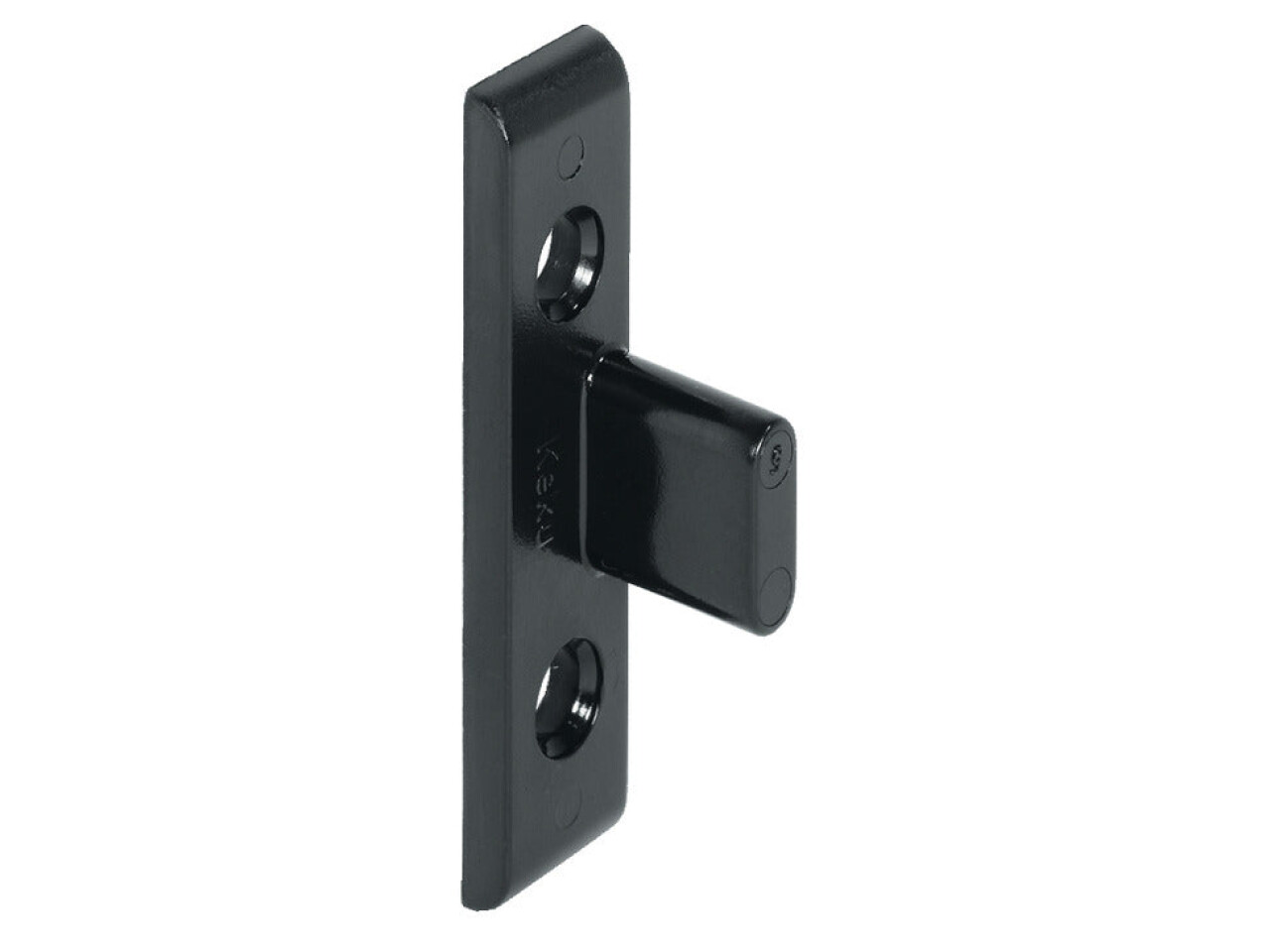

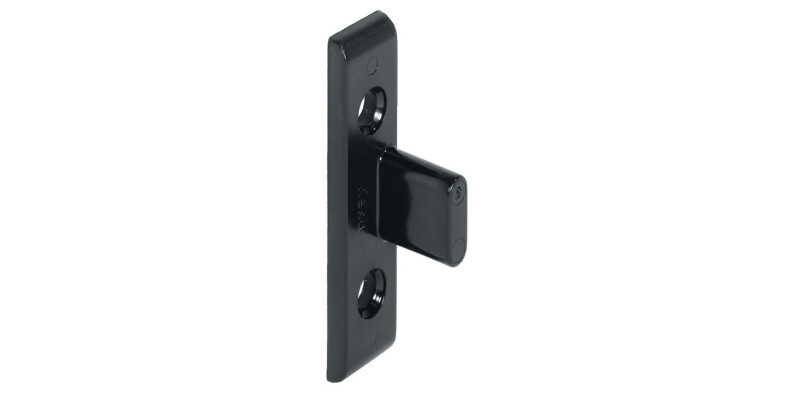

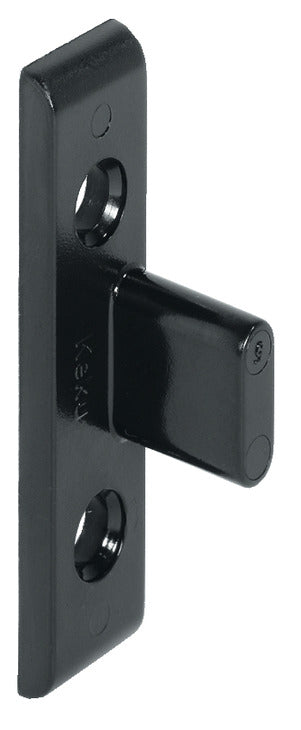

Keku Frame Comp EH SM Hospa Blk
Part Number: 262.49.365

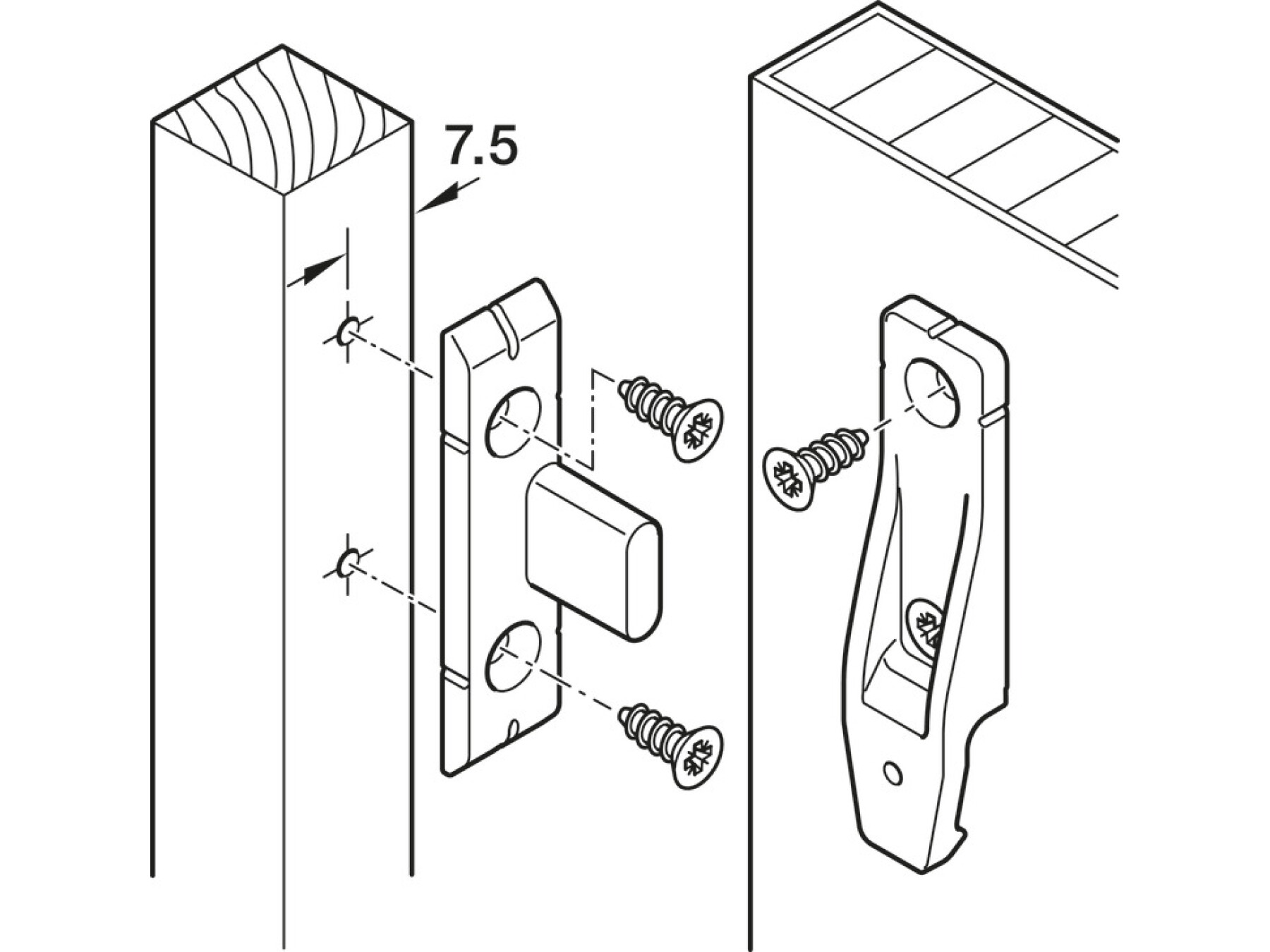

For screw fixing to substructure, Mounting with Hospa screws
Price:
£16.86
Per 50 Pack
For securing trims and cladding panels directly to walls with no wooden subframeFor construction of cavity-type... Read More
Product Information
Product Details
For securing trims and cladding panels directly to walls with no wooden subframe
For construction of cavity-type doors to accommodate sound insulating material or cable ducting
For ceiling claddings as well as walls
All panels, once installed, can be easily removed at any time and with no special tools
Makrolon has a temperature stability from-100°C to +135°C
Supporting plastic fittings may not be treated with chemical solvents or aggressive greases
Max load capacity of pair of fittings:
For vertical suspension is 20 kg
For horizontal suspension, lying, is 30 kg
For horizontal suspension, hanging is 8 kg

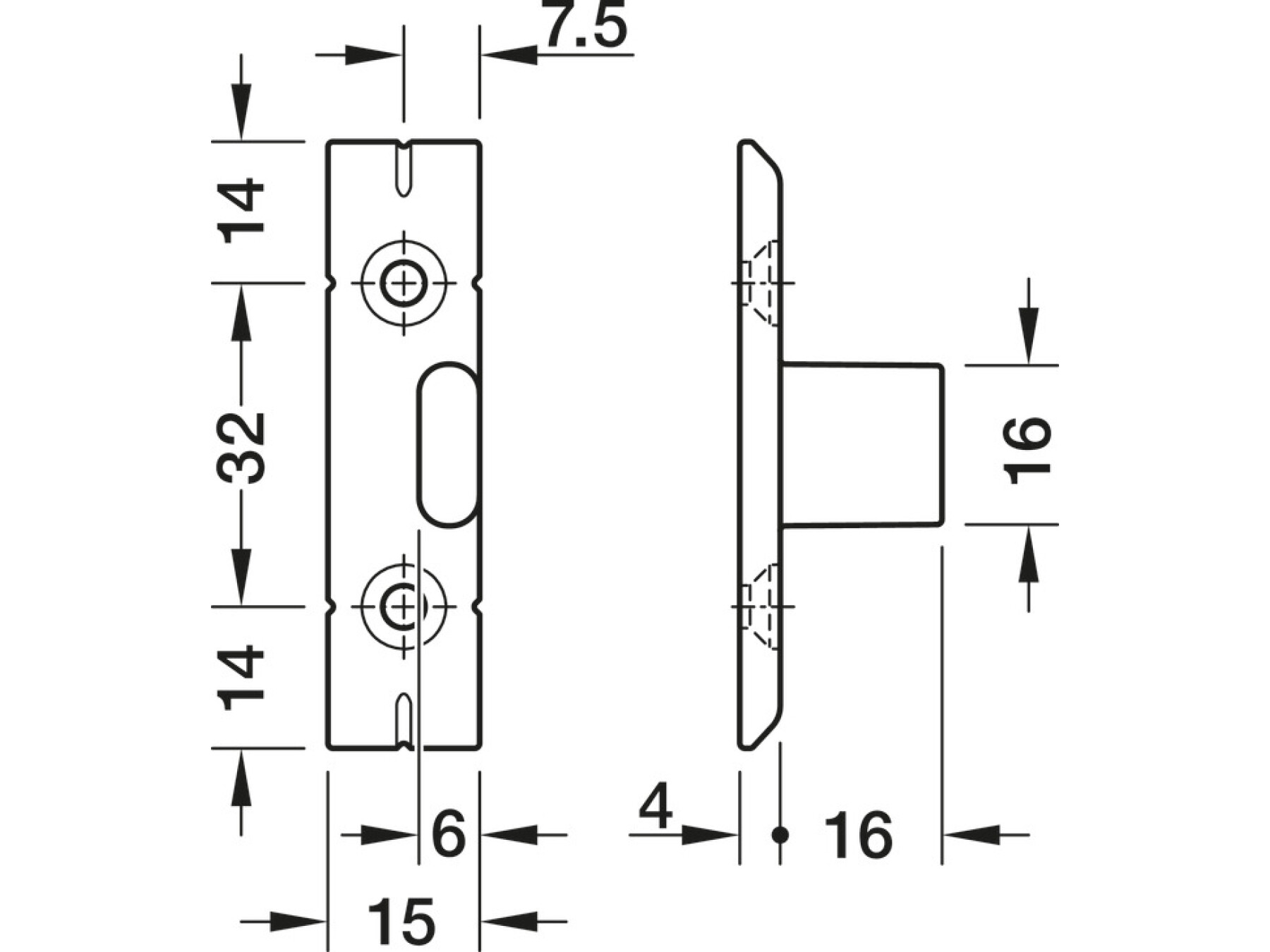

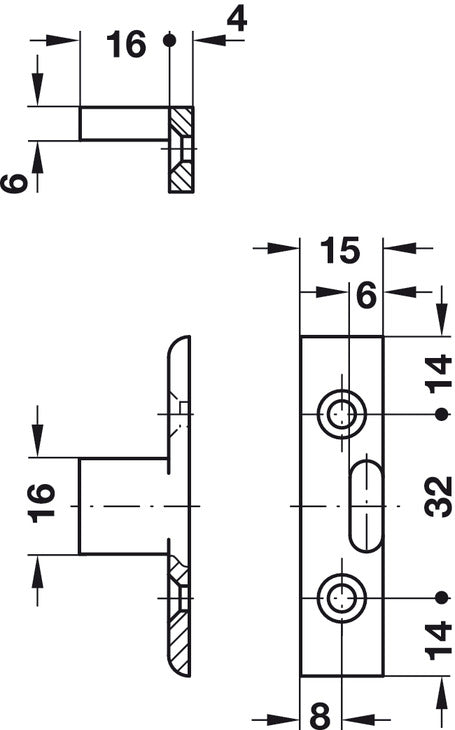

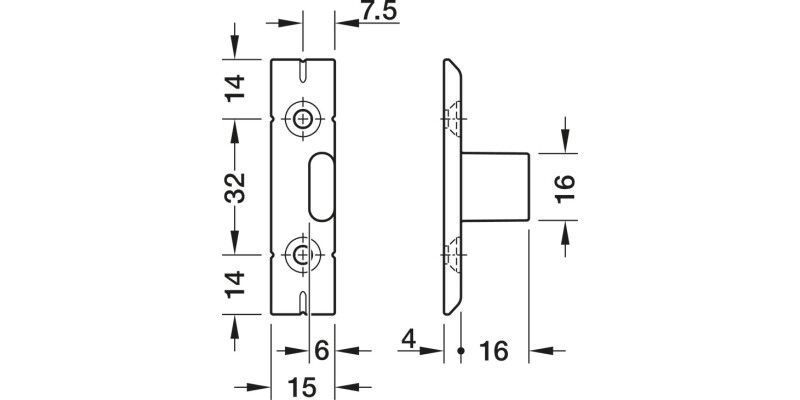

Specifications
Colour/finish
Black
Area of application
For fastening panels to frame structures
Material
Polycarbonate
For series drilled holes
System 32
Temperature range
-100 – 135 °C
Material
Makrolon
Order reference
Order Hospa 4.0 mm countersunk screws or Varianta 3 and 5 countersunk screws separately
