Modular Plate, for Rapid Release Fastenings, Standard
Part Number: 262.47.076

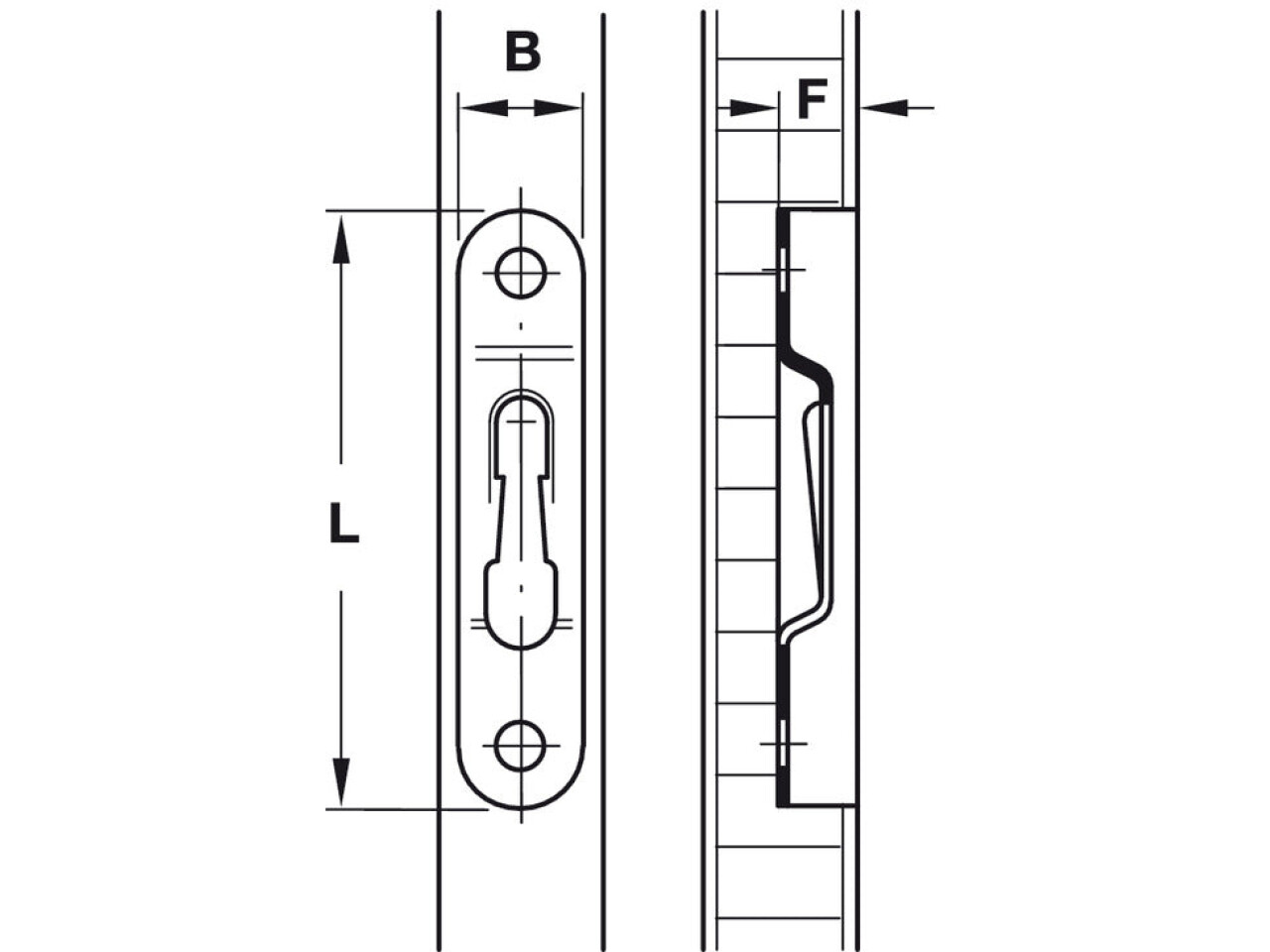

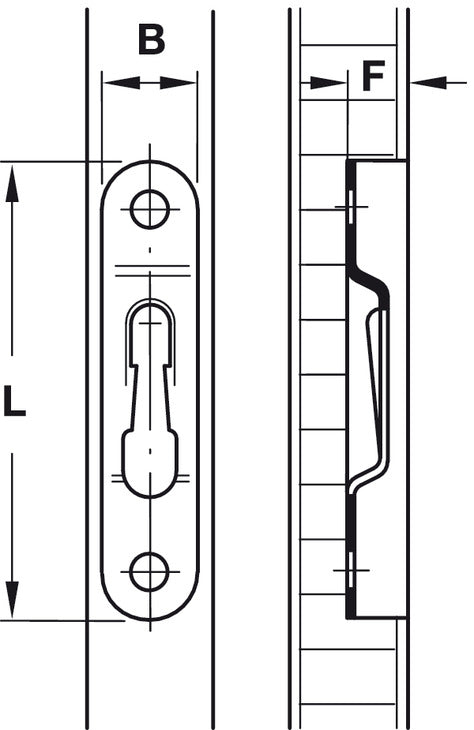

Steel, For panels from 20 mm, length 58 mm, dim. A 16 mm, dim. B 11.5 mm ±0.05
Price:
£0.54
Per Item
Modular Plate, for Rapid Release Fastenings, Standard. (Product Part No: 262.47.076) is a smart, reliable... Read More
Product Information
Product Details
Modular Plate, for Rapid Release Fastenings, Standard. (Product Part No: 262.47.076) is a smart, reliable connector designed to help you build sturdy shelving and furniture structures with clean, professional results. Built for seamless integration, this modular plate is ideal for makers and installers who want strong alignment, dependable performance, and a refined look.

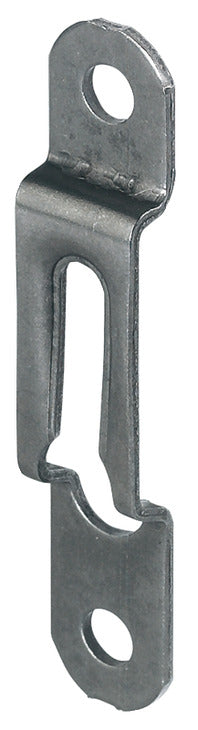

Crafted from steel with a burnished finish, the plate blends practical strength with an attractive surface that suits living and commercial settings. The design supports panels from 20 mm, making it a versatile choice for a range of cabinetry and modular furniture applications.

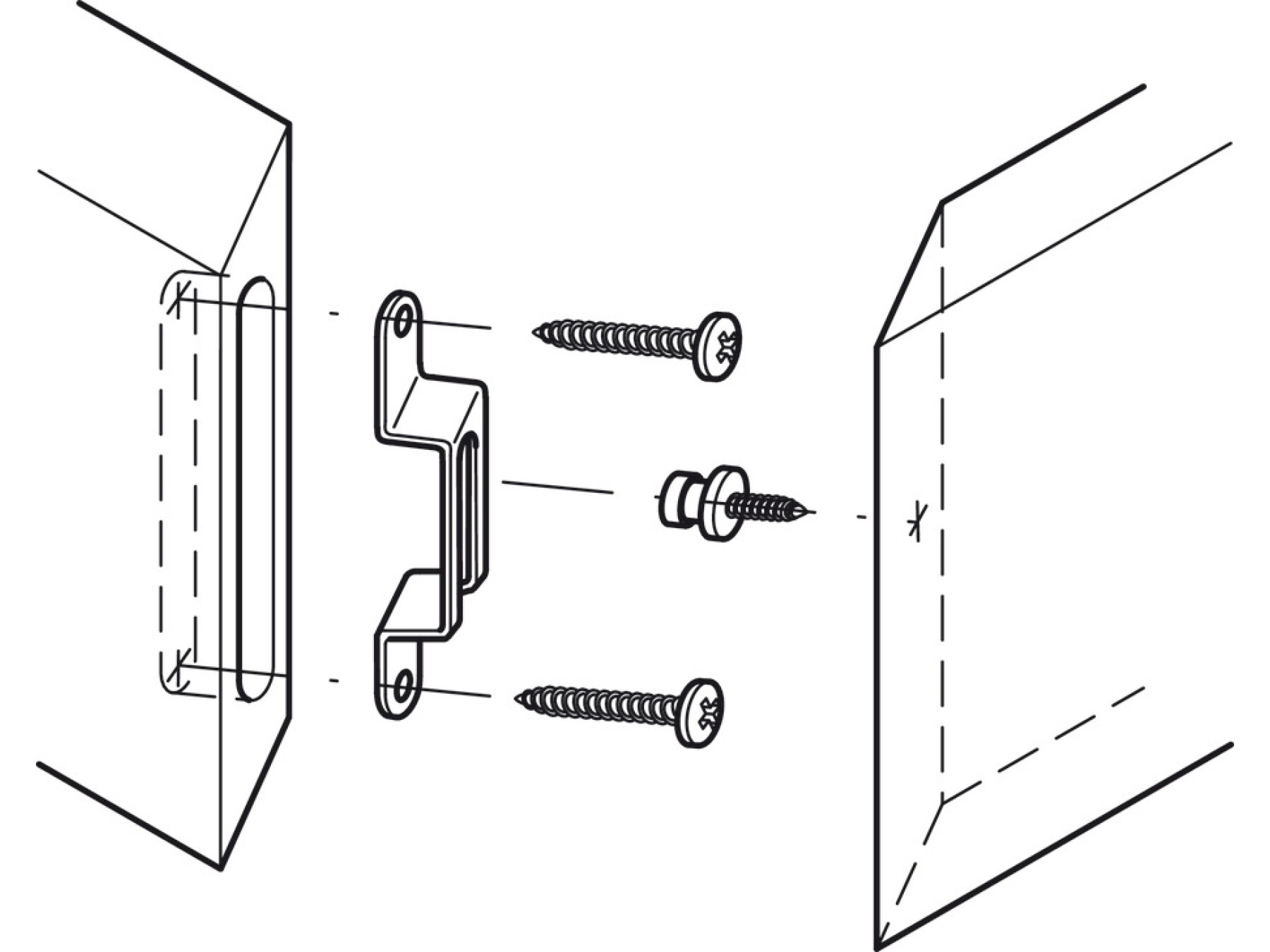

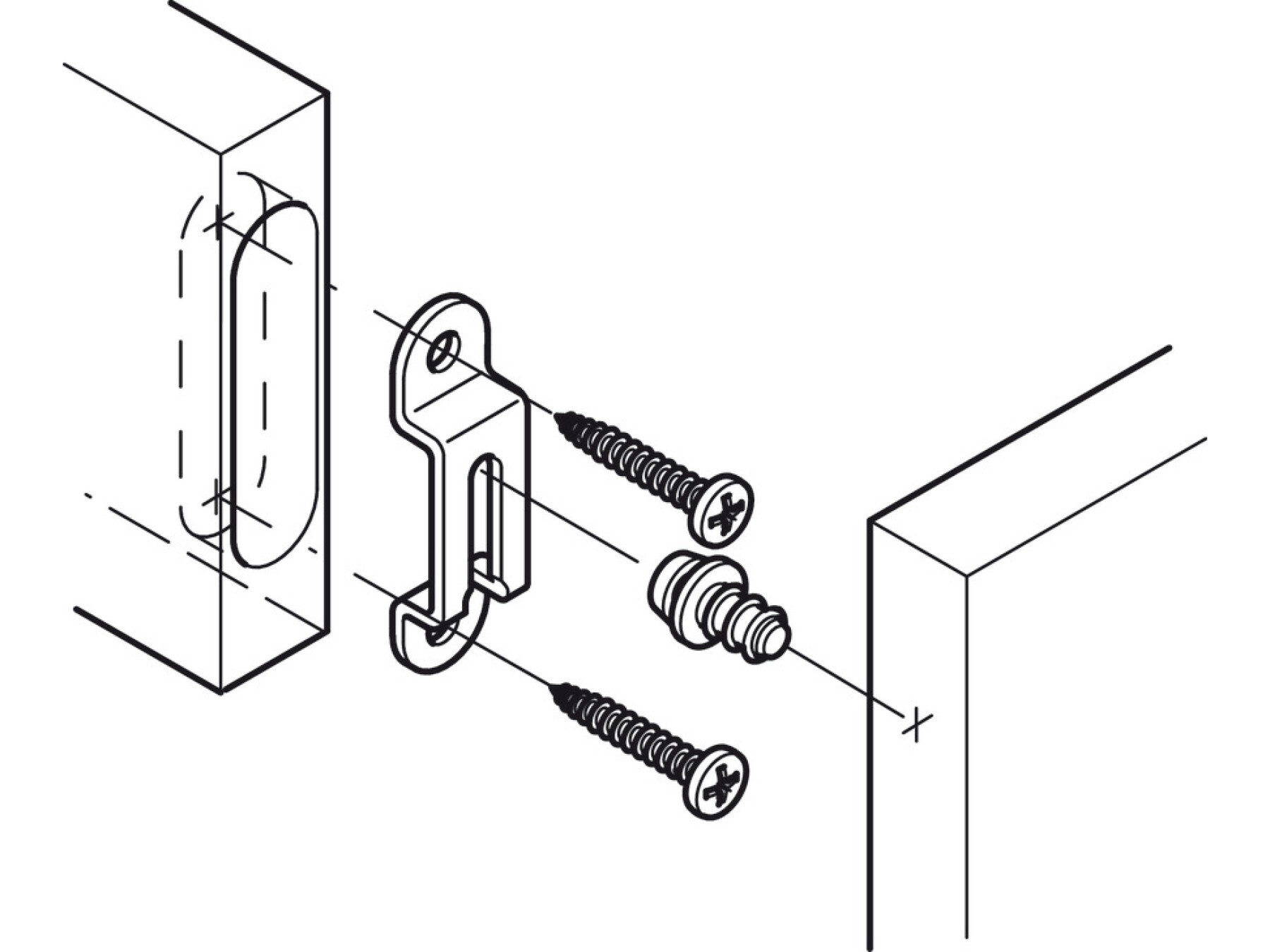

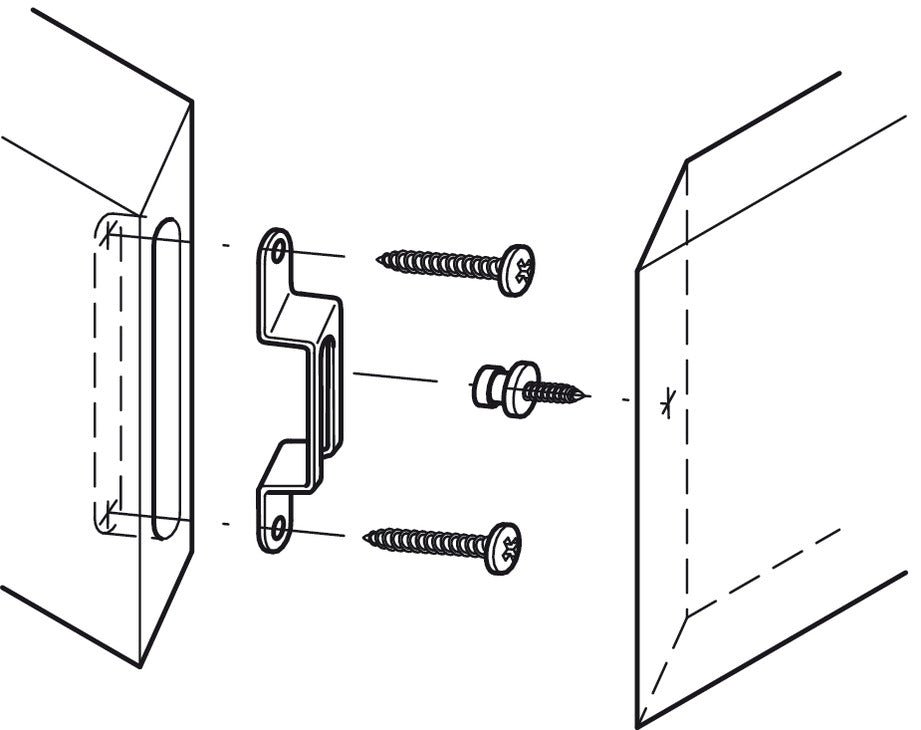

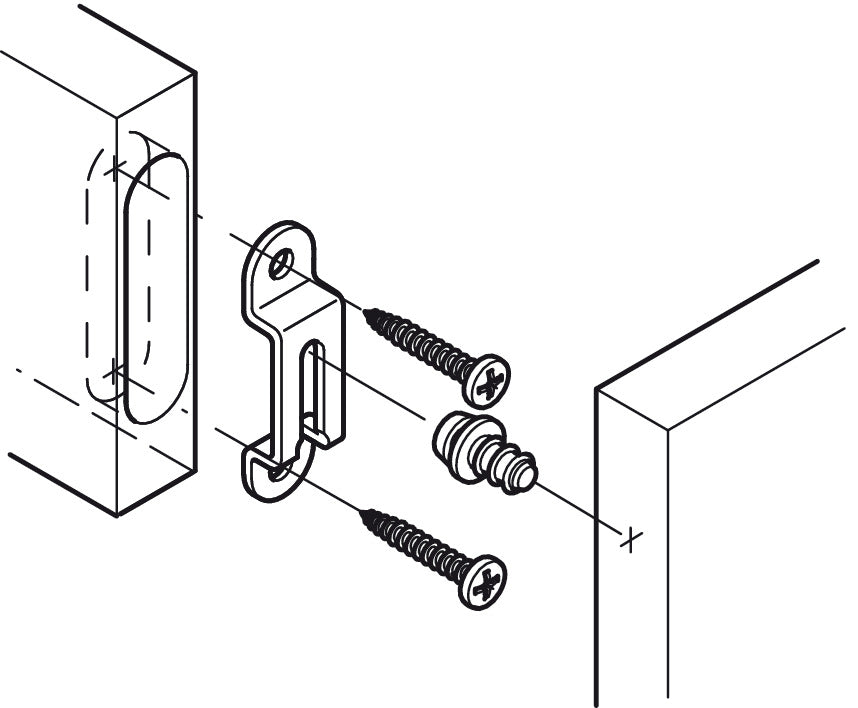

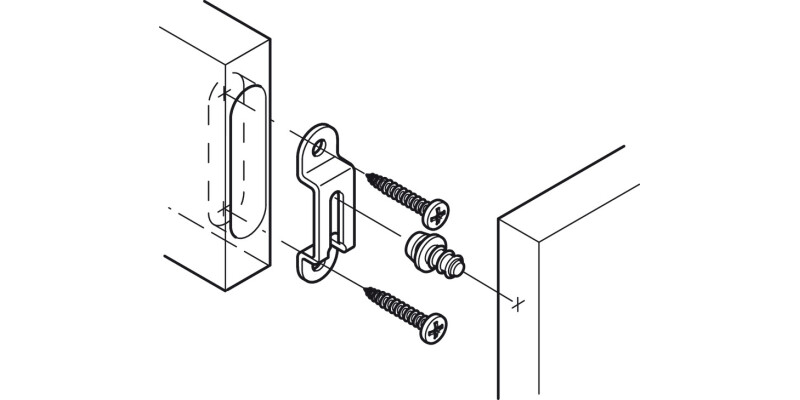

With precise dimensions—length 58 mm and dimensions A 16 mm and B 11.5 mm ±0.05—this connector helps ensure accurate positioning during assembly. Installation is straightforward: it’s intended for recess installation and screw fixing, so you can achieve a neat, secure fit.
Confidence comes standard thanks to the Hafele Lifetime Guarantee (25 years). For complete ordering convenience, please note the order reference: order Hospa Ø 4.5 mm pan head screws separately. Pair them correctly with this Modular Plate to complete a durable, properly fastened system.
If you’re upgrading shelving infrastructure or planning a new modular build, the Modular Plate, for Rapid Release Fastenings, Standard. is an excellent choice to deliver stability, precision, and a polished finish—order today to keep your project moving.
Specifications
Material
Steel
Colour/finish
burnished
Installation
For recess installation and screw fixing
Hafele Lifetime Guarantee
25 years
Order reference
Order Hospa Ø 4.5 mm pan head screws separately
FAQ
Product Details
Is this Modular Plate suitable for panels around 20 mm thick?
Yes. The Modular Plate Standard 58x16mm St Burn (Part No: 262.47.076) is designed for panels from 20 mm, making it a good choice for many living and commercial furniture applications.
What do dimensions A and B mean for installation?
Dim. A is 16 mm and dim. B is 11.5 mm ±0.05. These values help when laying out the recess or checking clearances, so the connector sits correctly and aligns with the modular system.
How is the Modular Plate installed?
It is for recess installation and screw fixing. This style of connector is typically used when you want a neat fit within the panel rather than a surface mounted fitting.
Will I need to order screws separately?
Yes, screws are not included. The order reference indicates you should use Hospa Ø 4.5 mm pan head screws and purchase them separately.
What finish does this connector have and where will it suit?
It is steel with a burnished finish. This gives a tidy appearance that works well for modular furniture builds where connectors may be visible after installation.
Does this product come with a Hafele Lifetime Guarantee?
Yes. This item is covered by a 25 years Hafele Lifetime Guarantee, which can provide reassurance for both home furniture projects and commercial use.
