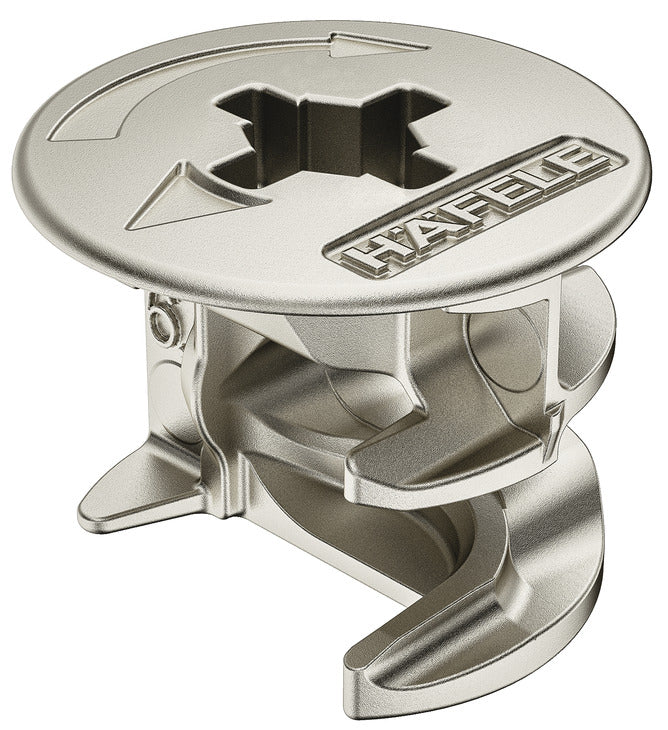

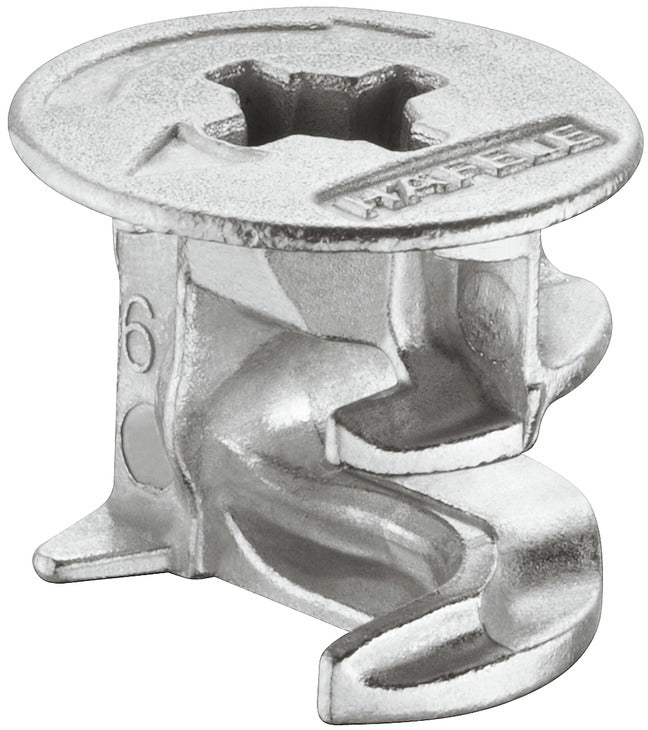

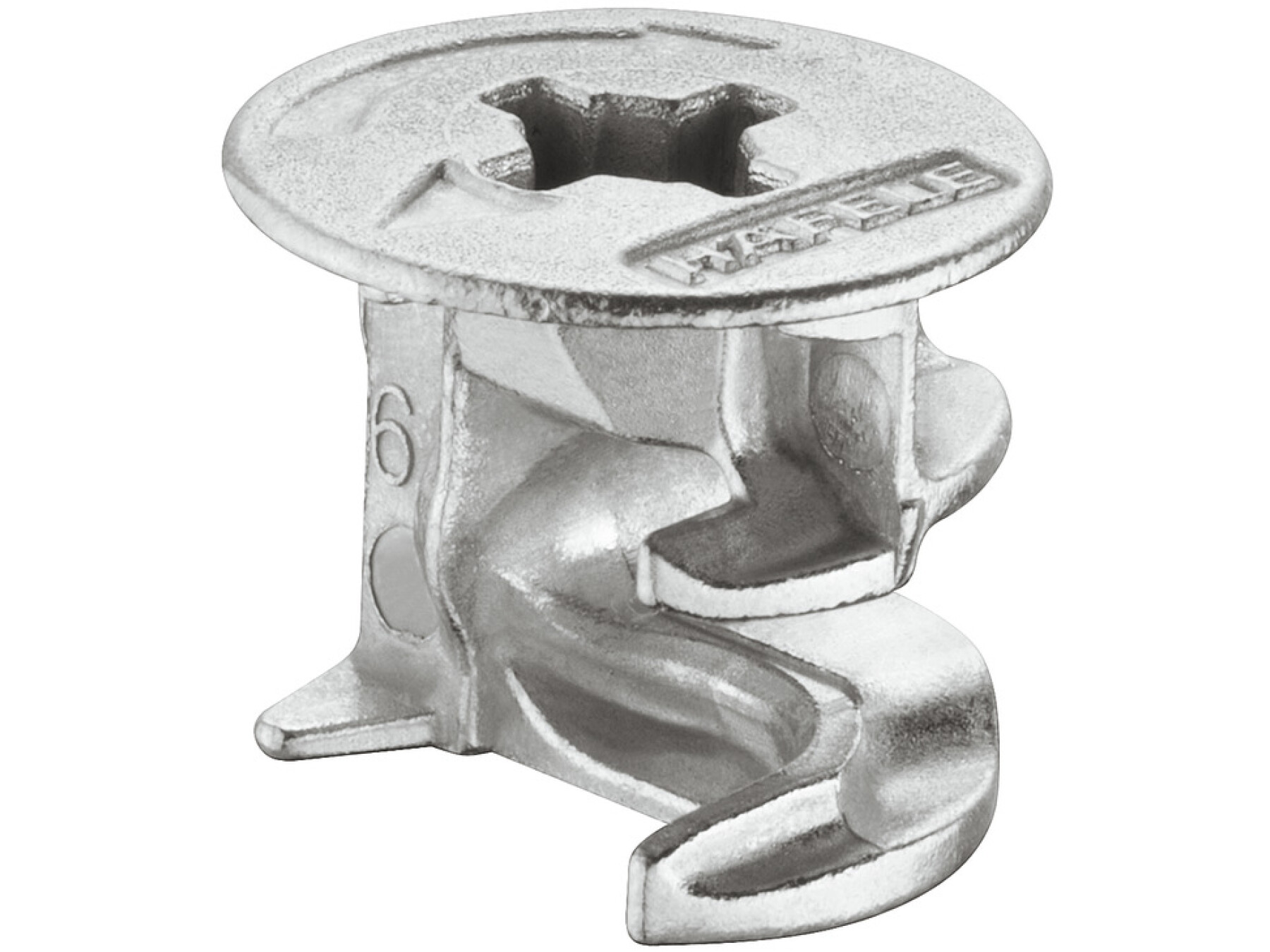

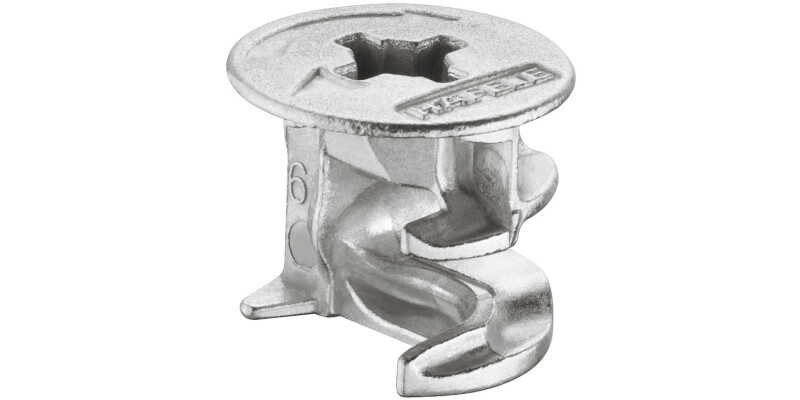

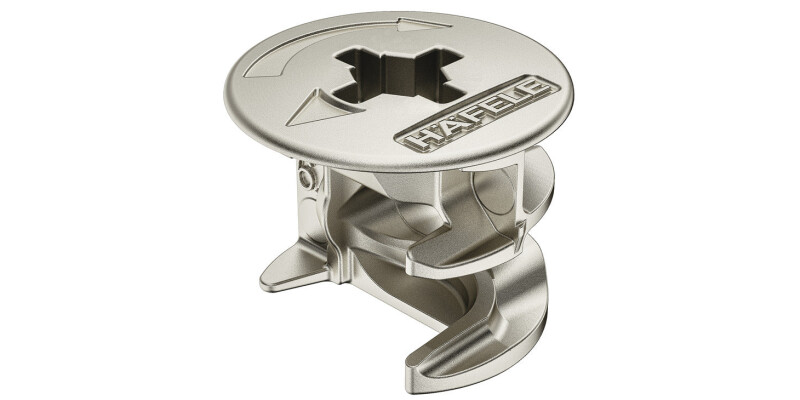

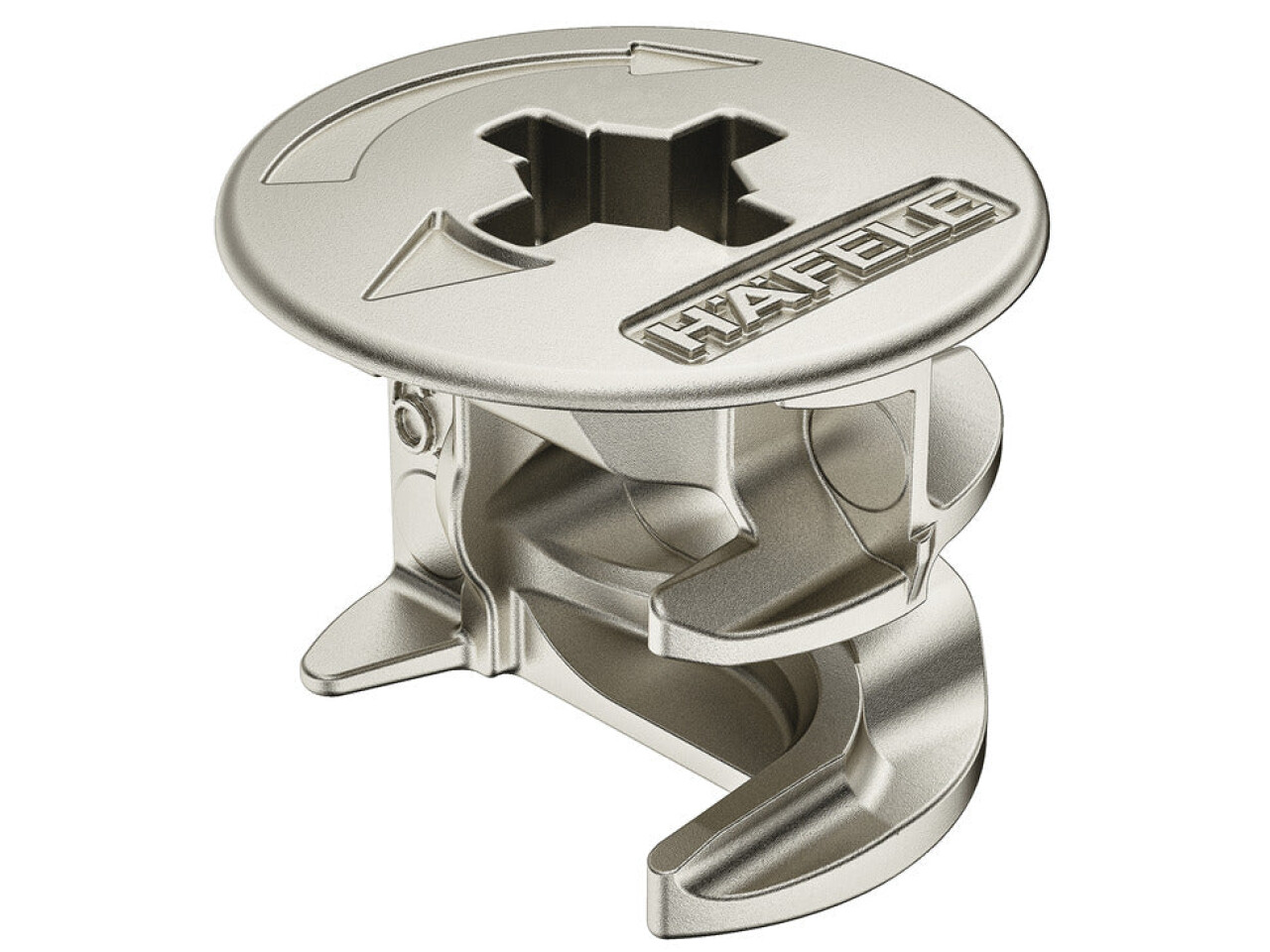

Minifix 15 Housing 12mm w Rim NP
Part Number: 262.25.570

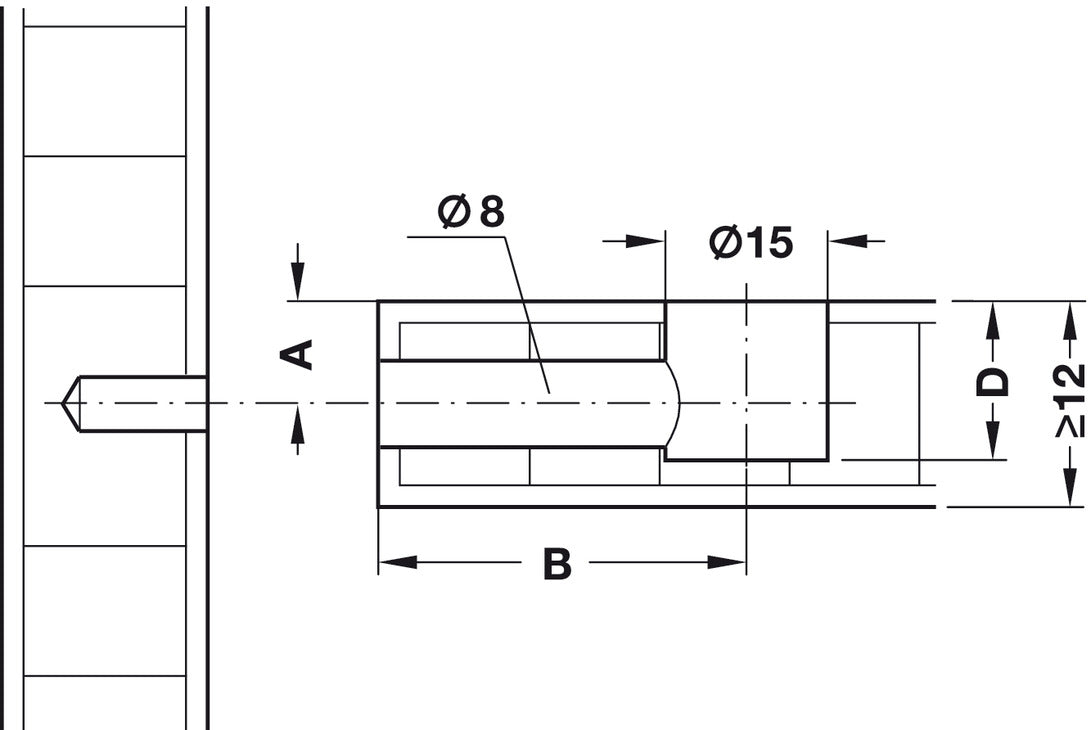

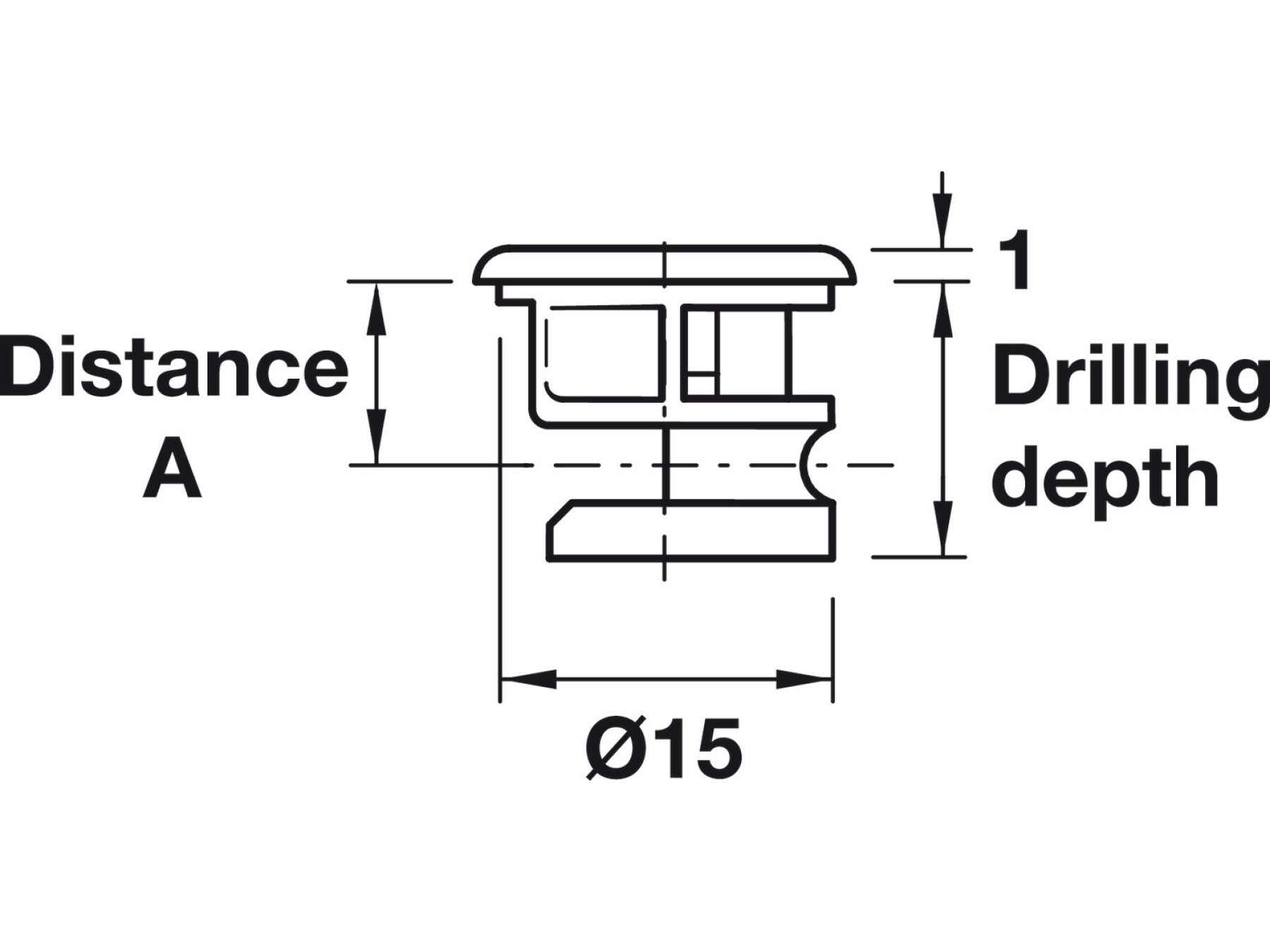

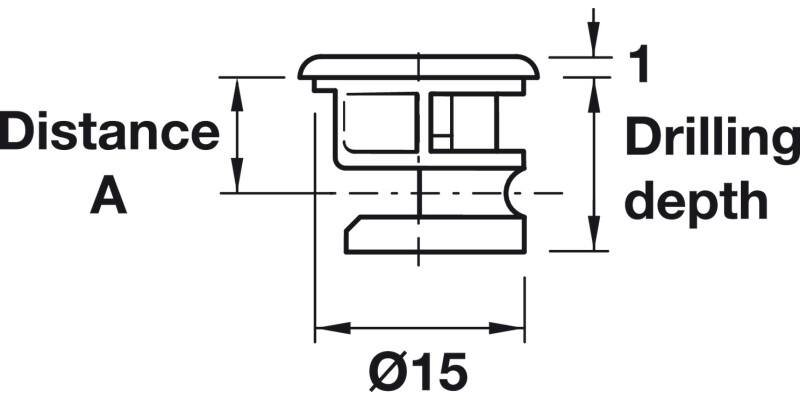

For wood thickness from 12 mm, dim. A: 6.0 mm, drilling depth x 9.5+0.2 mm, nickel plated
Price:
£12.79
Per 100 Pack
Order reference Order Minifix 15 bolts suitable for these zinc alloy housings separatelyRed jig & Unitool... Read More
Product Information
Product Details
Order reference
Order Minifix 15 bolts suitable for these zinc alloy housings separately

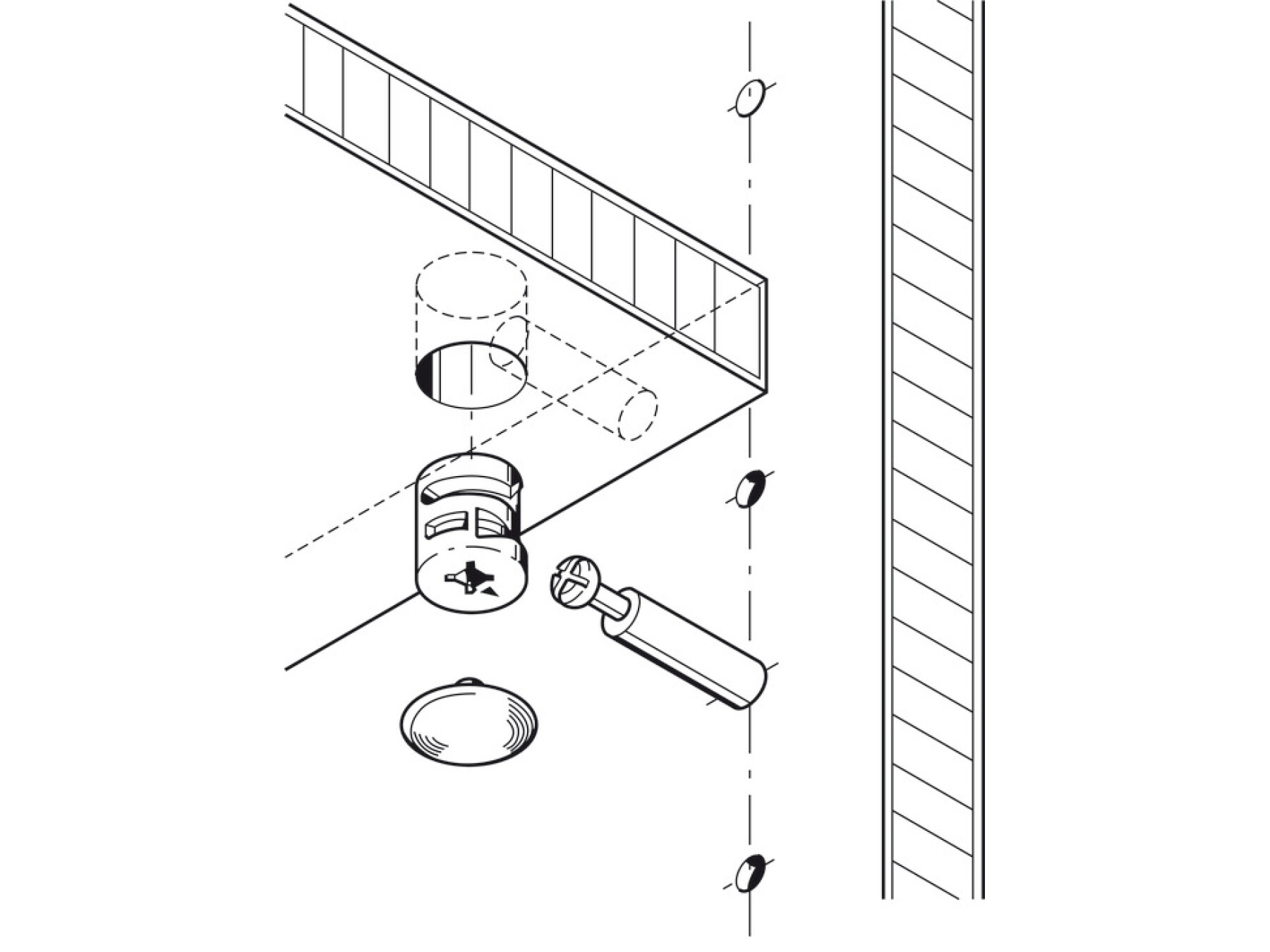

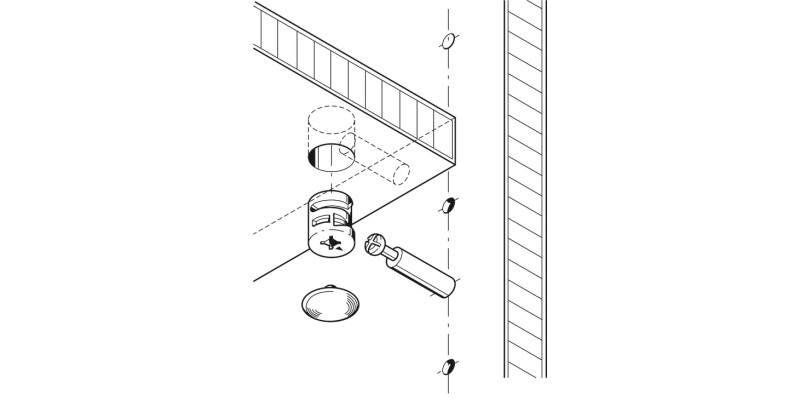

Red jig & Unitool drilling jig for Minifix 15 housings and Variantool-N drilling jig for series-drilled holes for connecting bolts are available if required
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

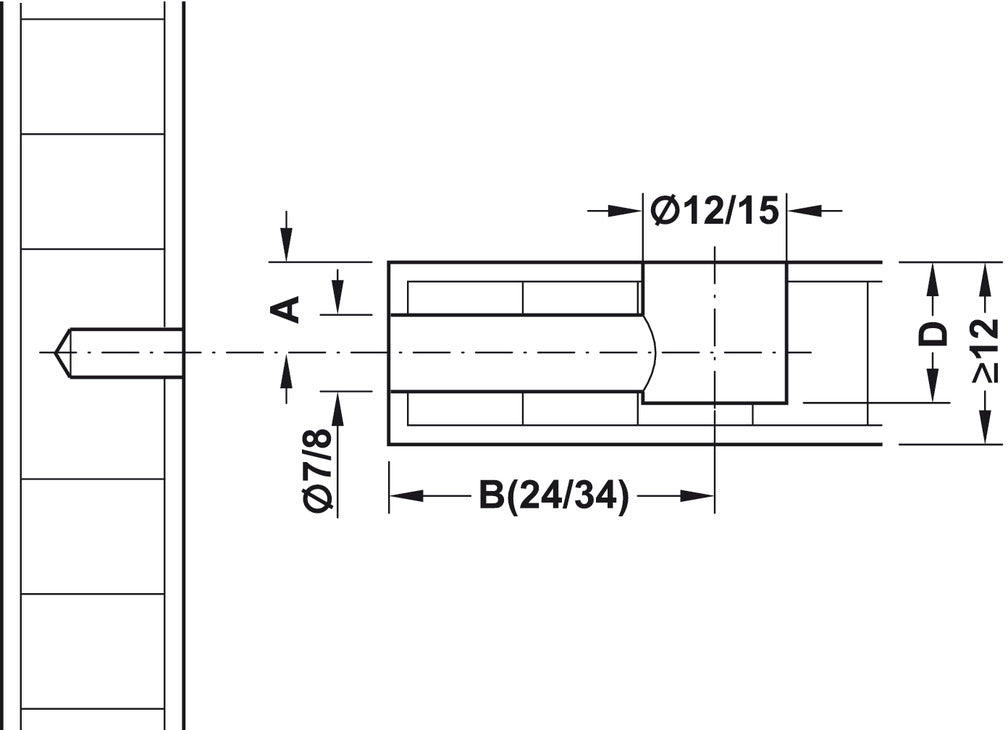

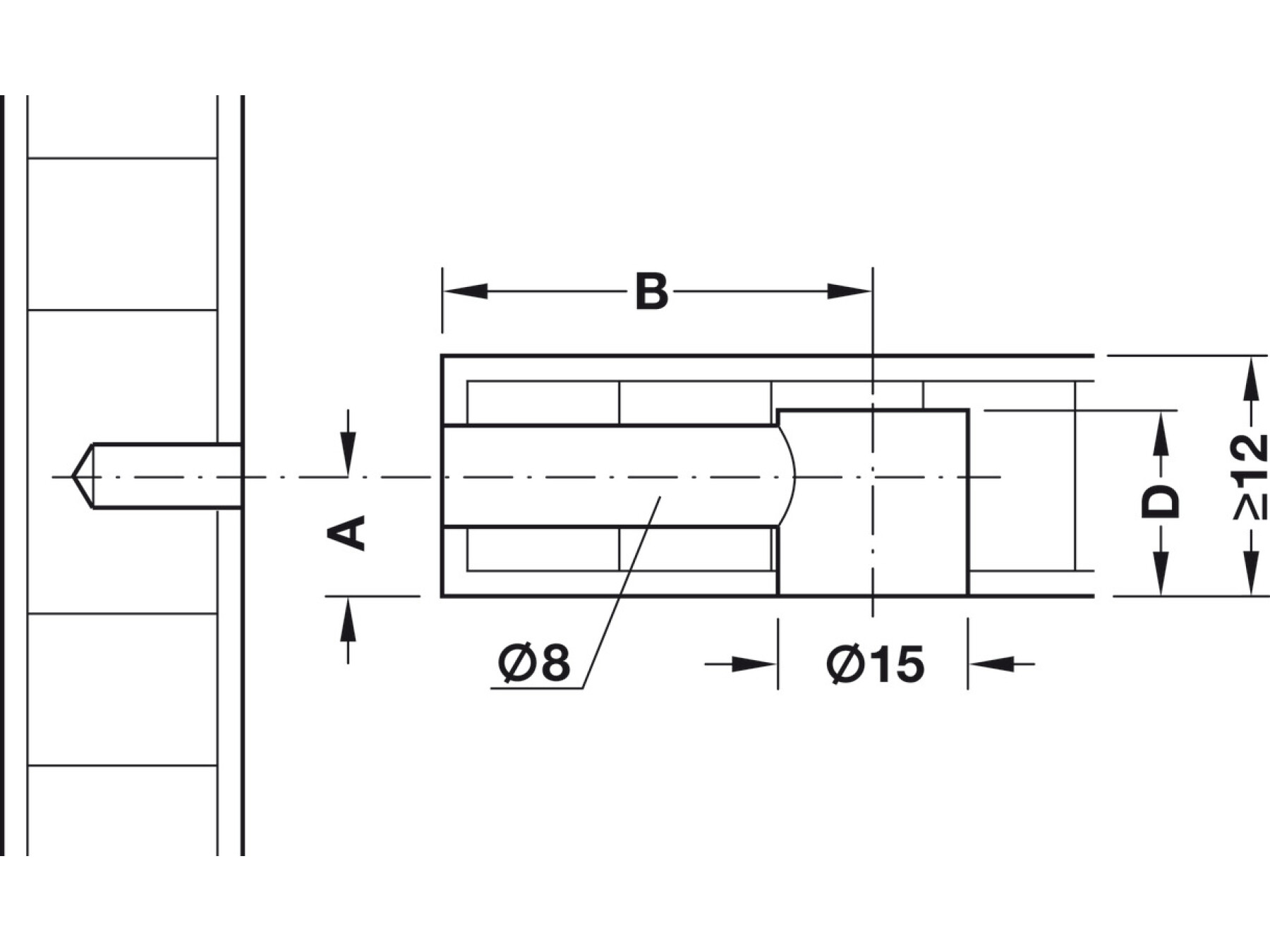

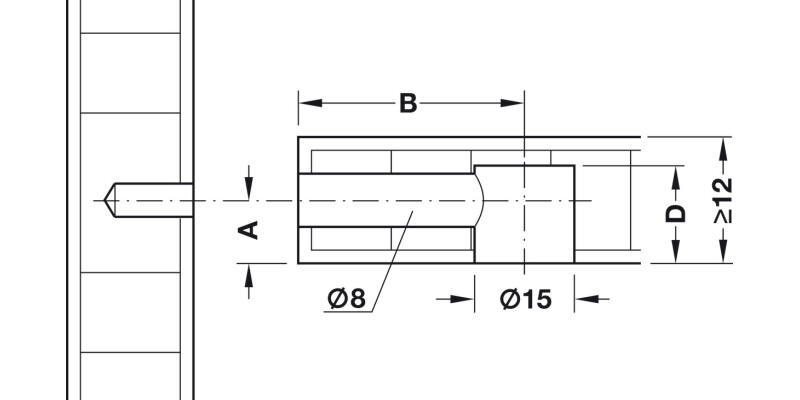

Depending on the choice of connecting bolt, the bolt drill hole diameter is 5, 7 or 8 mm.
Specifications

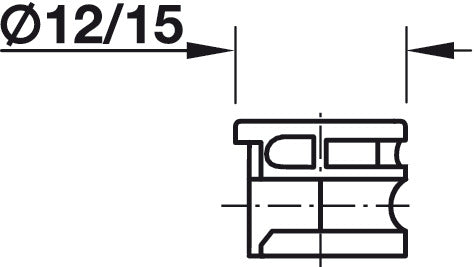

Drill hole Ø housing
15.00 mm

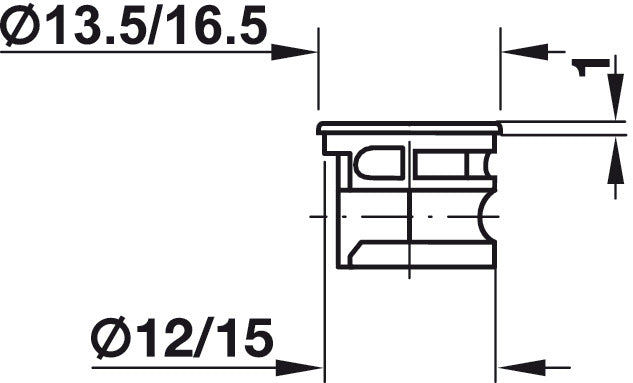

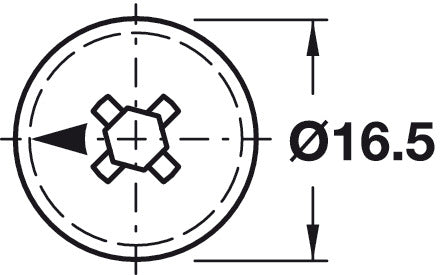

Rim Ø
16.50 mm
Area of application
For wooden cabinet
Material
Zinc alloy
Suitable for
All connecting bolts from the Minifix® system
Installation
For all connecting bolts
Hafele Lifetime Guarantee
25 years
