Ixconnect Rear Panel Connector G 13/20
Part Number: 260.09.560
Plastic, Grey
Price:
£11.61
Per 100 Pack
The Ixconnect G 13/20 rear panel connector is a patented technology designed in house by Häfele which is... Read More
Product Information
Product Details

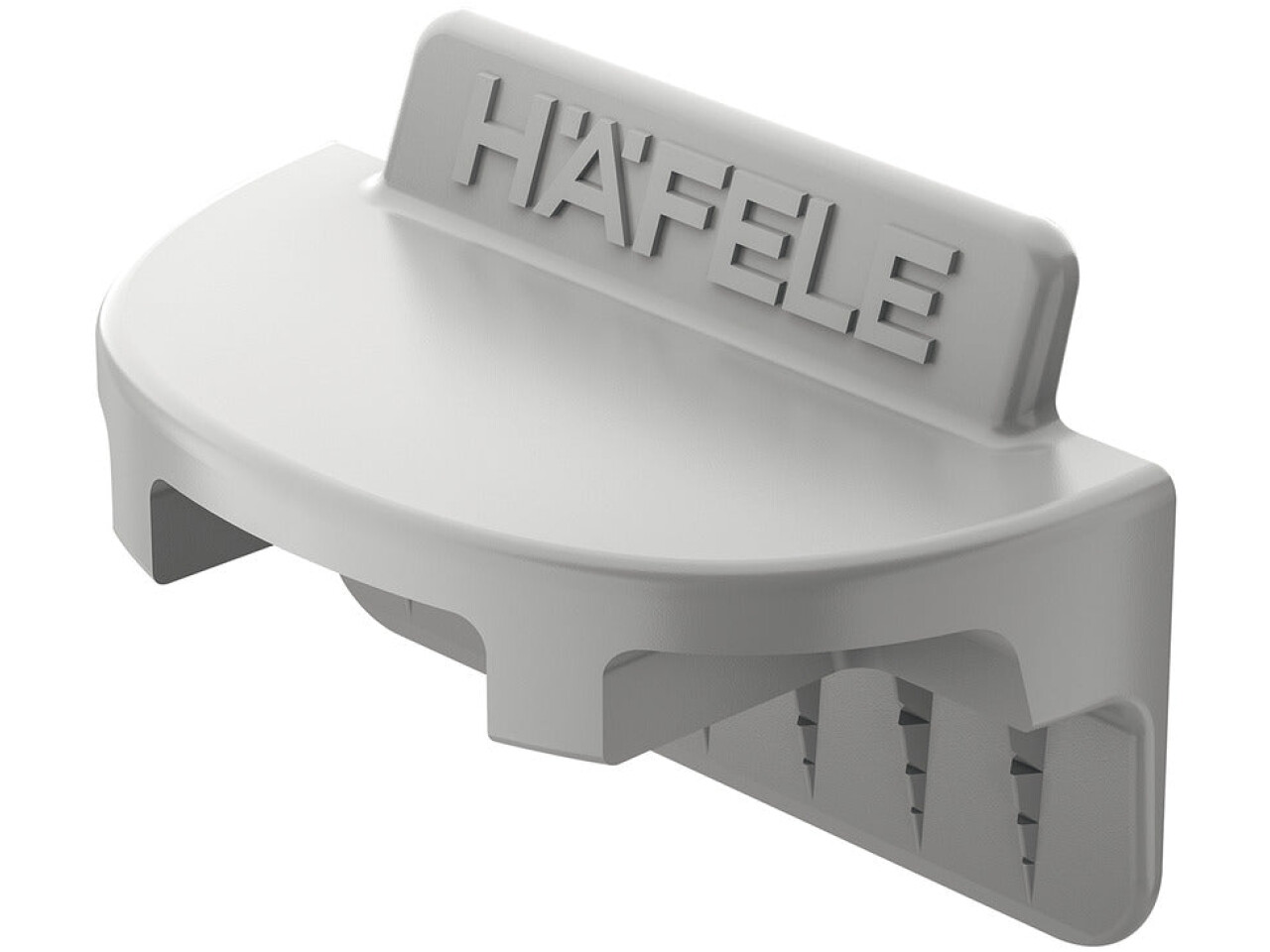

The Ixconnect G 13/20 rear panel connector is a patented technology designed in house by Häfele which is ideal for small furniture solutions.
Can be used as a rear panel connector in small furniture
Can also be used for stabilising wooden drawer base panels

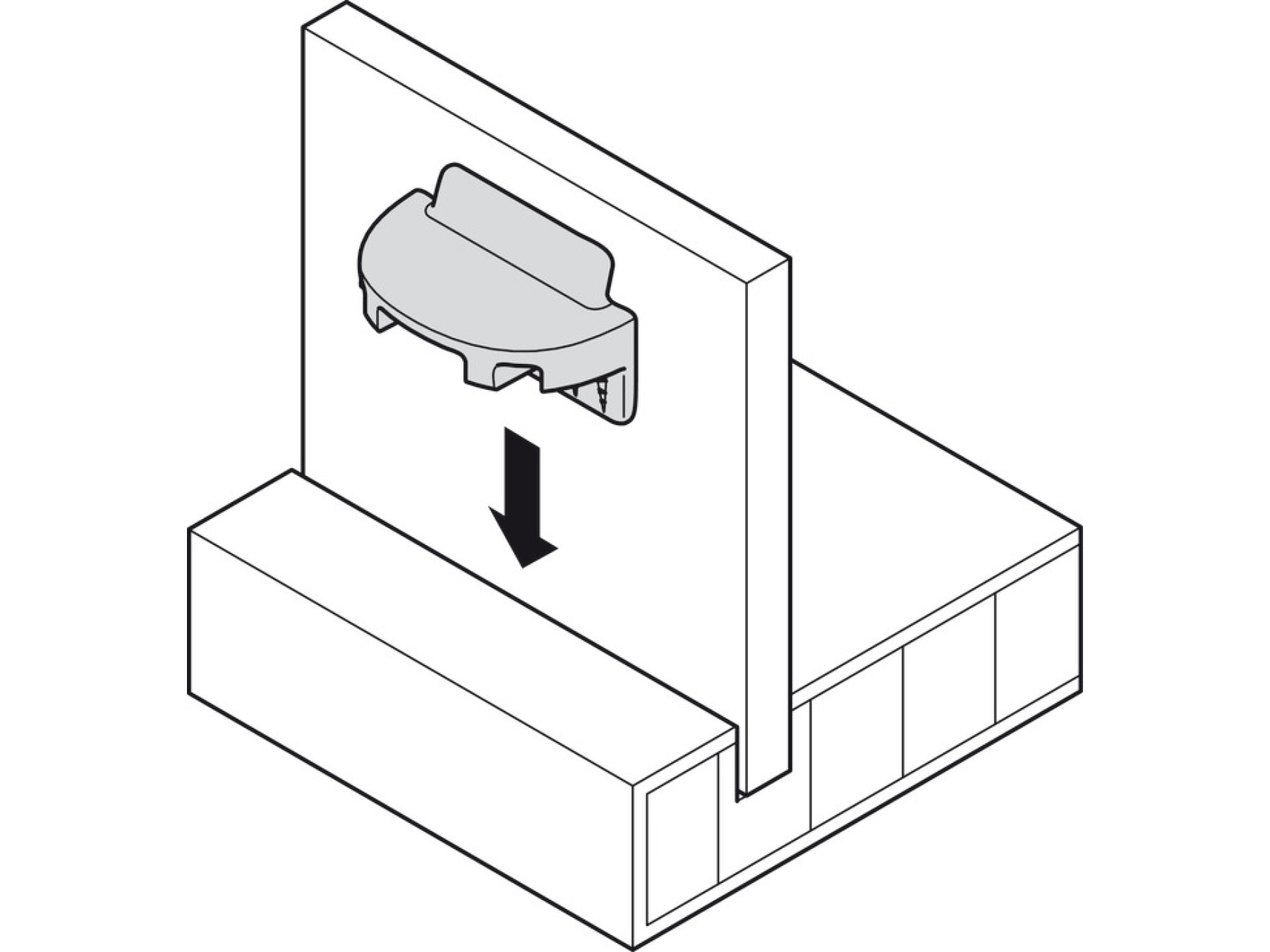

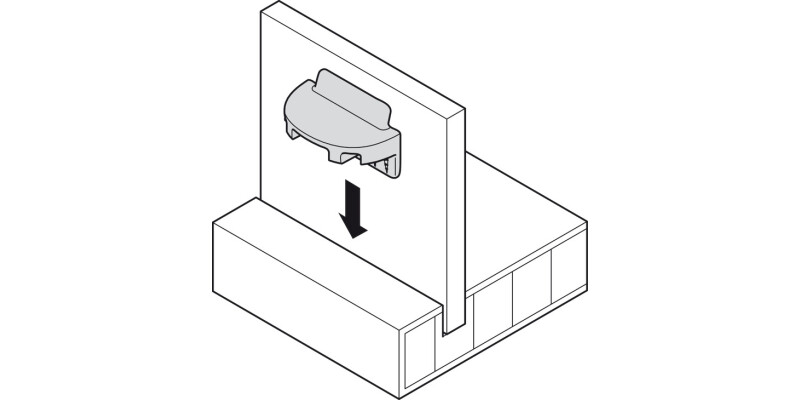

Simple, tool-free installation. It simply plug fits into groove and wedged in by the rear panel
No additional drilling necessary

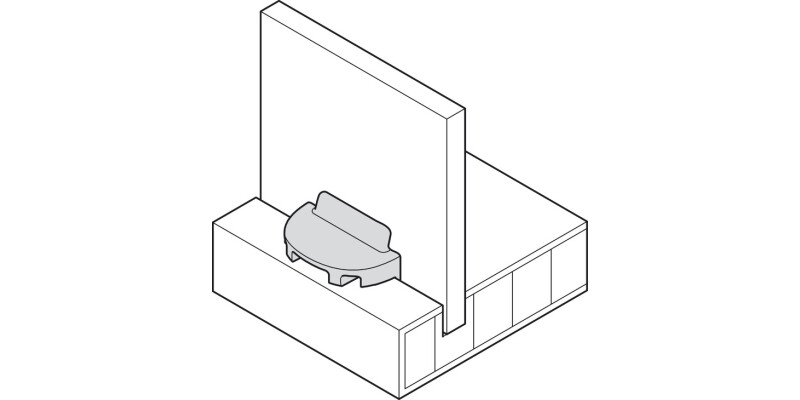

For concealed applications, the connector is installed at the rear or the panel and is therefore invisible from the front
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Recommended number of rear panel connectors:
Cabinet height ?600 mm: 4 pieces
Cabinet height ?1,200 mm: 6 pieces
Specifications
Colour/finish
Grey
Material
Plastic
Area of application
For fastening the rear wall in small furniture
For stabilising wooden drawer base panels

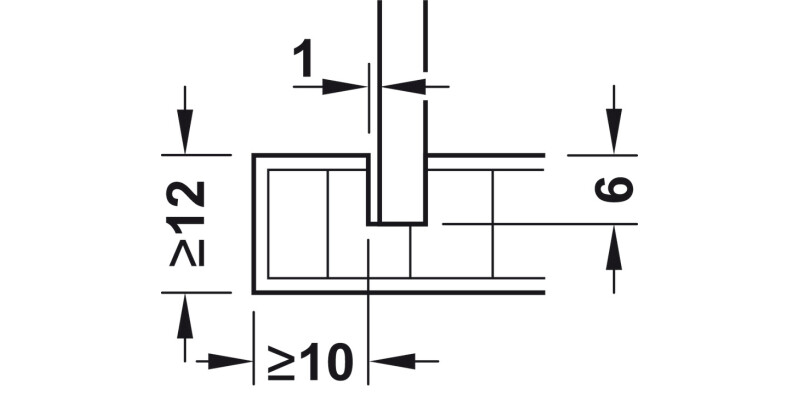

For wood thickness
≥12 mm
Installation
For insertion into a groove
