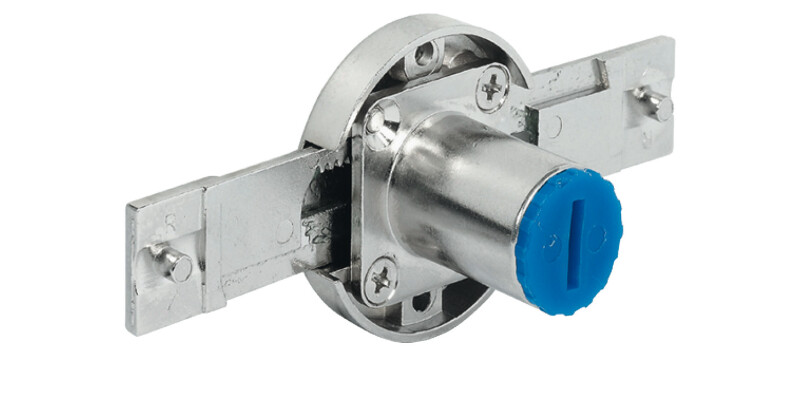

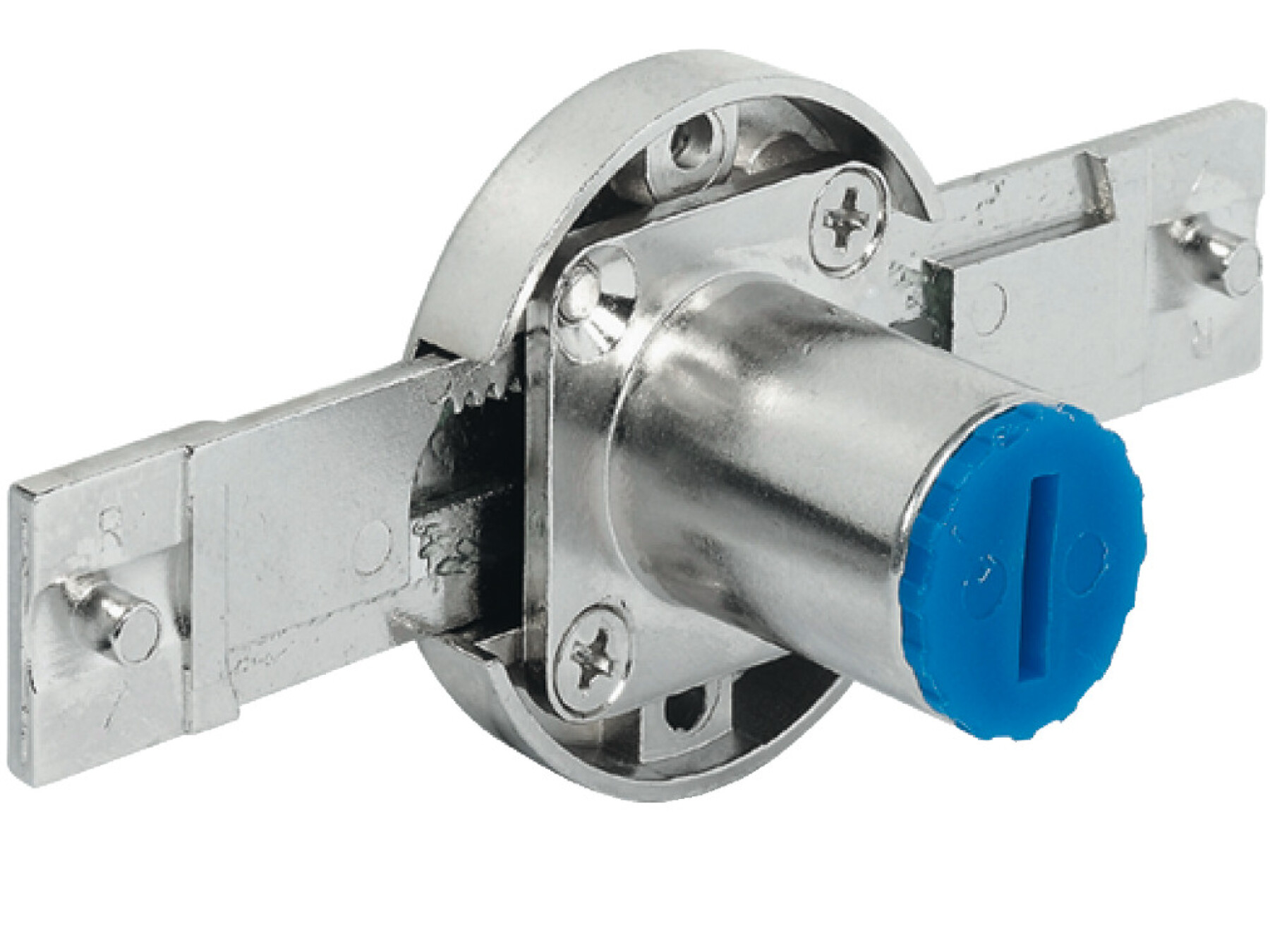

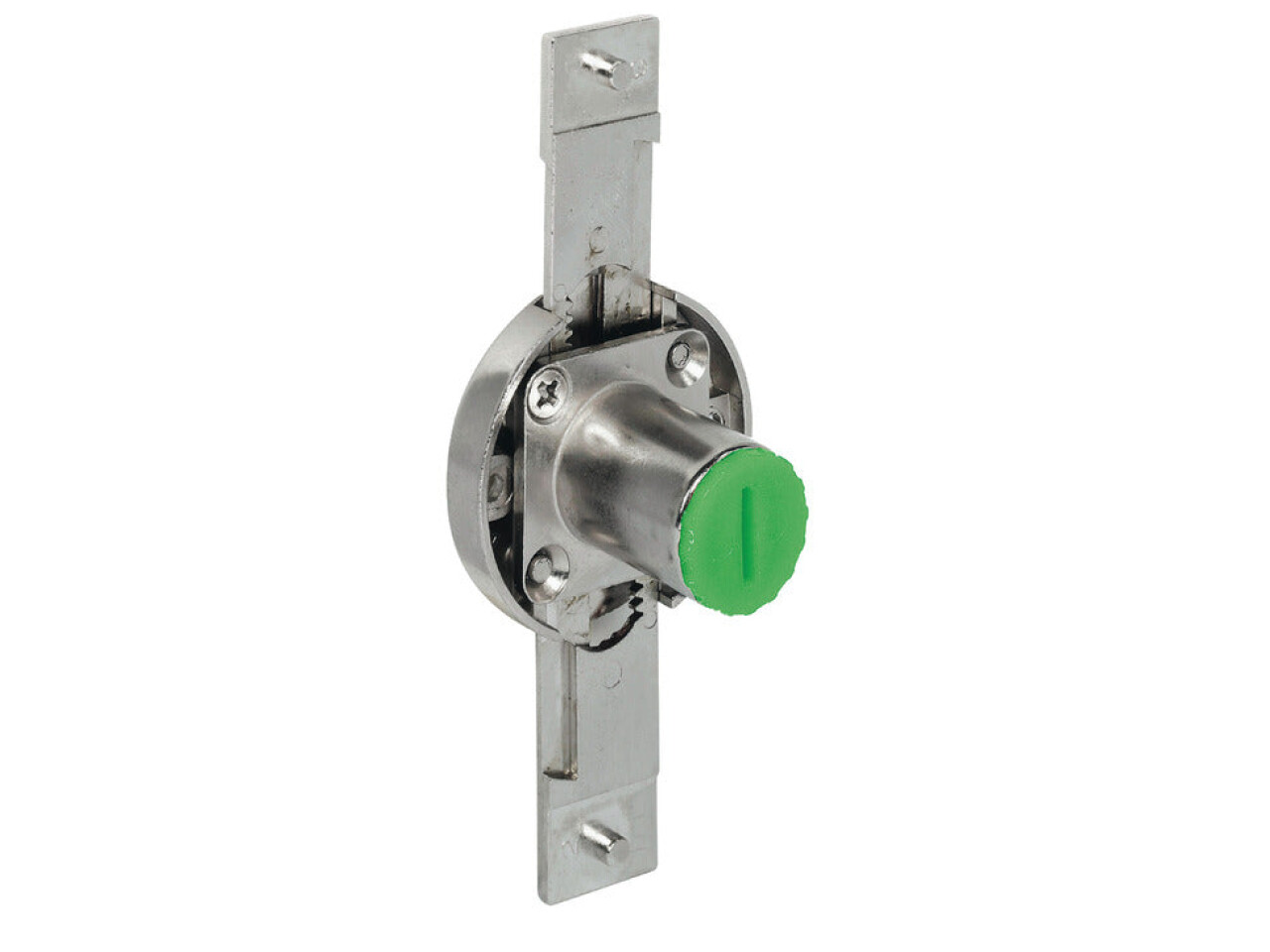

Symo3000 Ext Rod Lockcase DR NP
Part Number: 237.76.600
For combination with Symo cylinder removable core, Drawer version
Price:
£1.65
Per Item
Order reference Extending rods, rod guides and clip on stops are not supplied and must be ordered... Read More
Product Information
Product Details
Order reference

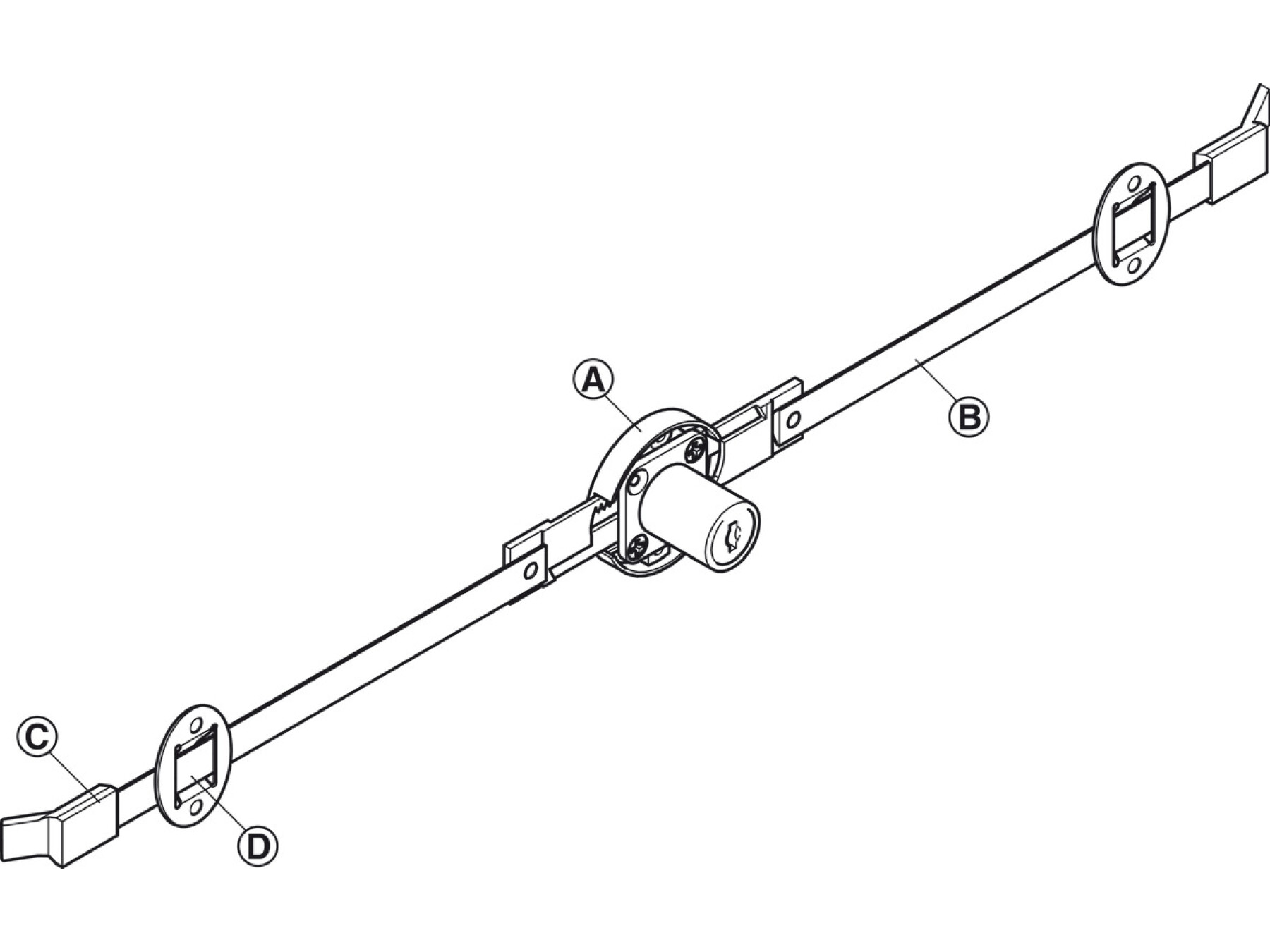

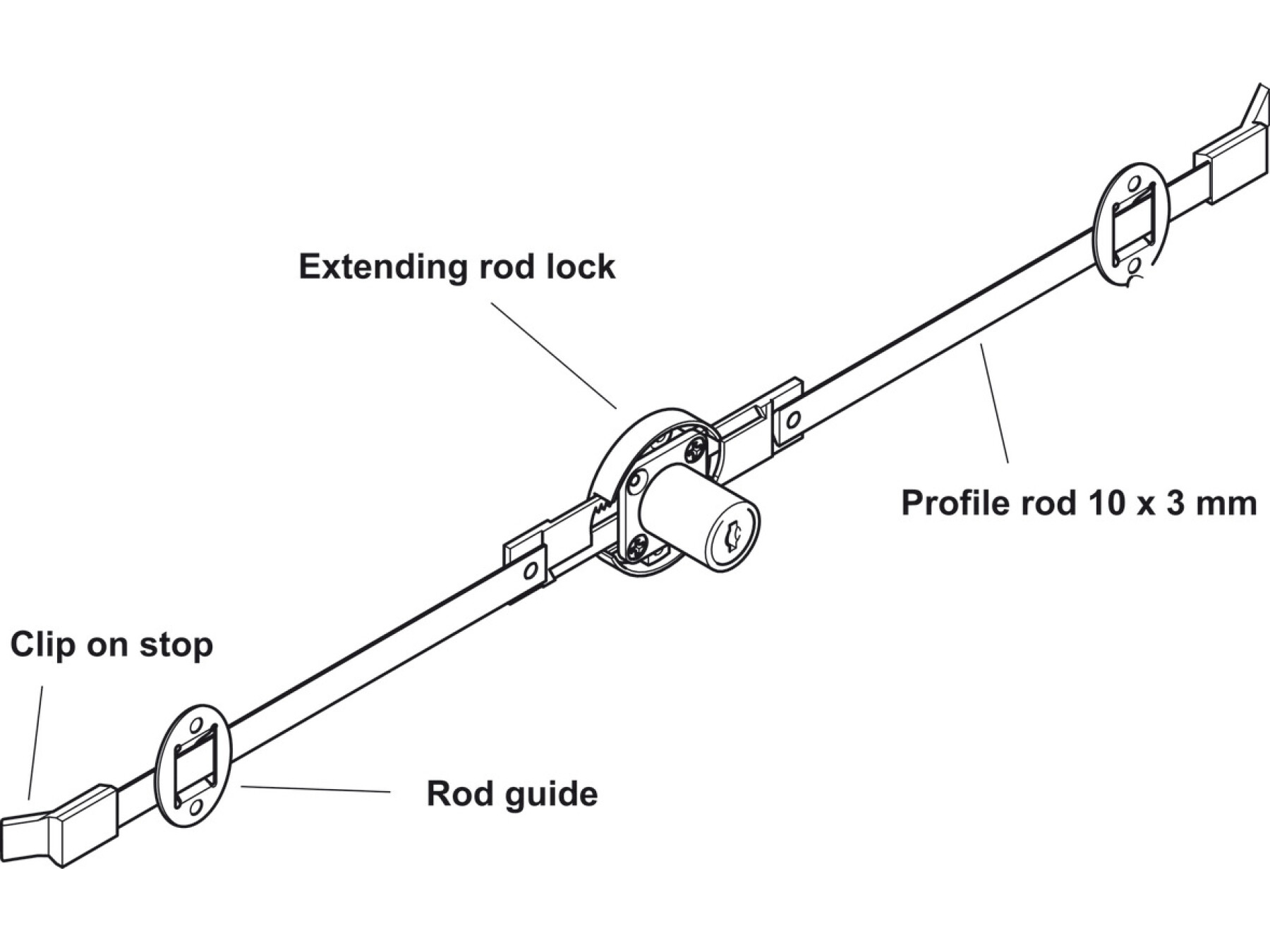

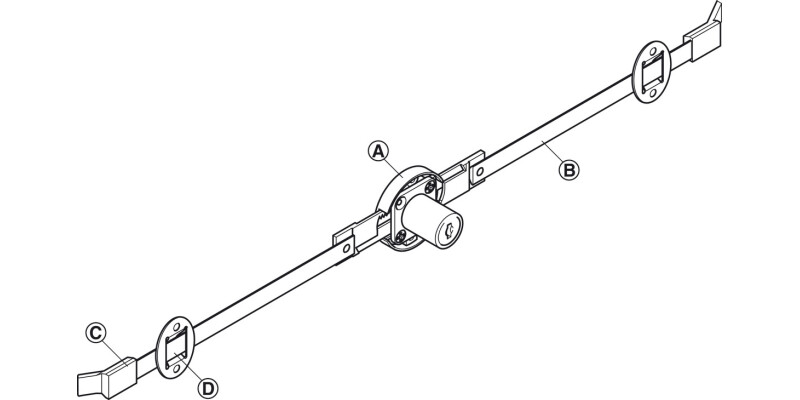

Extending rods, rod guides and clip on stops are not supplied and must be ordered separately
Order Hospa Ø 3.0 mm screws separately
Specifications
Material
Zinc alloy
Colour/finish
Nickel plated
Installation
For screw fixing
Refinement
Nickel plated
Area of application
For cylinder cores that are inserted from the front on site
Cylinder shape
prepared for round cylinder
Cylinder housing length
22.00 mm
Travel
16.00 mm
with key
No
