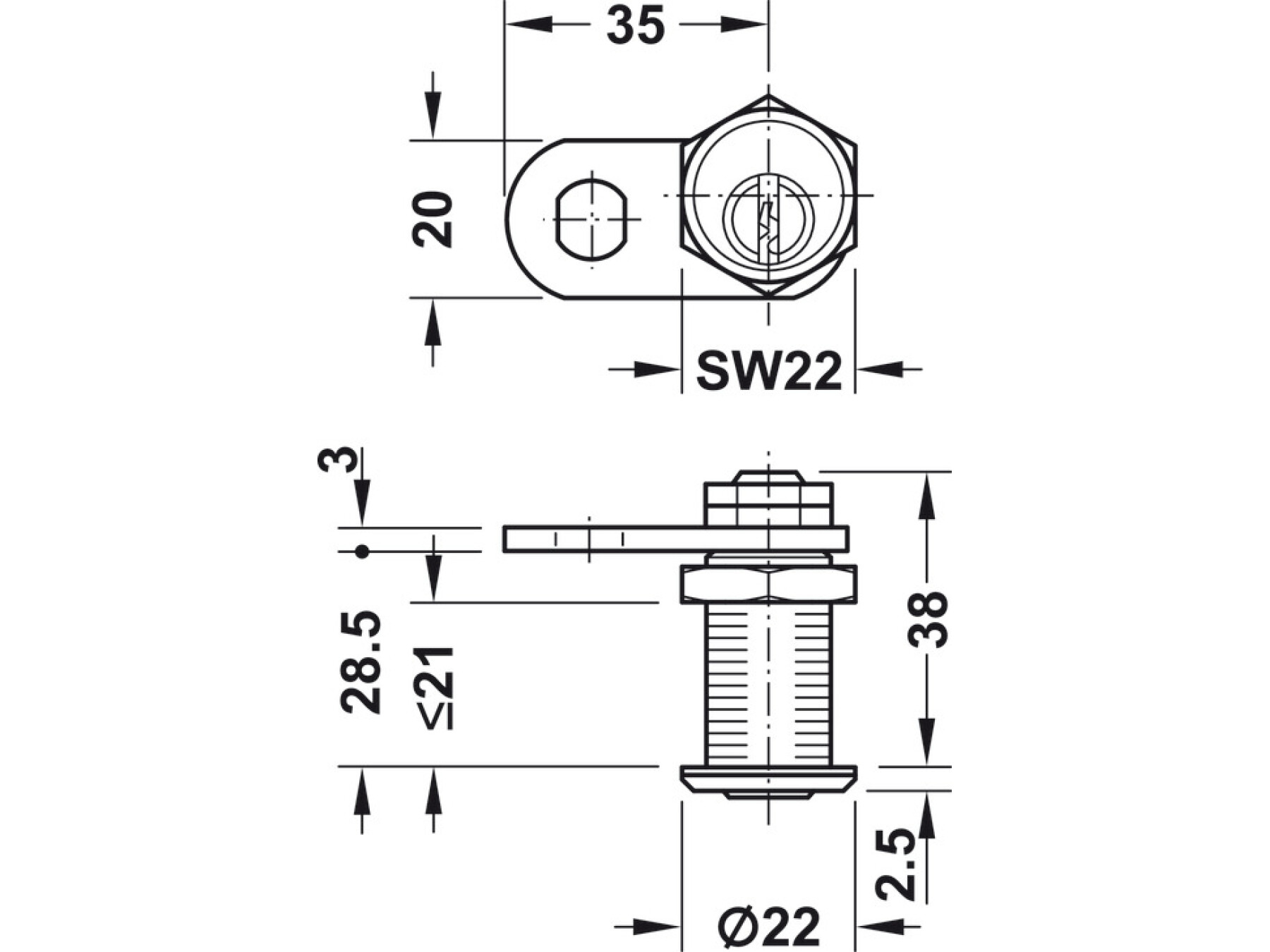

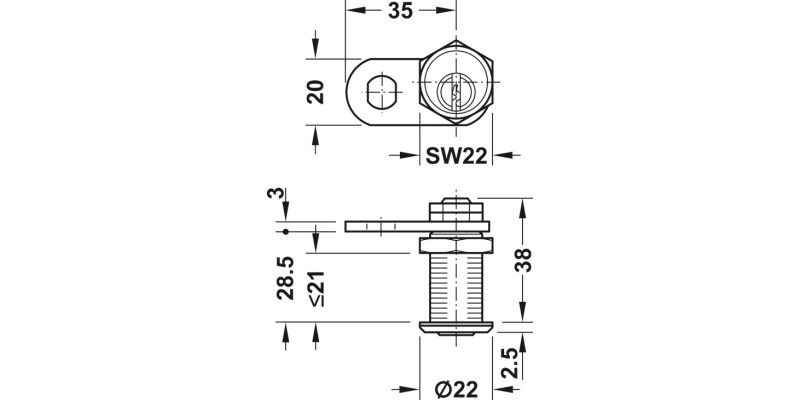

Cylinder Cam Lock 21mm PNP Dif Dir.B
Part Number: 235.92.725
With straight locking cam, Closure direction 90° B (C,E,H), keyed to differ
Price:
£33.47
Per Item
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure... Read More
Product Information
Product Details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:
Closure direction A can be altered to D, F or G
Closure direction B can be altered to C, E or H
With key trap; key can only be removed in locked position

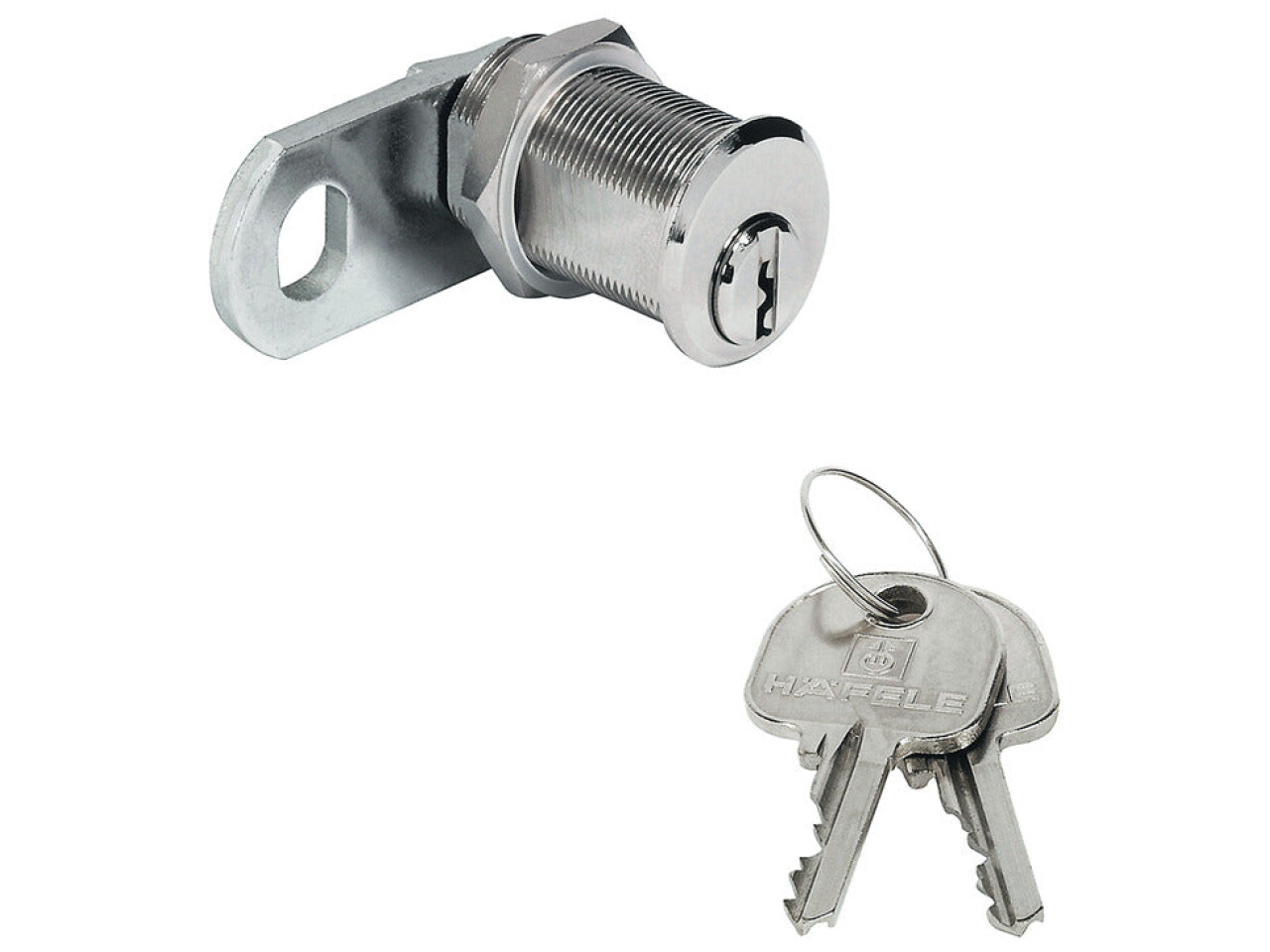

Supplied with
1 Cam lock
2 Keys
1 Locking cam
3 Hexagon nuts
1 Washer
Security pass and locking plan with locking systems
Specifications
Locking system
Standard profile
Closure travel
90° (reversible, with key trap)
For door thickness
≤21 mm
Thread length L
21.00 mm
Colour/finish
Nickel plated, Polished
Installation
For screw fixing with hexagonal nut

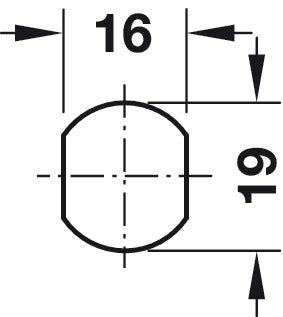

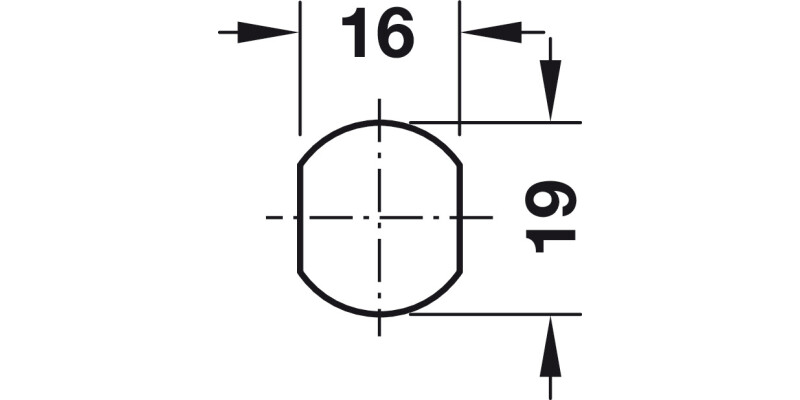

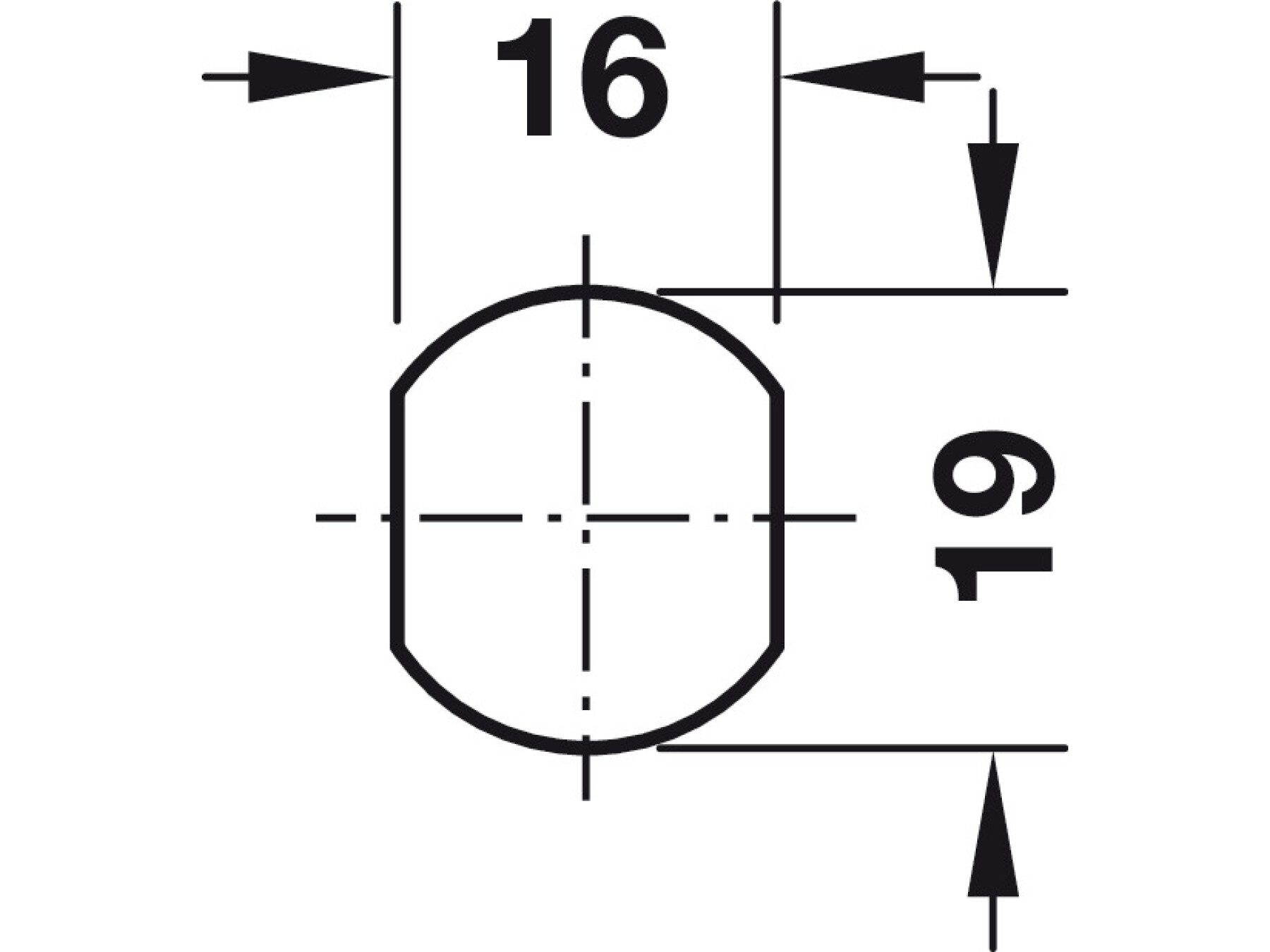

(aperture pattern 19 x 16 mm)
Version
Straight locking cam
Material
Brass
Cylinder shape
round cylinder
Locking system
with 5 pin tumblers
with key
Yes
Order reference
Order spacer bushes and anti-twist washer separately
