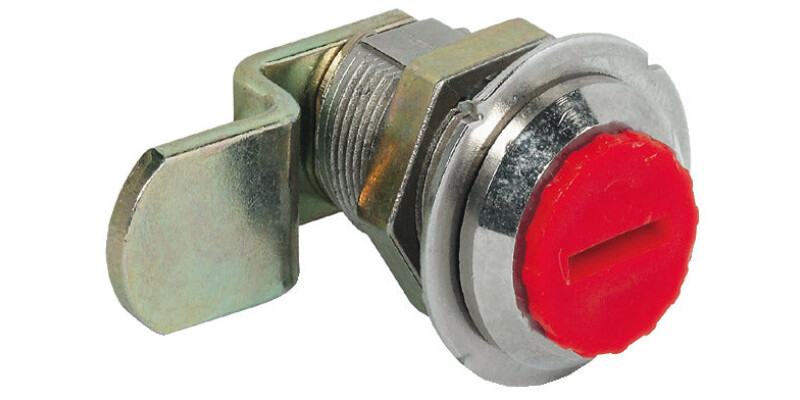

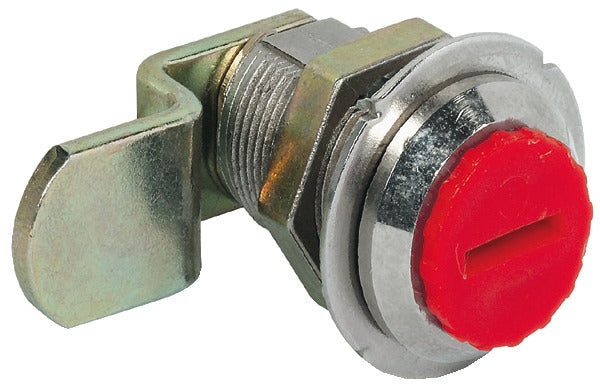

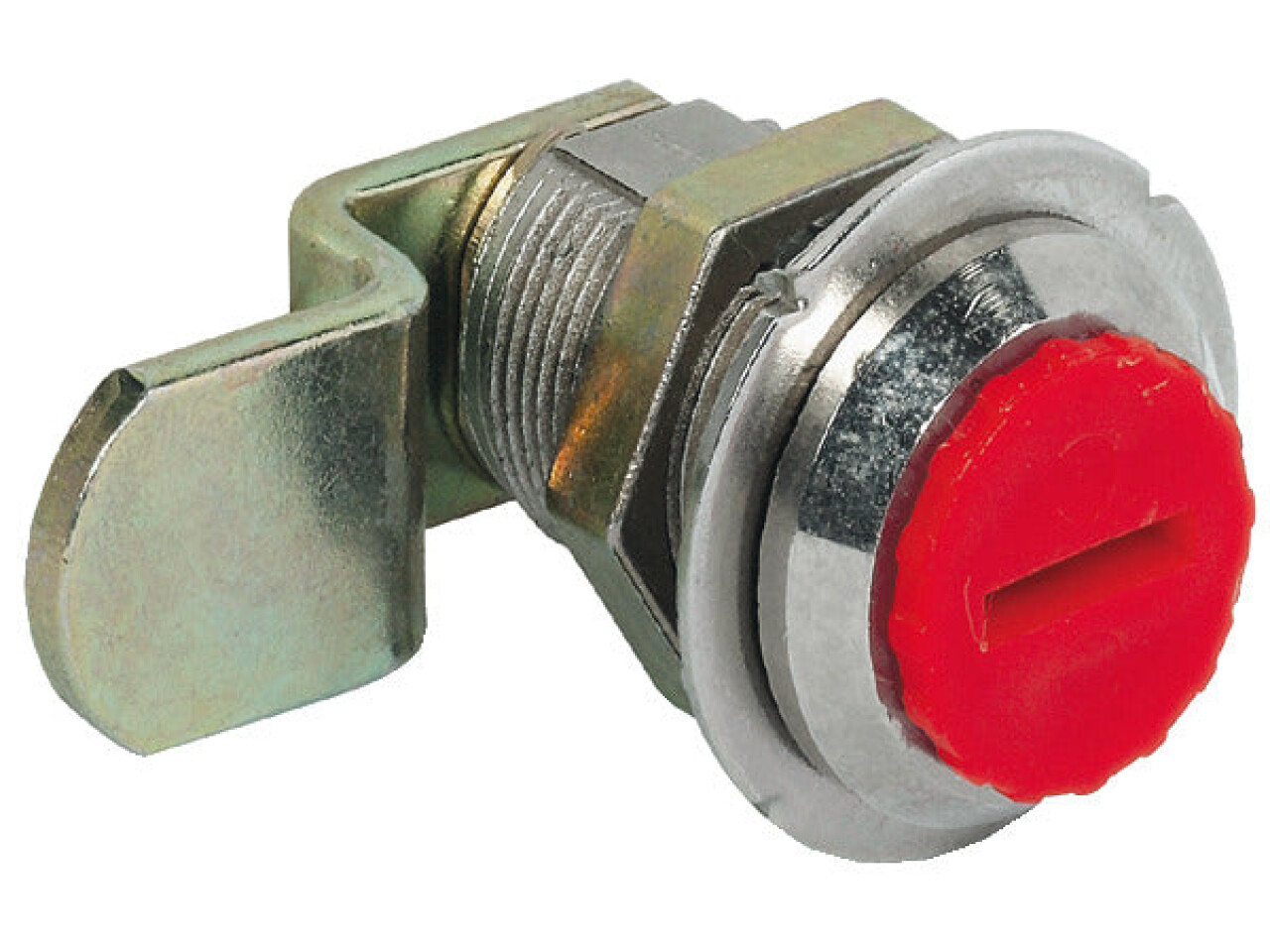

Symo3000 Crk Cam Lockcase 17mm Dir.B NP
Part Number: 235.88.830
For combination with Symo cylinder removable core, Closure direction B (C, E, H*)
Price:
£2.68
Per Item
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:Closure... Read More
Product Information
Product Details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction:
Closure direction A can be altered to D, F or G
Closure direction B can be altered to C, E or H
Specifications
Closure travel
90° locking cam (reversible), 180° key
For door thickness
≤17 mm
Colour/finish
Nickel plated, Polished
Installation
For screw fixing with hexagon nut
Area of application
For furniture doors and drawers and on-site installation of cylinder cores
Version
With cranked locking cam
Material
Zinc alloy
Cylinder shape
prepared for round cylinder
with key
No
Supplied with
1 Nut
1 Locking cam
1 Mounting screw
1 Steel lock washer
