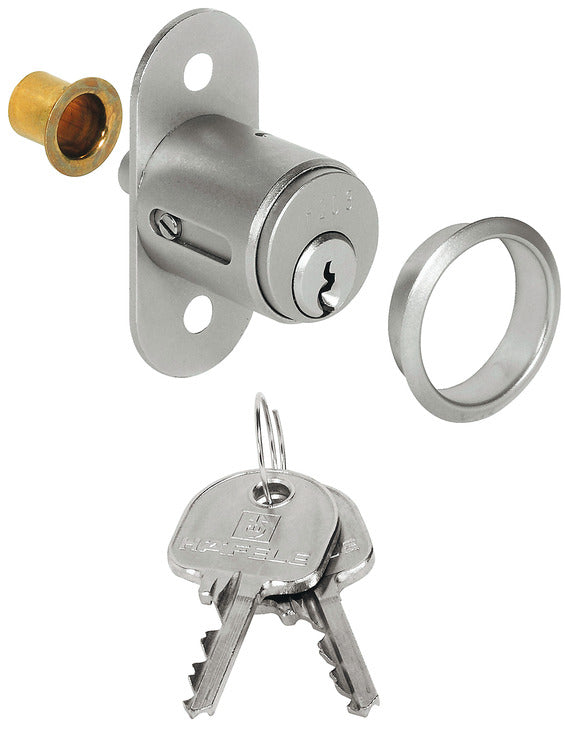

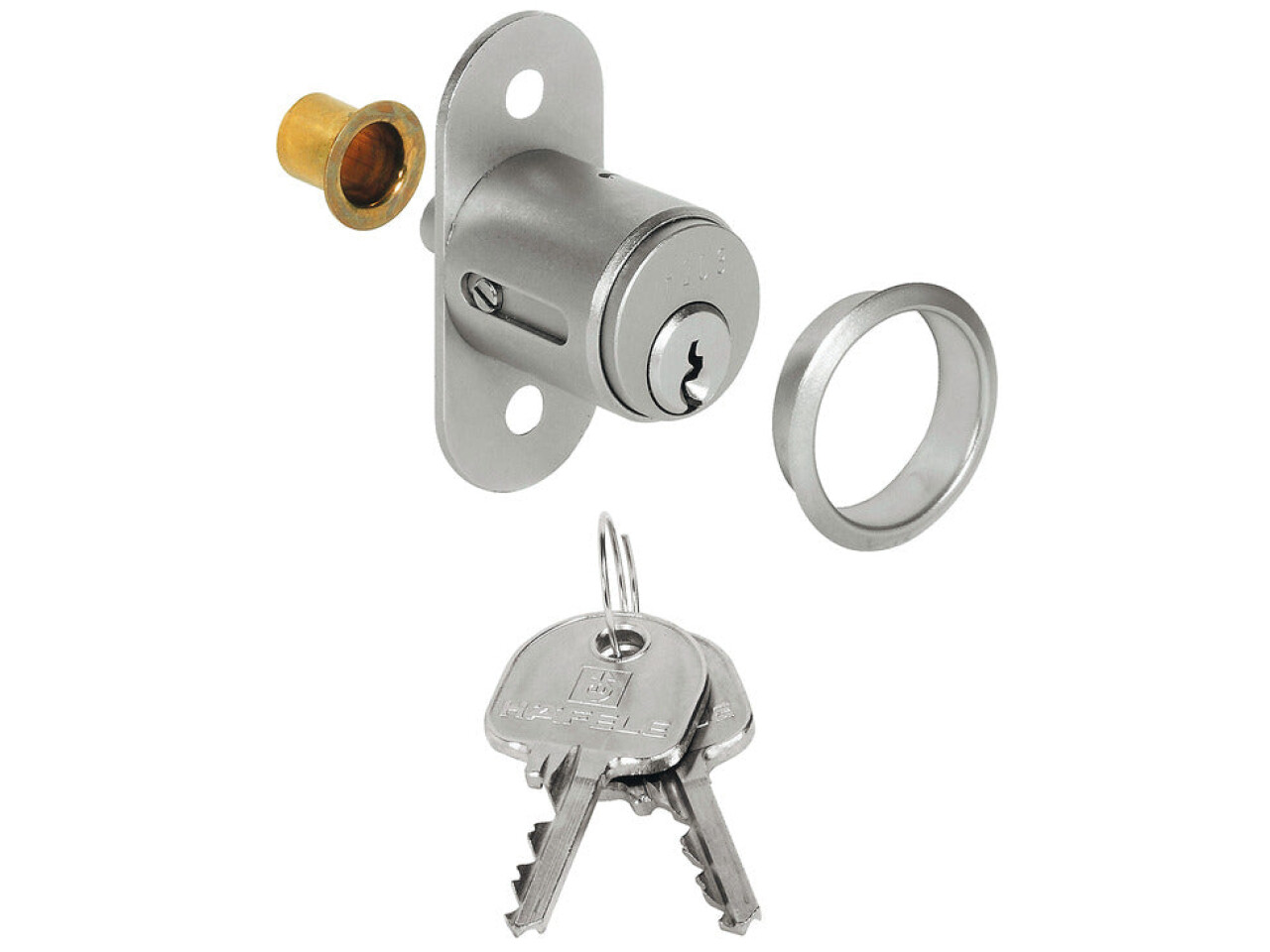

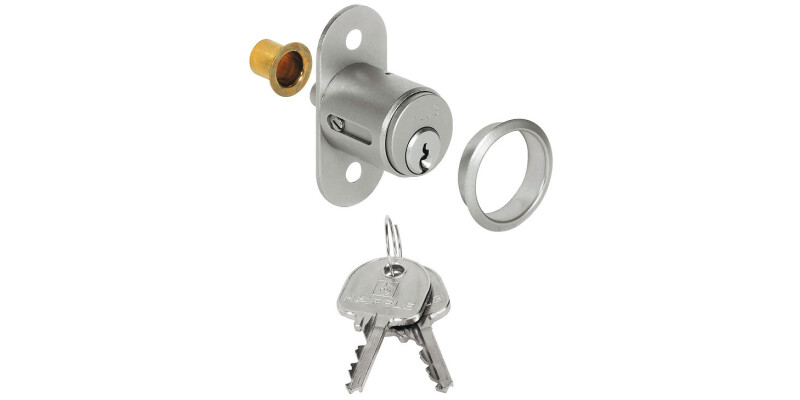

PushButton Cylinder D22mm M5 MNP H1
Part Number: 234.58.201
For wooden sliding doors and for installing in lock panel, Keyed alike: key change H1
Price:
£42.51
Per Item
Lock; by pushing in the cylinderUnlock; by turning the keyMaster key system is available to special order only
Product Information
Product Details
Lock; by pushing in the cylinder
Unlock; by turning the key
Master key system is available to special order only

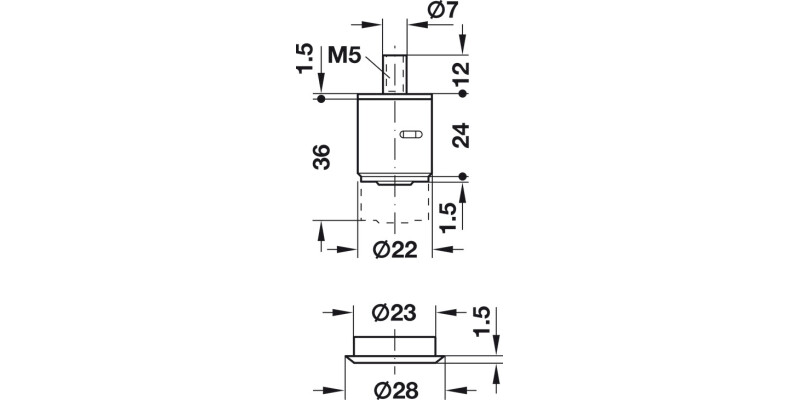

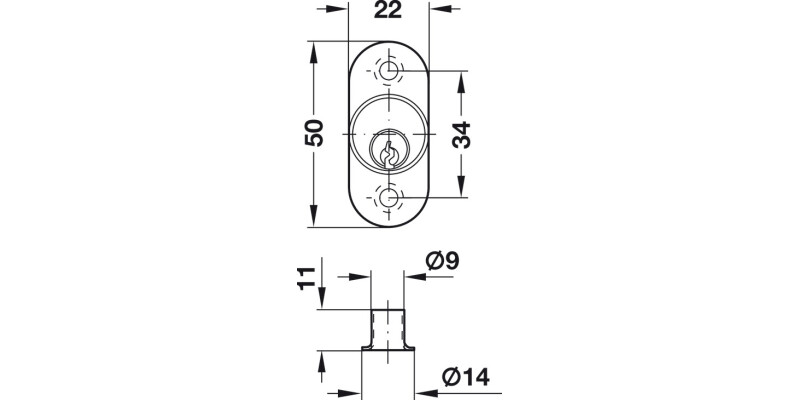

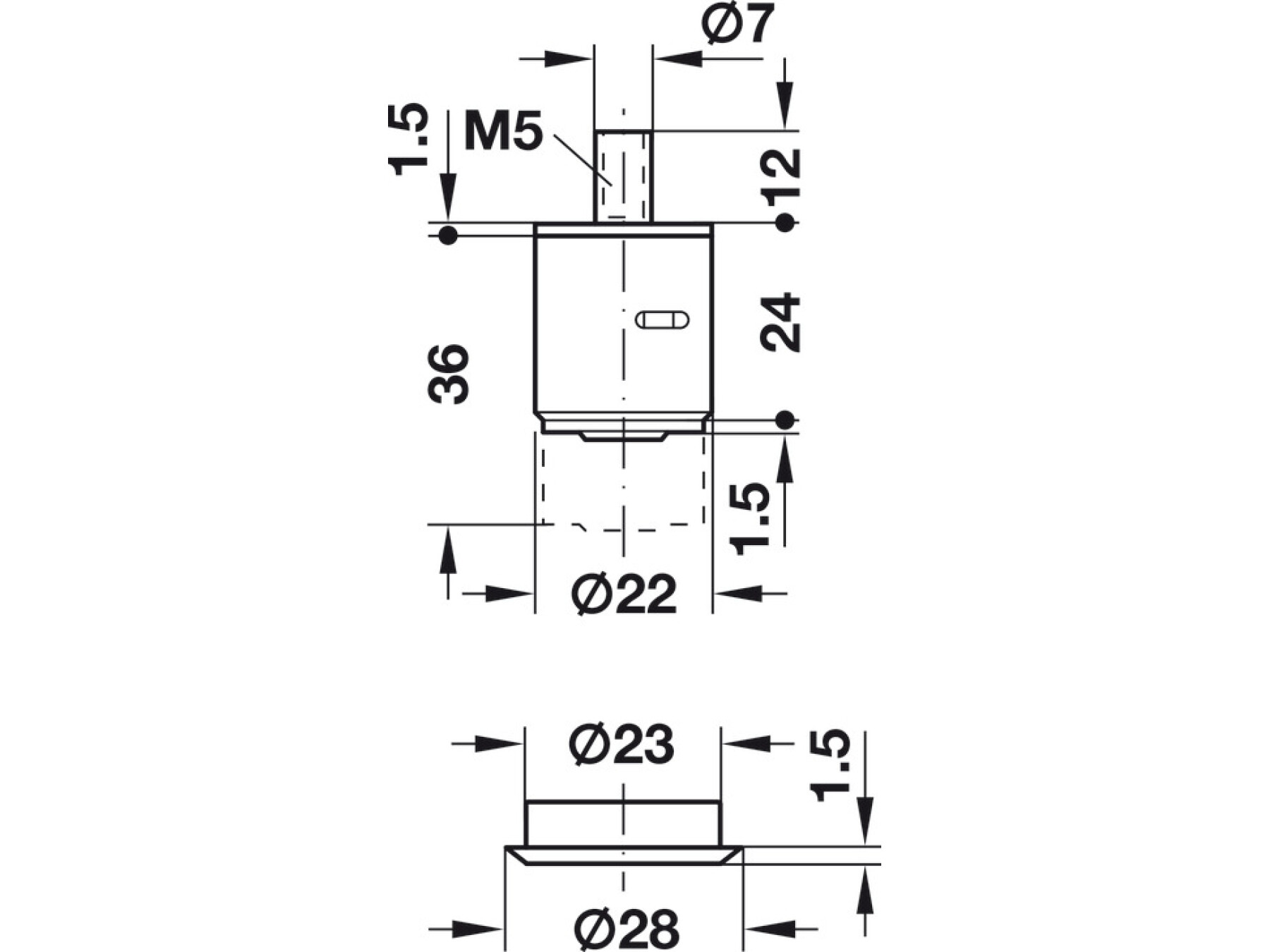

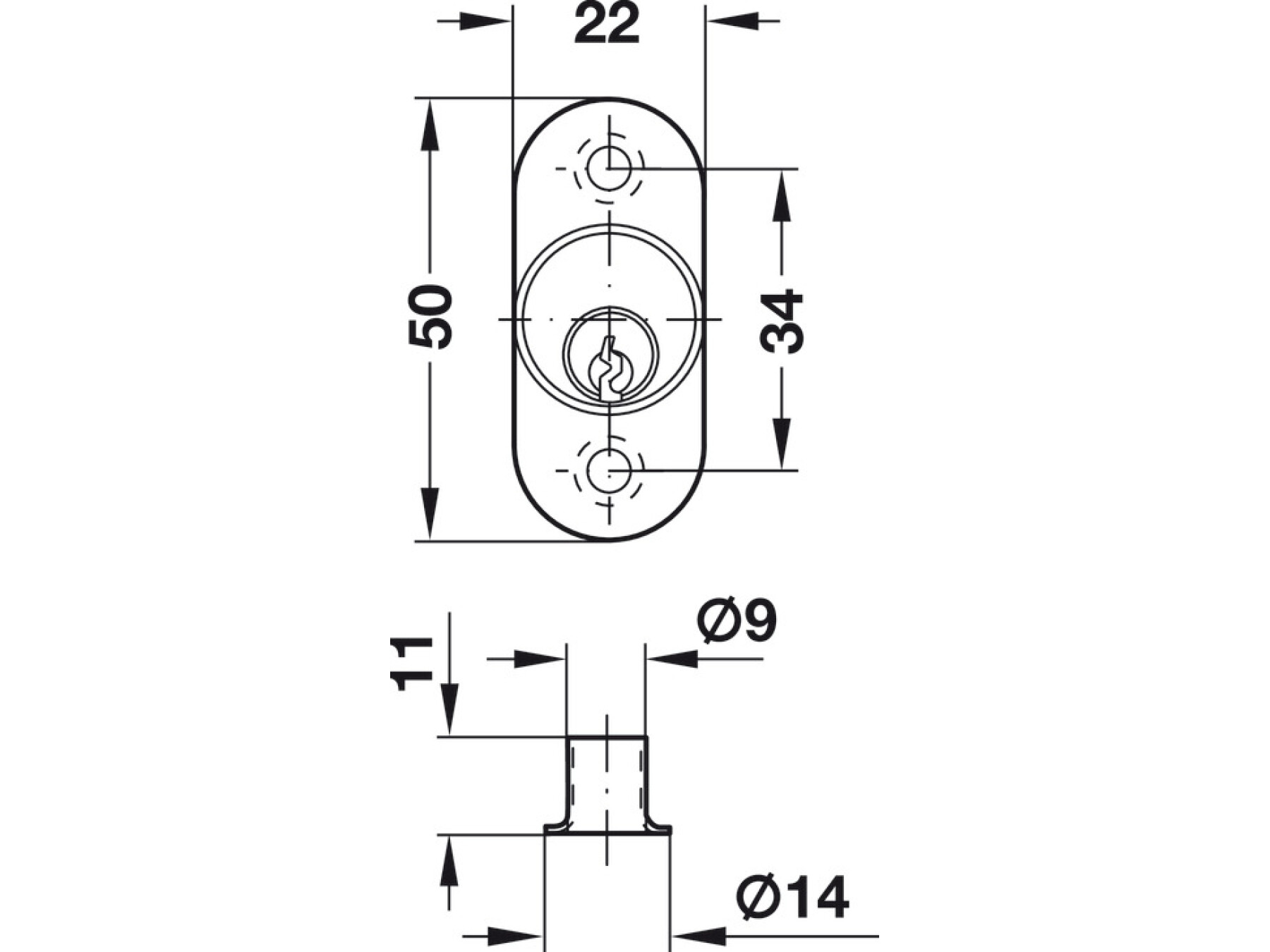

Specifications
Locking system
Standard profile
Area of application
For sliding doors
Version
Locking pin with M5 internal thread
Material
Housing: Zinc alloy
Cylinder: Brass
Colour/finish
Nickel plated, Matt
Cylinder shape
round cylinder
Cylinder length
24.00 mm
Cylinder Diameter
22.00 mm
Locking system
with 5 pin tumblers
Installation
Screw fixing
with key
Yes
Order reference
Order Hospa Ø 3.0 mm countersunk screws separately
Supplied with
Accessories: 2x keys, 1x cylinder rosette and 1x locking socket
