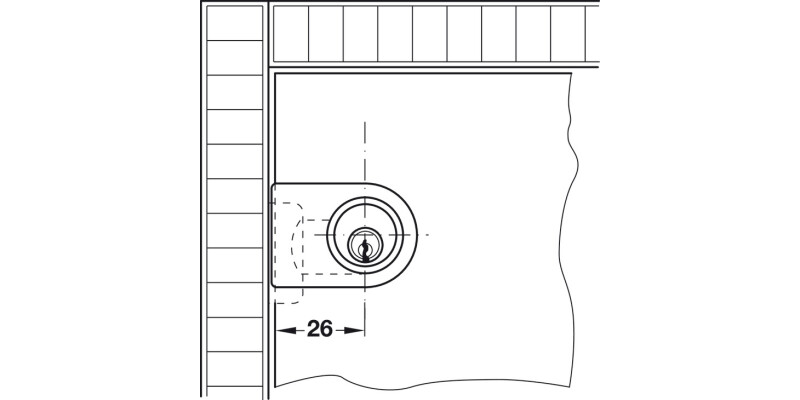

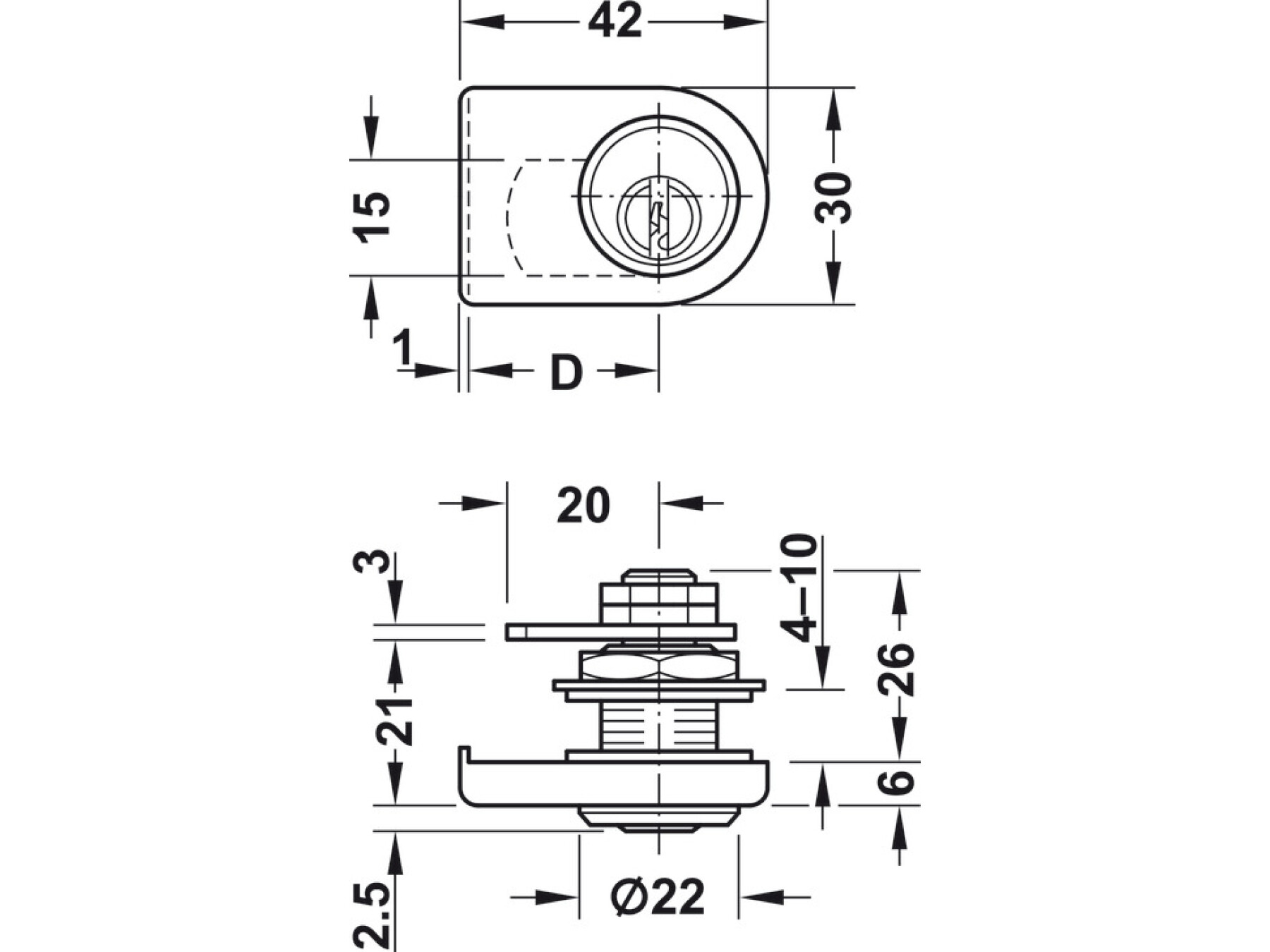

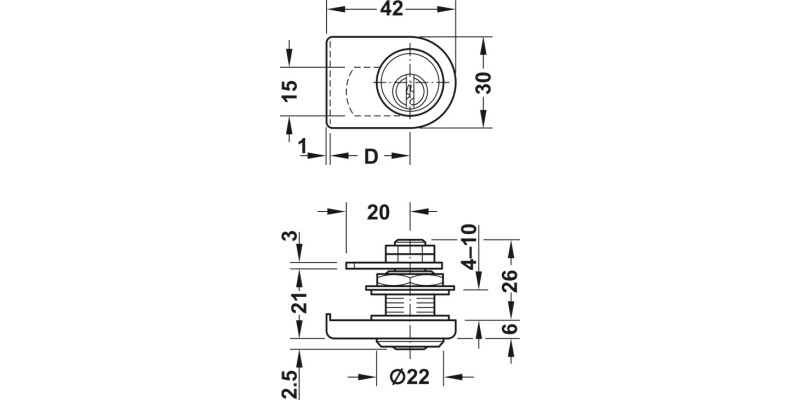

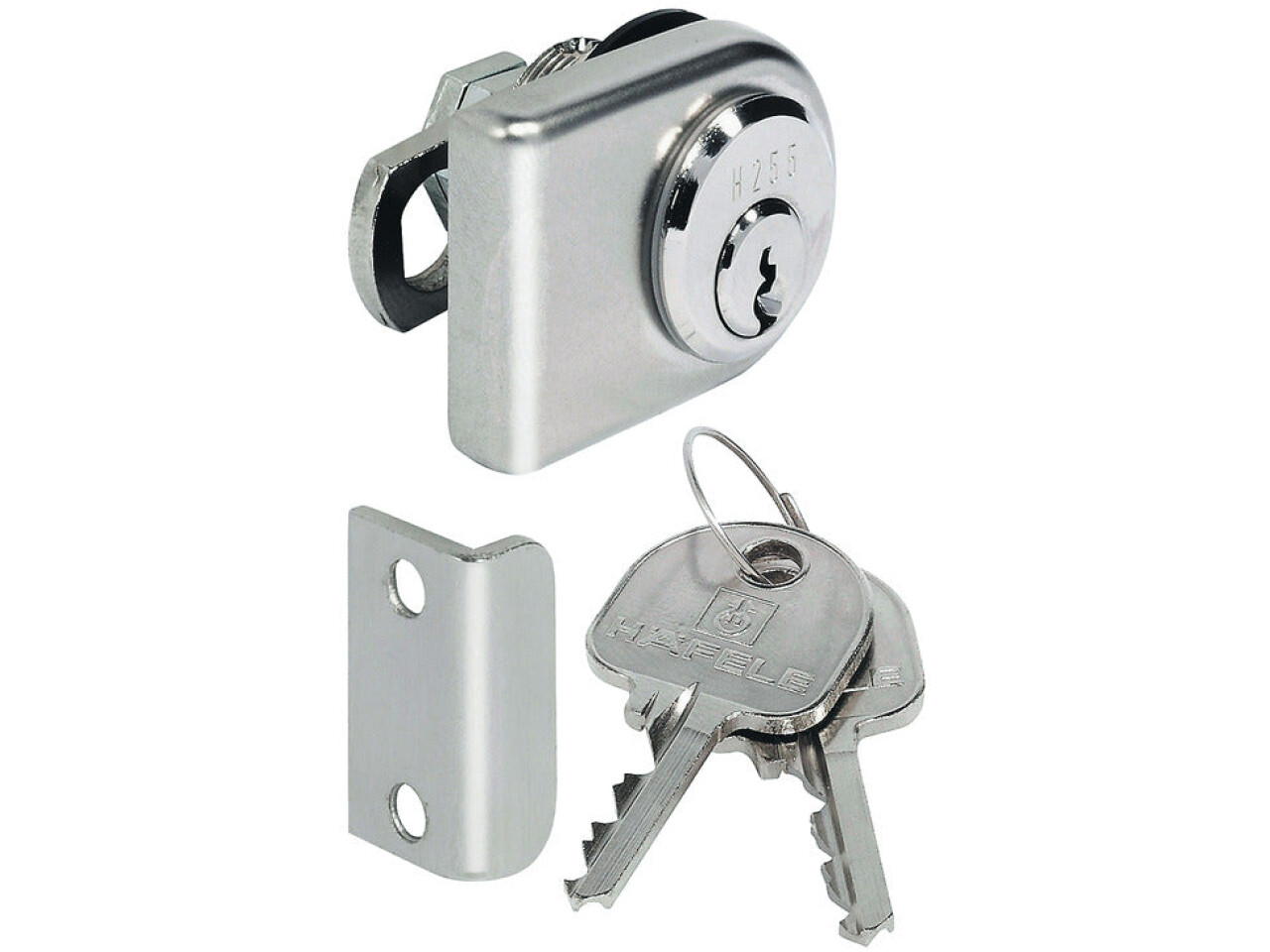

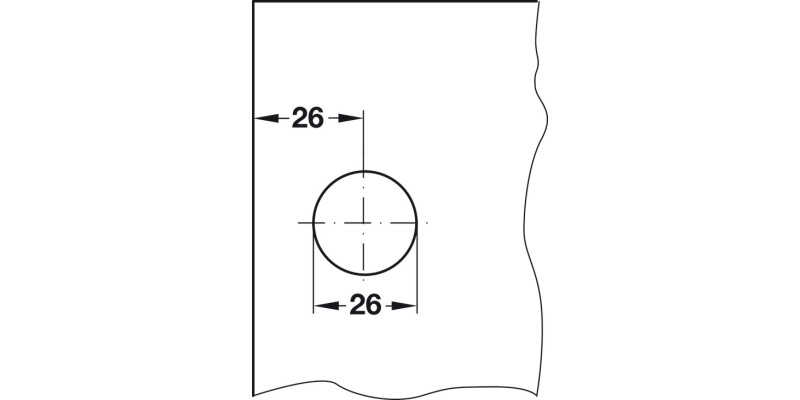

Glass Door Cyl Lever Lock B Diff PNP
Part Number: 233.33.710
With straight locking cam, Closure direction 90° B (C, E, H), keyed to differ, polished nickel plated
Price:
£33.93
Per Item
Supplied with Accessories: 2x keys, 1x plastic clamping plate and clamping rosette,1x locking cam, 3x nuts and... Read More
Product Information
Product Details

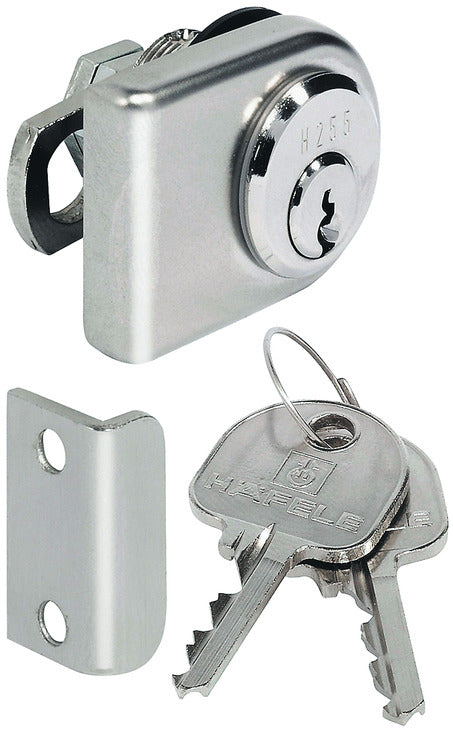

Supplied with
Accessories: 2x keys, 1x plastic clamping plate and clamping rosette,

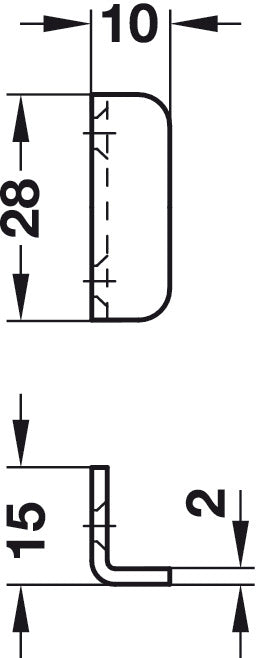

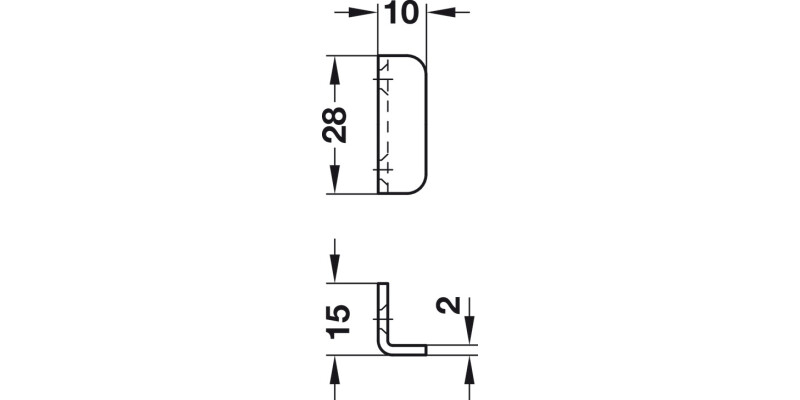

1x locking cam, 3x nuts and 1x angled steel striking plate

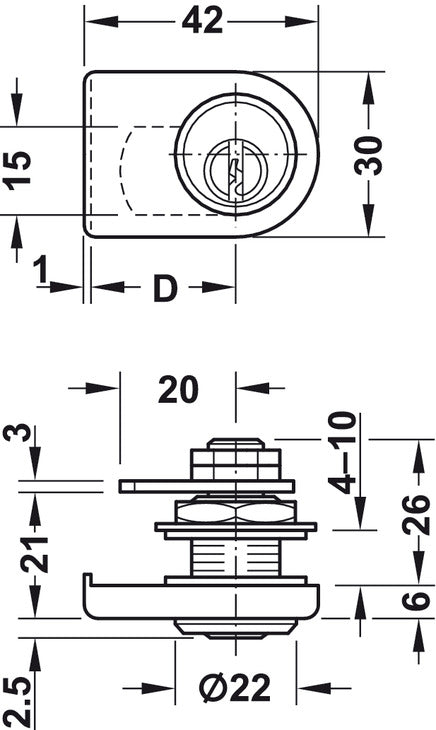

Specifications
Locking system
Standard profile
Closure travel
90° (reversible, with key trap)
Area of application
For cylinder cores that are inserted from the front on site
Cylinder shape
round cylinder
Version
With fixed pin tumbler cylinder
Material
Cylinder: Brass
Trim cap: Zinc alloy
Locking system
with 5 pin tumblers
For glass thickness
4 – 10 mm

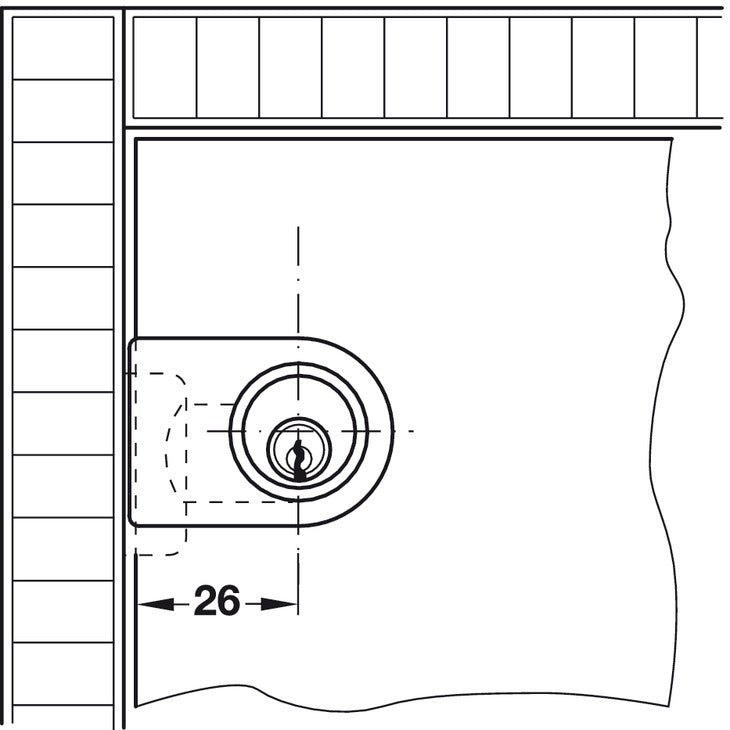

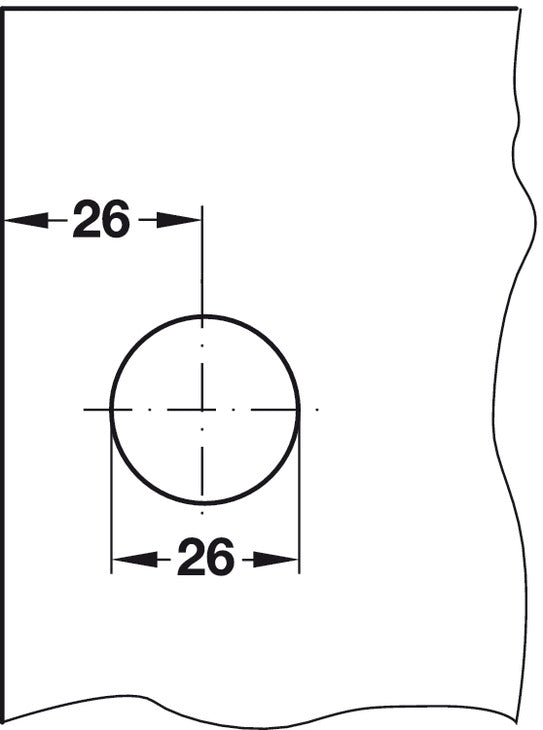

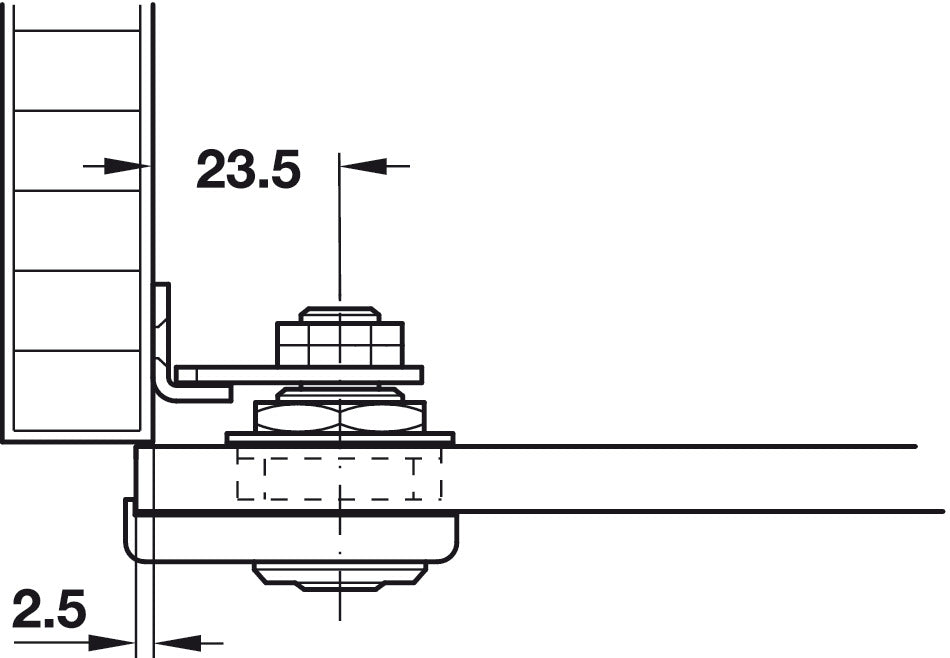

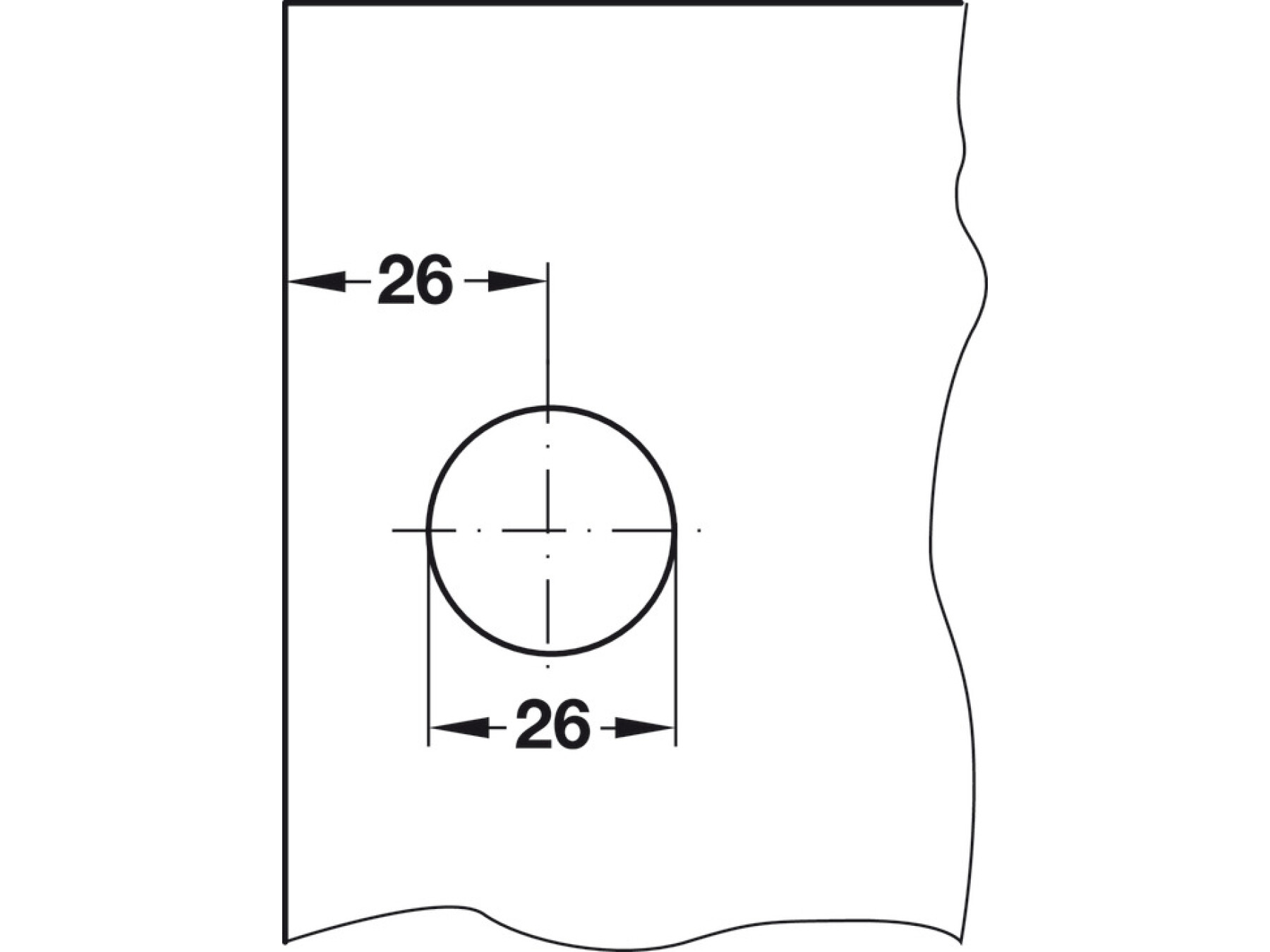

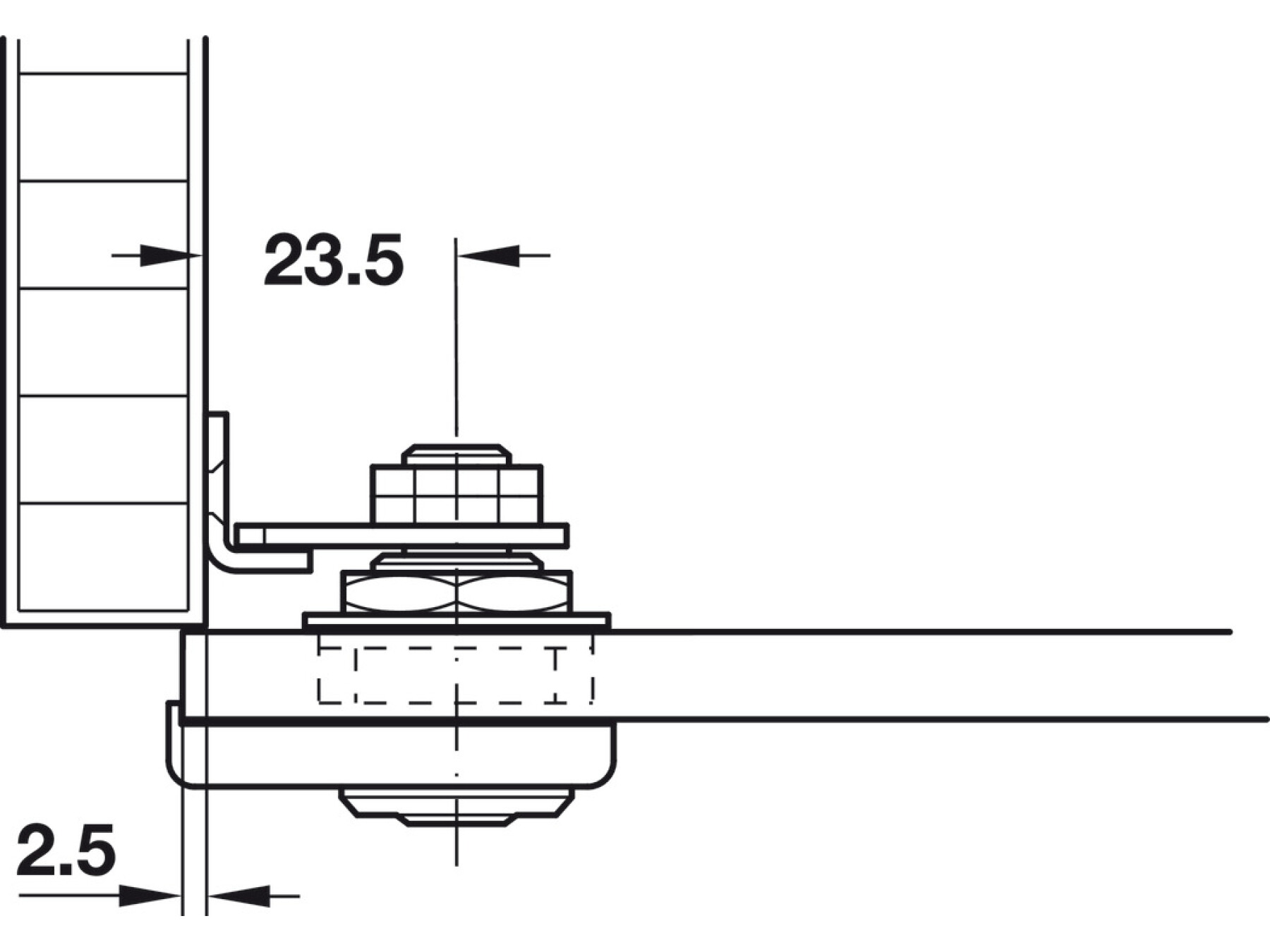

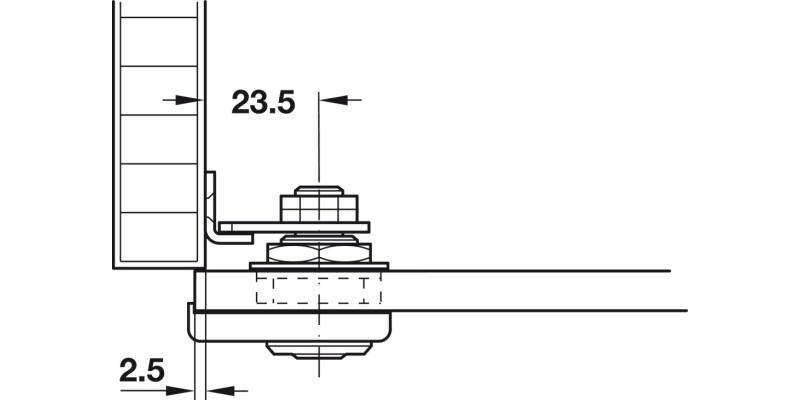

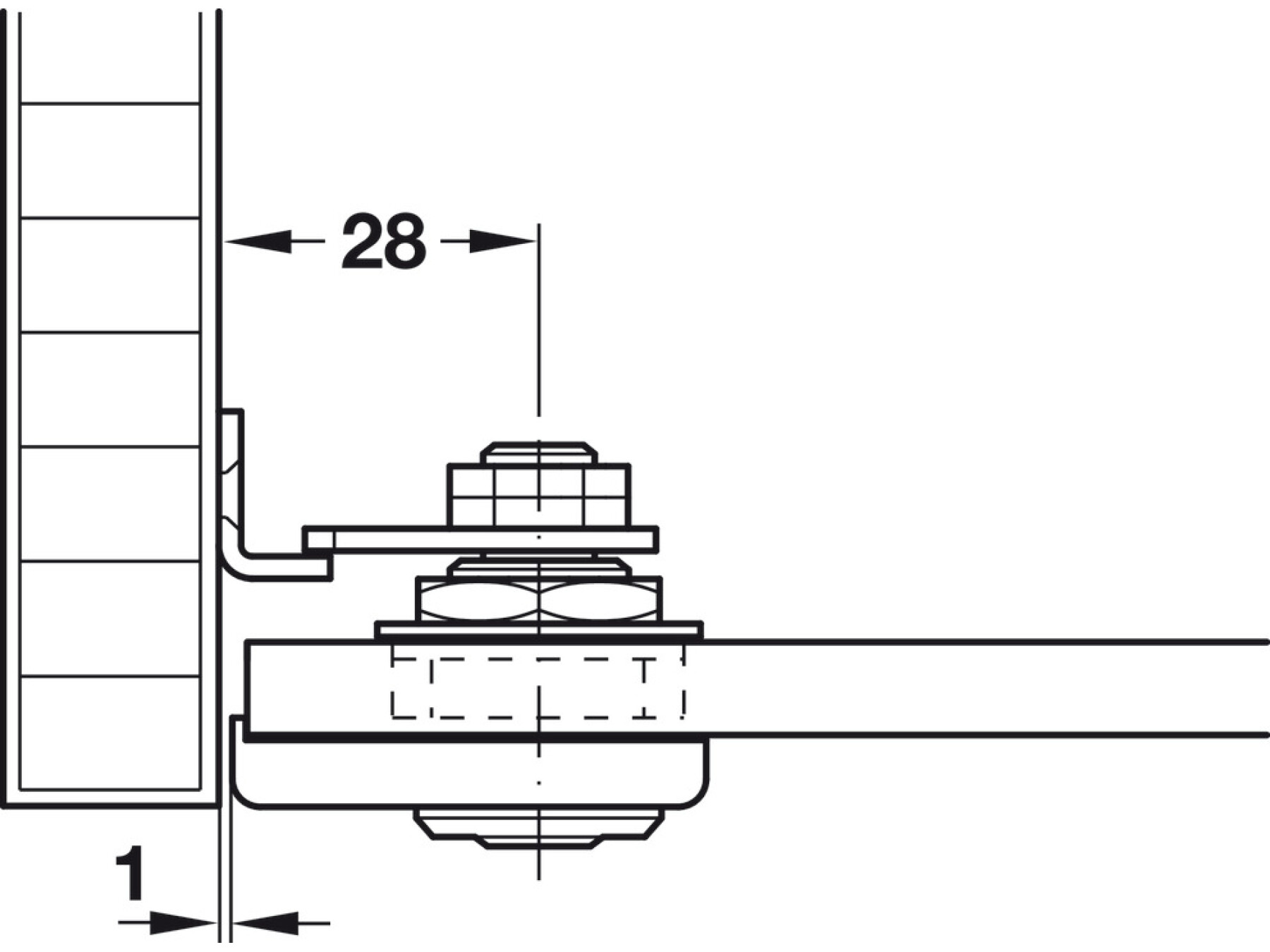

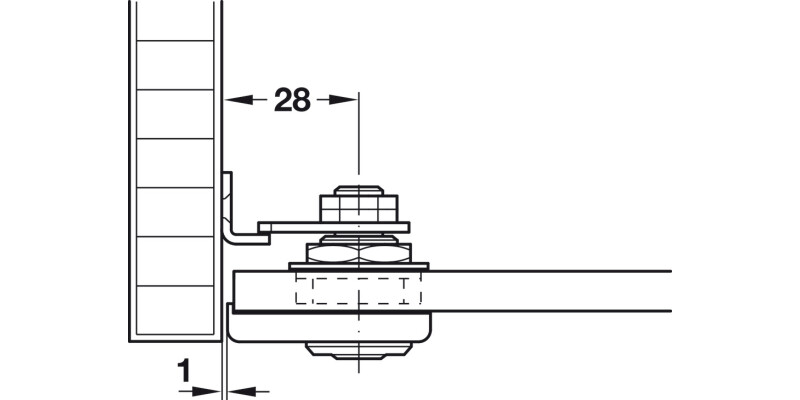

Installation
For screw fixing with hexagon nut
with key
Yes
