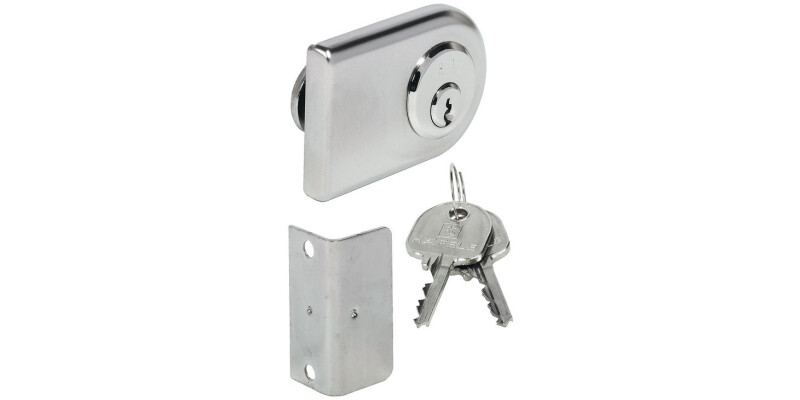

Glass Door Cyl Lever Lock B H1 MNP
Part Number: 233.30.663

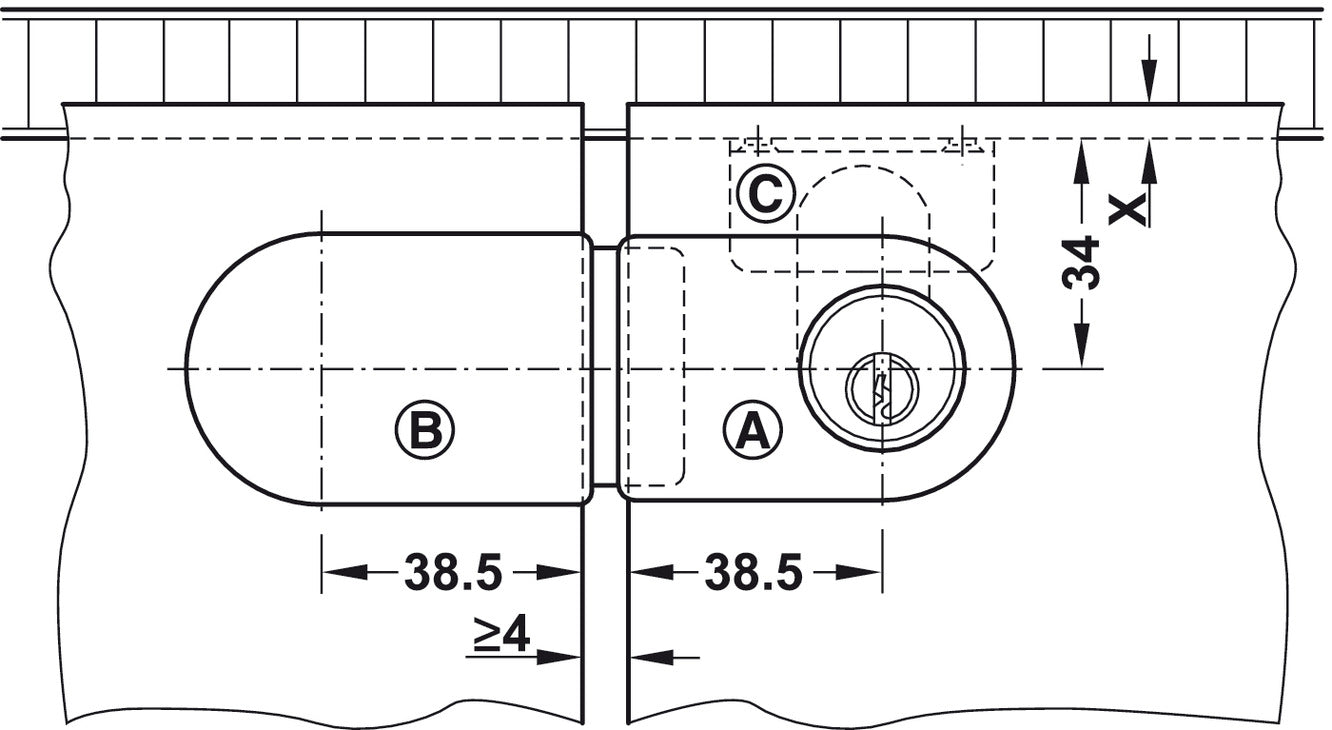

Closure direction 90° B (C,E,H), keyed alike: key change H1
Price:
£32.03
Per Item

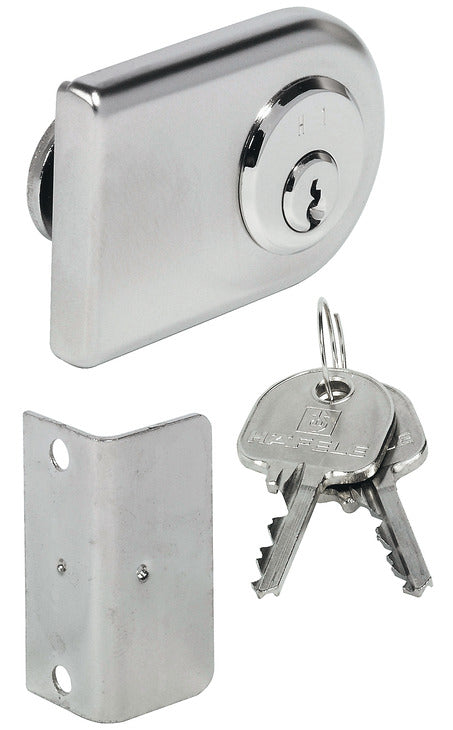

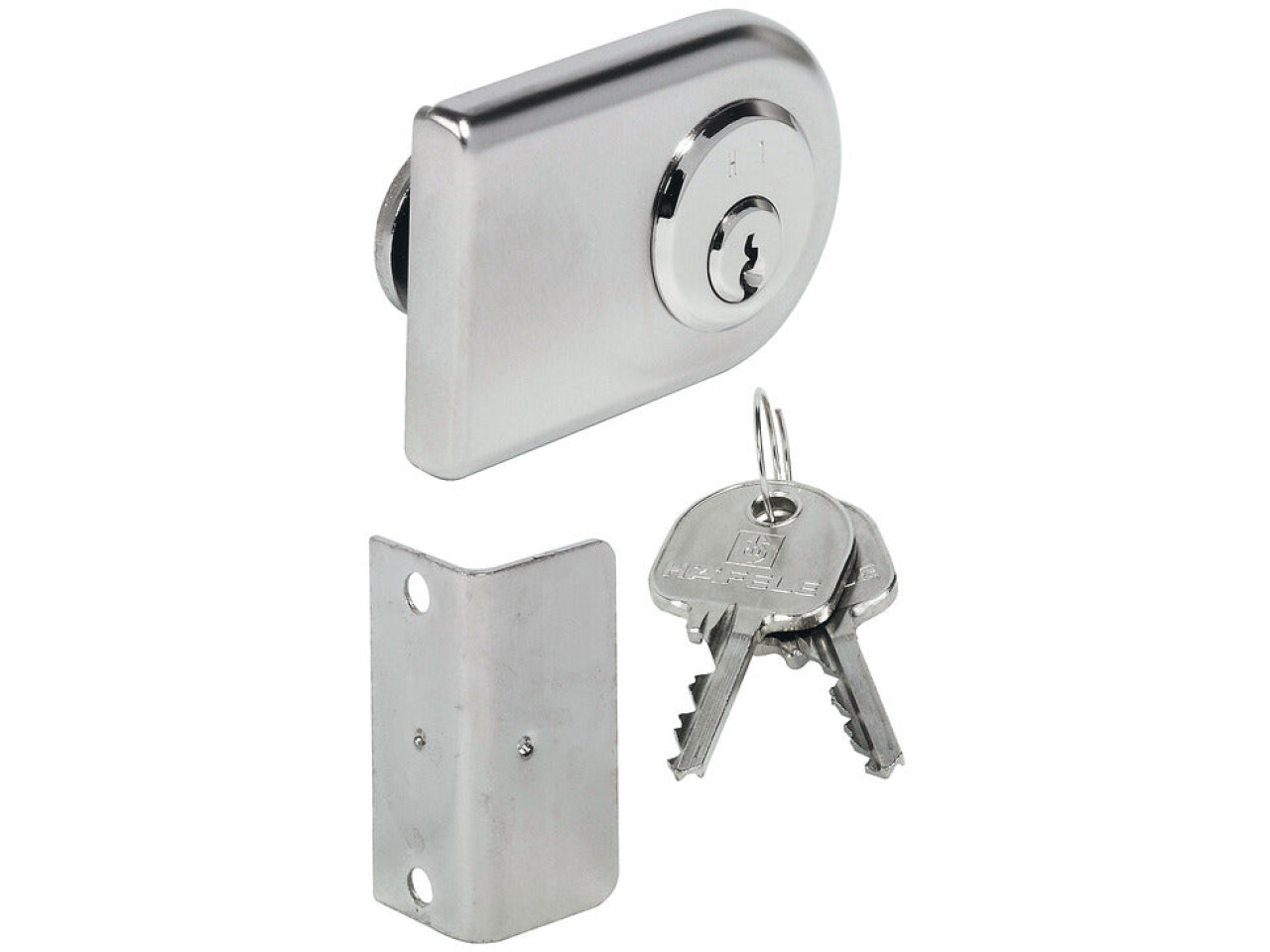

Supplied with 1 Glass door cam lock2 Keys1 Locking cam3 Hexagon nuts1 Clamping plate1 Clamping rosette1 Angled striking plate
Product Information
Product Details
Supplied with
1 Glass door cam lock
2 Keys
1 Locking cam
3 Hexagon nuts
1 Clamping plate
1 Clamping rosette

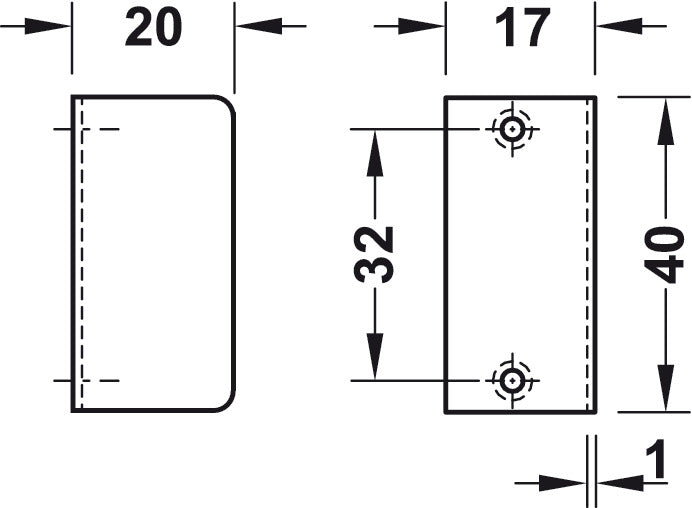

1 Angled striking plate

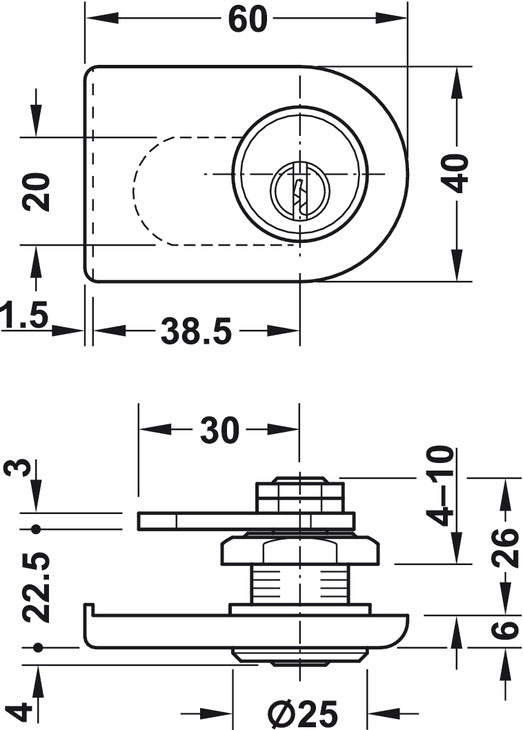

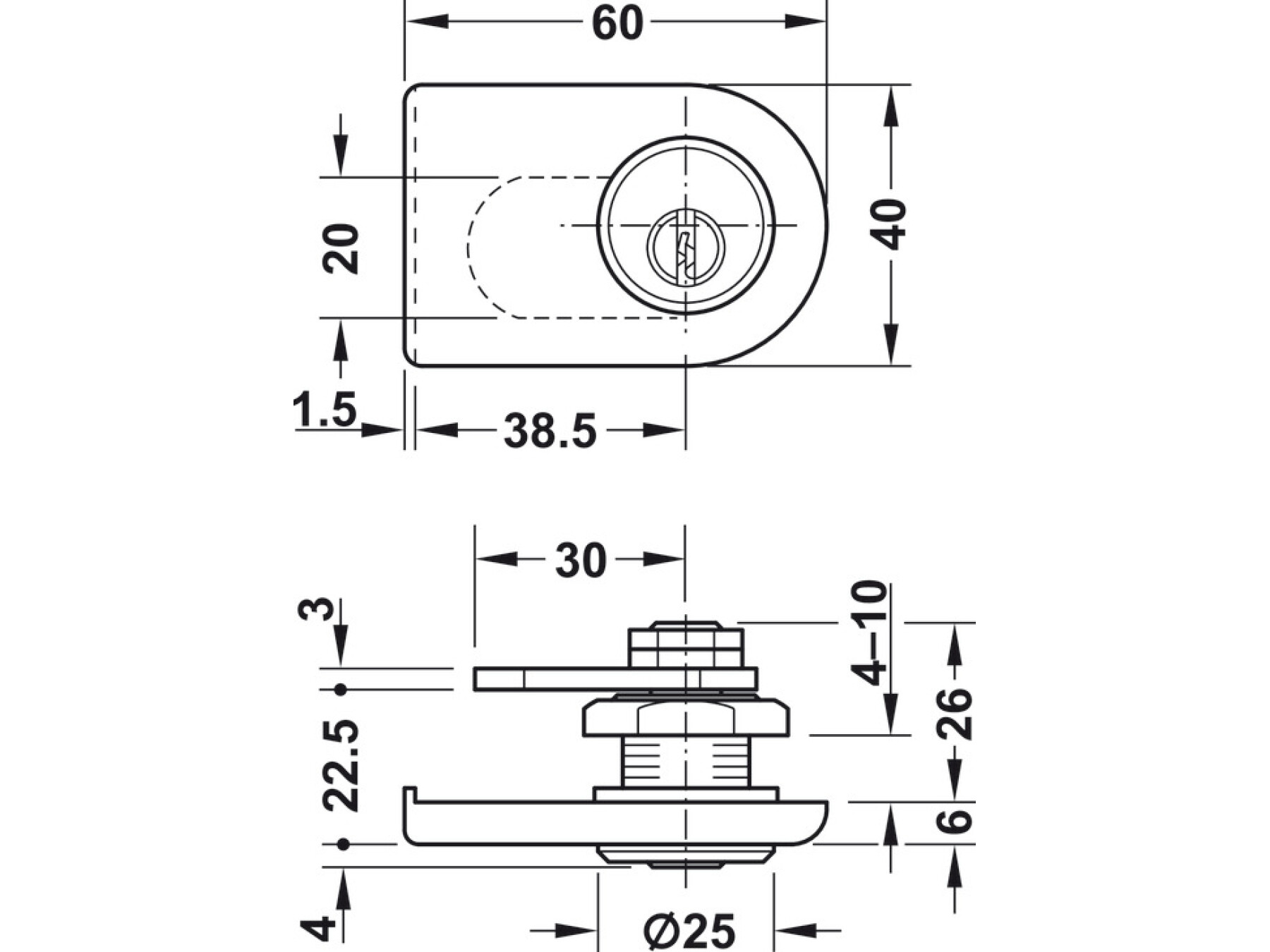

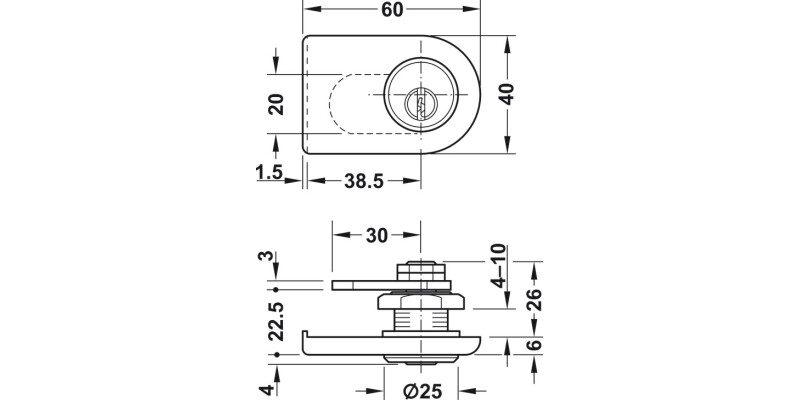

Specifications
Locking system
Standard profile
Closure travel
90° (reversible, with key trap)
Colour/finish
Nickel plated, Matt
Area of application
for hinged and sliding glass doors
Cylinder shape
round cylinder
Version
With fixed pin tumbler cylinder
with straight locking cam
Material
Cylinder: Brass
Trim cap: Zinc alloy
Locking system
with 5 pin tumblers
For glass thickness
4 – 10 mm

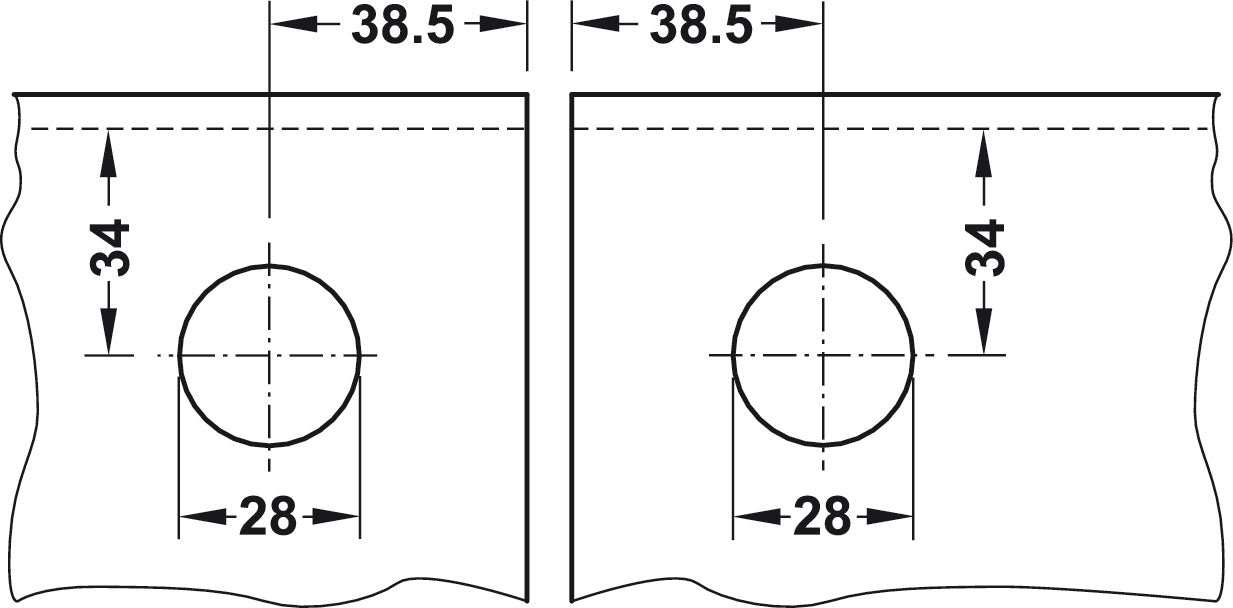

Installation
For screw fixing with hexagon nut

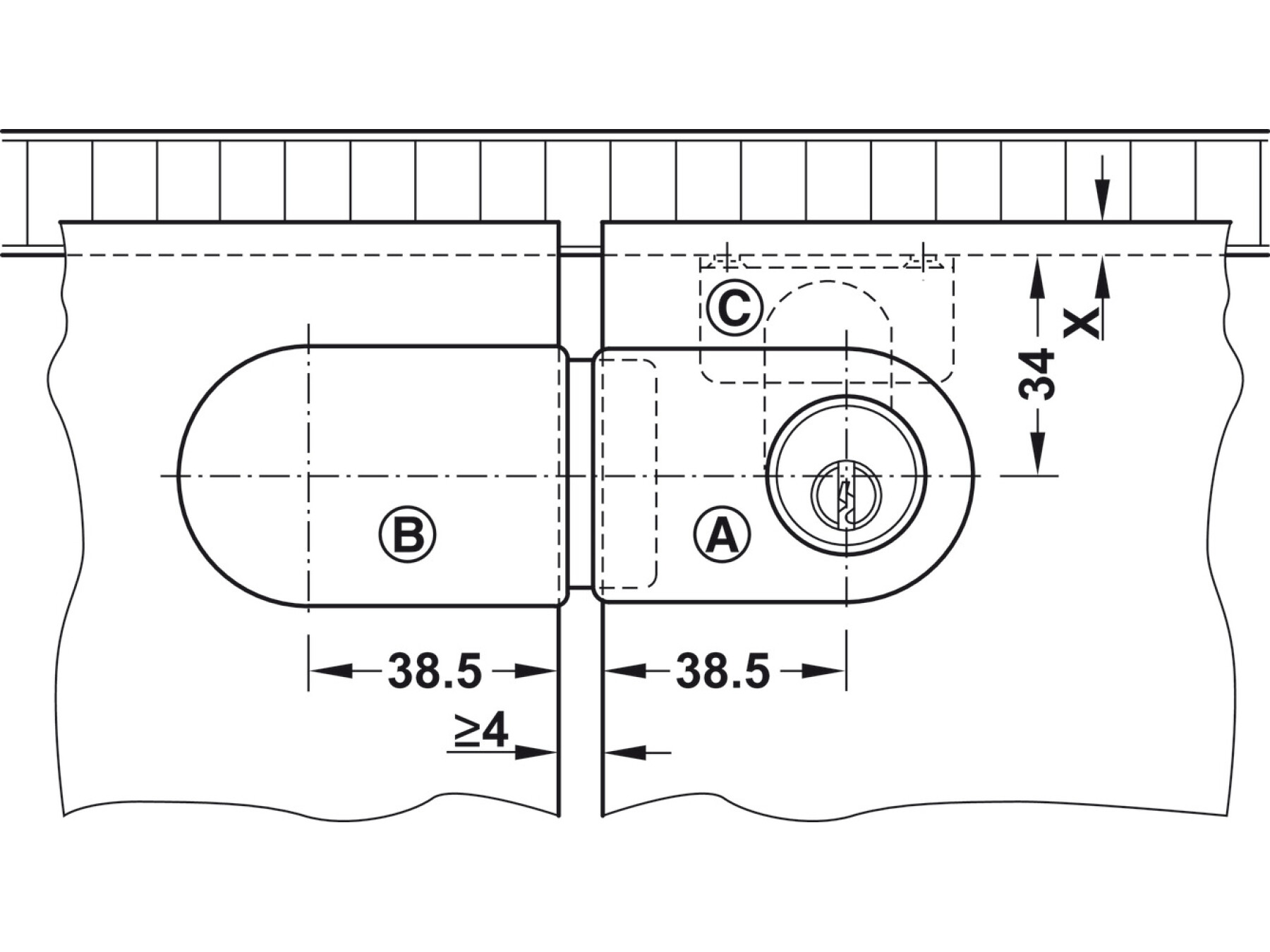

Forend Type
38.50 mm
with key
Yes
