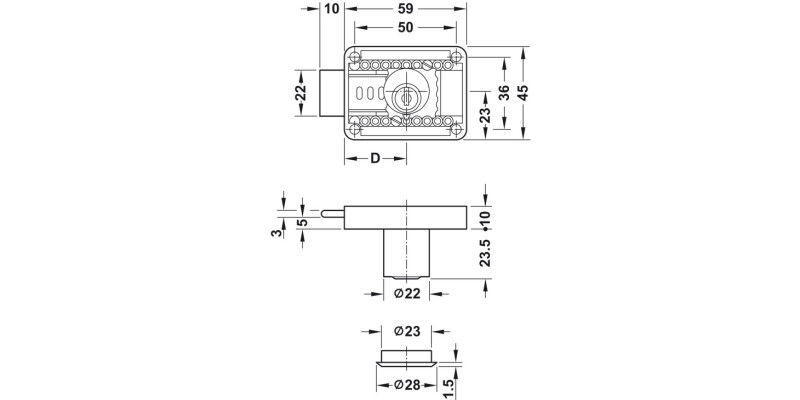

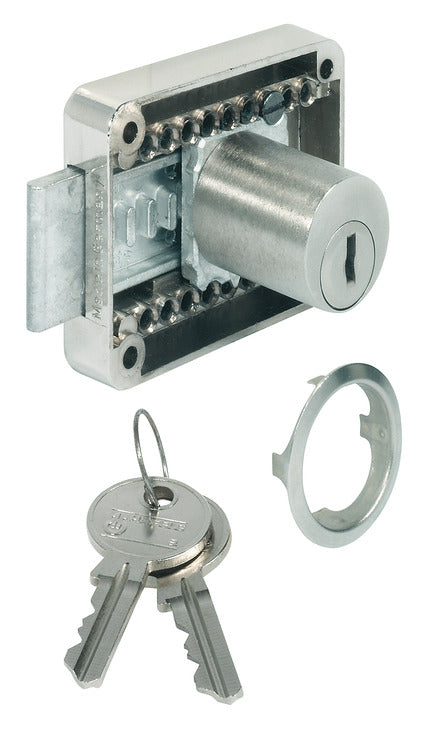

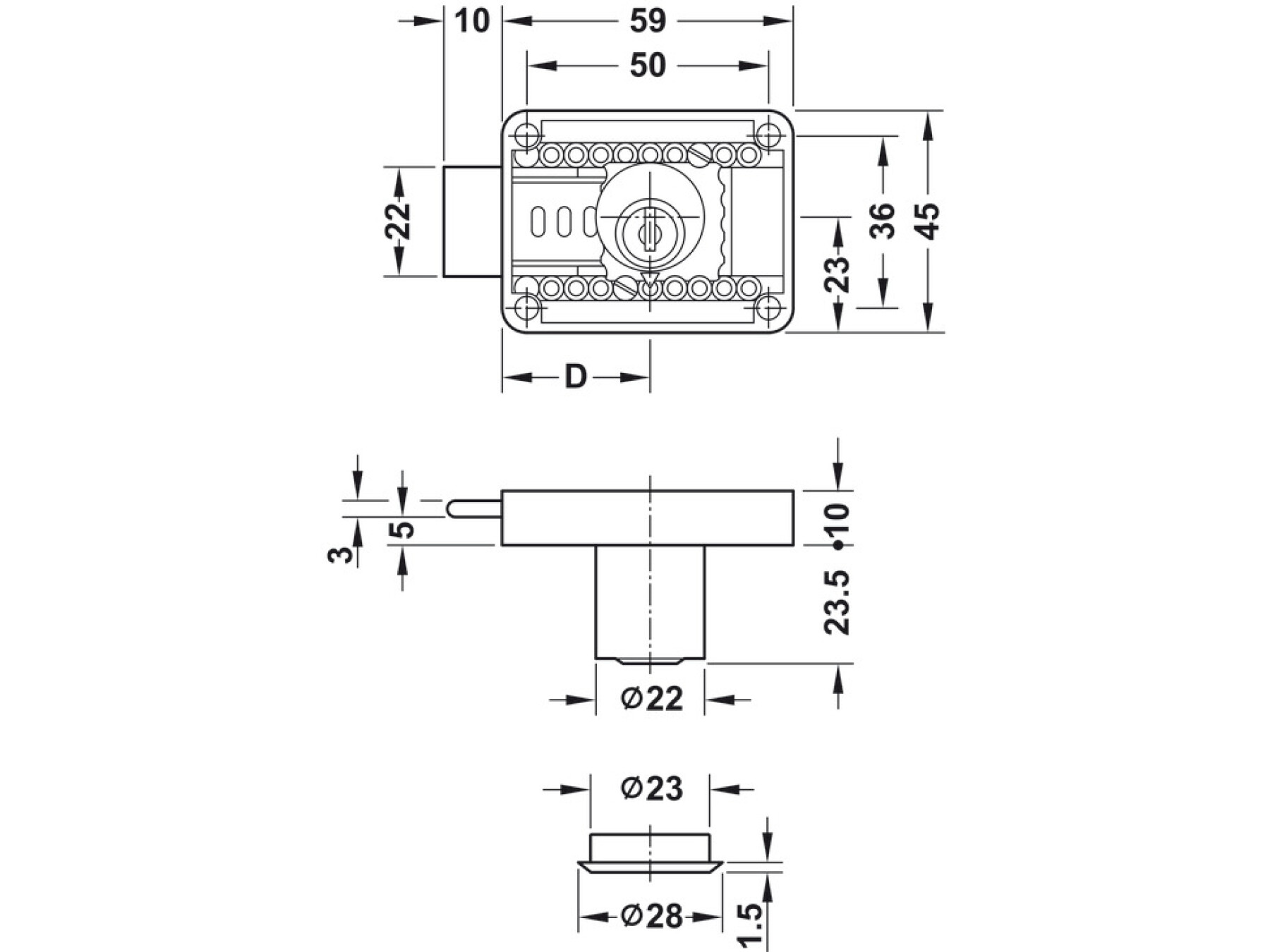

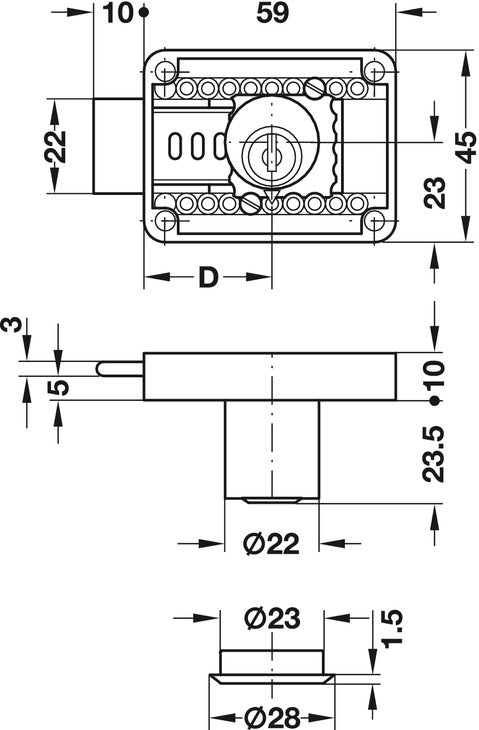

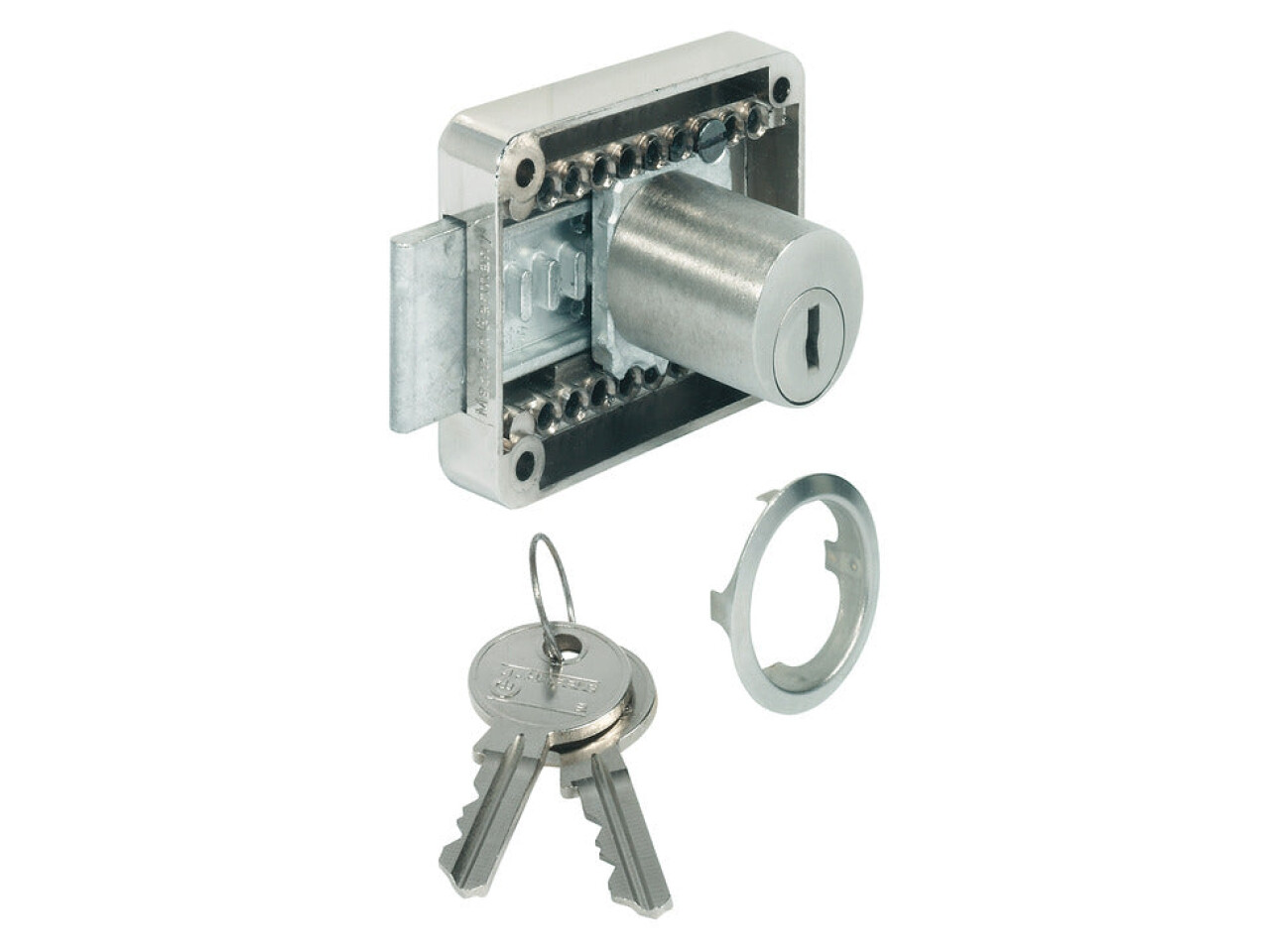

Rim Lock D22mm Adj 15-40mm ZNP BN0101
Part Number: 230.01.150
Standard profile, zinc alloy nickel plated matt, Keyed alike: BN0101 locking
Price:
£39.39
Per Item
No master key possible
Product Information
Product Details
No master key possible
Specifications
Material
Zinc alloy
Version
With adjustable backset, adjustable in steps of 5 mm
Mounting
Left, right or drawer version
Cylinder housing length
23.50 mm
Locking system
Standard profile
Colour/finish
Matt nickel plated, Nickel plated matt
Cylinder shape
round cylinder
Cylinder Diameter
22.00 mm
Forend Type
> 15 – < 40 mm
Deadbolt throw dim.
10.00 mm
Locking system
with 5 plate levers
Installation
For screw fixing
Installation note
No master key possible
with key
Yes
Finish
Nickel plated matt
Order reference
Order Hospa Ø 3.5 mm screws separately
Supplied with

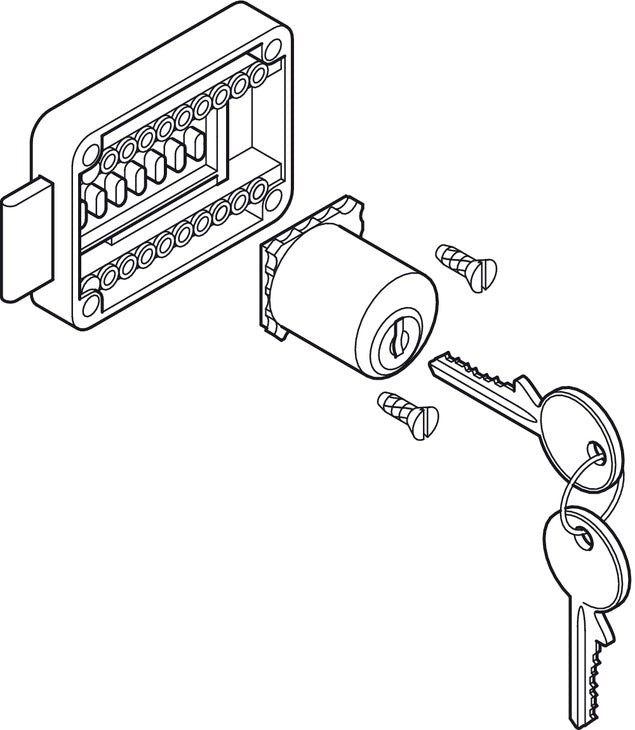

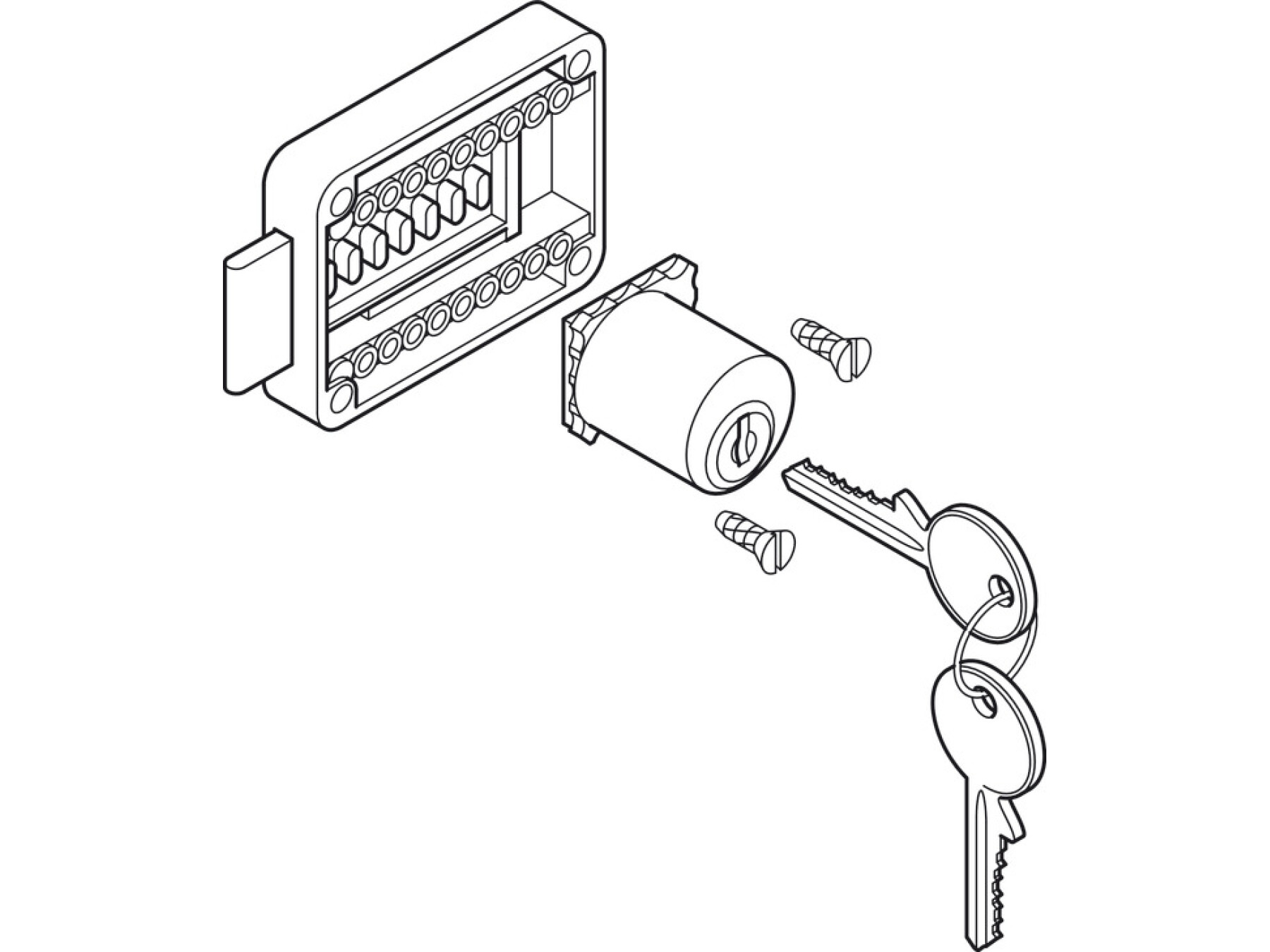

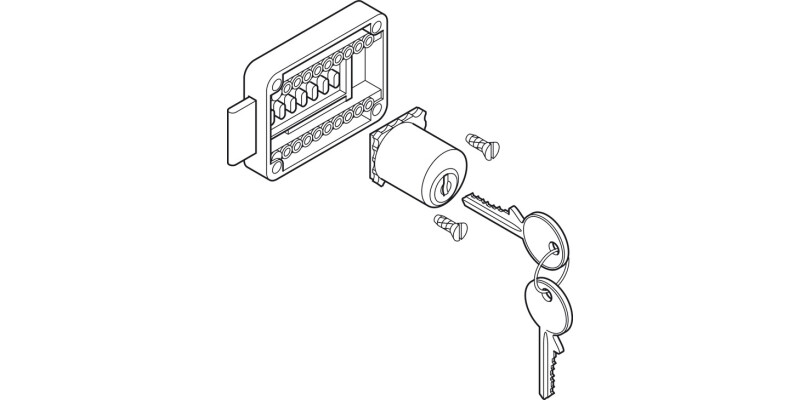

1 Deadbolt rim lock
2 Keys
1 Cylinder rosette
