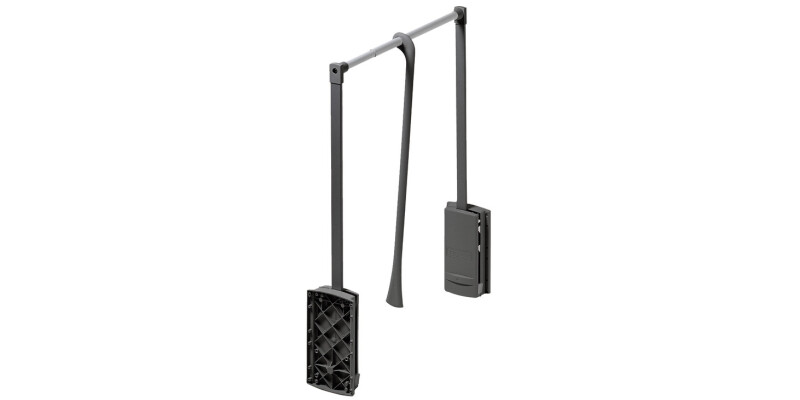

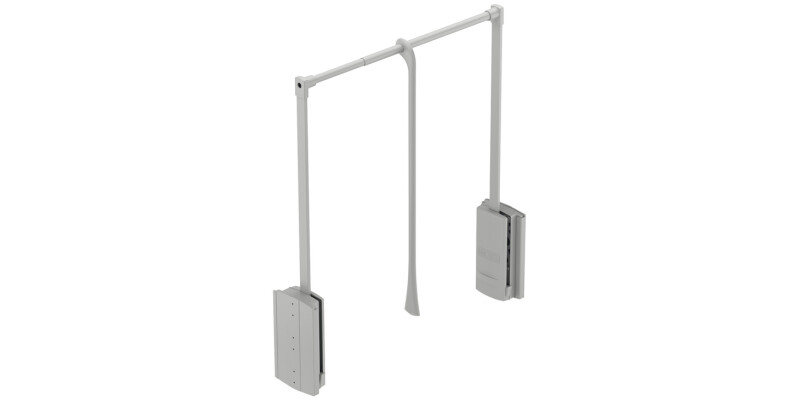

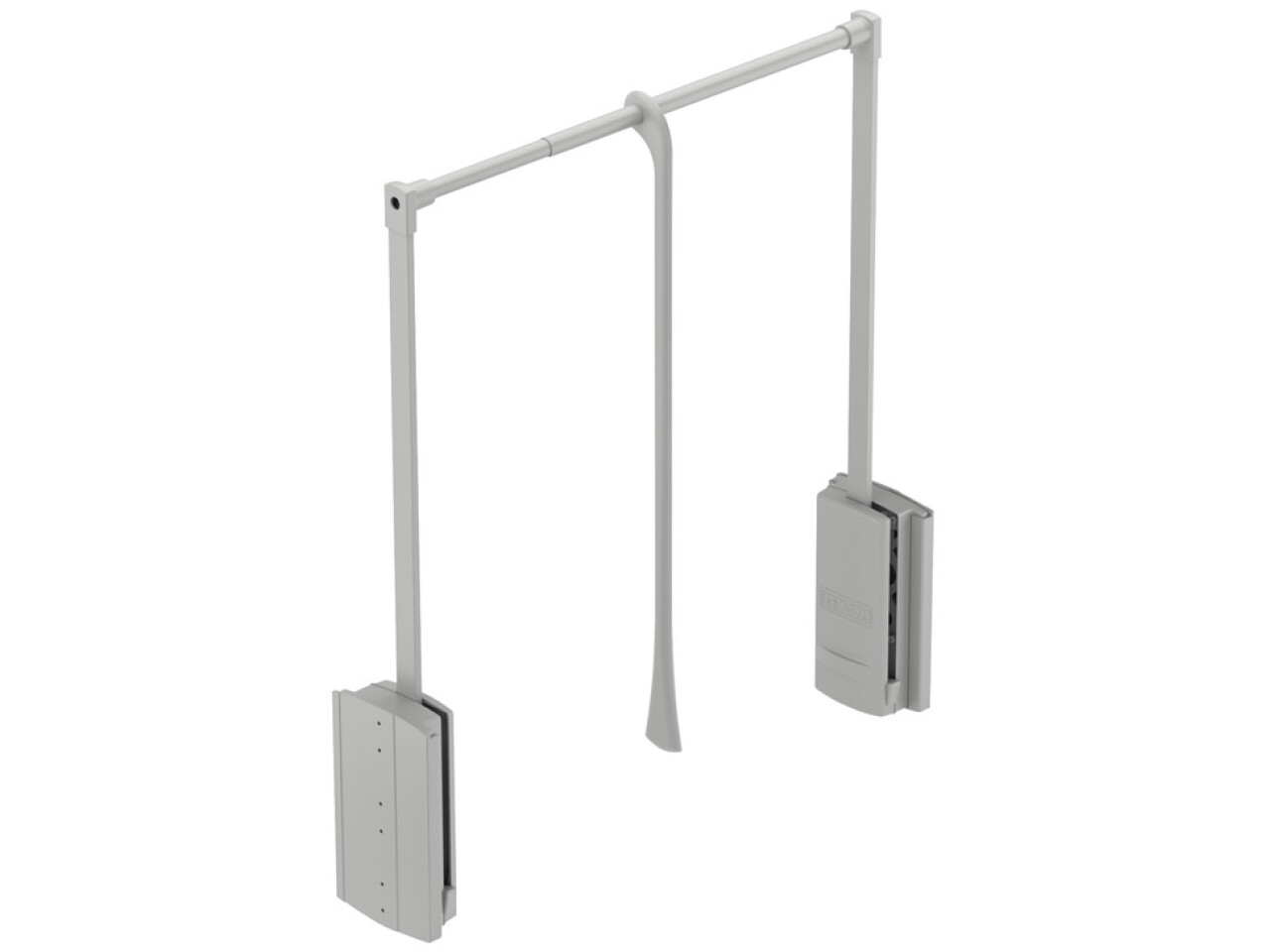

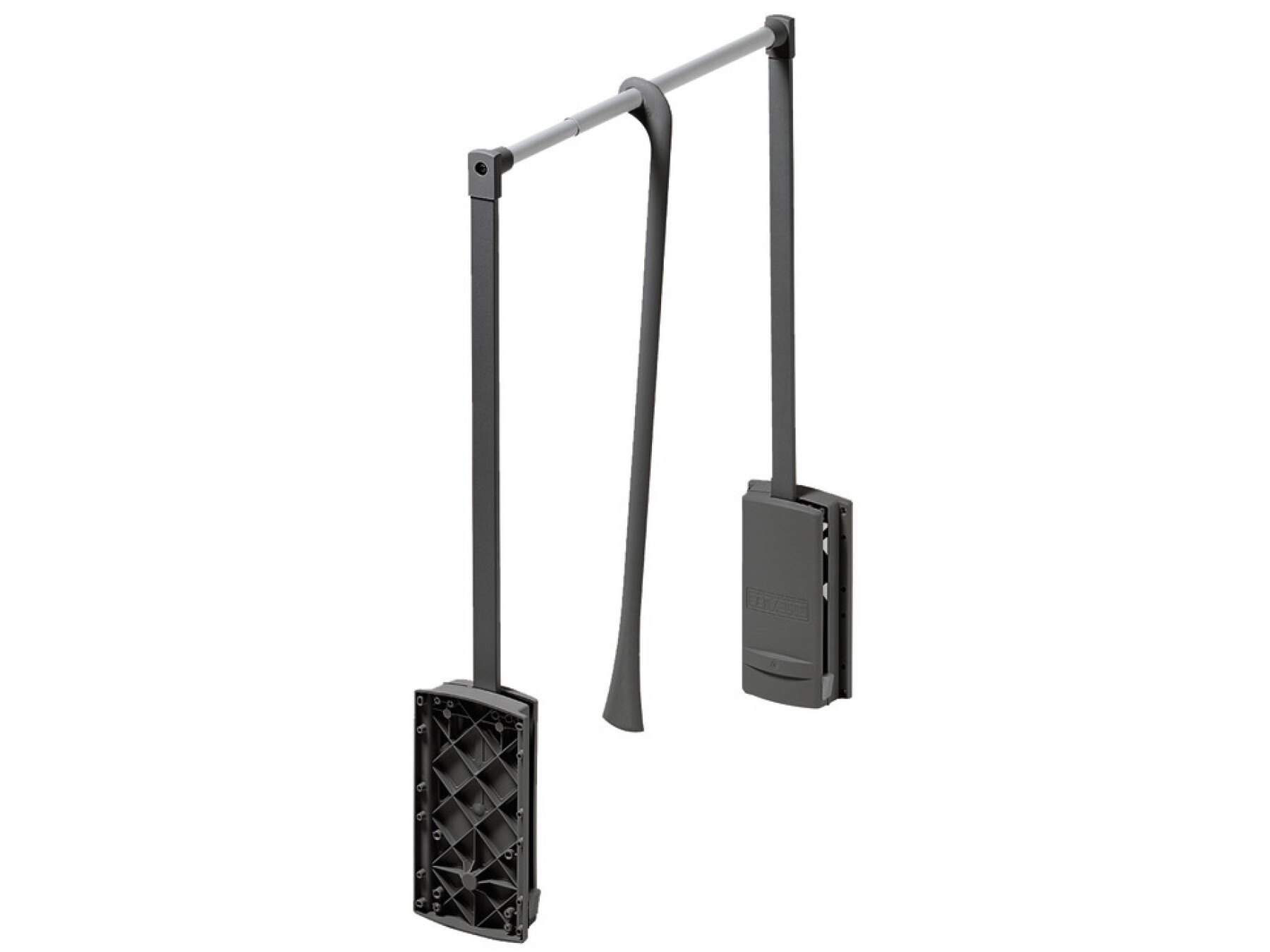

2004 W/Robe Pull Rail 770-1200mm Chr/Blk
Part Number: 805.20.056
Installed height 850 mm, Chrome plated steel rail, black plastic housing and connecting parts, chrome plated pull rod
Price:
£60.36
Per Item
Operated by pull rod - slides along railØ 22 mm hanging rail - adjustable for different wardrobe widthsMinimum... Read More
Product Information
Product Details

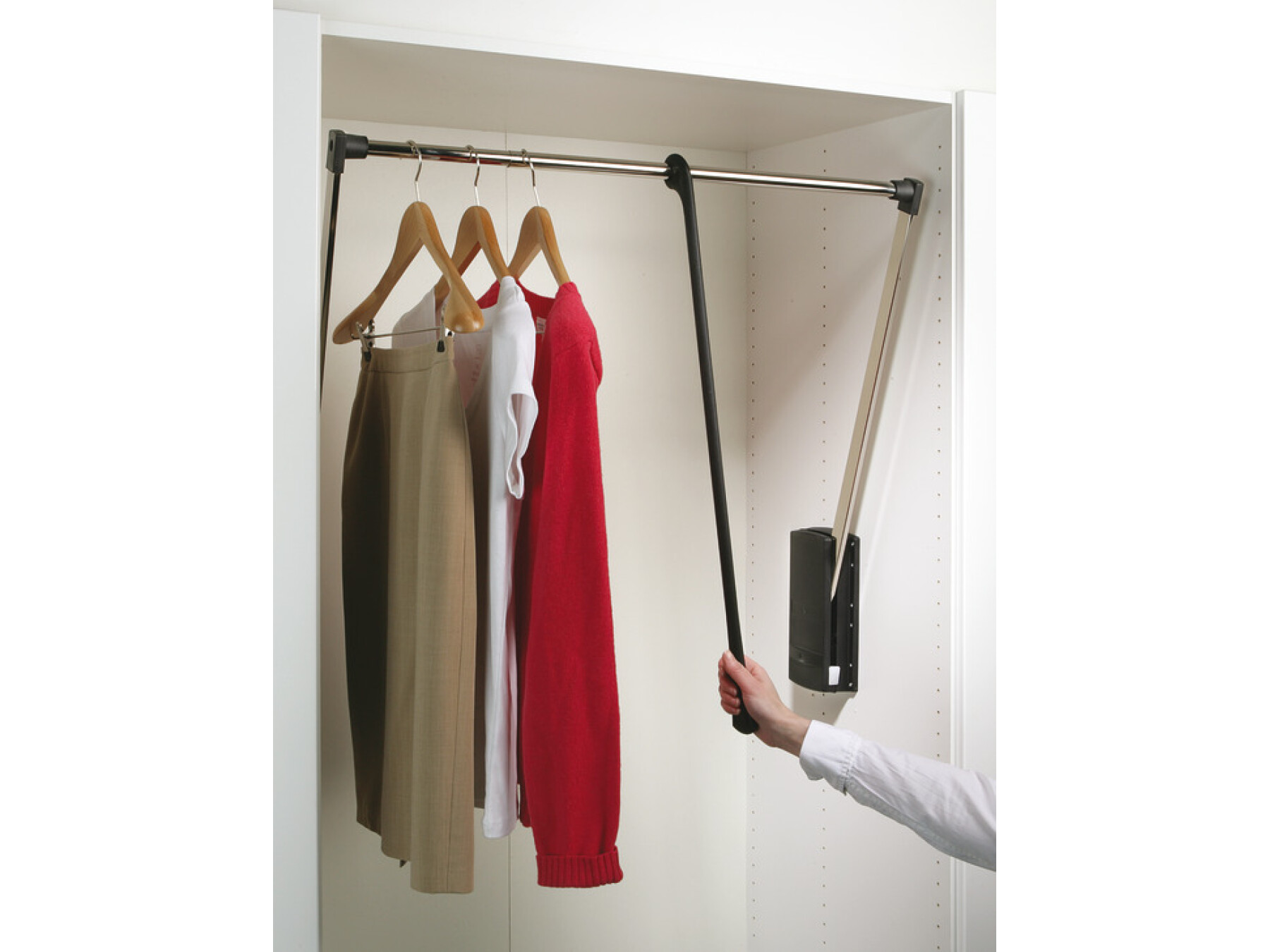

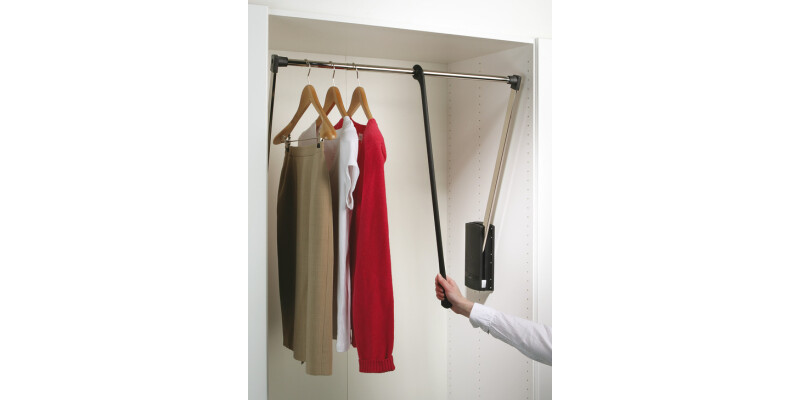

Operated by pull rod - slides along rail
Ø 22 mm hanging rail - adjustable for different wardrobe widths
Minimum load required 1.6 kg, maximum load capacity 10 kg

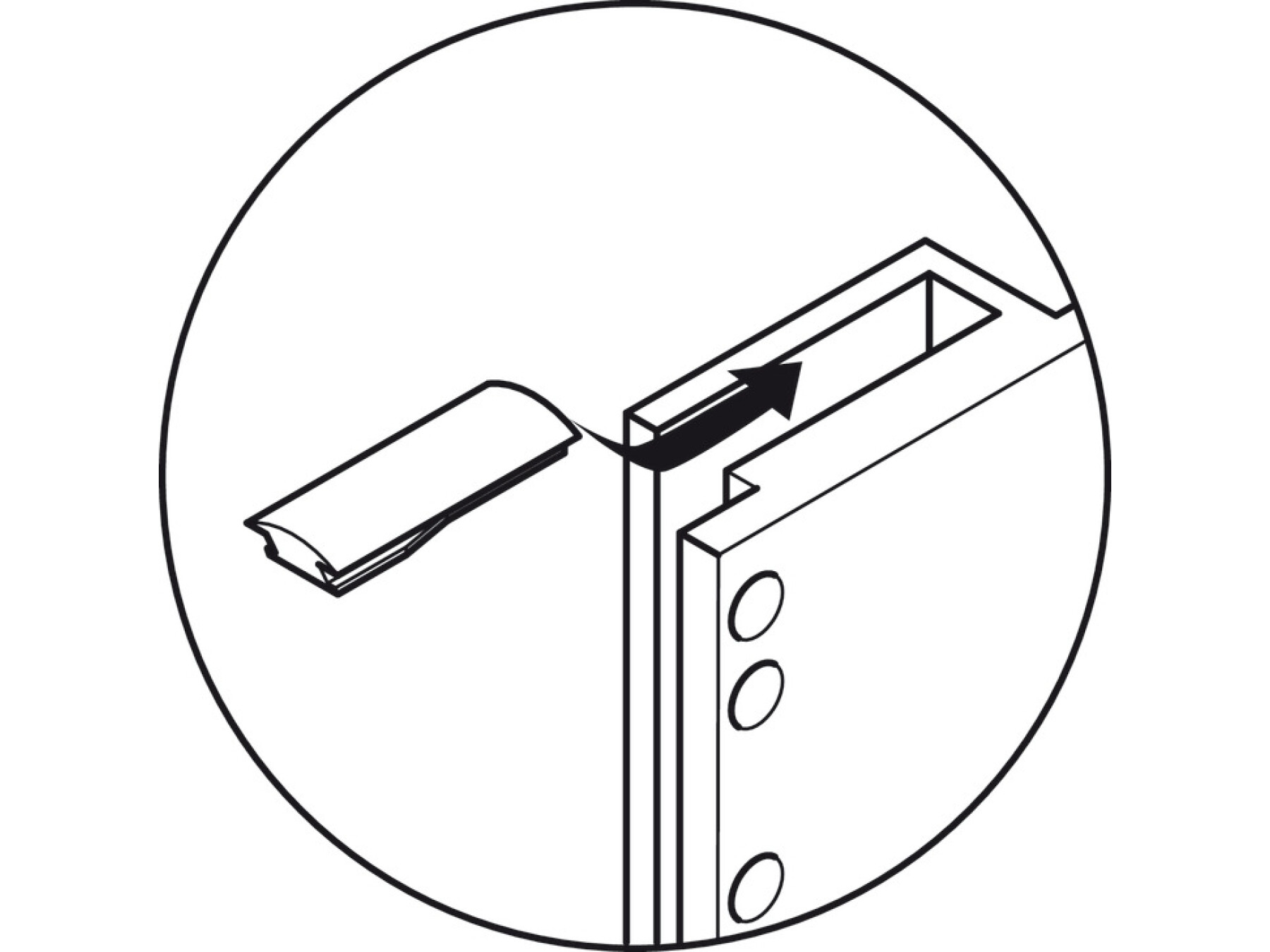

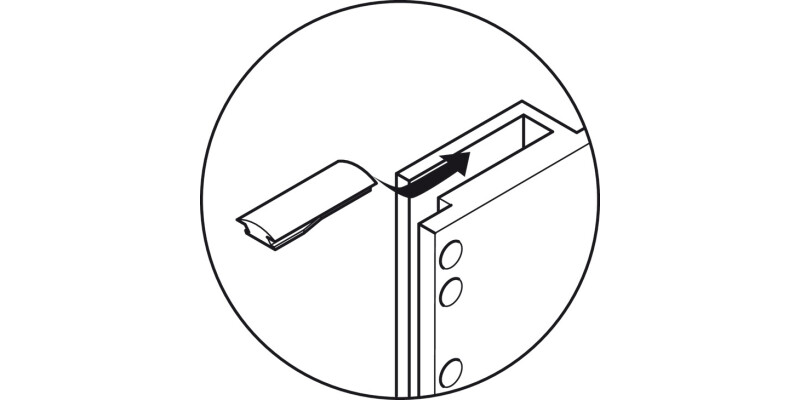

Screw fixing to side panels - fixing materials included
Please note: All fixings must be used
Important: Tilting device should only be used if fitting installed to rear of the cabinet
Housing width - 68 mm
Housing depth - 140 mm

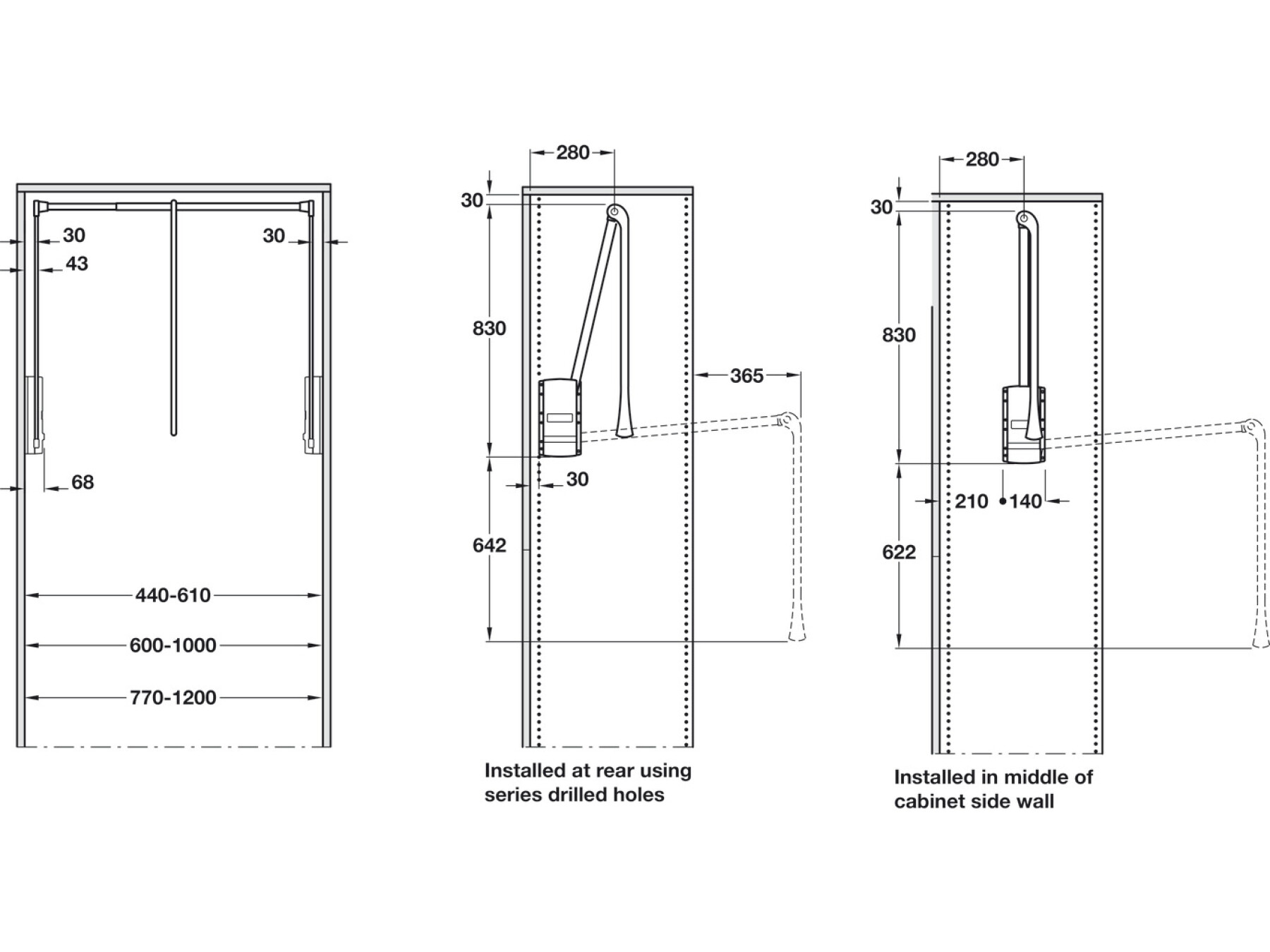

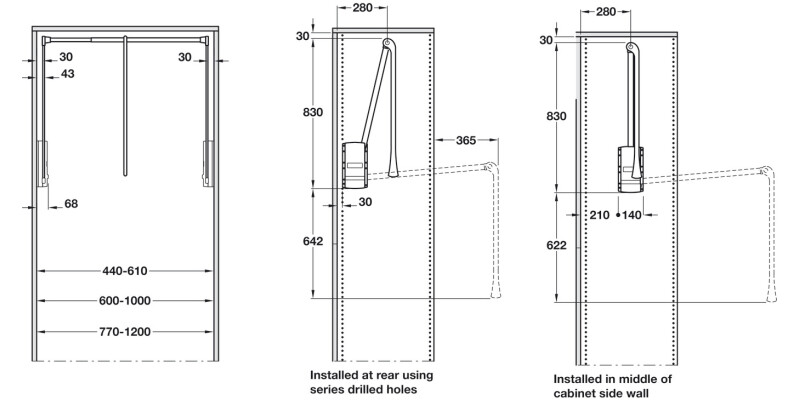

Installation note
Only use tilting device if the wardrobe lift is fitted in the rear row of series drilled holes.
This reduces the min. installation height to 860 mm.
Order reference
When the wardrobe lift is being used in the Versatile system, the support must also be ordered.
When used in the frame construction, 2 pairs of adapter plates must be ordered additionally.
Specifications
Model
2004

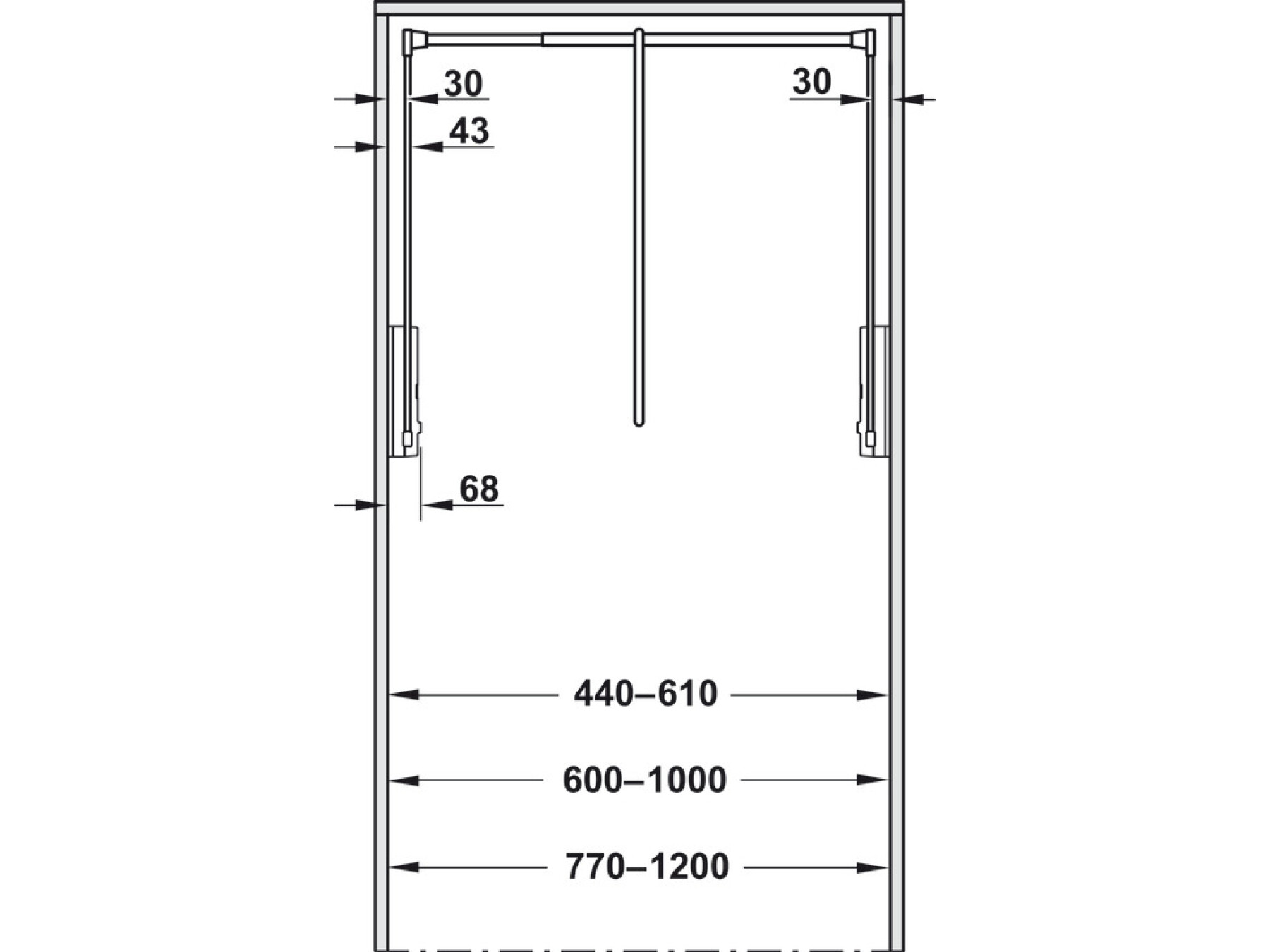

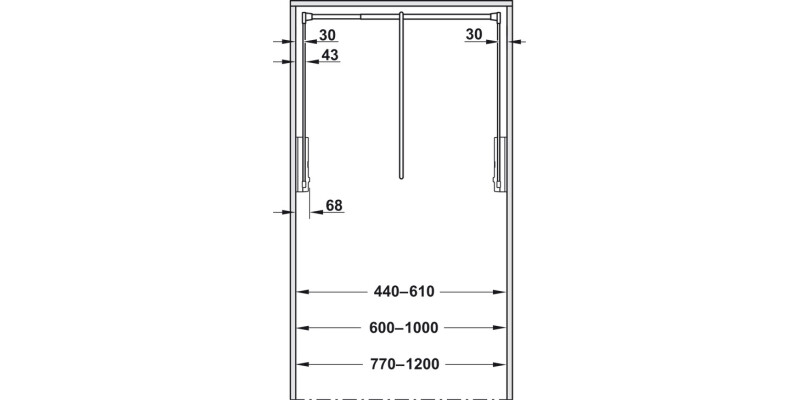

For internal cabinet width
770 – 1,200 mm
Load bearing capacity
1.6 – 10 kg
Colour/finish
Chrome plated rail, black housing and chrome plated pull rod
Material
Steel
Plastic
Min. installation height
880.00 mm
Installation
Screw fixing
Supplied with
Fixings and tilting device
