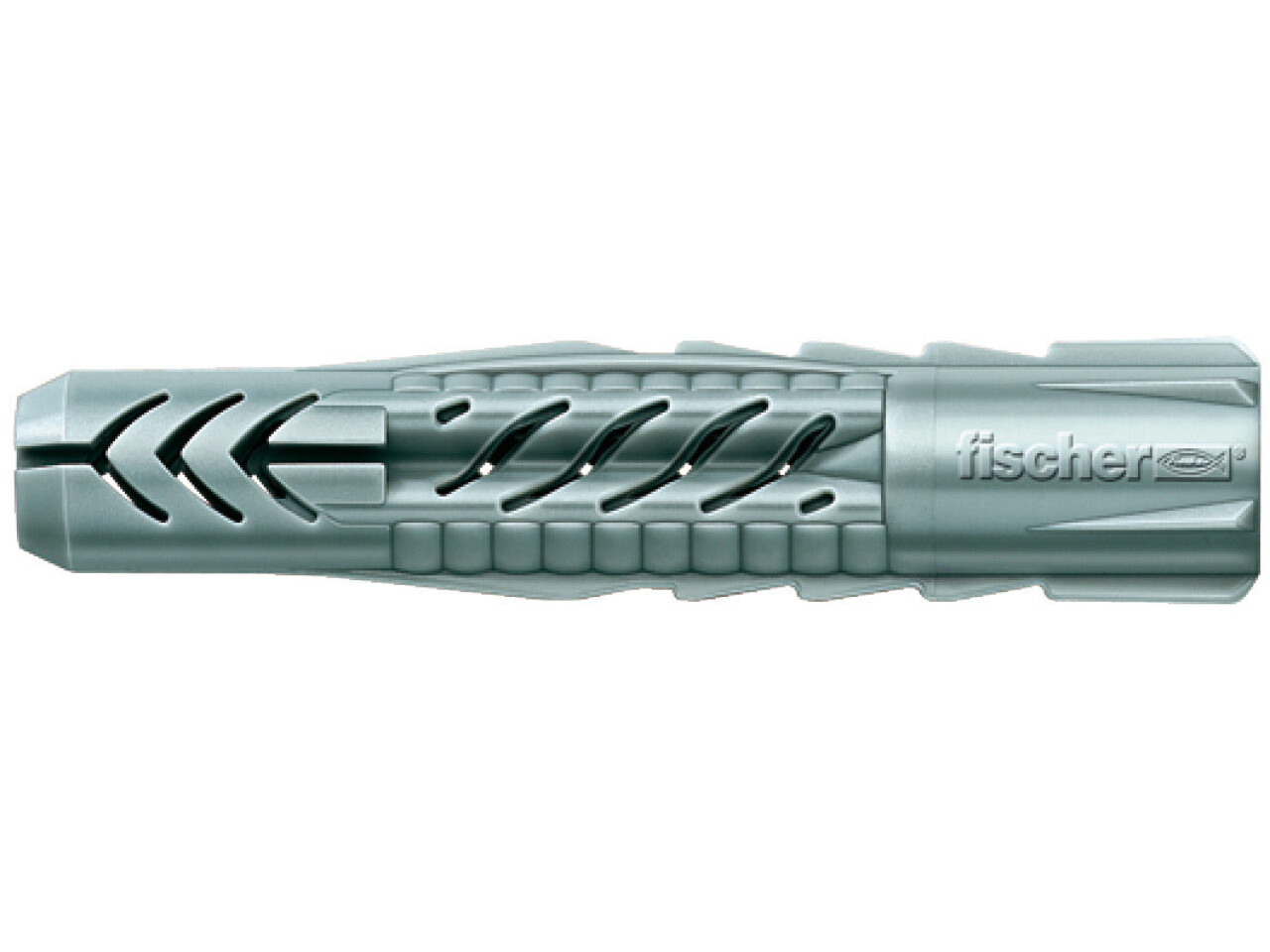

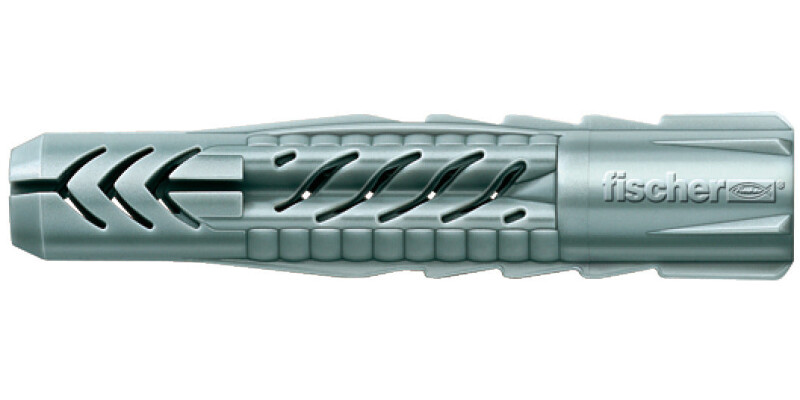

Fischer UX Uni Wall Plug D6x35mm Nylon
Part Number: 051.70.001
Length 35 mm, drill Ø 6 mm, drill depth min. 45 mm, dim. A(min) 9.5 mm, 100 Pack
Price:
£12.07
Per 100 Pack
With flexible point, suitable for different screw diametersHigh quality polyamide (nylon), resistant to... Read More
Product Information
Product Details
With flexible point, suitable for different screw diameters
High quality polyamide (nylon), resistant to weathering ageing, corrosion and rotting
Can be used with all kinds of screws; chipboard screws, wood screws and wood-to-metal threaded screws
For screw sizes:
Ø 4-5 (Ø 6 drill)
Ø 4.5-6 (Ø 8 drill)
Ø 6-8 (Ø 10 drill)
Ø 8-10 (Ø 12 drill)
Ø 10-12 (Ø 14 drill)
Area of application
Concrete
Solid masonry
Perforated brick
Aircrete (gas concrete)
Board materials
Plasterboard
Perforated sand-lime brick
Installation note
Required screw length: Surface mounted part thickness + wall plug length + 1x screw diameter
Use the maximum screw diameter for through-bolt installation
With perforated building material: Rotary drilling mode (without hammer action)
With plasterboard: Use metal drill bits only
| Technical data | ||||||
|---|---|---|---|---|---|---|
| Model | UX 6 | UX 8 | UX 10 | UX 12 | UX 14 | UX 6 L |
| Drill bit Ø | 6 mm | 8 mm | 10 mm | 12 mm | 14 mm | 6 mm |
| Drill hole depth min. | 45 mm | 60 mm | 75 mm | 85 mm | 95 mm | 60 mm |
| Dowel length | 35 mm | 50 mm | 60 mm | 70 mm | 75 mm | 50 mm |
| Panel thickness min. | 9.5 mm | 9.5 mm | 12.5 mm | 9.5 mm | ||
Specifications
Material
Polyamid (nylon)
Colour/finish
Version
Without rim
Features
Without rim
Installation
For through bolt installation
