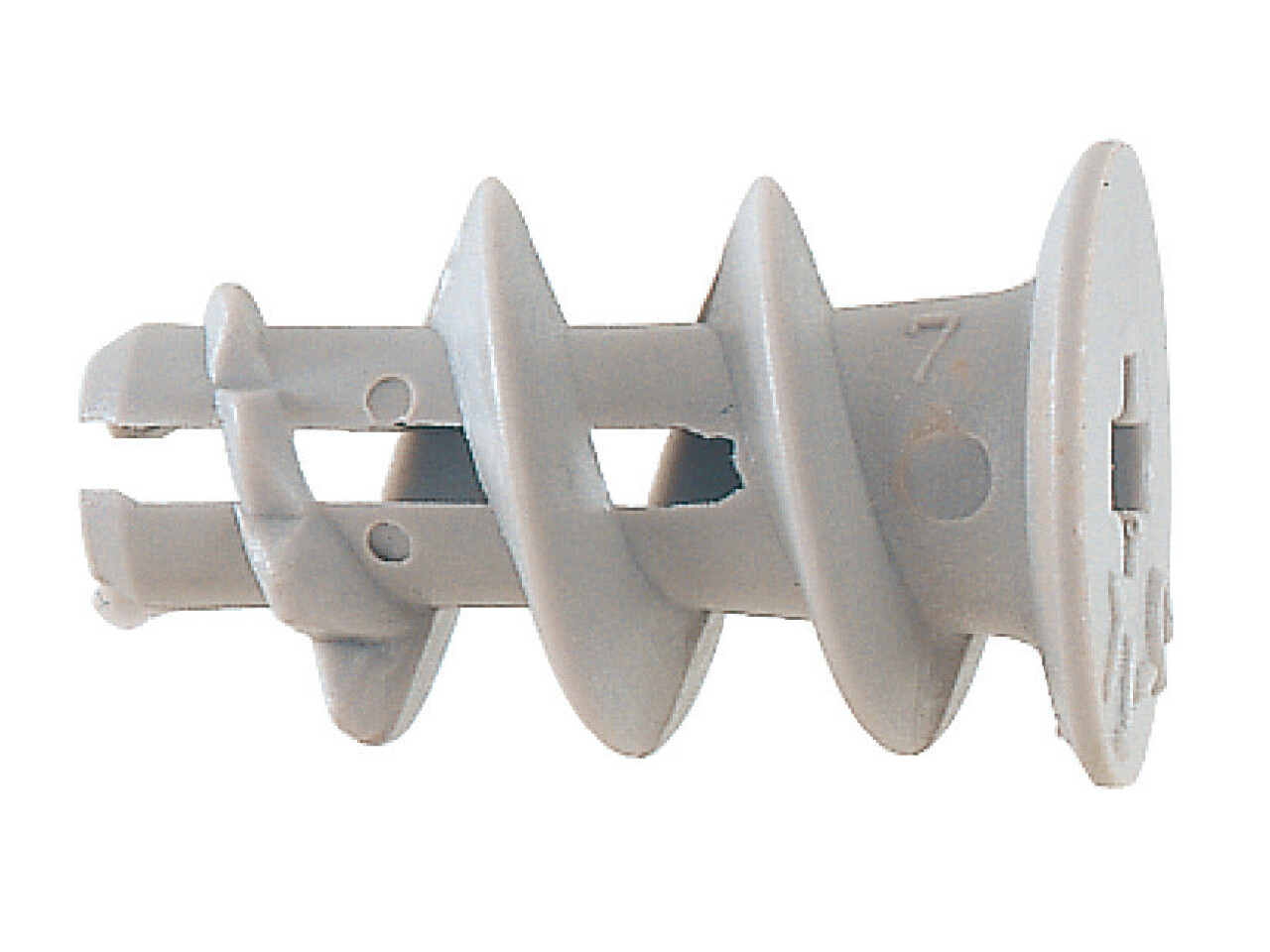

Fischer GK Plasterboard Dowel Nylon
Suitable for fastening lamps, skirting, electric switches, picture frames, cable trunking, curtain rails, wooden... Read More
Product Details
Suitable for fastening lamps, skirting, electric switches, picture frames, cable trunking, curtain rails, wooden borders, etc
Version
With continuous groove for a perfect fit and force transmission of the setting tool
With sharp, self-tapping thread for a secure, positive-fitting and load-bearing connection with the construction material
With cross slot drive for processing, even without a screwdriving tool
Can also be used with unknown panel thickness and cavity depth due to short wall plug length
Features
Little space requirement behind the board
Adapted to wood, sheet metal and chipboard screws Ø 4.0–5.0 mm
Not suitable for tiled plasterboards, gypsum fibre boards
Installation

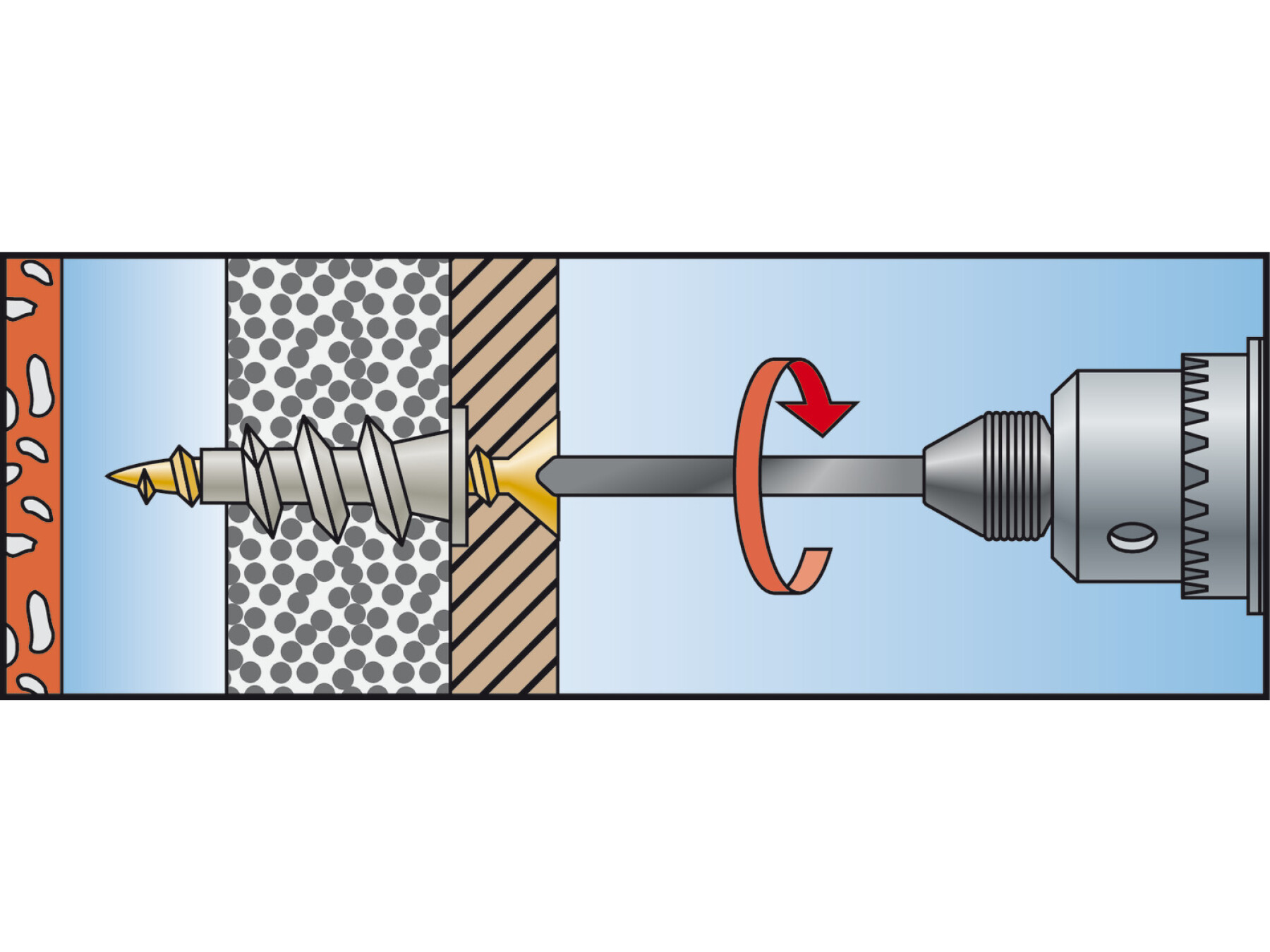

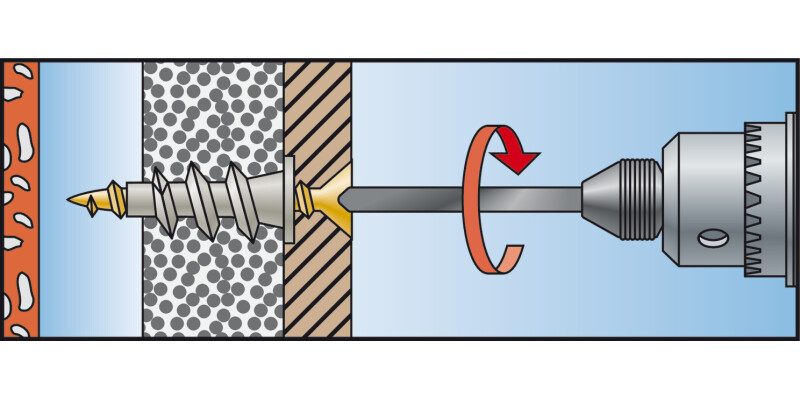

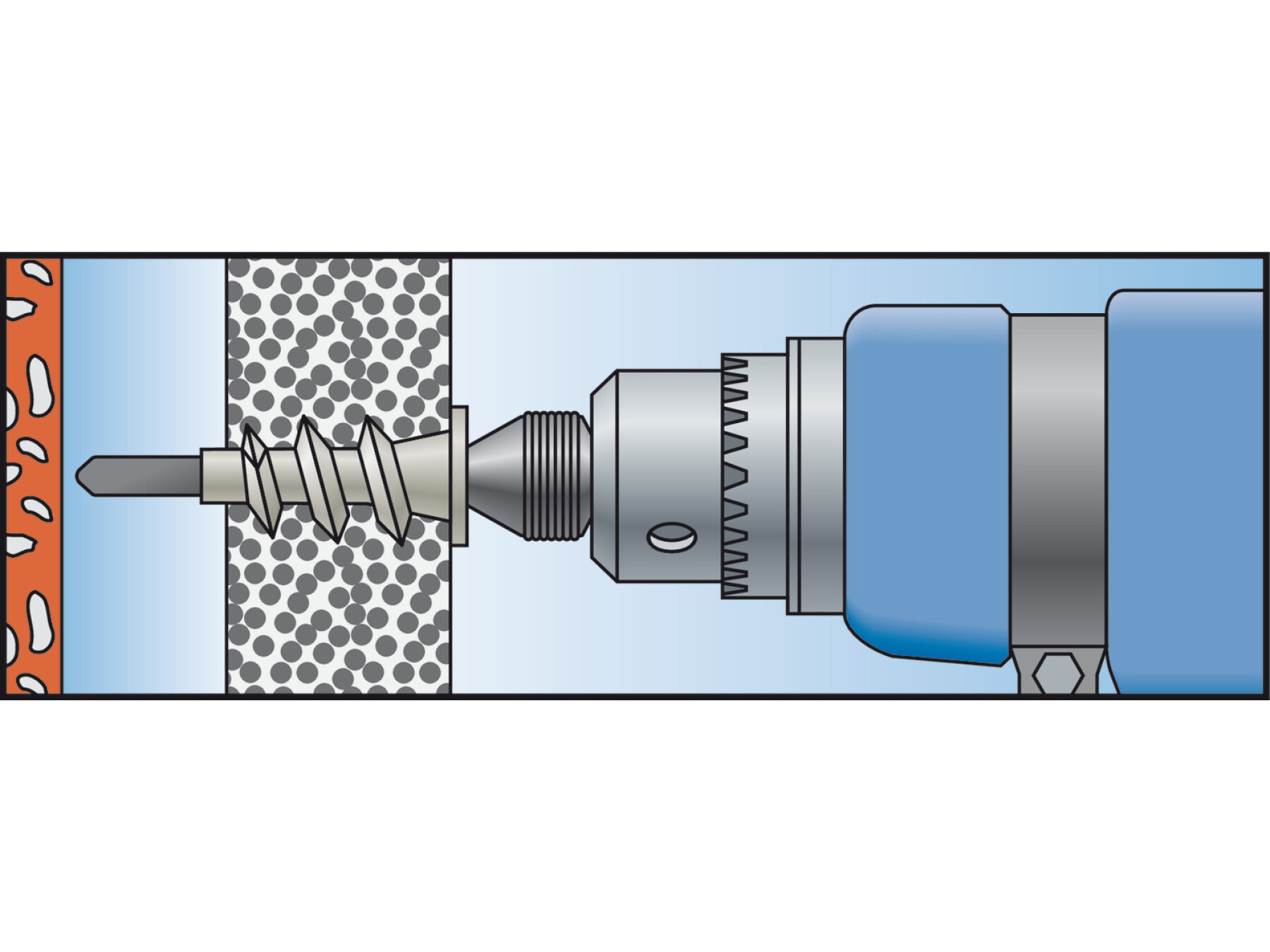

The wall plug grips into plasterboard using the supplied countersink tool providing a positive-fit

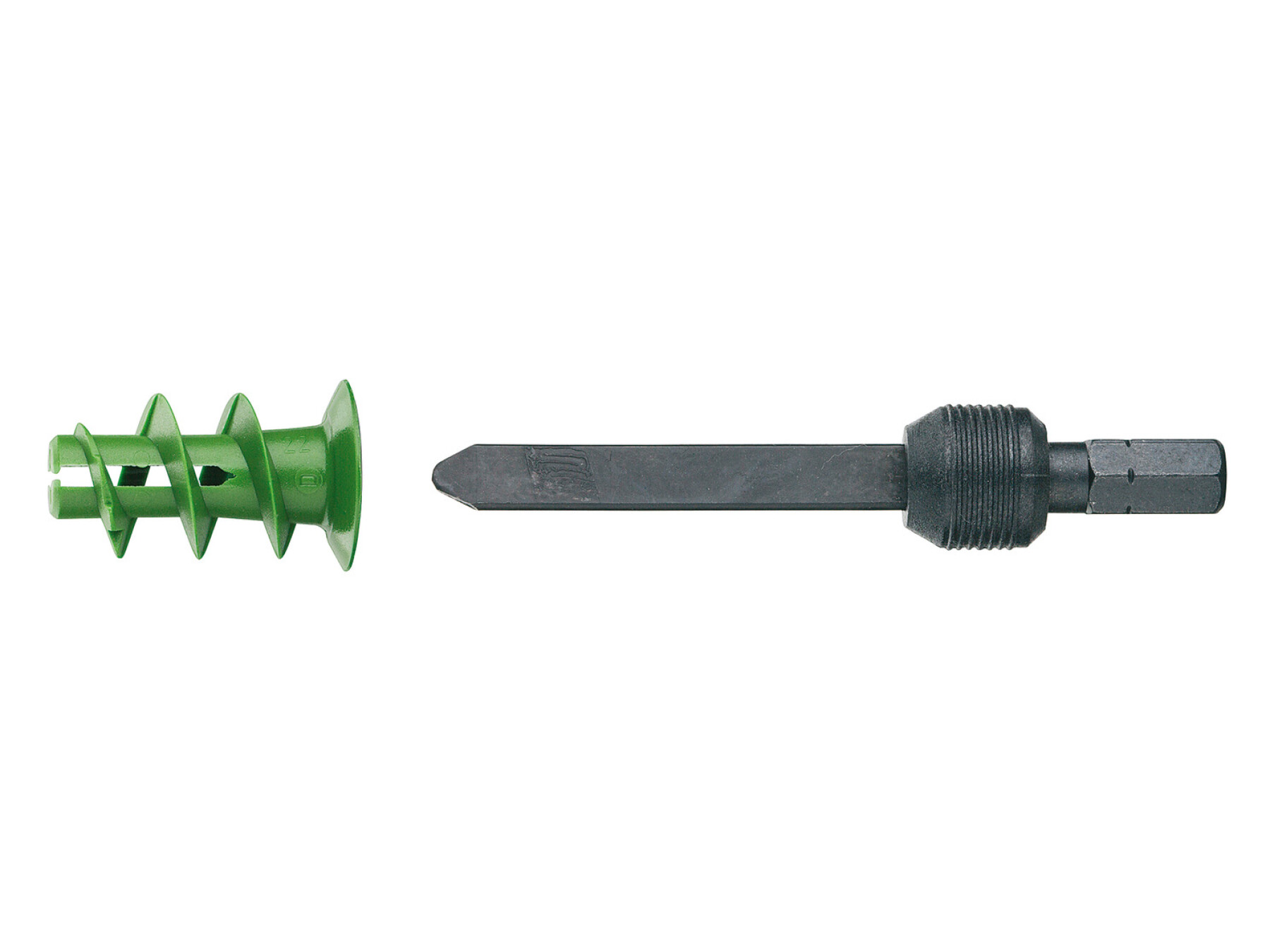

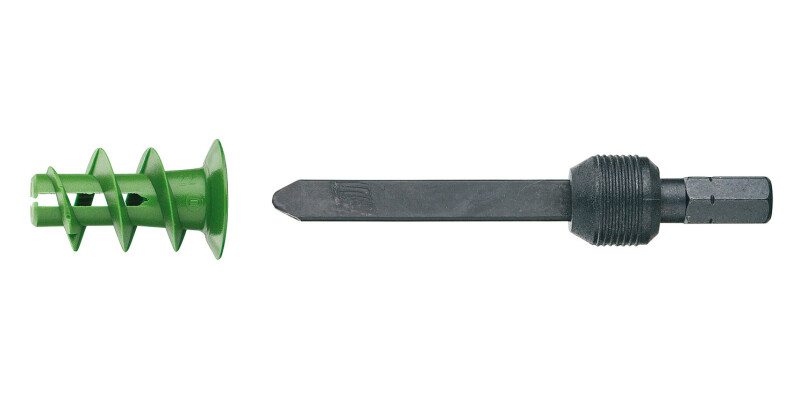

Screwdriving tool for drill chuck supplied (use bit holder)

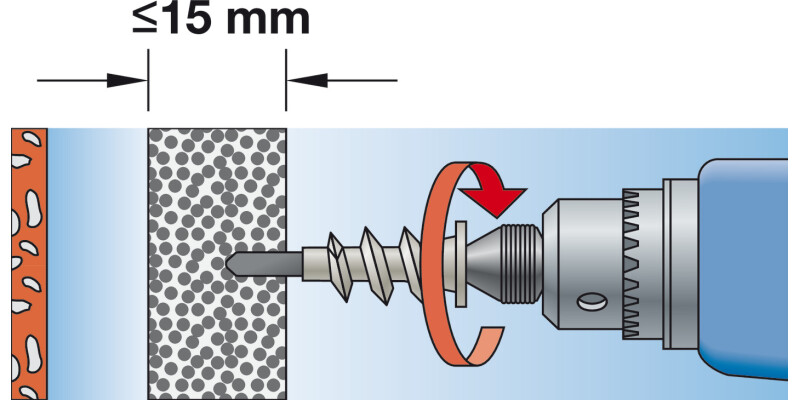

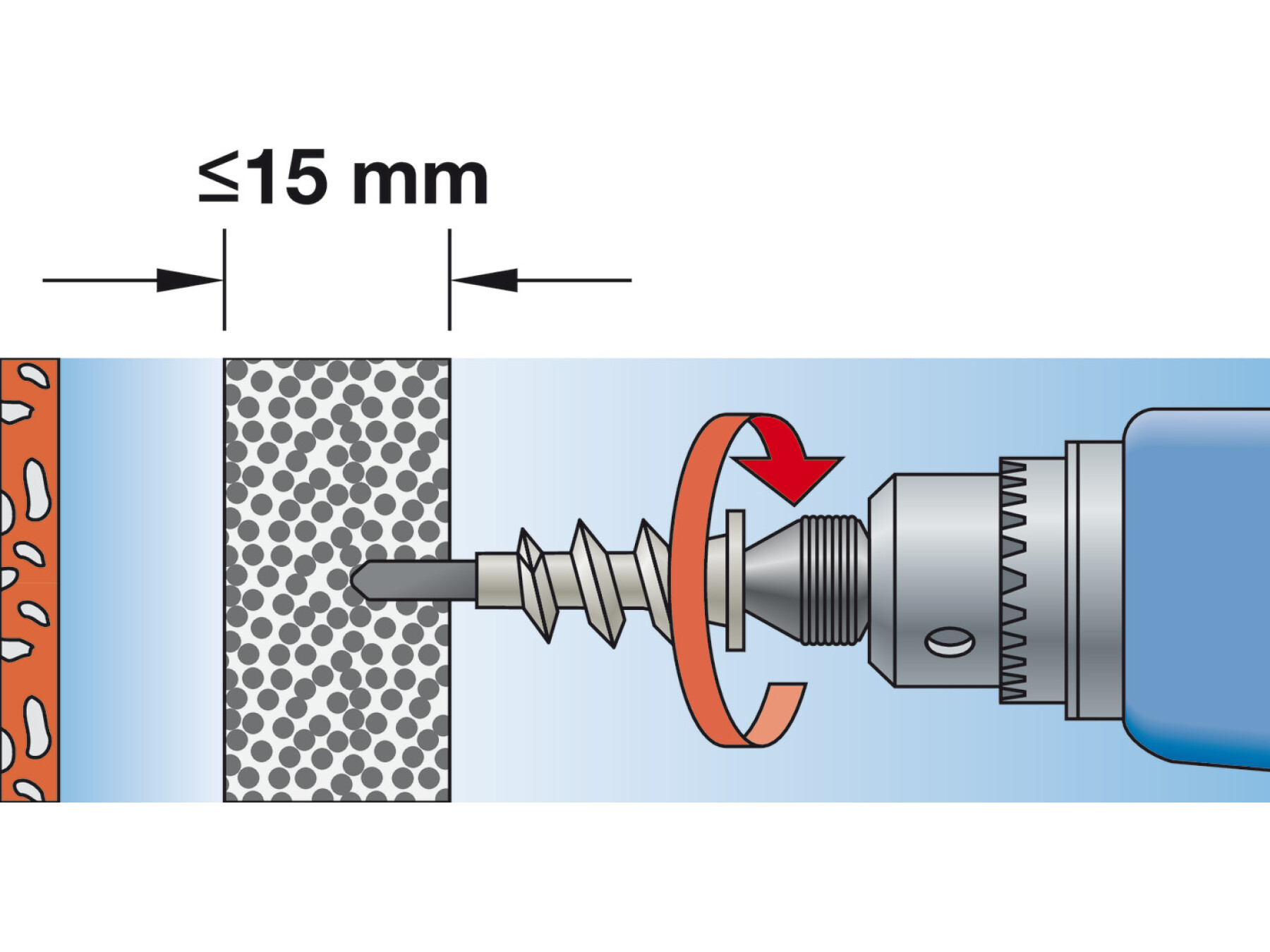

Installation with cordless/electric screwdriver without pilot drilling (pilot drilling required from panel thickness ≥ 15 mm)

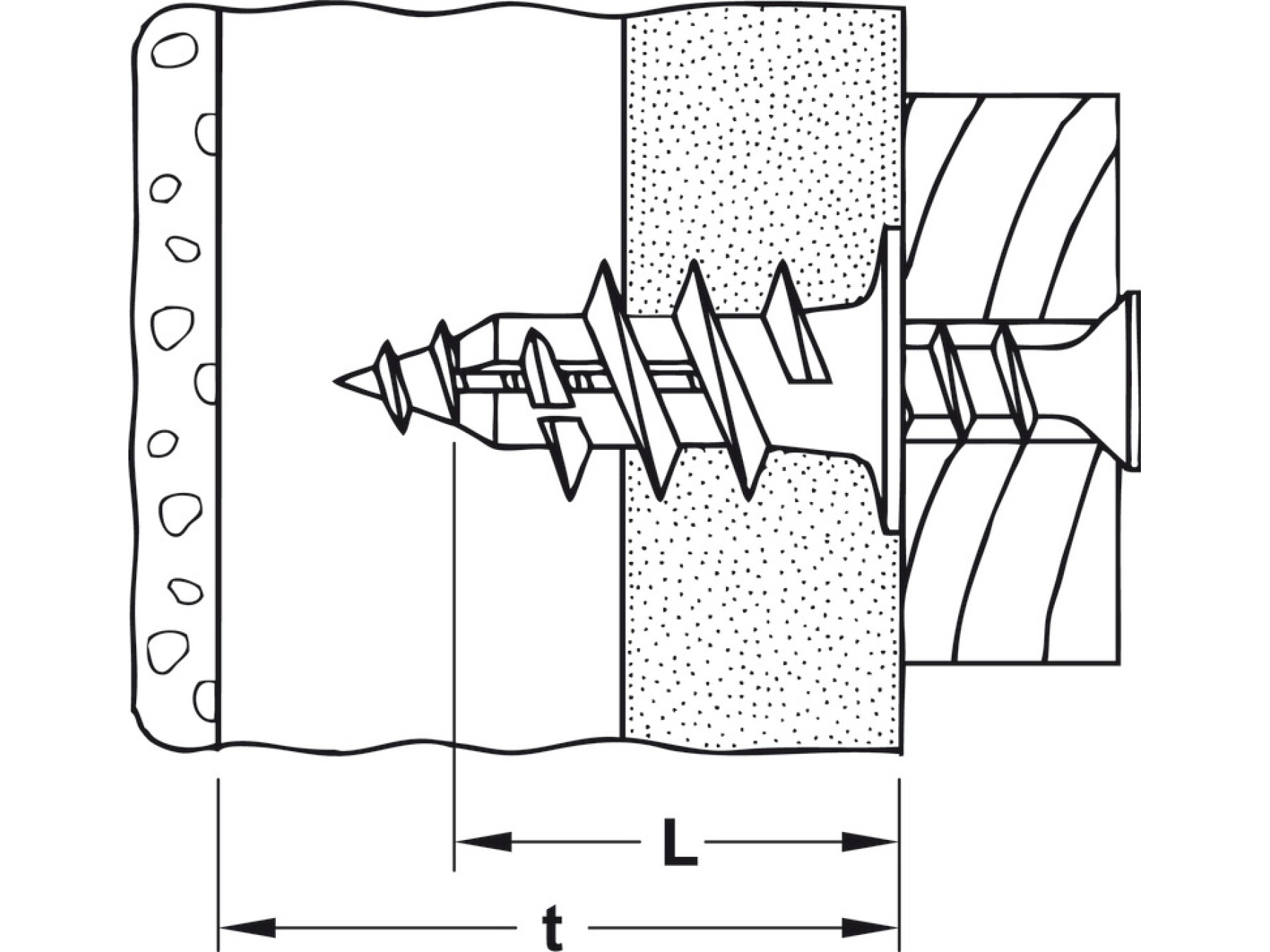

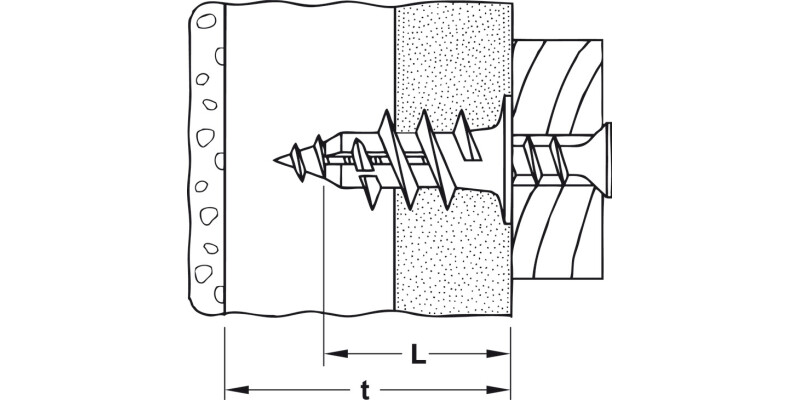

| Technical data | ||
|---|---|---|
| Model | GK | GK GREEN |
| Dowel length | 22 mm | 22 mm |
| Min. thickness to first bearing layer | 25 mm | 25 mm |
Specifications
Model
Material
Nylon
Colour/finish
Grey
Area of application
For single and double plasterboard panels
Rear-insulated plasterboard
Installation note
Countersink tool also suitable for screwing in screws
Supplied with
1 pack of wall plugs
