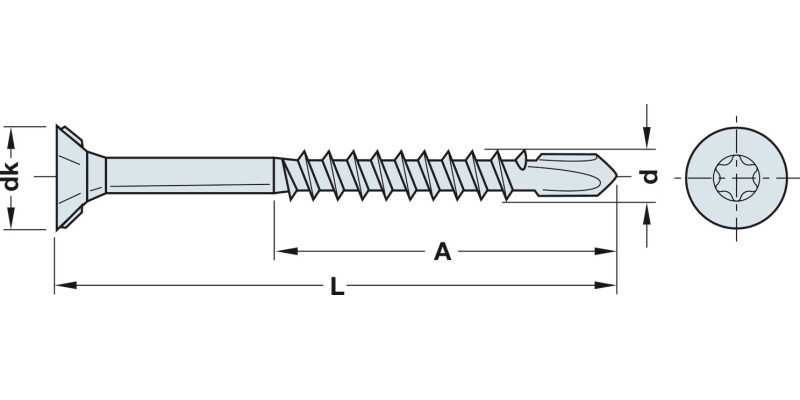

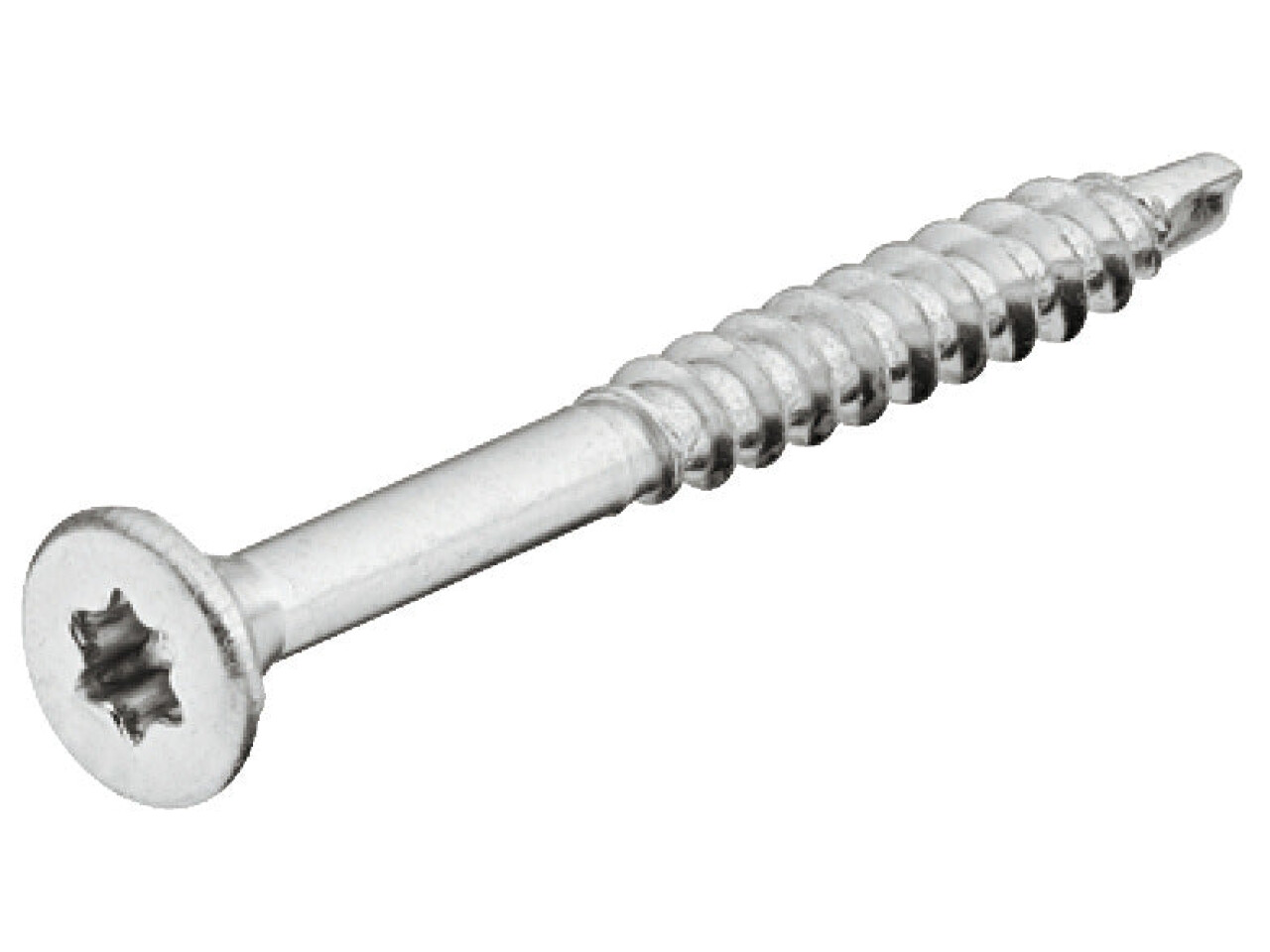

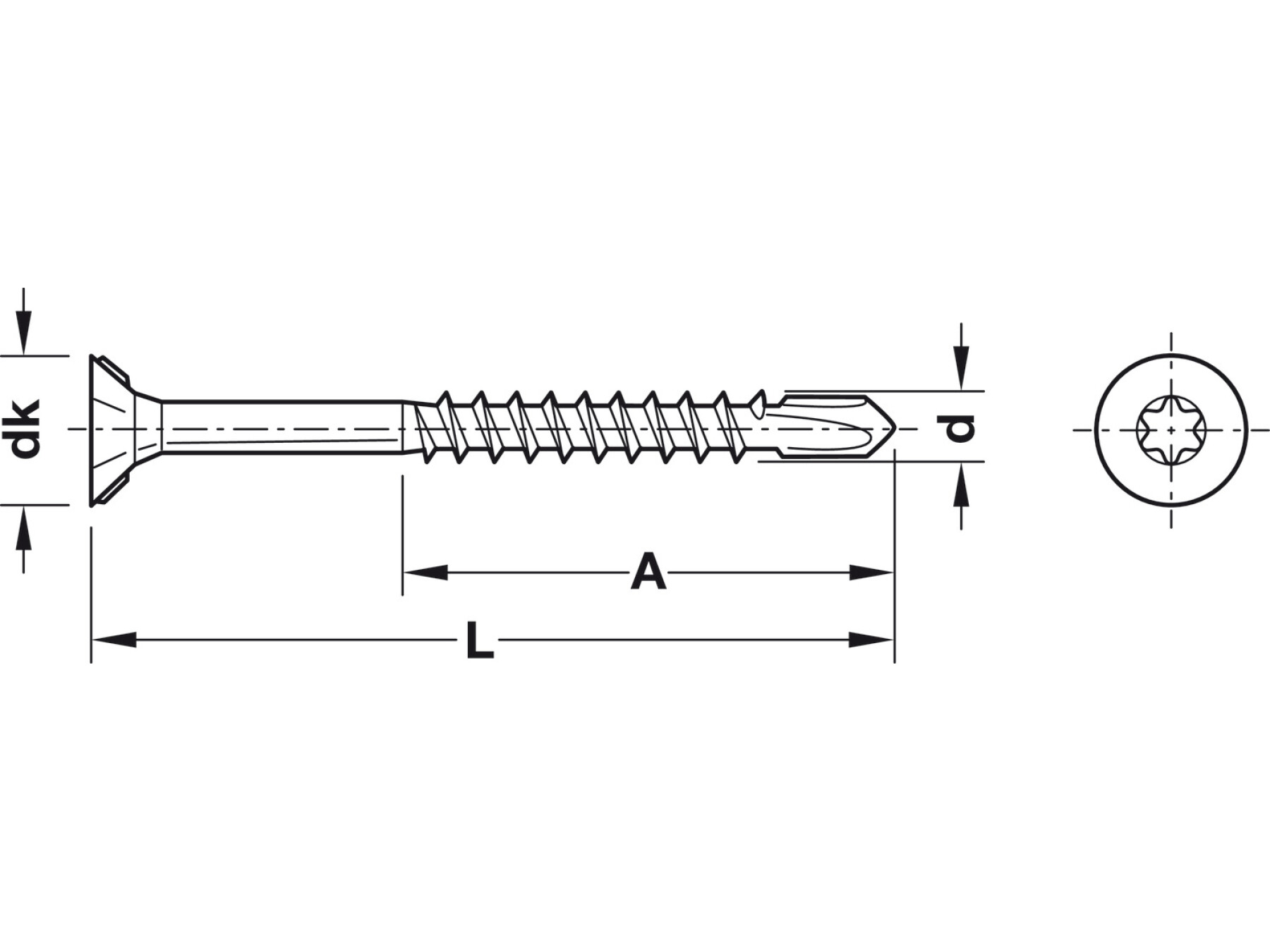

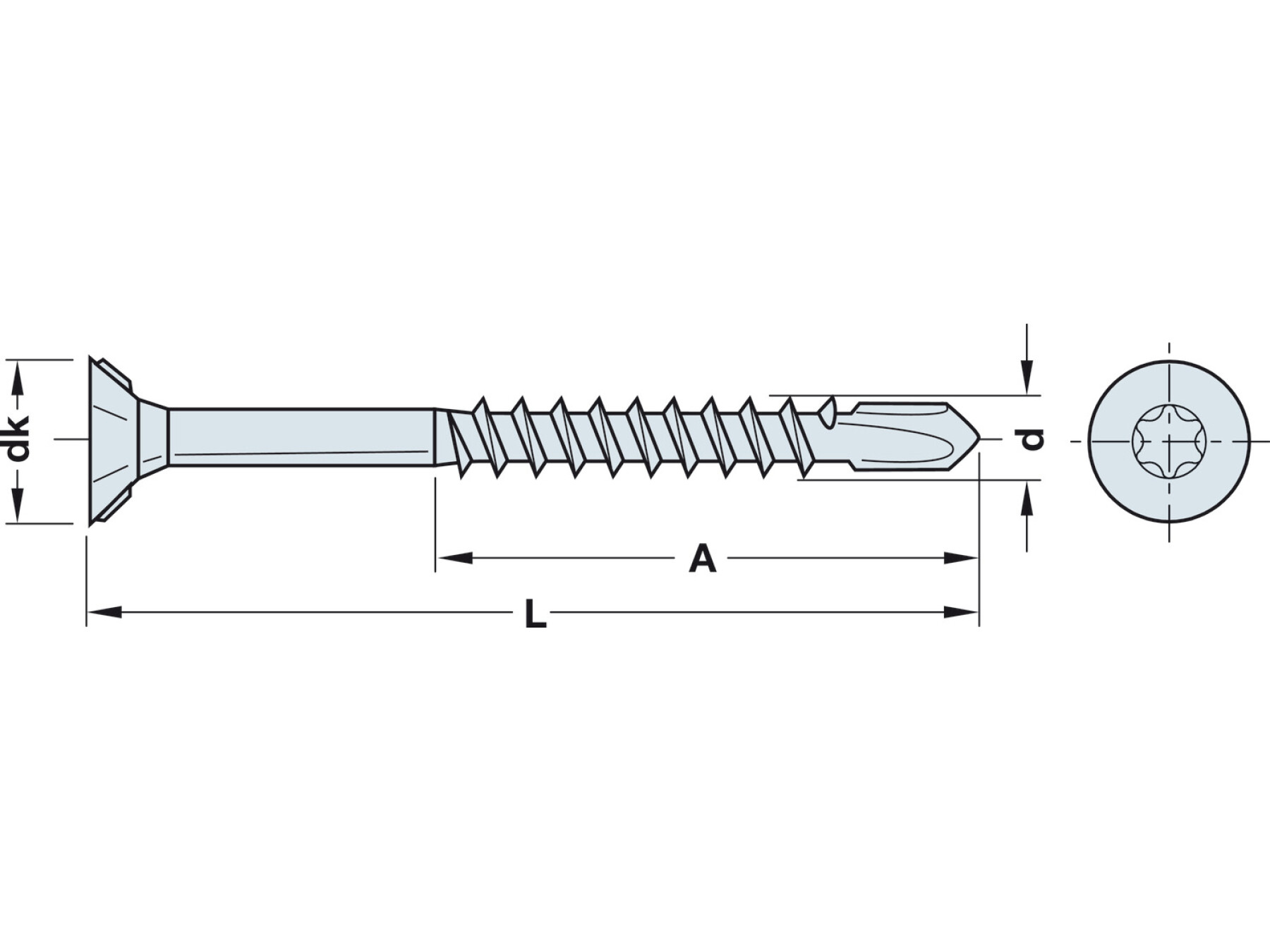

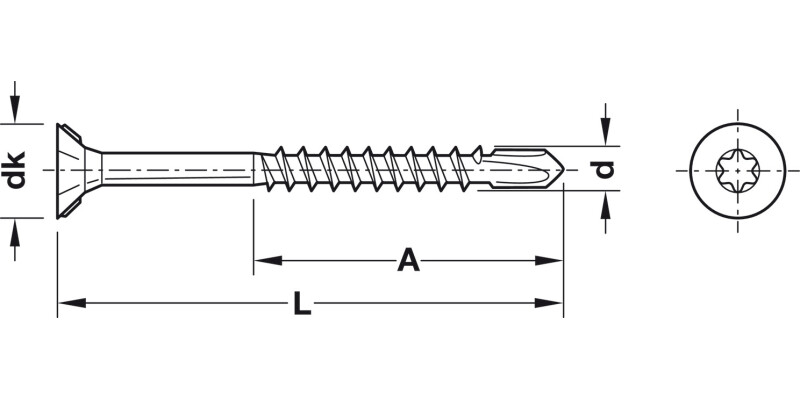

Hospa T Drill Scr Prt Csk TS20 D4.0x35mm
Part Number: 019.01.902
Partially threaded with drill point, Dim. A: 25 mm, length: 35 mm, thread Ø 4 mm, 1000 Pack
Price:
£42.02
Per 1000 Pack
Screw can be inserted without pre-drilling the panelTorque: Internal cross ISPartially threaded screw with drill... Read More
Product Information
Product Details
Screw can be inserted without pre-drilling the panel
Torque: Internal cross IS
Partially threaded screw with drill in tip
Area of application
Pilot drilling not required
particularly suitable for MDF boards
coated and non-coated chipboard
hard wood and solid wood corner connections
front edge fixing
| Technical data | |||
|---|---|---|---|
| Thread Ø | 4 mm | 4.5 mm | 5 mm |
| Head Ø | 8 mm | 9 mm | 10 mm |
| Drive size | IS15 | IS20 | IS25 |
Specifications
Colour/finish
Zinc plated
Material
Steel, hardened
Thread Ø
4.00 mm
Head Ø
8.00 mm
Type of head
countersunk head
Drive
T-Star / Torx
Thread
Partially Threaded
Version
With routered ribs
