Part No: 940.40.027
Hawa Junior 40/80/120/160GP CovPlt SC
£111.78
(excl. VAT)

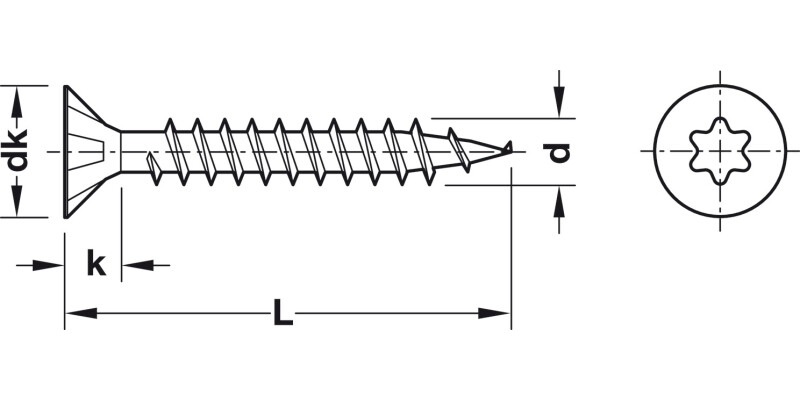

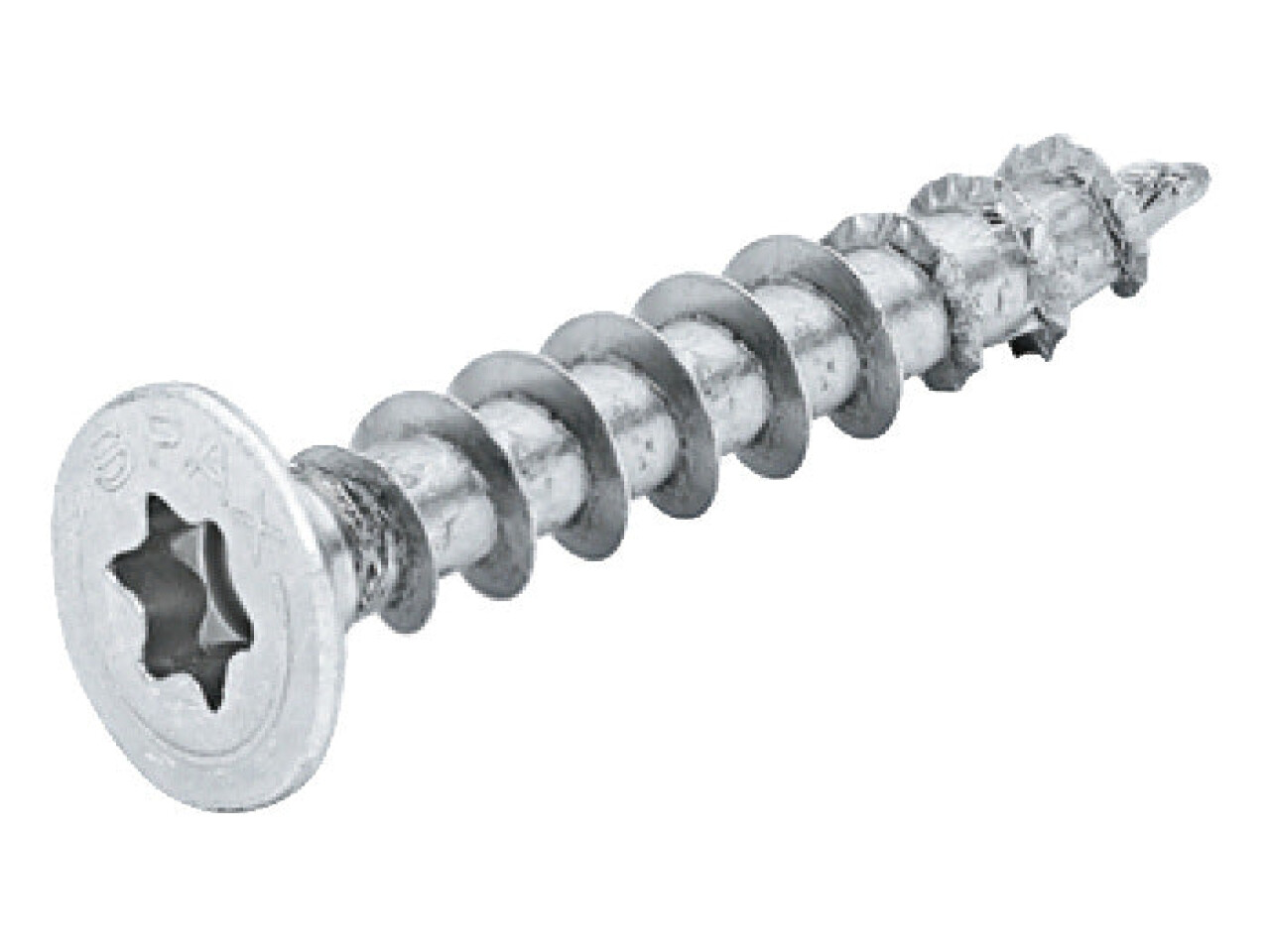

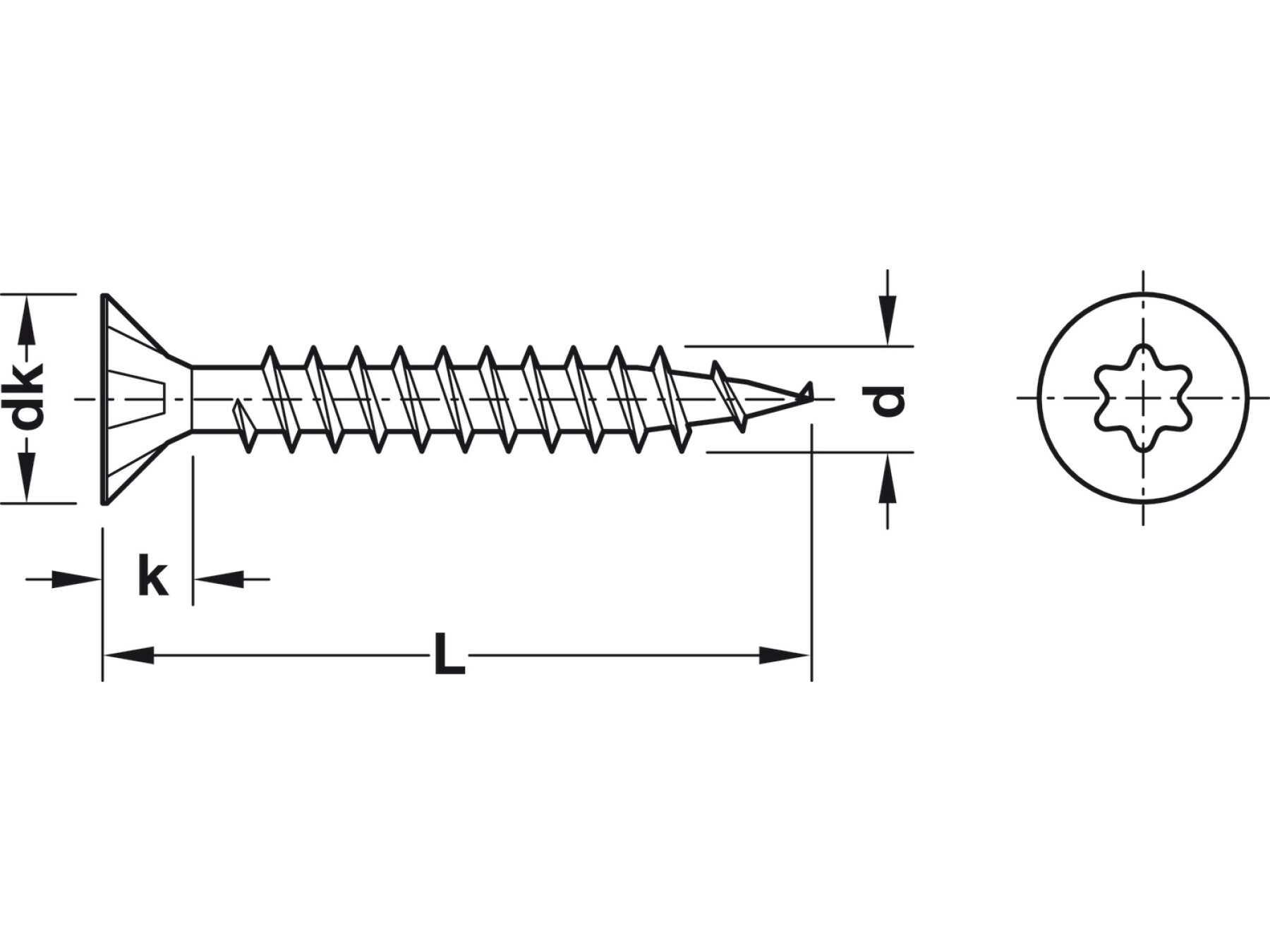

Spax Scr Ful Csk TS20 D4.0x30mm Wrx 200
Part Number: 018.50.121
Galvanized, length: 30 mm, thread Ø: 4.0 mm, 200 Pack
Price:
£6.38
Per 200 Pack
Technical data Thread Ø 3 mm 3.5 mm 4 mm 4.5 mm 5 mm 6 mm Head Ø 6 mm 7 mm 8 mm 9 mm 10... Read More
Product Information
Product Details
| Technical data | ||||||
|---|---|---|---|---|---|---|
| Thread Ø | 3 mm | 3.5 mm | 4 mm | 4.5 mm | 5 mm | 6 mm |
| Head Ø | 6 mm | 7 mm | 8 mm | 9 mm | 10 mm | 12 mm |
| Head height | 1.8 mm | 2.1 mm | 2.4 mm | 2.7 mm | 2.9 mm | 3.4 mm |
| Drive size | IS10 | IS20 | IS20 | IS20 | IS20 | IS30 |
Specifications
Colour/finish
Zinc plated
Material
Steel
Type of head
countersunk head
Drive
T-Star / Torx
Thread
Fully Threaded
Version
4CUT tip with patented wave profile and multi-head
Approval
Building regulations approved Z-9.1-235
