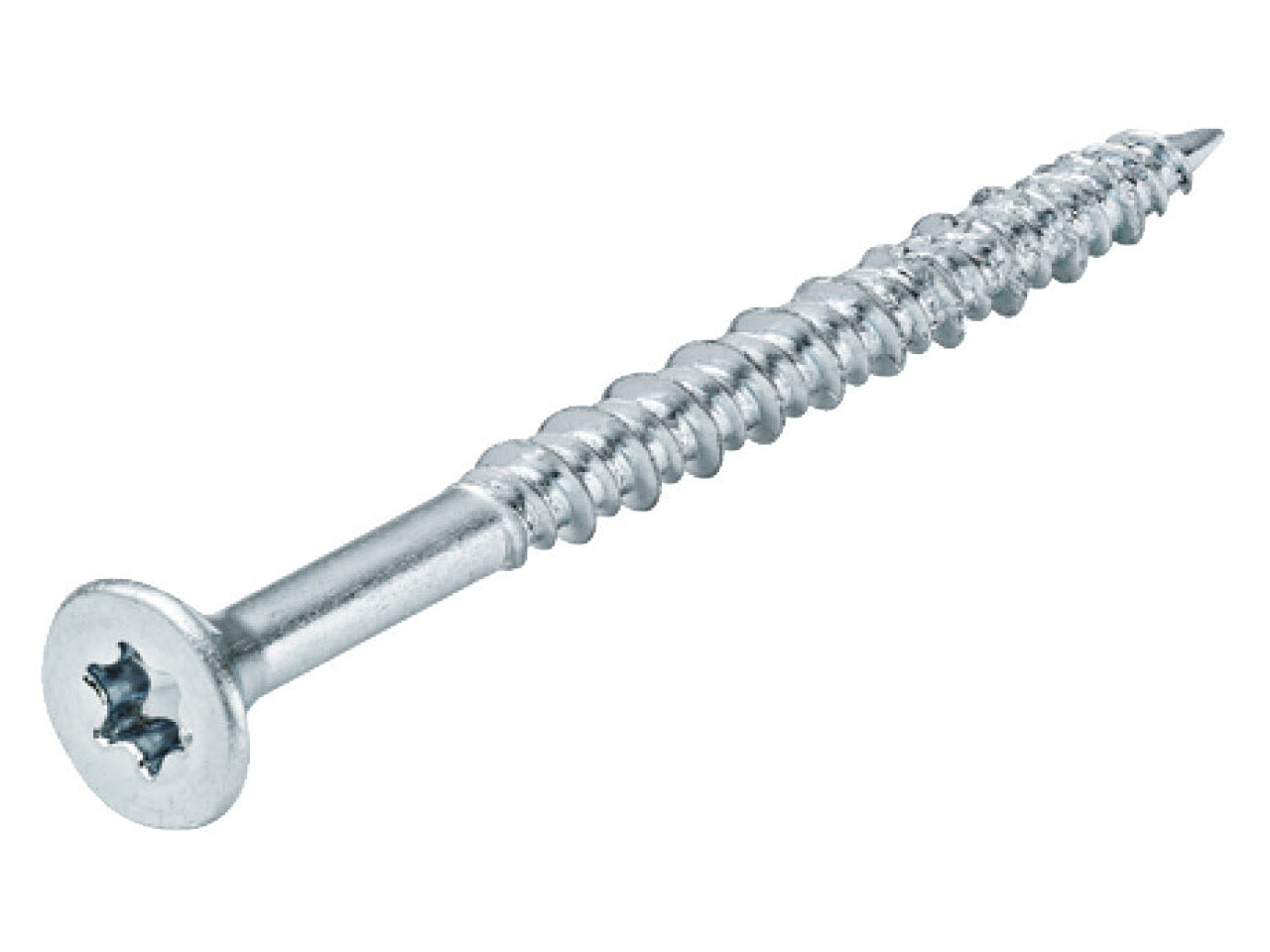

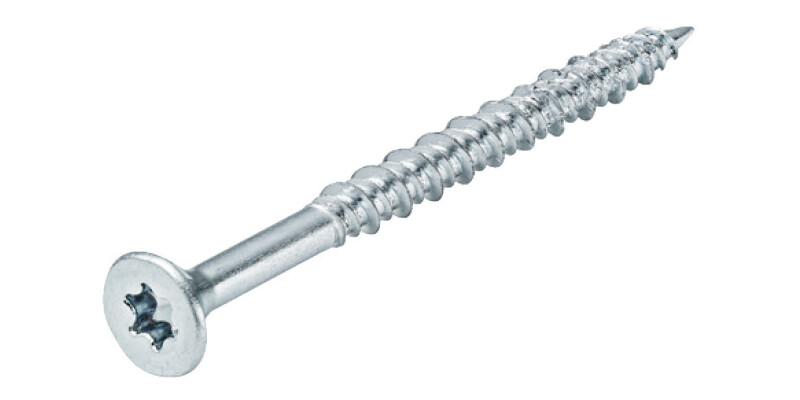

Hospa Jet Scr Prt Csk TS30 D6.0x100mmGlv
Part Number: 017.91.383
Multi-Purpose, Length 100 mm, thread Ø 6 mm, head Ø 12 mm, TS30, 100 Pack
Price:
£14.54
Per 100 Pack
Special high/low thread increases the speed of insertion Version Reinforced head prevents snapping off,... Read More
Product Information
Product Details
Special high/low thread increases the speed of insertion
Version
Reinforced head prevents snapping off, high/low thread increases the speed of insertion, routered ribs for countersinking in material, increased pull-out resistance, for universal use

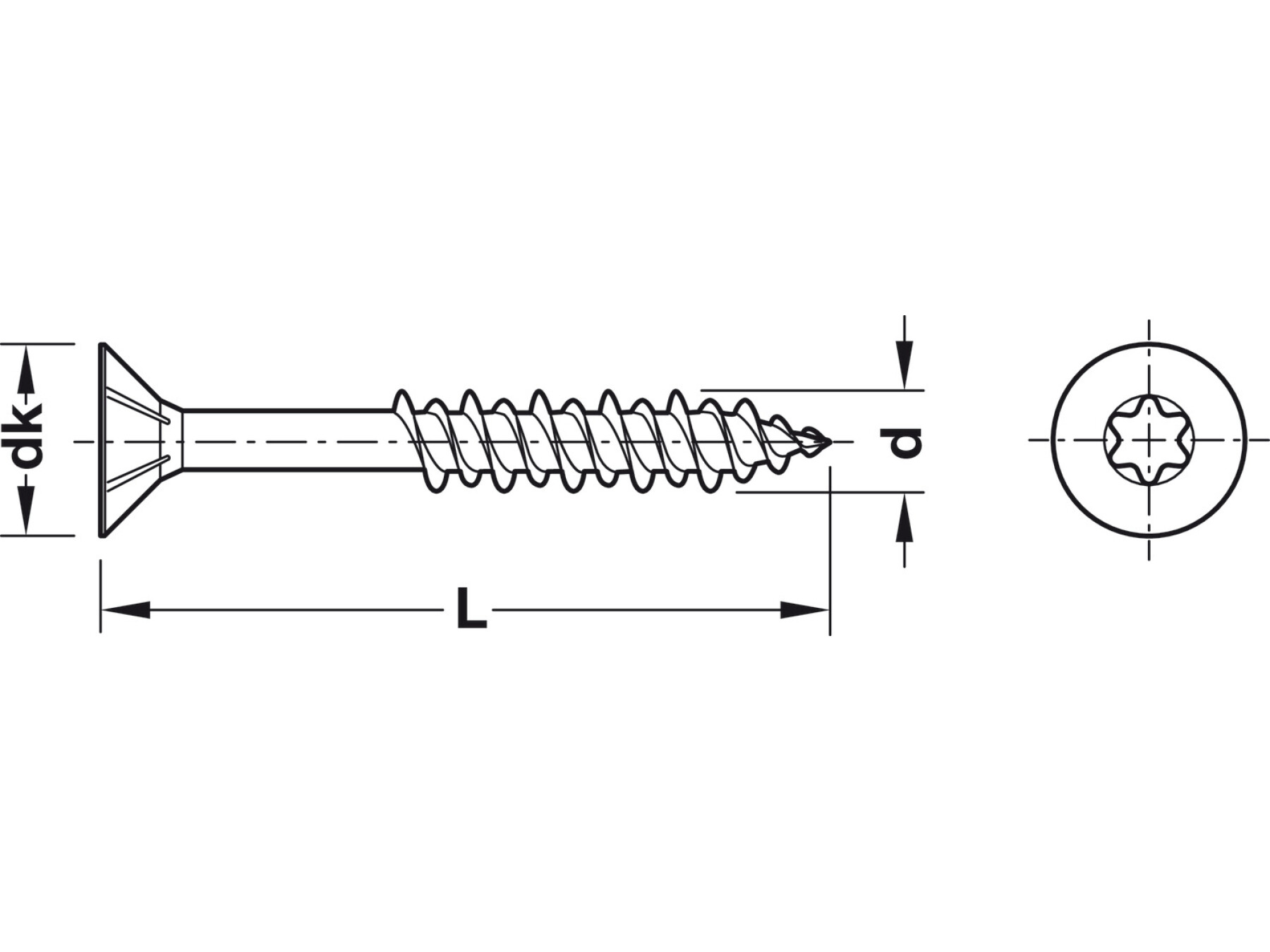

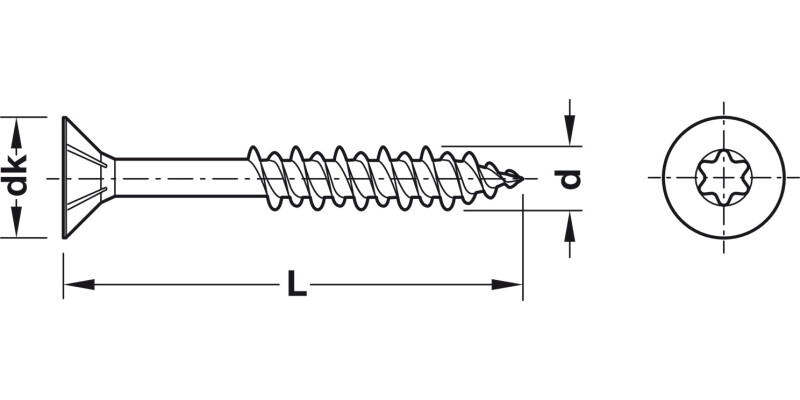

| Technical data | ||||||
|---|---|---|---|---|---|---|
| Thread Ø | 3 mm | 3.5 mm | 4 mm | 4.5 mm | 5 mm | 6 mm |
| Head Ø | 6 mm | 7 mm | 8 mm | 9 mm | 10 mm | 12 mm |
| Drive size | IS15 | IS20 | IS20 | IS20 | IS20 | IS30 |
Specifications
Colour/finish
Zinc plated
Material
Steel
Type of head
countersunk head
Drive
T-Star / Torx
Thread
Partially Threaded
Thread type
High/low thread
Area of application
For wooden material
for coated and non-coated board materials
