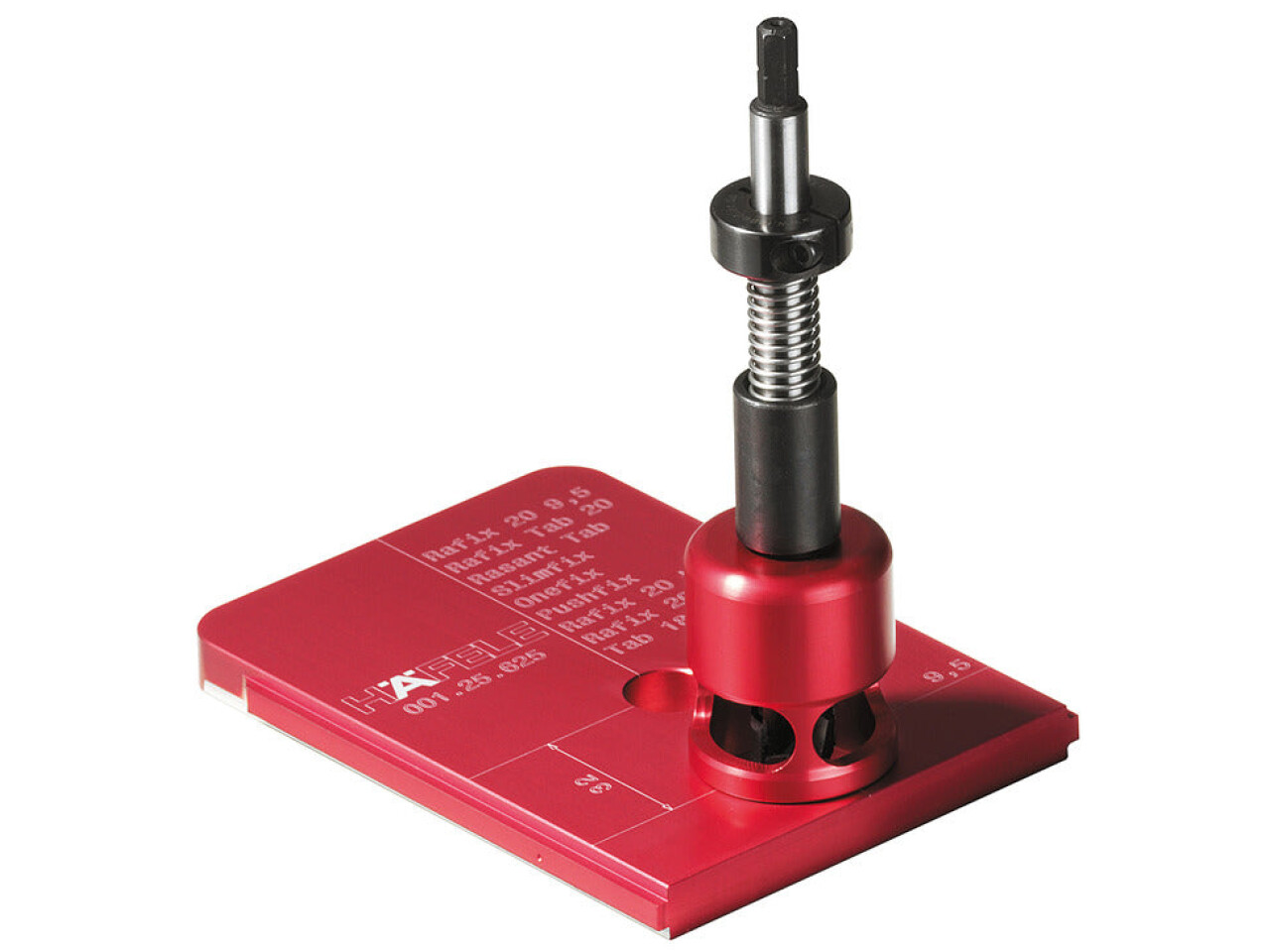

Red Jig Supplement for Rafix 20

1x Rafix 20 insert
1x Depth gauge 32 for drill bit Ø 12, 15, 18, 20, 25, 26 mm with
depth stop and spring (001.25.771)
1x HM multi-spur drill bit with countersinker, Ø 20 mm, RI, for wood
thickness 19 mm (001.24.417)

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

The Rafix 20 drill guide is suitable for following connectors with identical drilling patterns:
Rafix Tab, Slimfix, Onefix, Pushfix, Rafix HC.
The Rafix 20 drill guide can be adjusted to suit other Tab connectors, e.g. Tab 18, Rafix 20 S, Tab 20 HC, using the scale on the basic jig.

Red drilling jig and spare parts to be ordered separately as required
