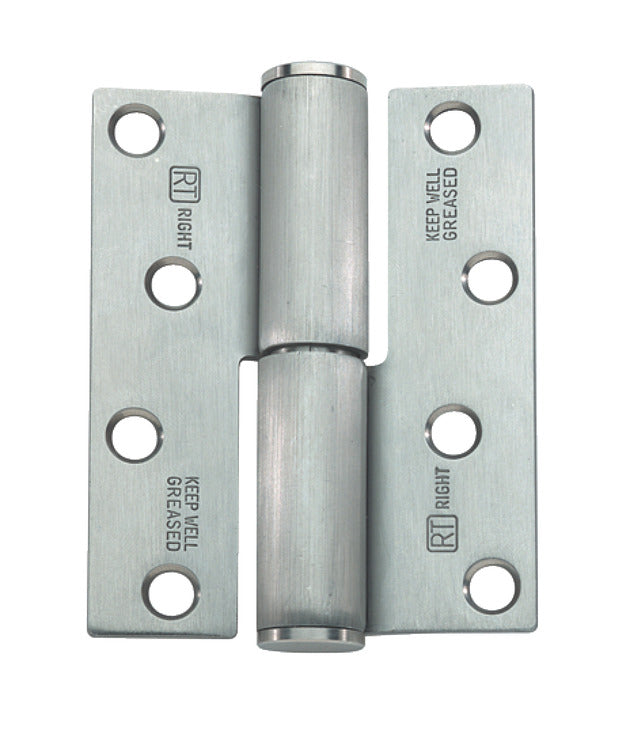

Butt Hinge Falling 100x77mm CW 304 SSS
Concealed cams when openDoor opens on releaseRises 10.5 mm at 120°
- Version: Left hand hinge, clockwise closing direction
- Door weight: Max. adjusted 50 kg
- For door thickness: Min. 29 mm

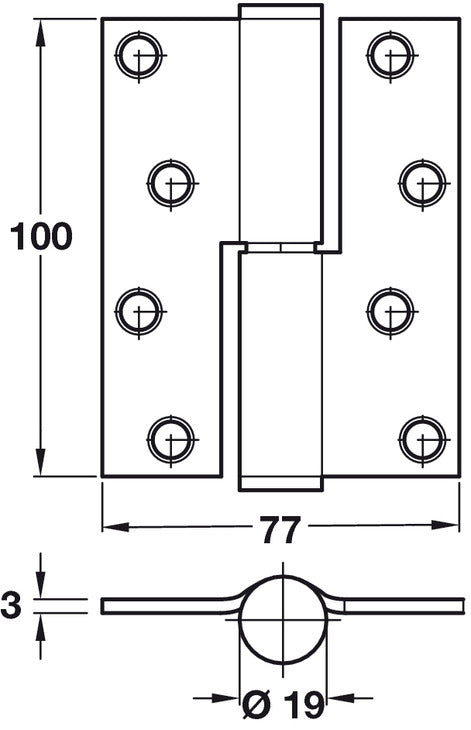

- Dim. (L x W): 100 x 77
- Material: Grade 304 stainless steel
- Finish: Satin
- Note: Only 2 hinges per door leaf are required
- Supplied with: Fixing screws
