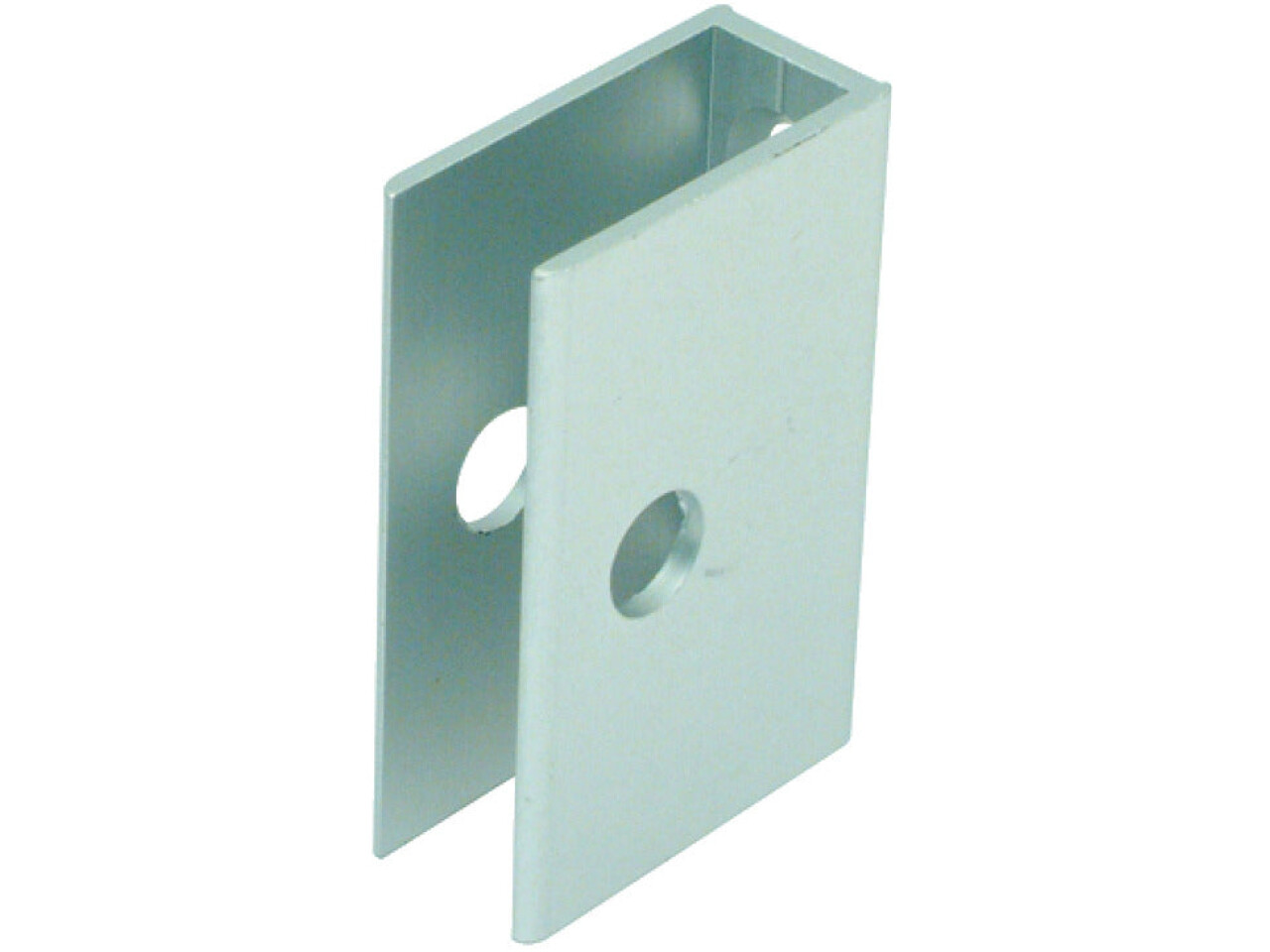

Cubicle Channel Brkt Set Through Fix SAA

Application: General purpose cubicles of compact grade laminate, plywood, etc., construction where board thickness if normally 12-13 mm incorporating decorative laminate facing

Supplied in sets of 3, complete with bush bolts and fixingsTo fix division panels to rear walls and front pilasters and fix end pilaster to wallSuitable for matching modesty panel fixings

• Suitable for: 12-13 mm cubicle fittings


• Installation: Screw fixing

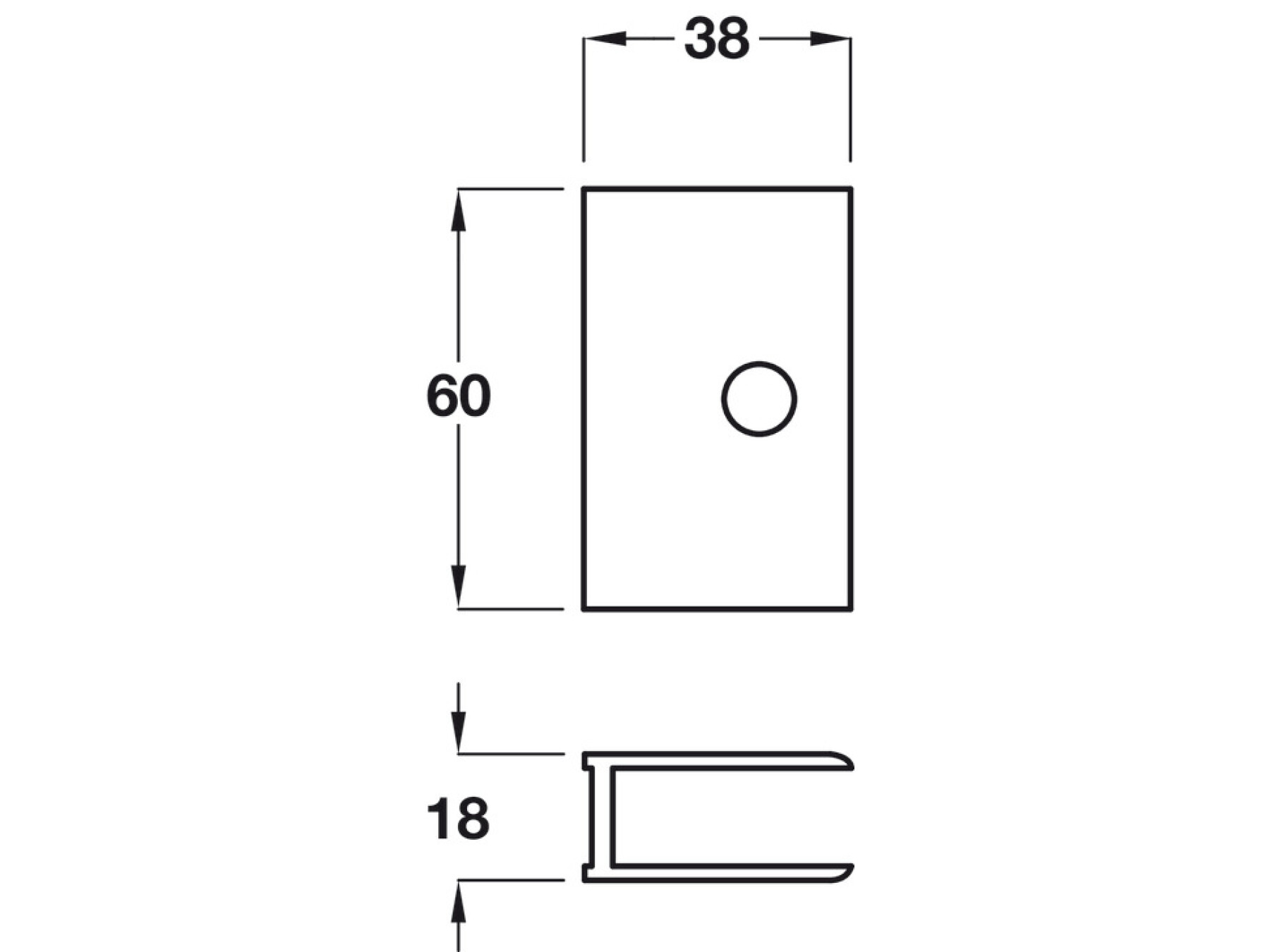

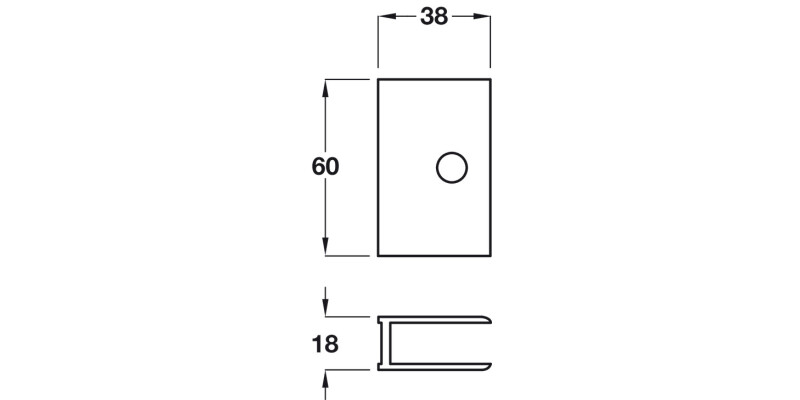

• Height: 60 mm


• Width: 38 mm


• Depth: 18 mm


• Material: Aluminium


• Finish: Satin anodised
