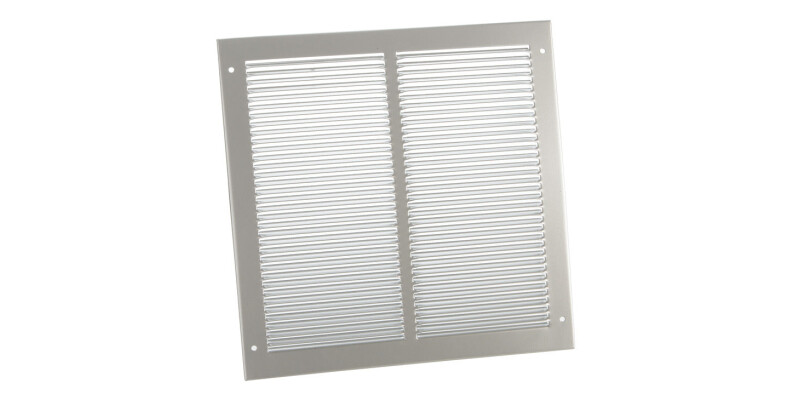

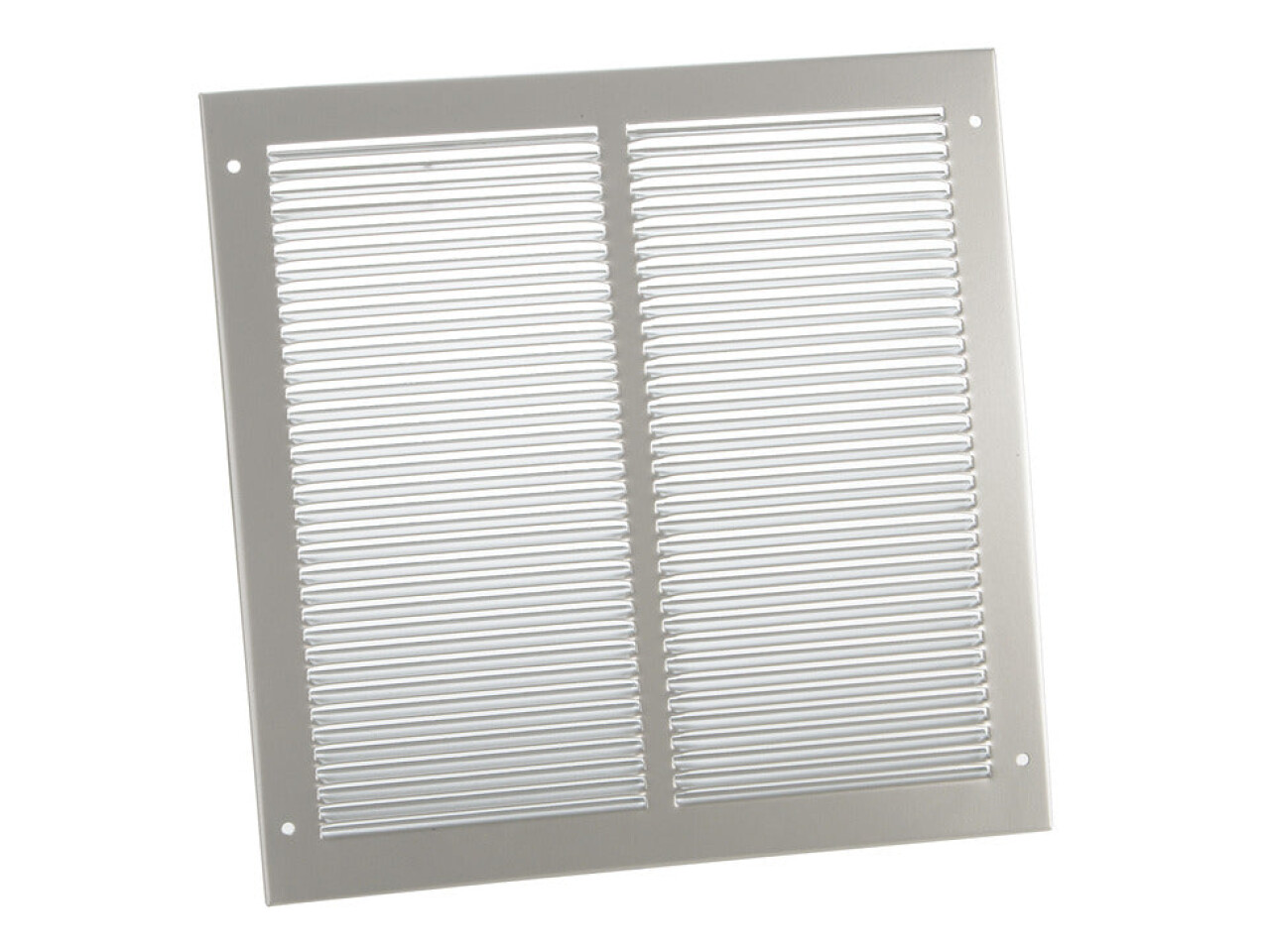

Louvred Air Grille 203x203mm M.St/S.Slv

Horizontal louvres set on 8.5 mm pitch30 % downward deflection

• Application: Suitable for use with fire grille (Cat. no. 959.20.20x), or on their own


• Material: 20swg mild steel


• Finish: Satin silver

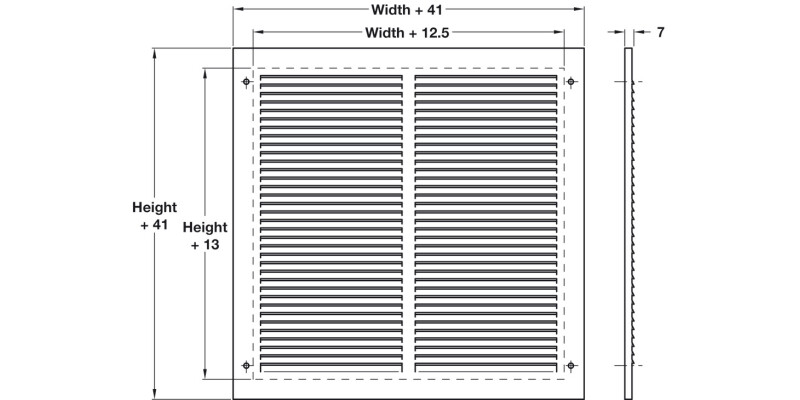

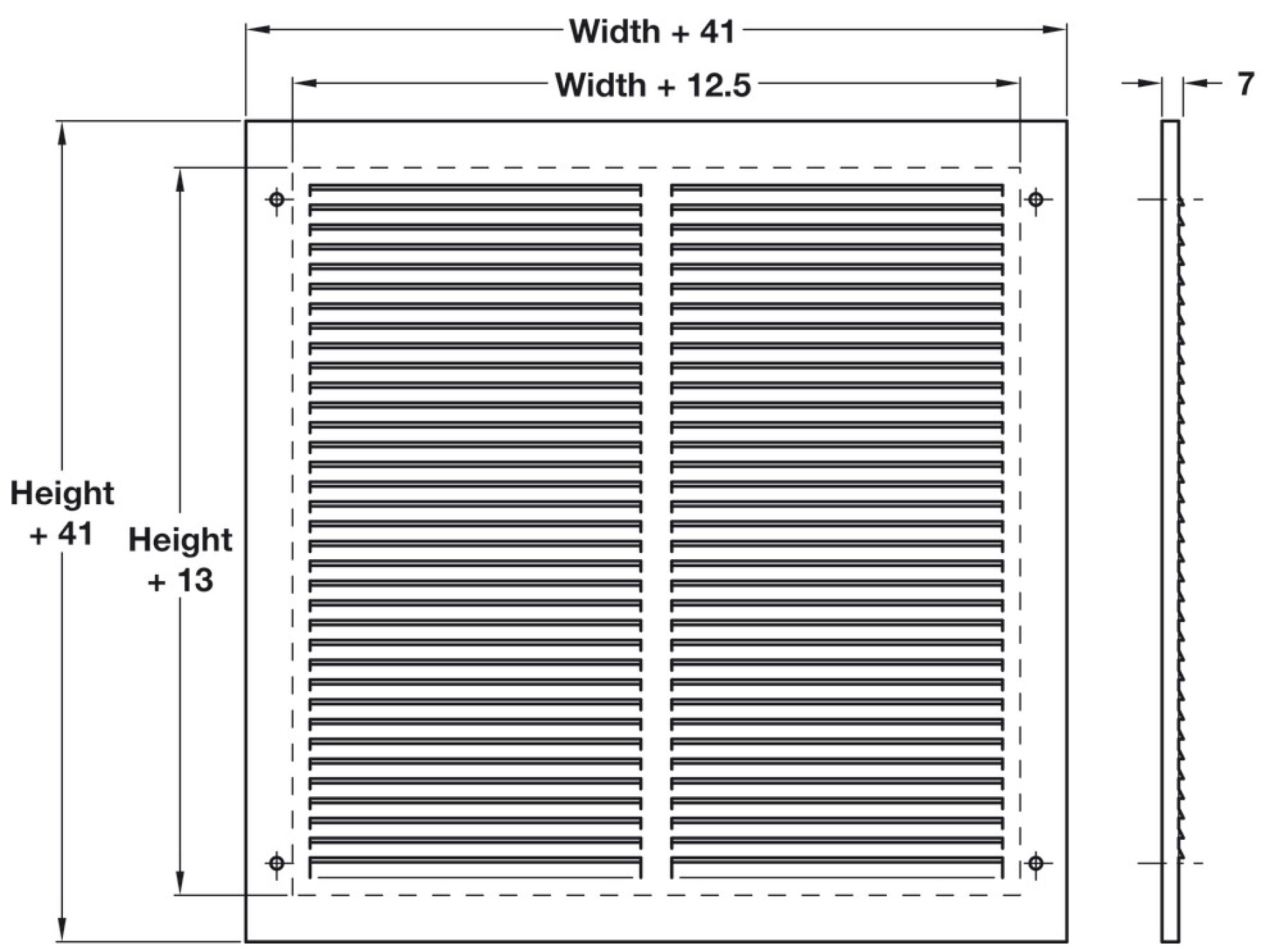

• Note: Sizes depicted are for cut out of door required, allow for flange around the plateMaximum cut out dimensions are shown as the vents' louvres will restrict air flow - the true free vent area will therefore be less than the cut out sizeConfiguration of vents varies depending on size
