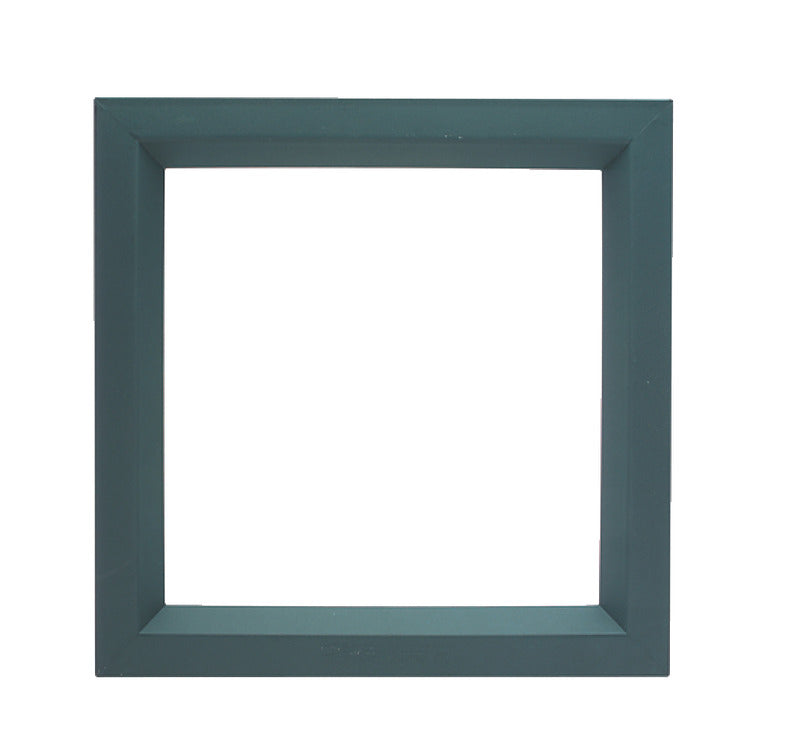

Metal Vision Panel 305x305mm 304 SS

Regular price


(ex. VAT)


(inc. VAT)
  • SKU:
  • Availability: 0
  • Product category: Architectural Ironmongery
  • Vendor: BKSH
  • Visitors:

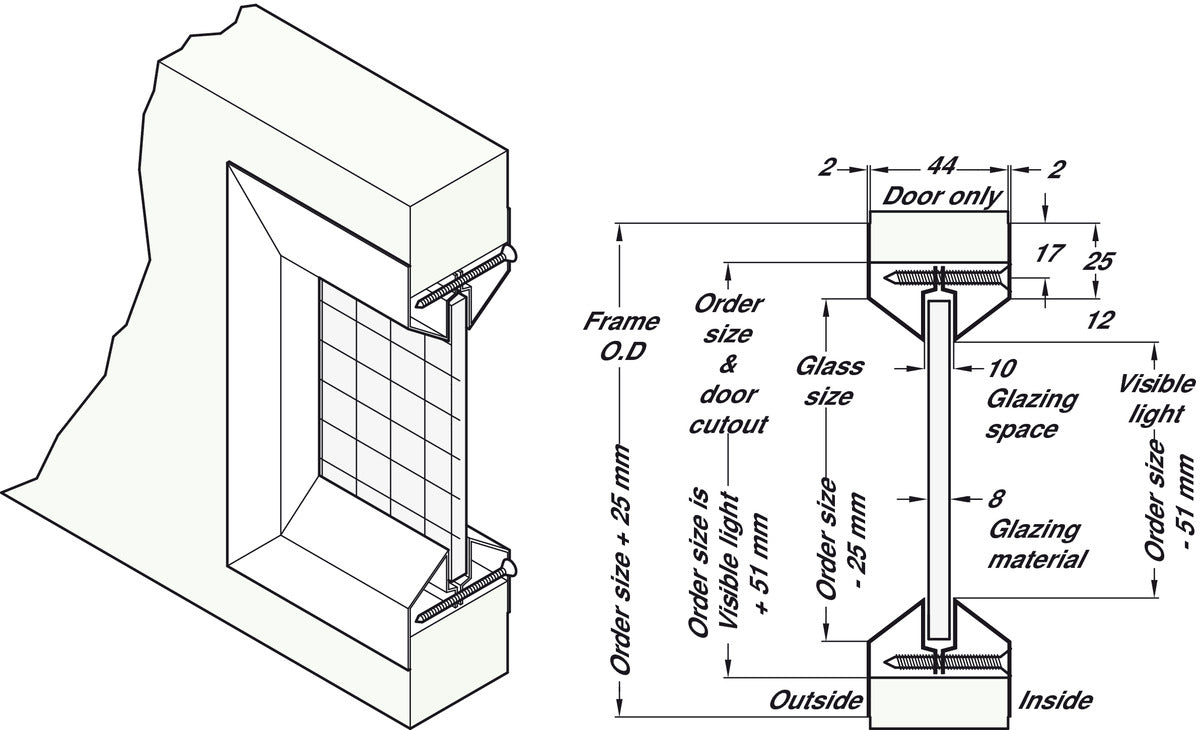

Flush to door lockUses 44 mm sheet metal screws that pass through the door cut-out, and fasten to the opposite side of the vision frame, thus eliminating the need to drill the door through bolts and saving installation time and labour. It also leaves the corridor side of the frame free of fastenings, for added security and a cleaner, more aesthetic appearanceFire tested to 1 hour timber door, in conjunction with intumescent tapes and linerComplies with BS 476 Part 22Tested in accordance with BS EN 1634-1

  • Version: Standard square

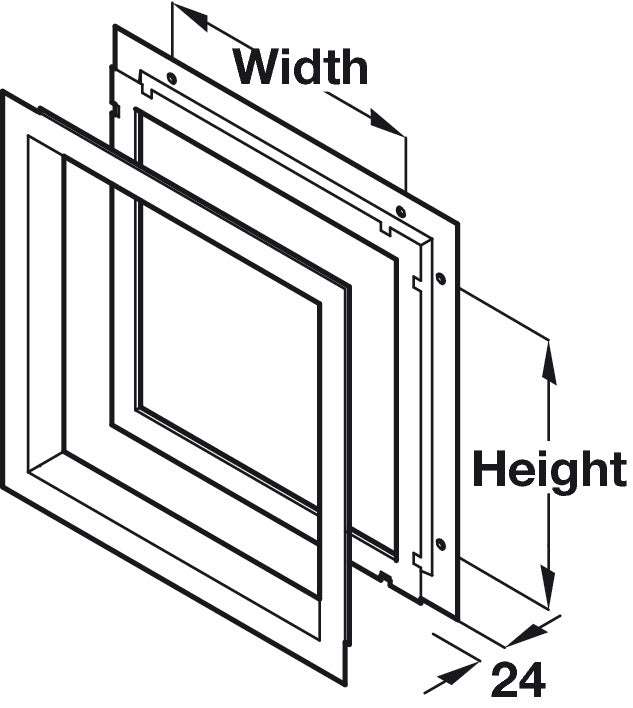

  • : Cut out size: 305 x 305 mm

  • : Clear vision size: 254 x 254 mm

  • For door thickness: 42-46 mm

  • For glass thickness: Fits 6 and 6.4 mm

  • Material: Grade 304 stainless steel

  • Finish: Brushed

  • Supplied with: Fixings

  • Order reference: Glass to suit, glazing tape and liners must be ordered separately
