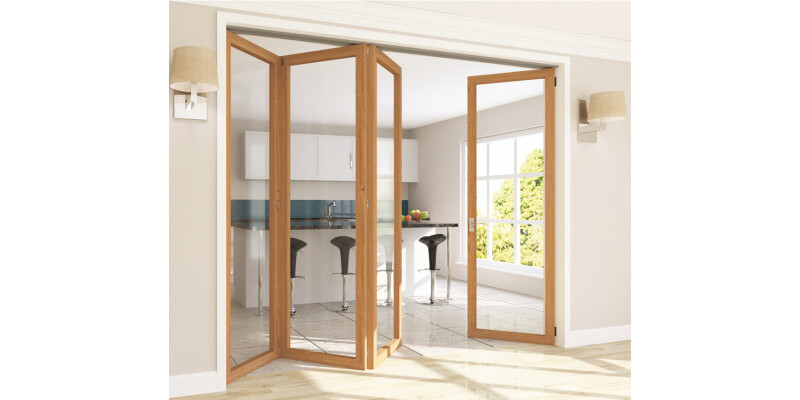

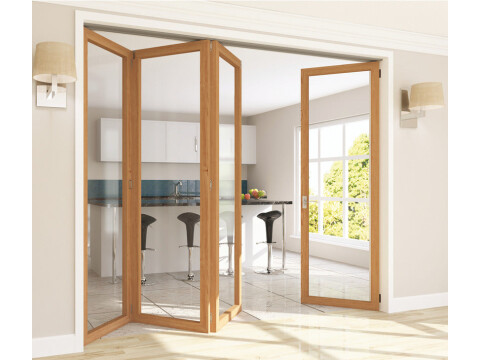

Roomflex Complete Fitting Set 2Dr 2+0

For timber folding doors and room dividers weighing up to 35 kg per leafIdeal for residential and commercial interior folding applicationsDoor can fold to one side or bothNo guide channel requiredNo rebating needed for hangers or hingesAll doors must be of equal width

• Installation: Screw fixing


• Door weight: Max. 35 kg


• Door height: Max. 3000 mm


• Door width: Max. 925 mm


• Door thickness: 35-44 mm

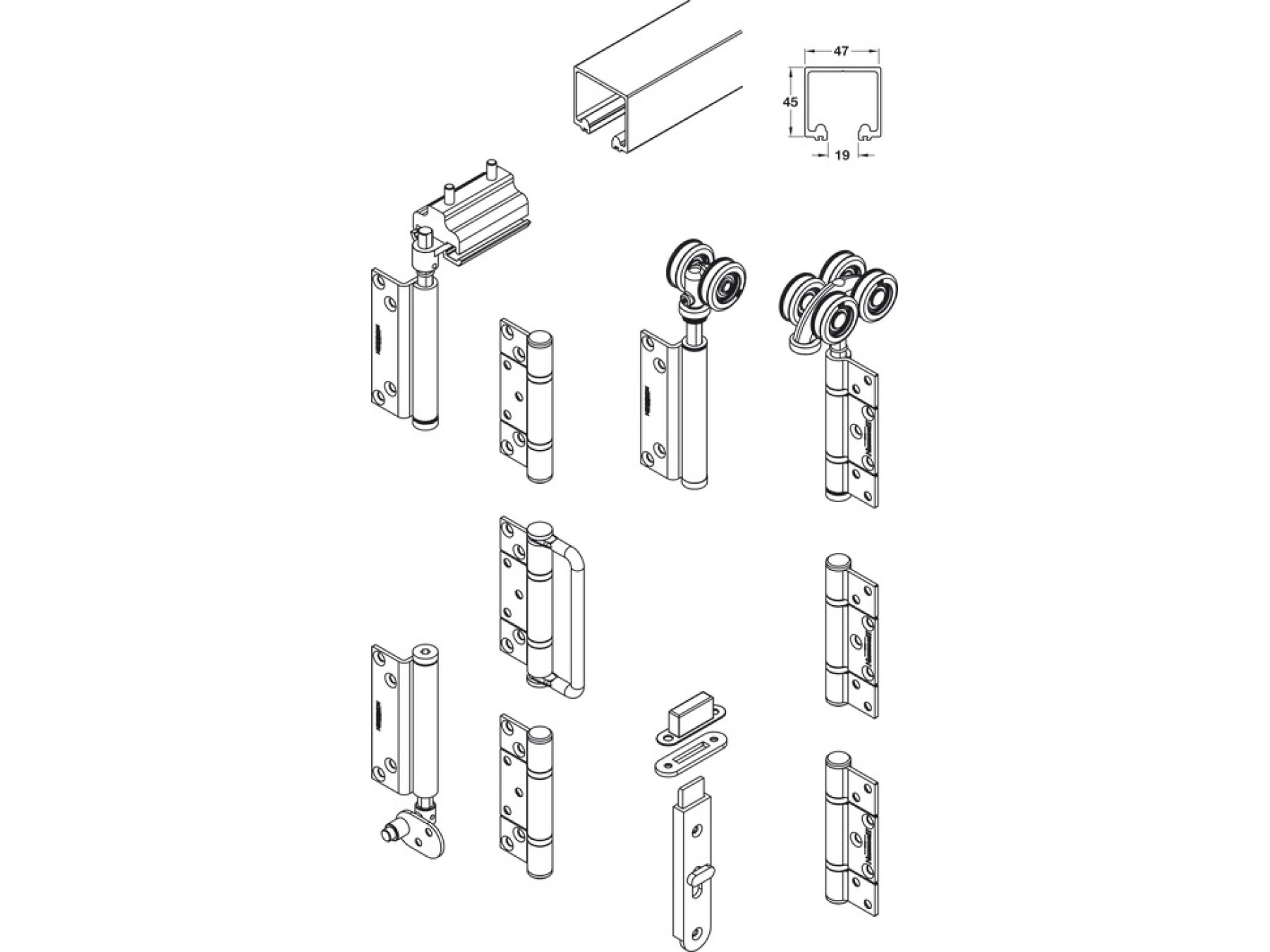

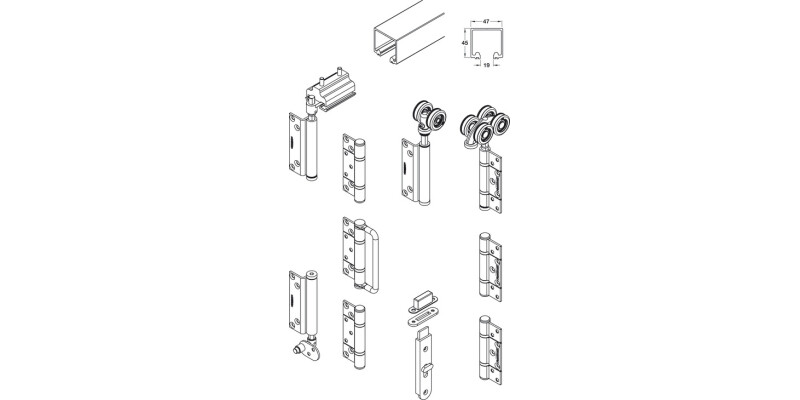

• Supplied with: Complete fitting for 2 doors consists of 1 x Top track, anodised aluminium, 1 x Pivot set, includes top and bottom pivot, 100 mm bracket height, 1 x Hinge handle set, 100 mm hinge flap and bracket height, 1 x End hanger, 100 mm bracket height, 1 x Flush bolt and fittingsComplete fitting for 3 doors consists of 1 x Top track, anodised aluminium, 1 x Pivot set, includes top and bottom pivot, 100 mm bracket height, 1 x Hinge handle set, 100 mm hinge flap and bracket height, 1 x Intemediate hanger set, includes hanger with bracket and 2 hinges, 100 mm bracket height, 1 x Flush bolt and fittingsComplete fitting for 4 doors consists of 1 x Top track, anodised aluminium, 2x Pivot sets, includes top and bottom pivot, 100 mm bracket height, 1 x Hinge handle set, 100 mm hinge flap and bracket height, 1 x Intemediate hanger set, includes hanger with bracket and 2 hinges, 100 mm bracket height, 2x Flush bolts and fittings
