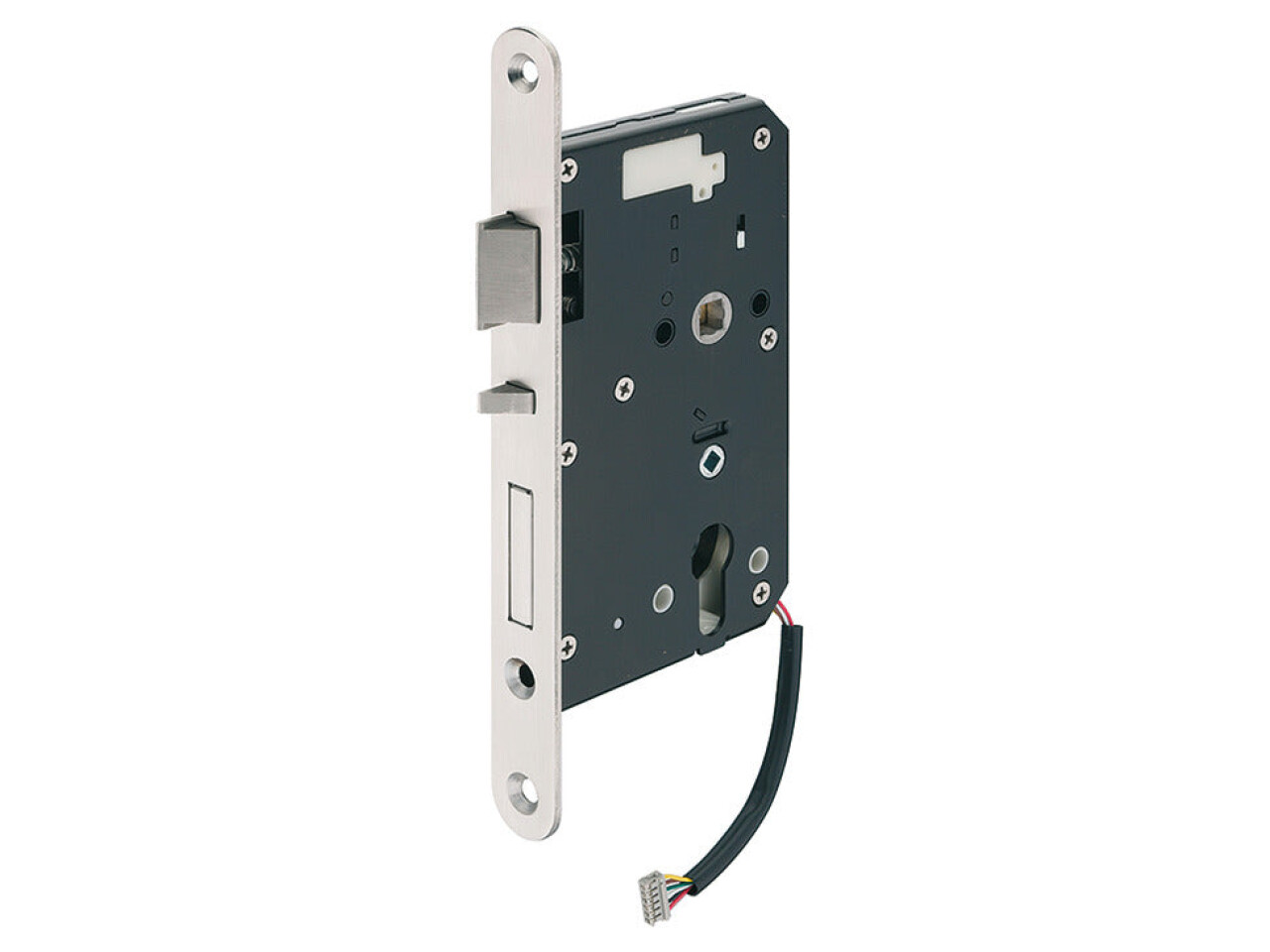

Dialock DT700/710 Mortice DL In SSBlk

Version: Electrically connectable mortice lock with feedback (sensors for latchbolt/deadbolt position), panic function and emergency opening function, deadlocking latchbolt and deadbolt, connection cable for electrical coupling and sensors for connection with DT 700 or DT 710 interior module

• Application: For flush doorsSuitable for fire resistant and smoke control doors

• Model series: DT 700 and DT 710

• Type of locking: Prepared for profile cylinder

• Deadbolt: 1-turn

• Forend: Round

• Lever follower: 9 mm

• Material: Stainless steel

• Colour: Lock case: Black

• : Determination of comfort functionA door can be inwards or outwards opening irrespective of the mounting.DIN LDIN R! Comfort function inwards opening doors" Comfort function outwards opening doors¬¨¬®‚àö√º Public area$ Guest roomThe side with comfort function is marked with a label.Emergency opening functionEmergency opening function is monitored (feedback).Opening of door from outside: By turning the key in the profile cylinder (key action), the latchbolt and deadbolt are retracted.Opening of door from inside: By activating the lever handle, the latchbolt and deadbolt are retracted.

• Supplied with: 1x Mortice lock1x Forend screw 70 mm (only for backset 55 mm; screw must be installed)1x Forend round, satin stainless steel or polished brass coloured, 2 fixing screws1x Flanged striking plate, satin stainless steel or polished brass coloured
