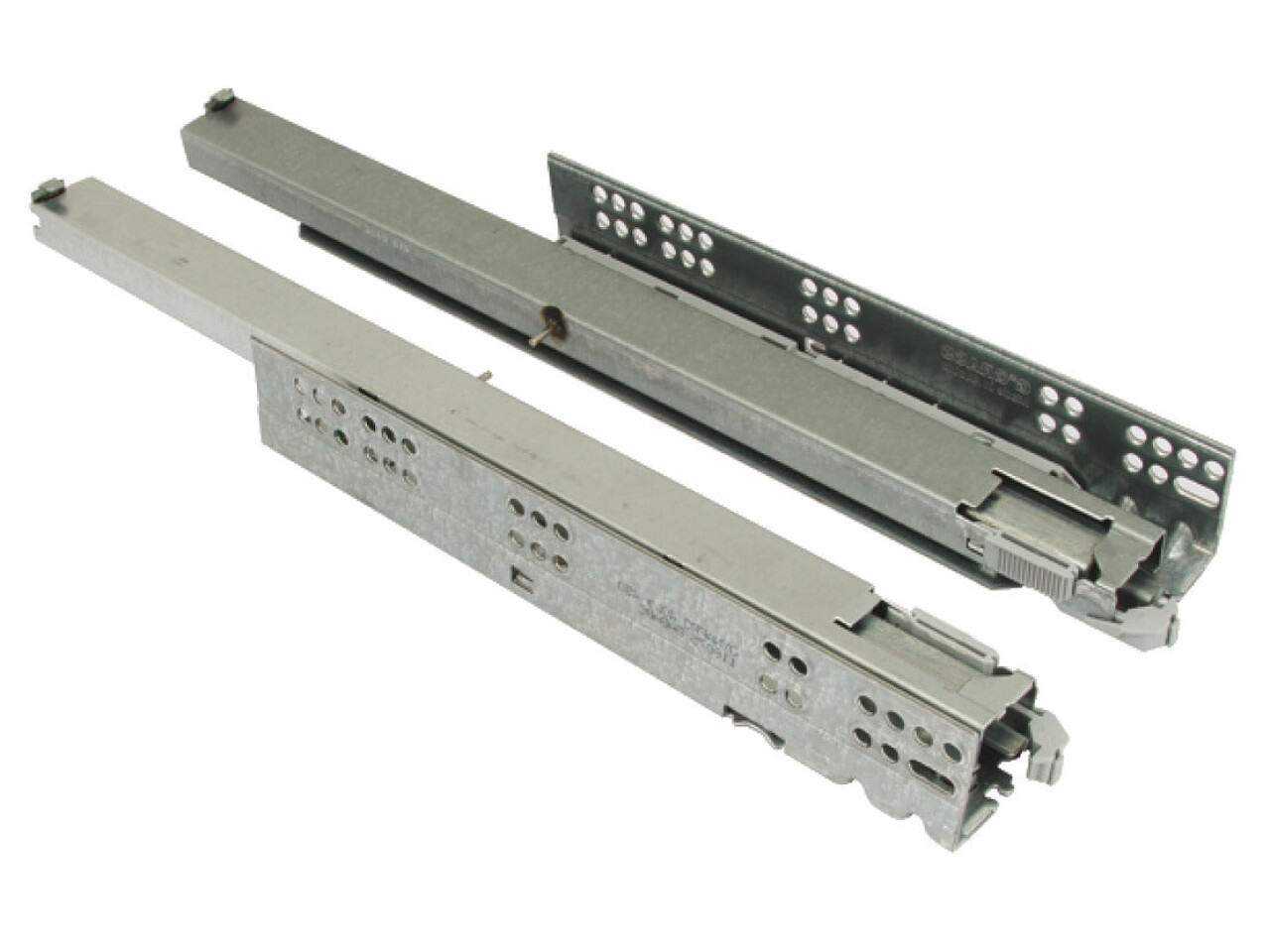

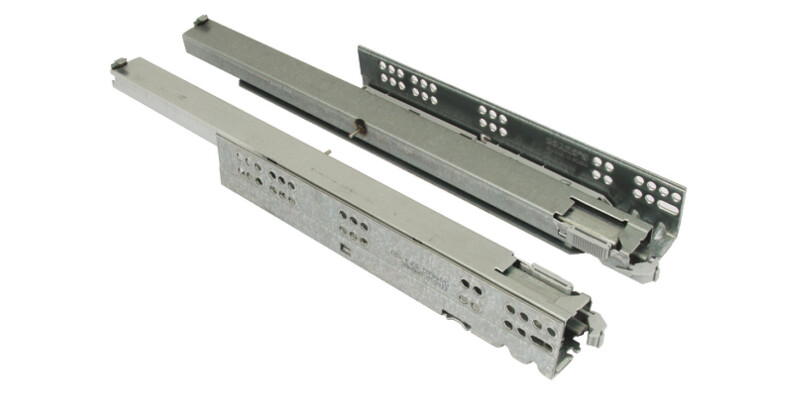

Dynapro Tipmatic Full 40kg 400mm SZP
Part Number: 433.19.940
Tipmatic Plus automatic ejector, Nominal length 400 mm, drawer length 390 mm, load capacity 40 kg
Price:
£51.05
Per Item
Tipmatic Plus automatic ejector. Simply press the front of the drawer to open Adjustment facility Integrated... Read More
Product Information
Product Details
Tipmatic Plus automatic ejector. Simply press the front of the drawer to open
Adjustment facility
Integrated height adjustment + 3.5 mm without tools
Adjustment adapter for side adjustment ± 1.5 mm, and tilt adjustment + 4 mm and front gap alignment ± 1.5 mm (factory setting 4.5 mm) without tools
Specifications
Type of pull out
Full extension
Comfort functions opening/closing
Push to open
Load bearing capacity
40.00 kg
Material
Steel
Colour/finish
Zinc plated

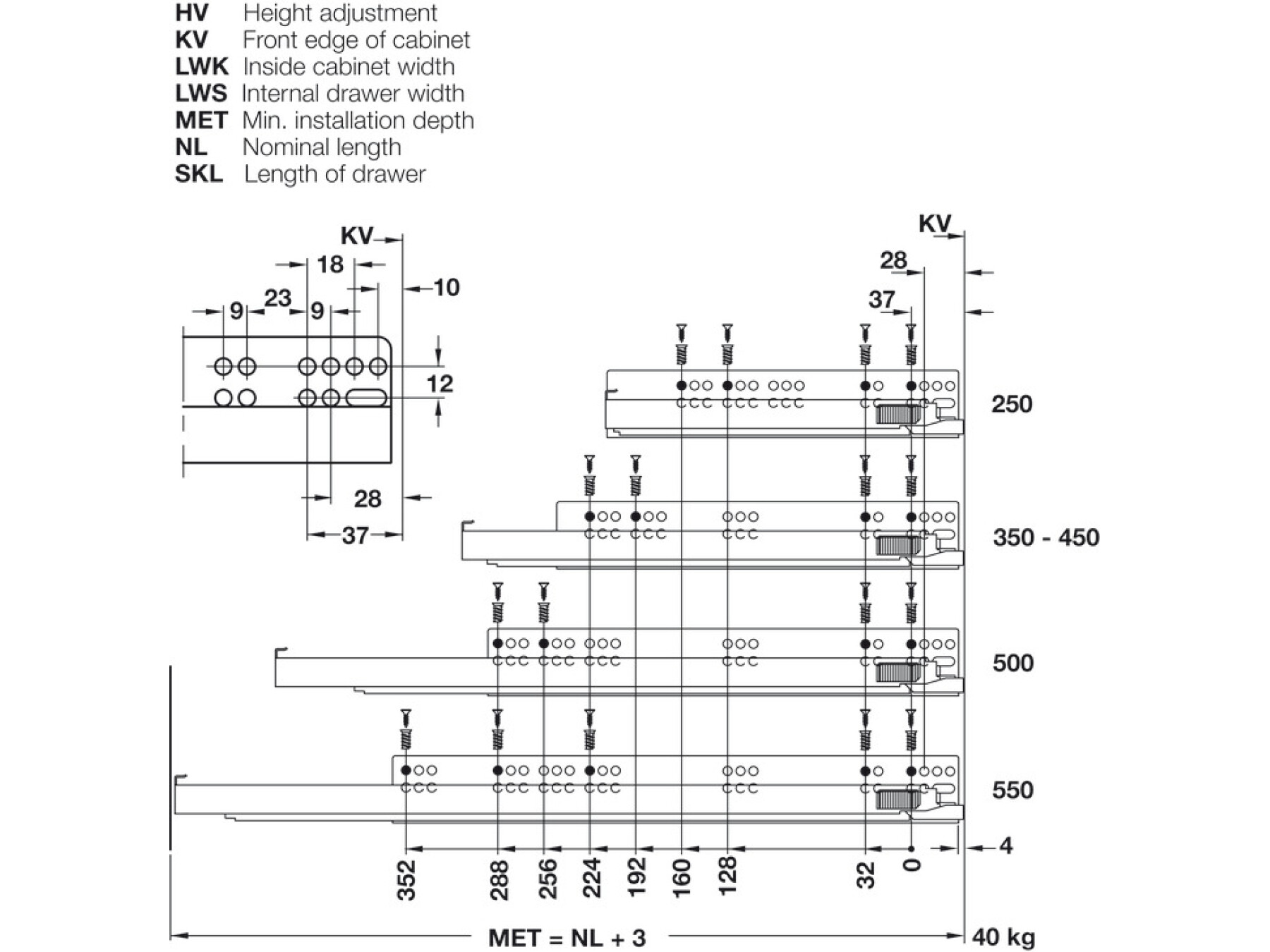

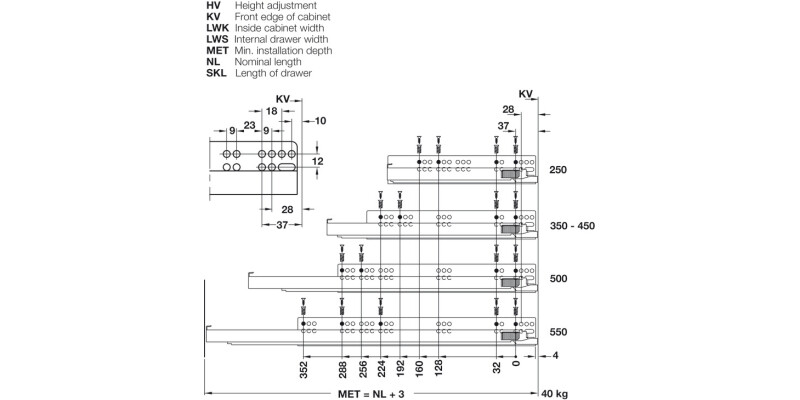

Installation
Slide-on mounting
32 mm drilling pattern
Order reference
Order Varianta Ø 5 countersunk and Hospa Ø 4.0 pan head screws separately
