Accuride 0116 End Stops+Fixings Alu

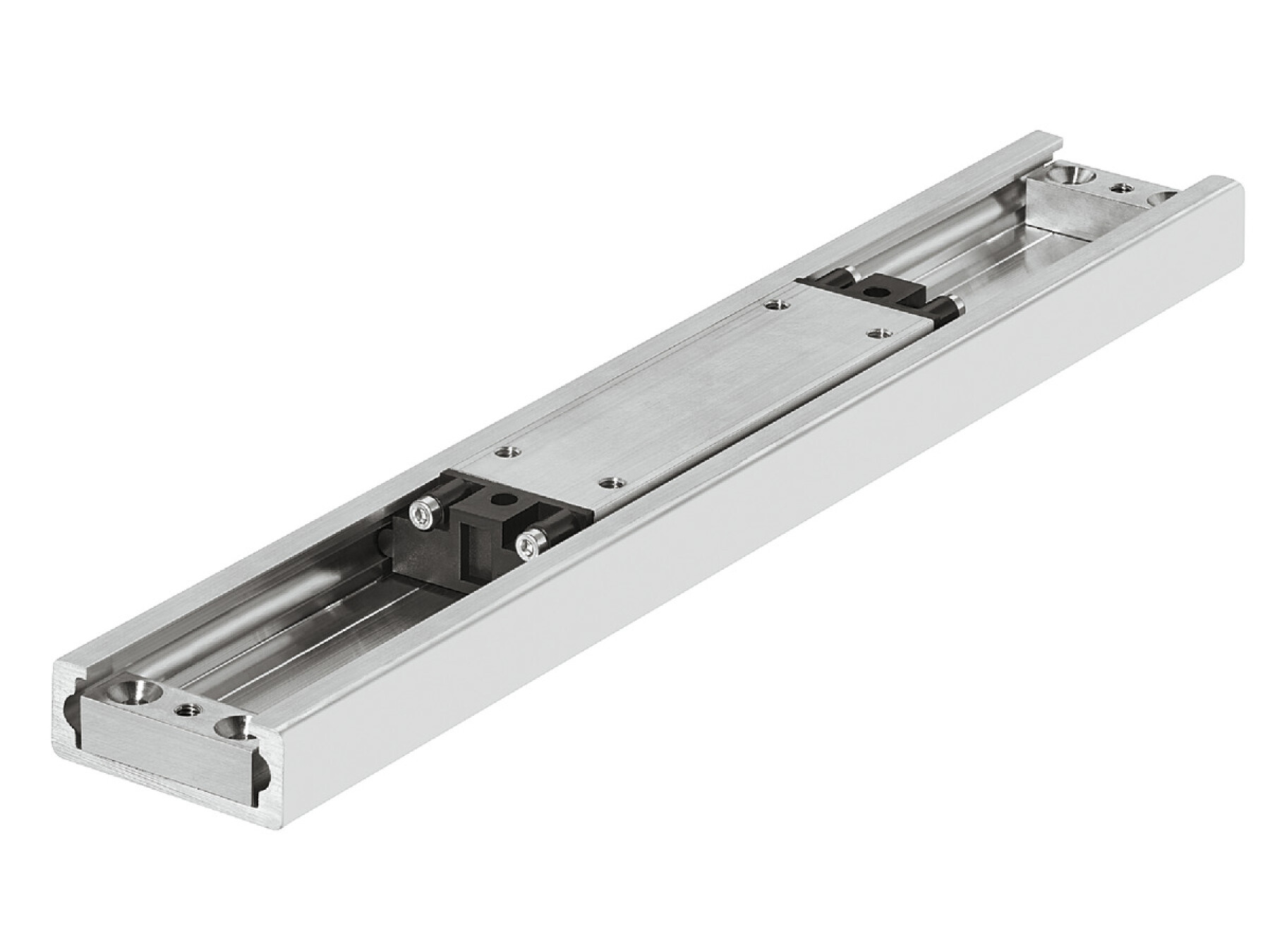

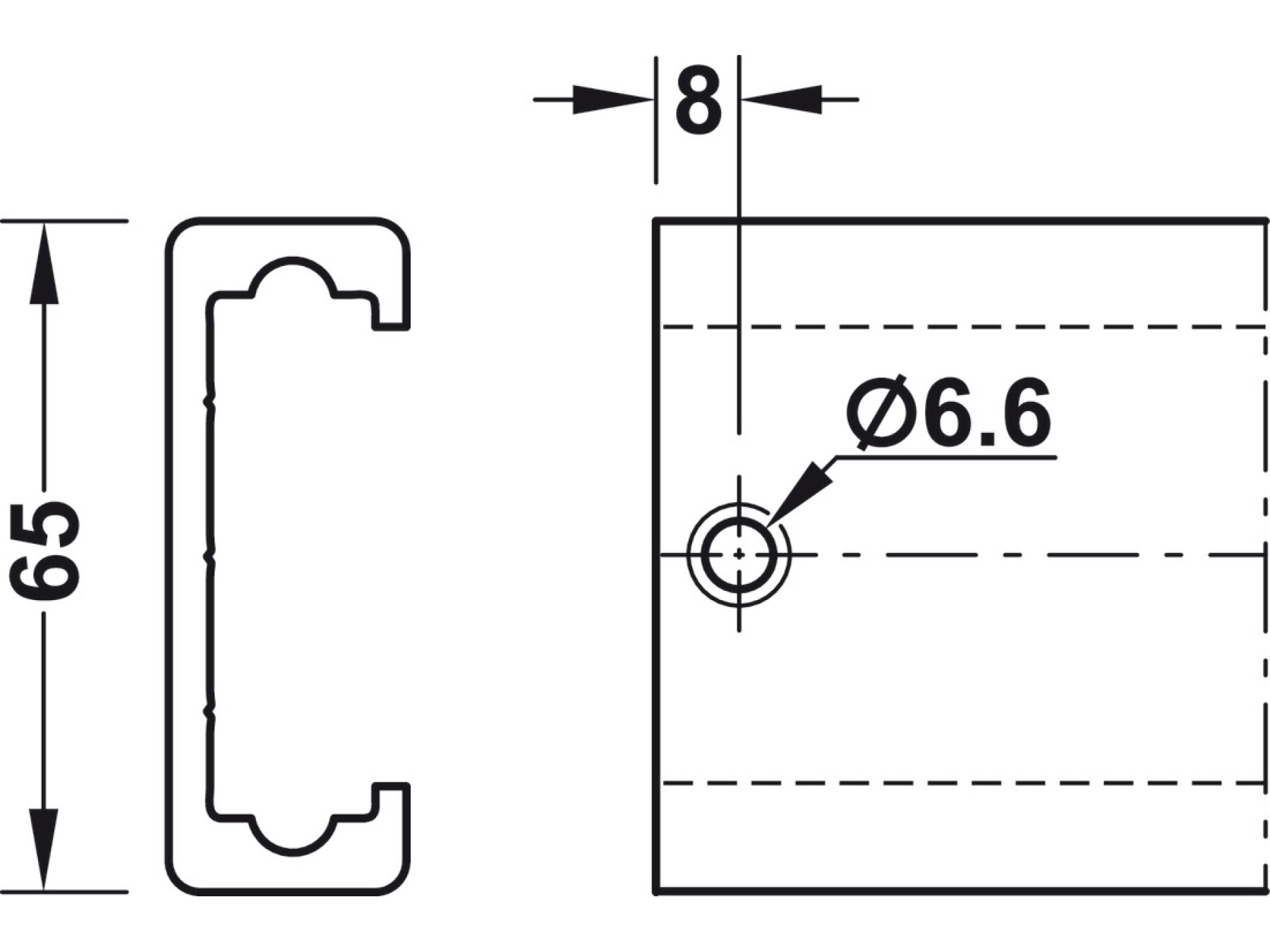

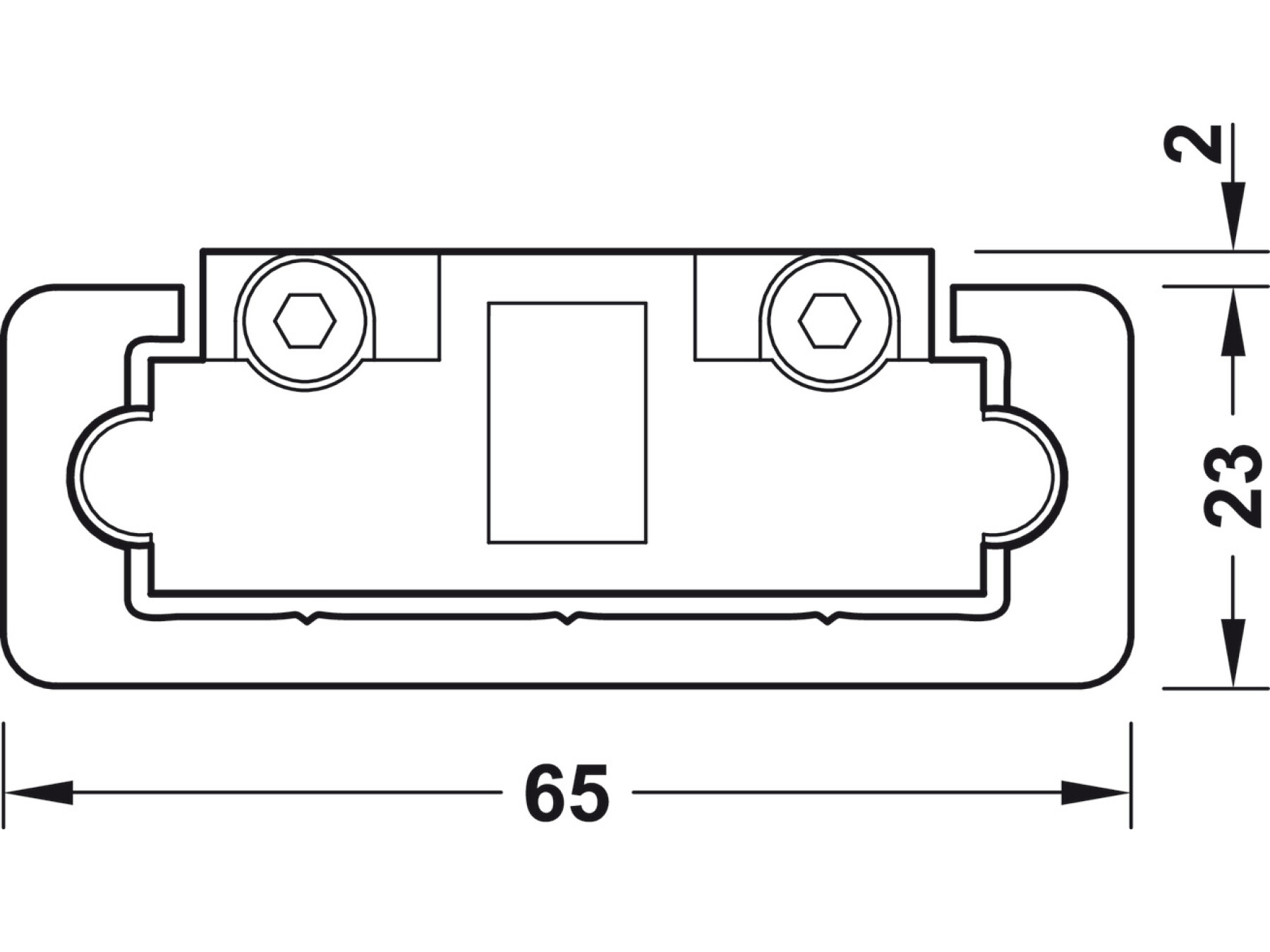

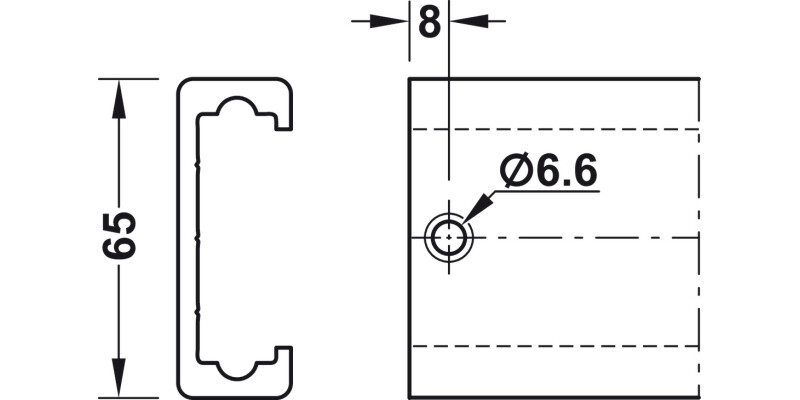

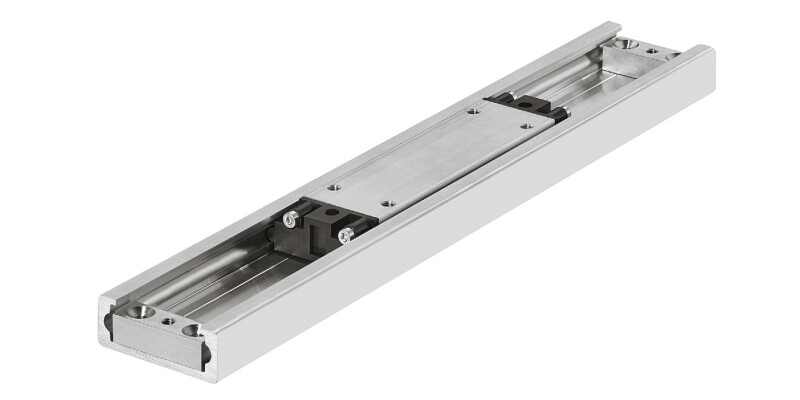

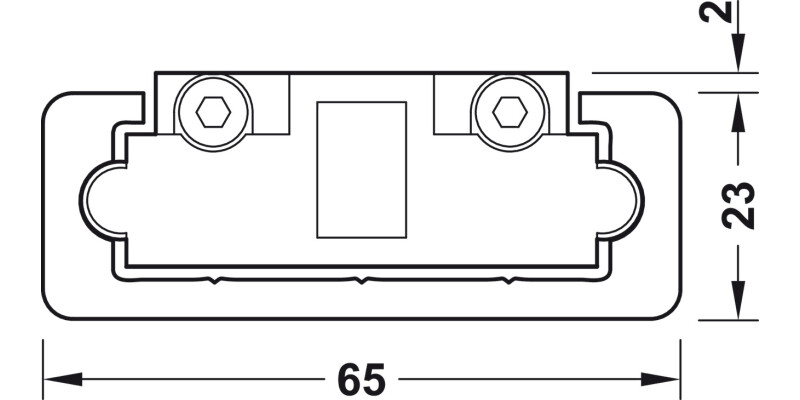

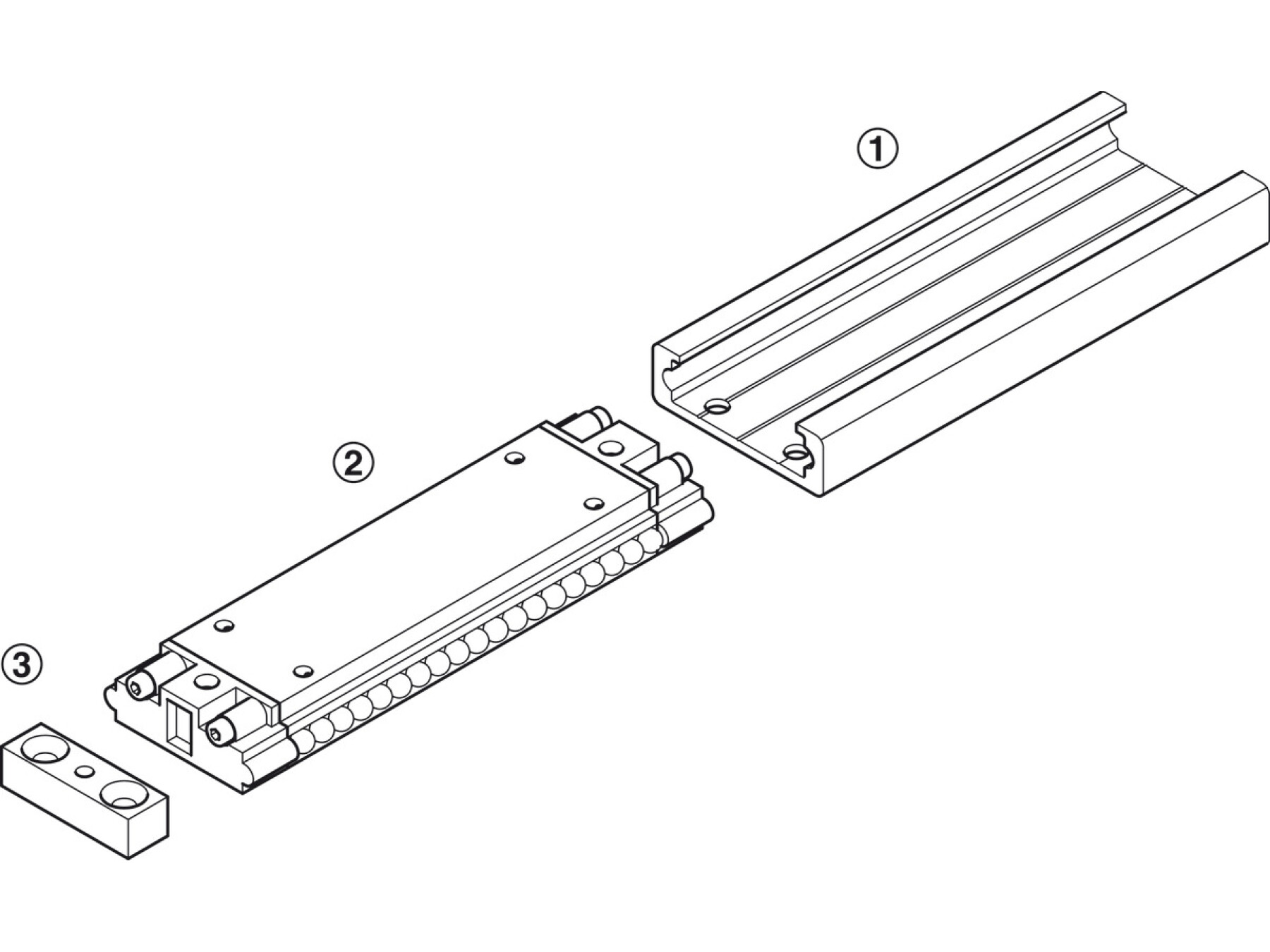

Track with ball bearing mounted carriage for sliding base units, table tops or display wallsLinear motion guide and ball bearing carriageCorrosion resistantLoad bearing capacity determined by mounting psotion and number of ball bearing carriages. Please see catalogue page for info.Weight must be evenly distributed over the rec-circulating ball carriagesThe specified values apply to performed test distance of 80,000 mFix track as recommended on rigid or flat surface\n\nRecycling bracket 421.59.526 must be used to protect plastic components if end stops are subject to impact

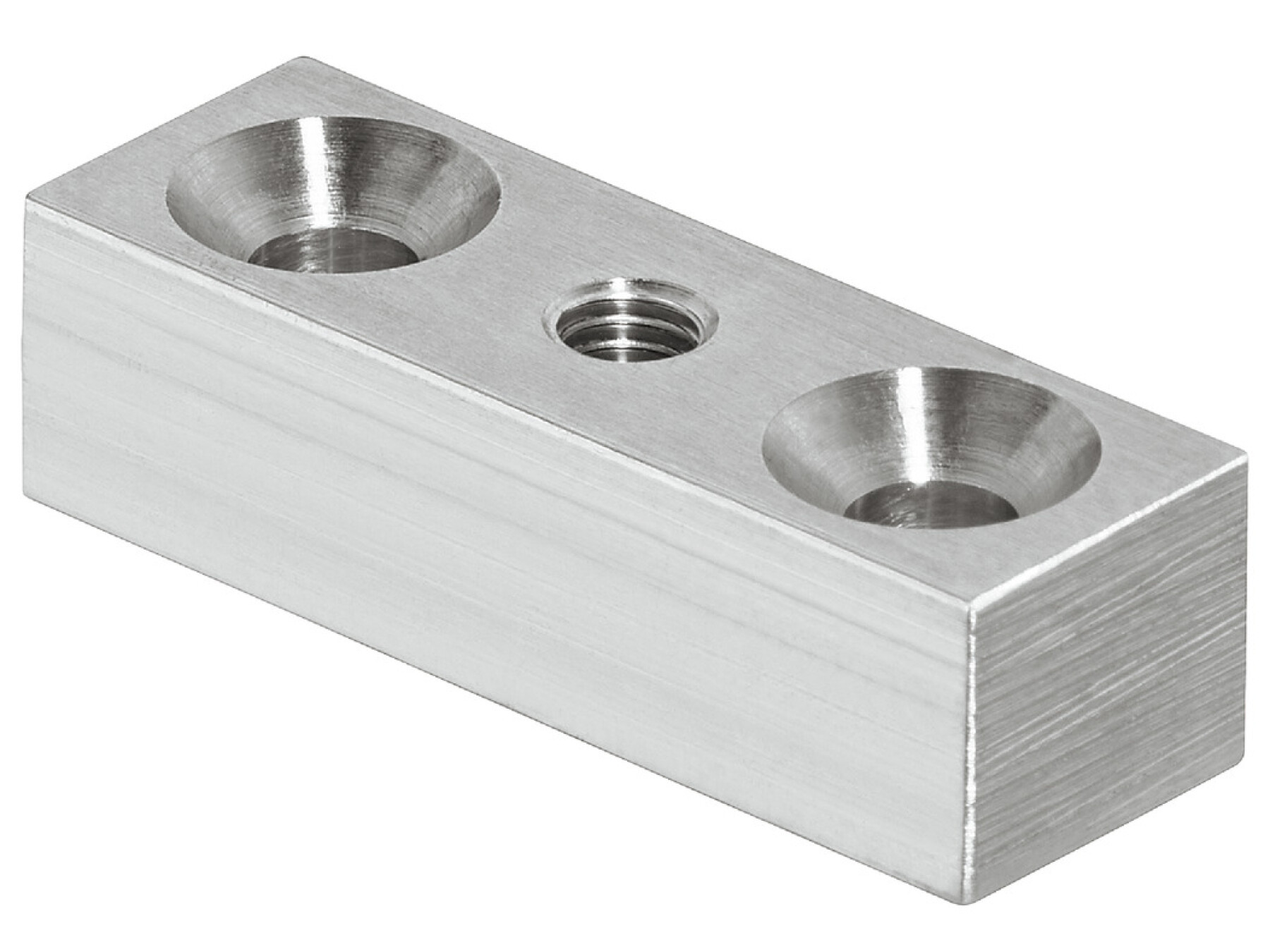

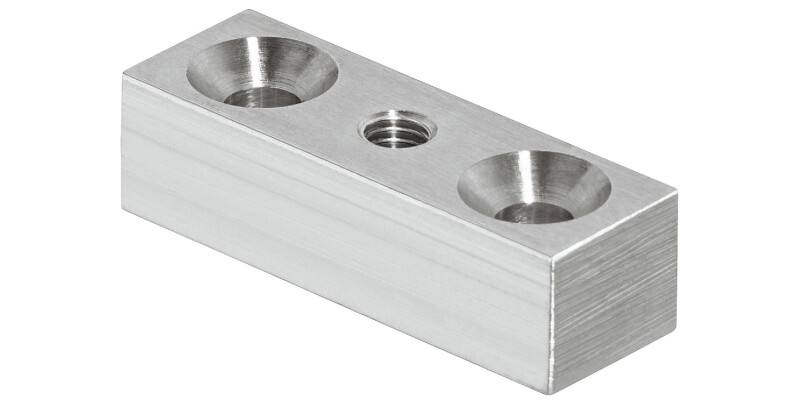

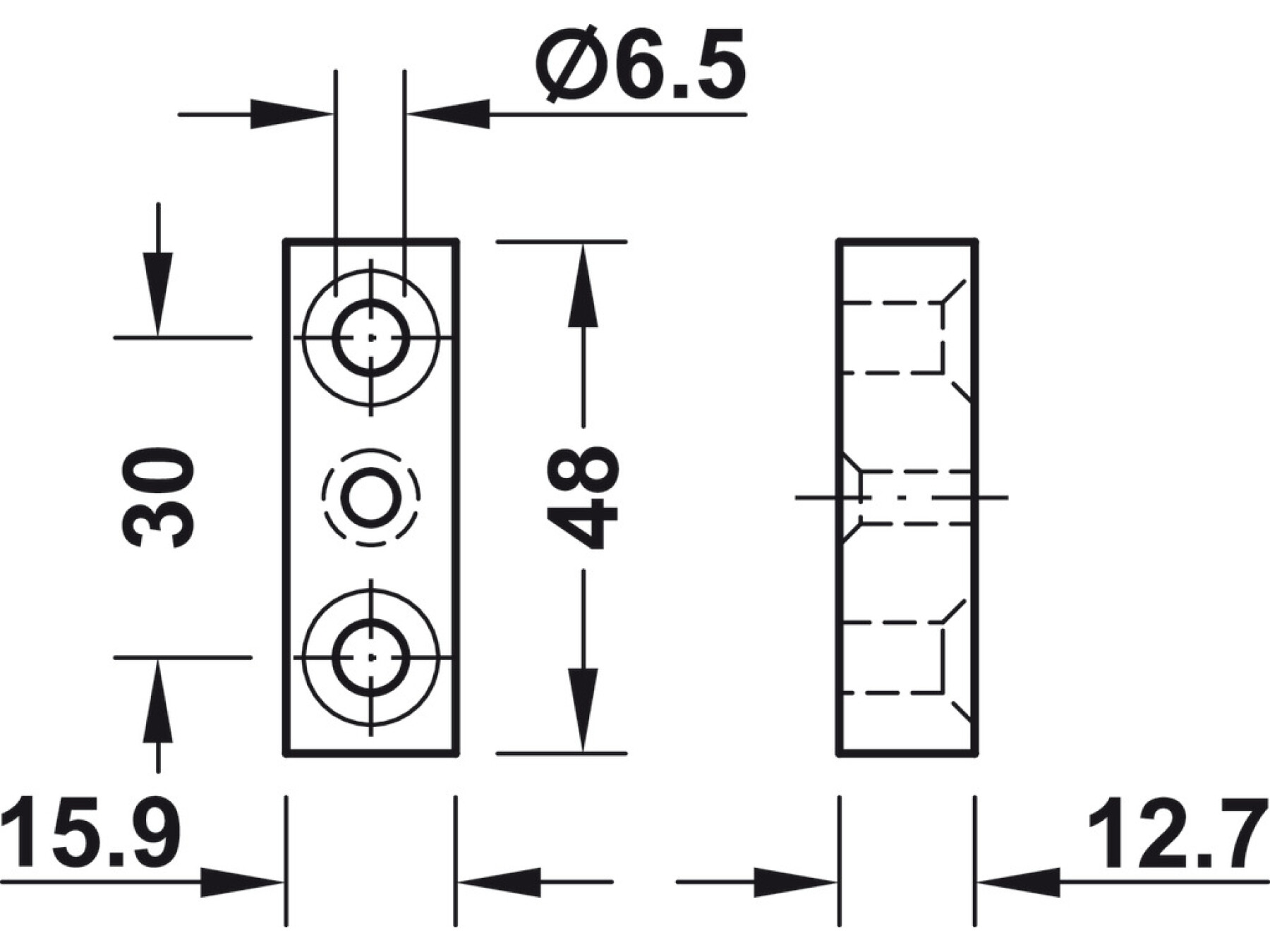

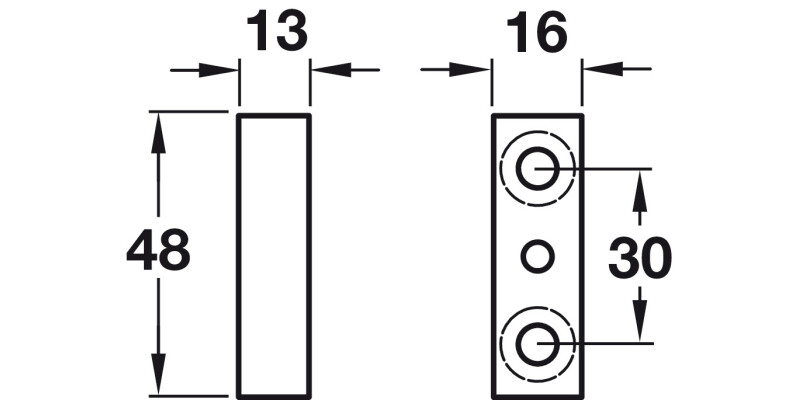

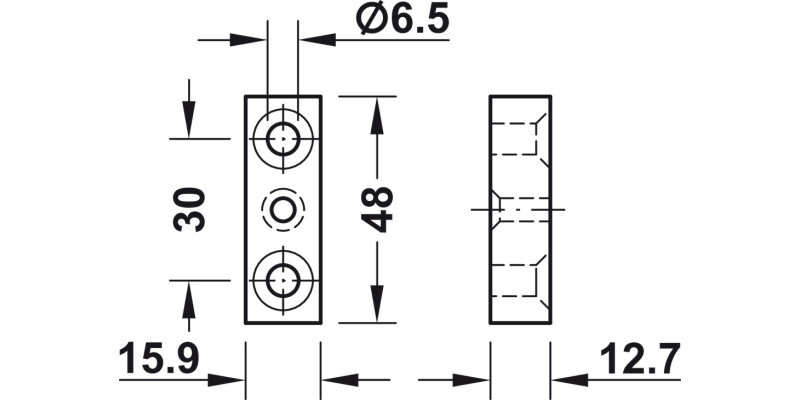

- End stop
- Application: For sliding objects horizontally, such as cabinets, claddings, display walls etc.
- Installation: Screw fixing
- Load bearing capacity: Max. 360 kg

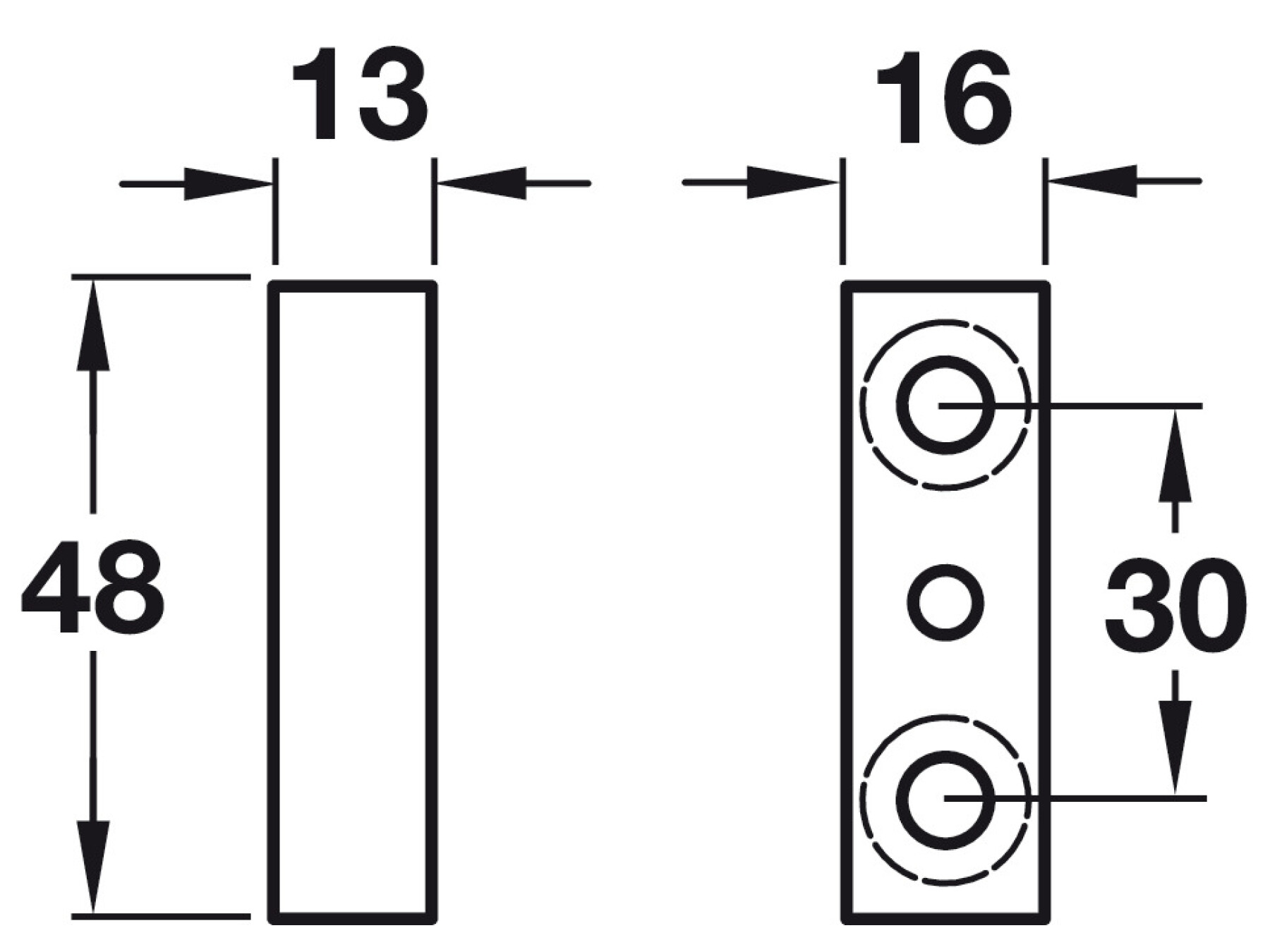

- Height: 15 mm
- Length: 7.5 mm
- Width: 48 mm
- Material: Aluminium

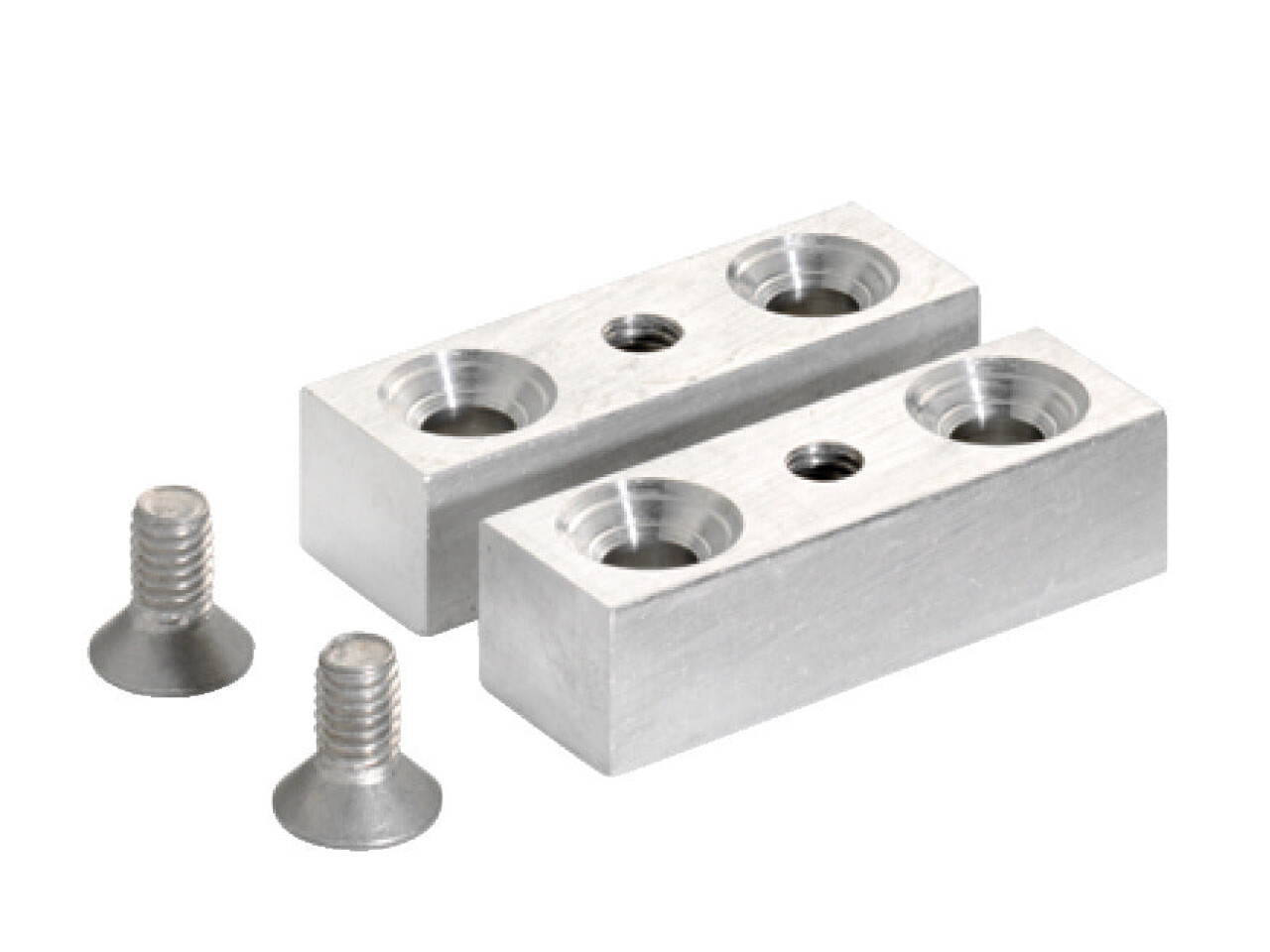

- Supplied with: 2x End stop2x M4 countersunk head screws4x Fixing screws
- Order reference: Tracks, ball carriages, M6 fixing screws and accessories to be ordered separately
