Accuride 1319 Pivot Sld Dr Run SZP 450mm
Rated 3.5/5 based on 11 customer reviews
Hafele

Accuride 1319 Pivot Sld Dr Run SZP 450mm

  • Product SKU: 408.07.458
  • Availability: In Stock
£50.22

Price inc. VAT

£50.22
Hurry! only 60 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

Quiet and easy movementFor taller/heavier doors use synchronised control system Accuride 1316 in conjunction with Accuride 13192 hinges requiredA trial installation should be made for other door heights and weights beyond recommended sizes.

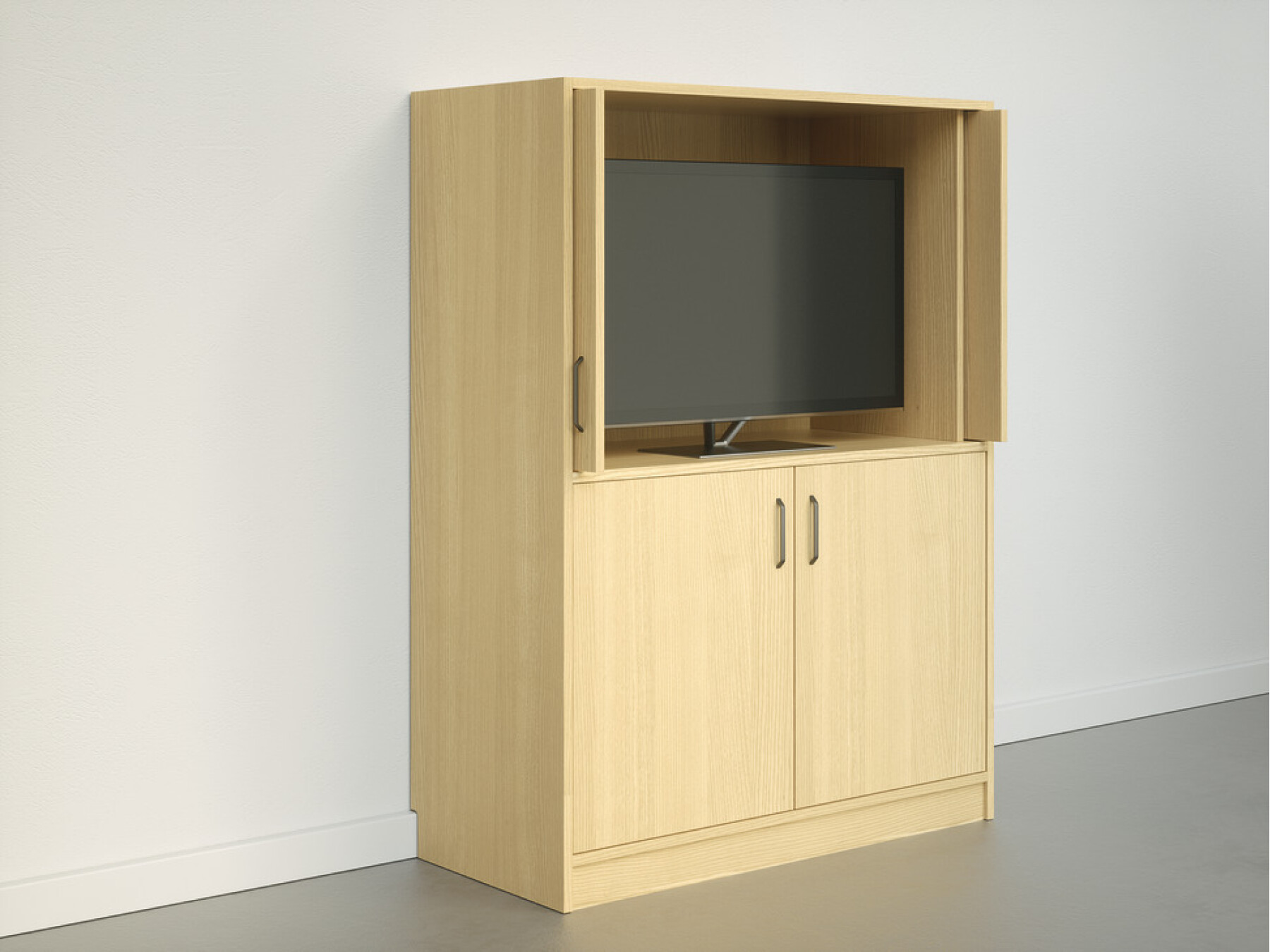

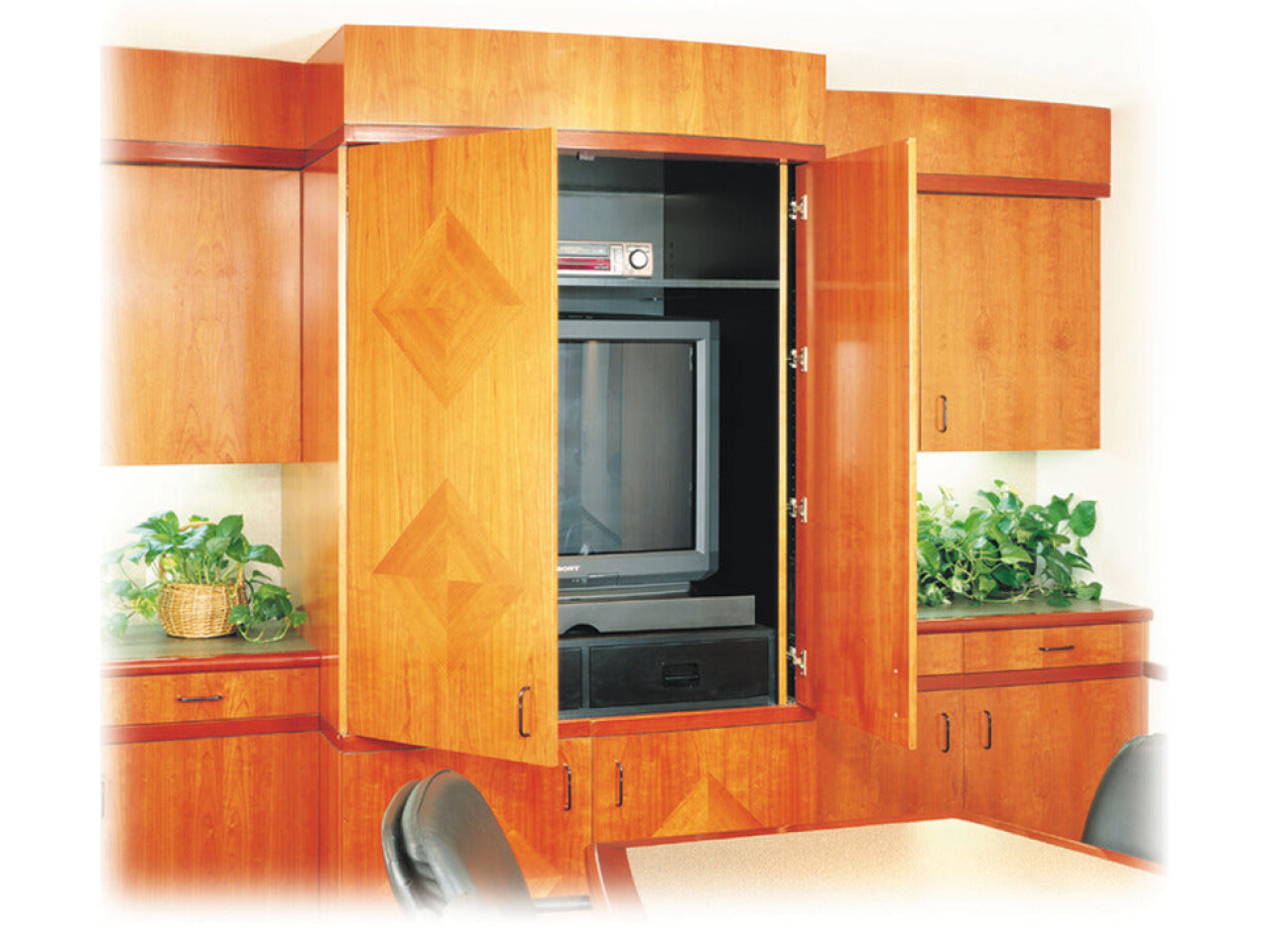

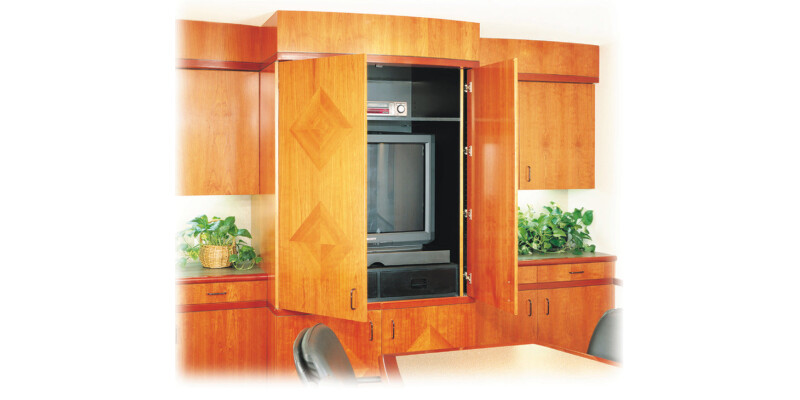

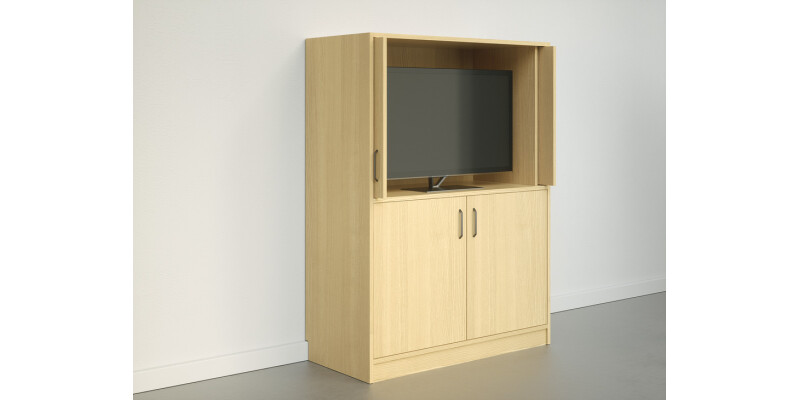

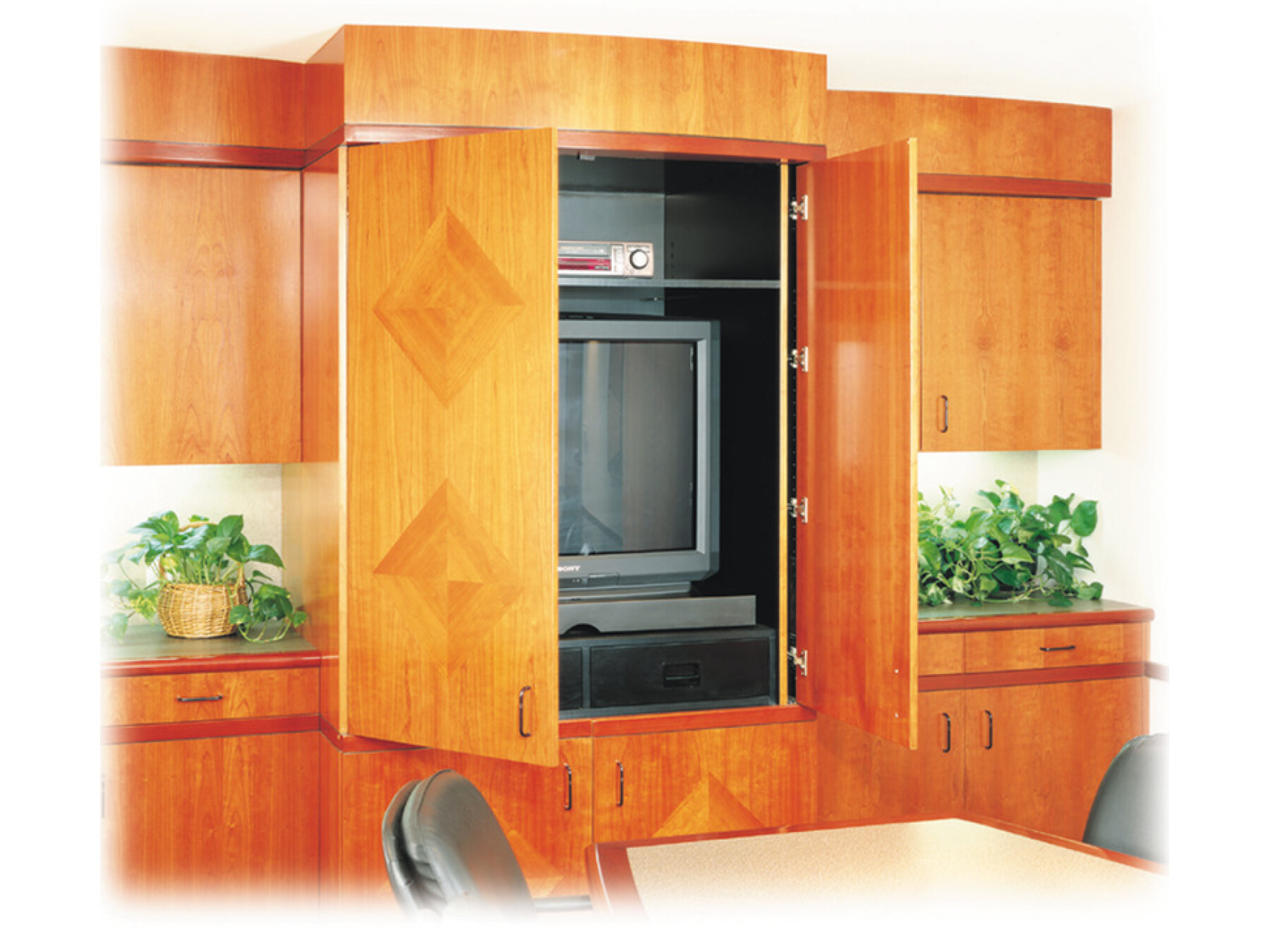

  • Application: Inset cabinet doors
  • Installation: Screw fixing
  • Door weight: Max. 5.5 kg
  • Door height: Max. 700 mm
  • Door thickness: 16-20 mm
  • Material: Steel
  • Finish: Galvanised

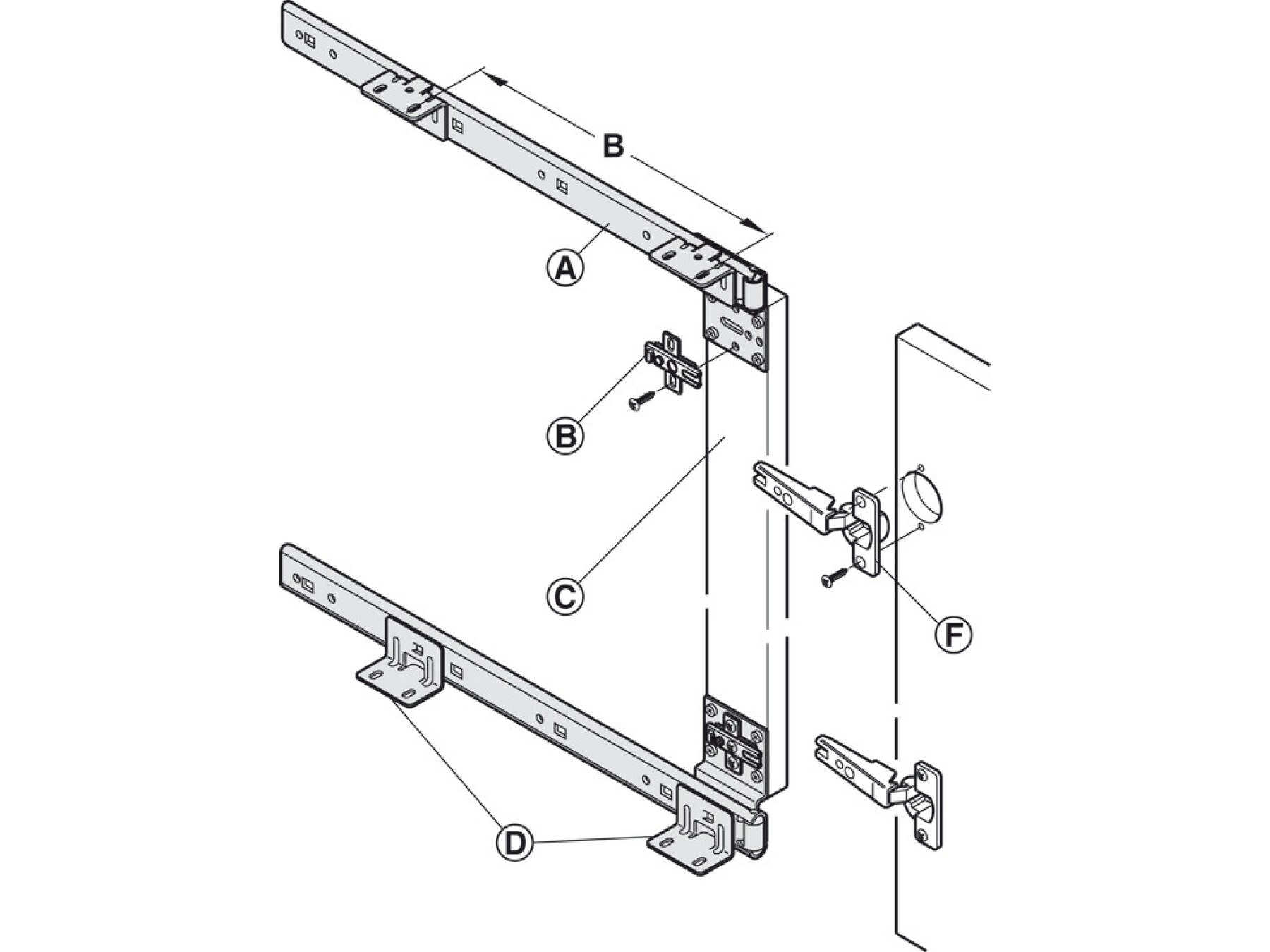

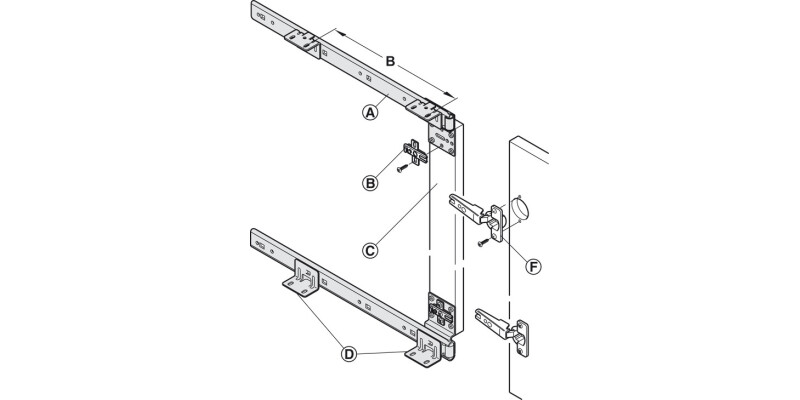

  • Supplied with: Compromises:4 x Mounting brackets, zinc plated steel 2 x Runners, zinc plated, to accommodate cruciform mounting plates

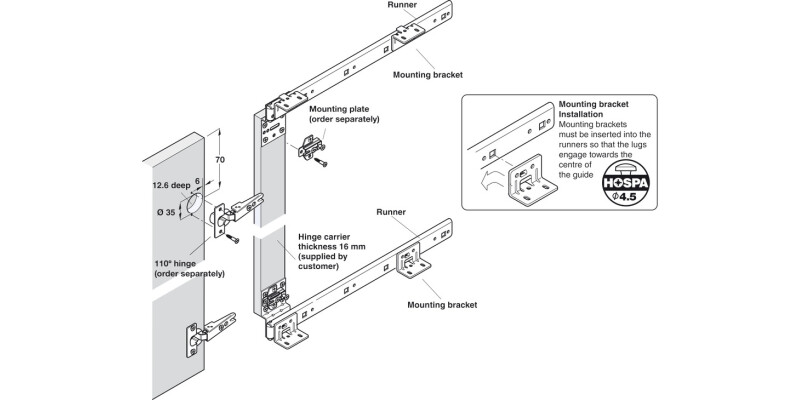

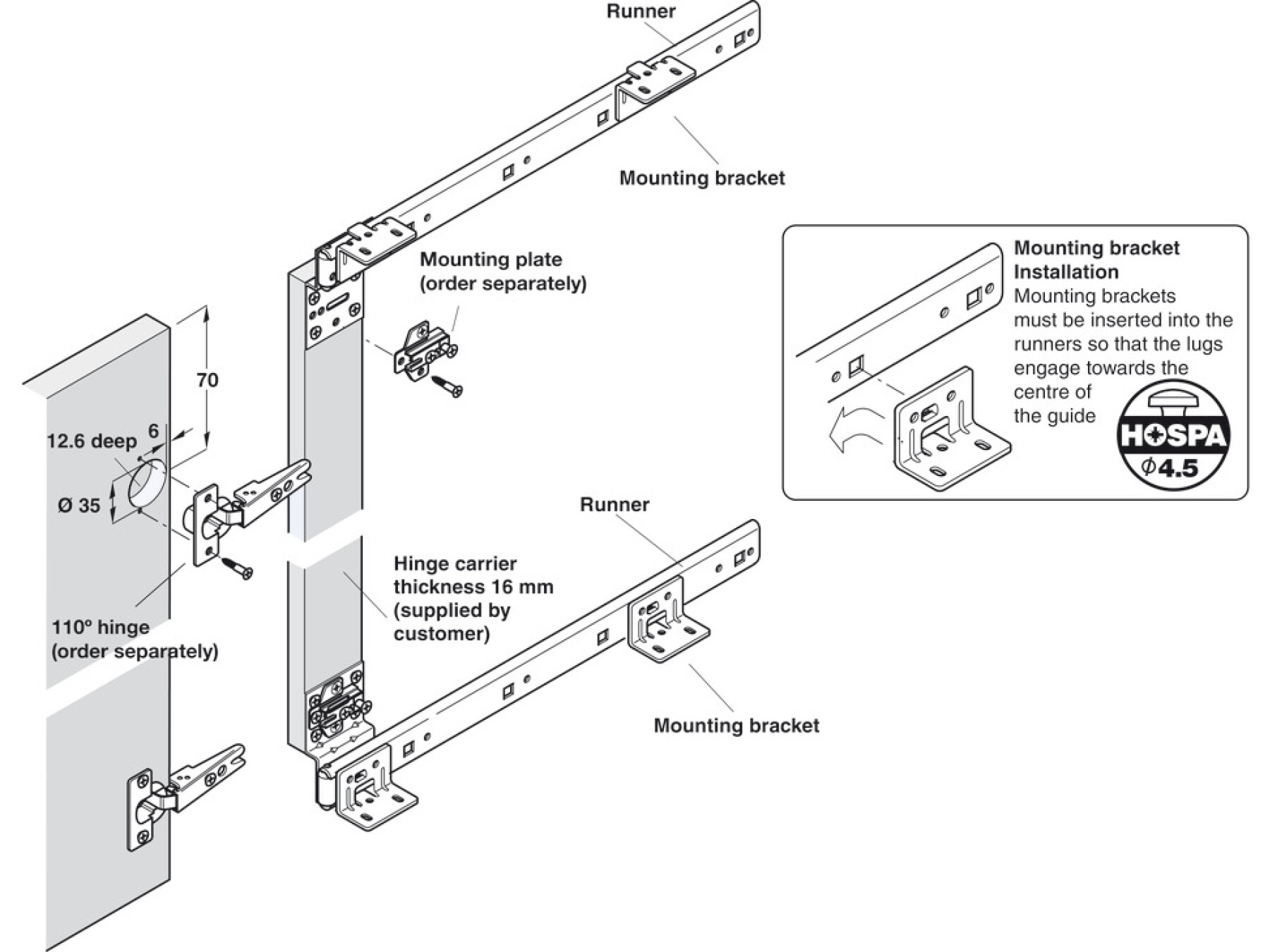

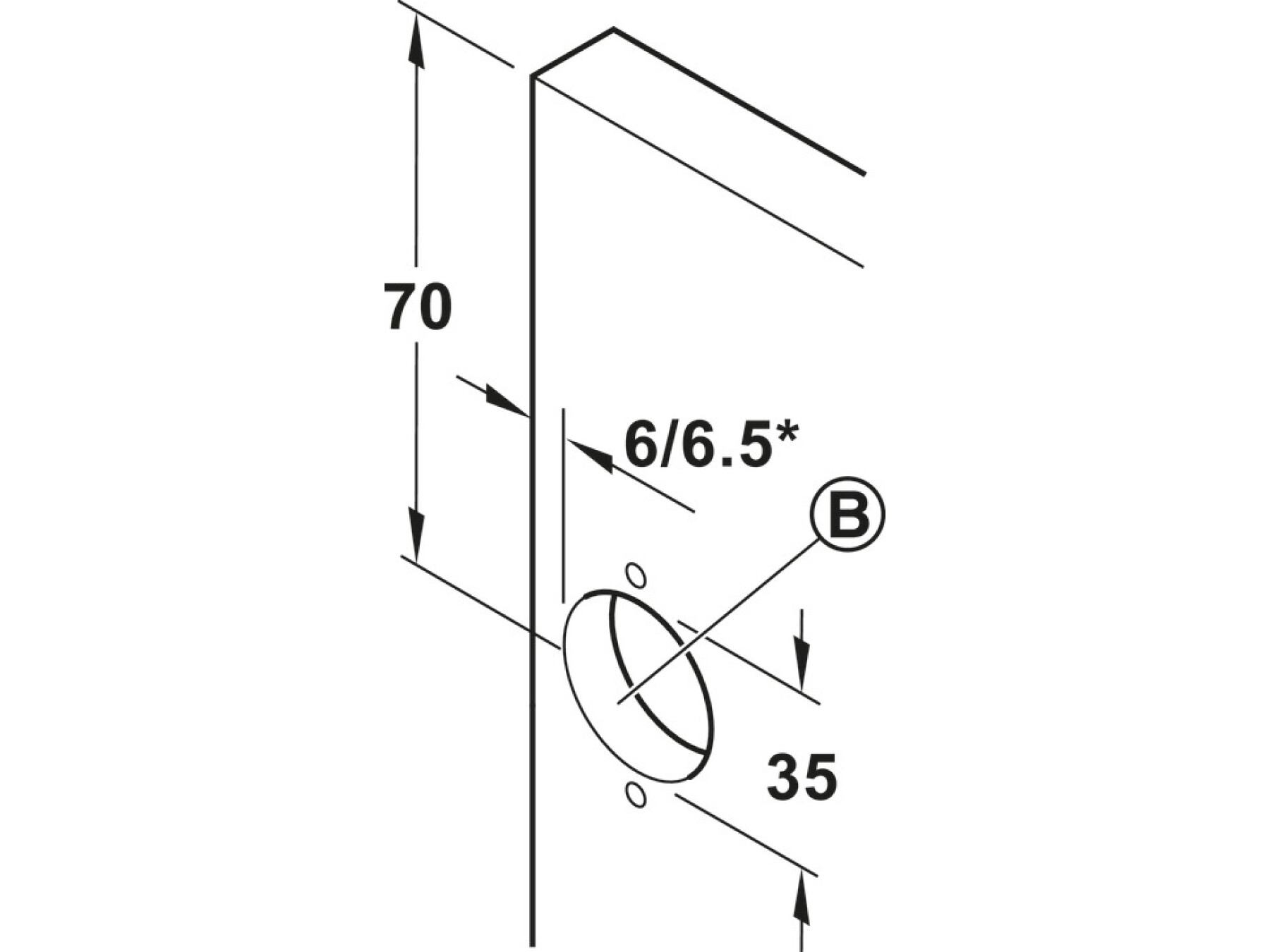

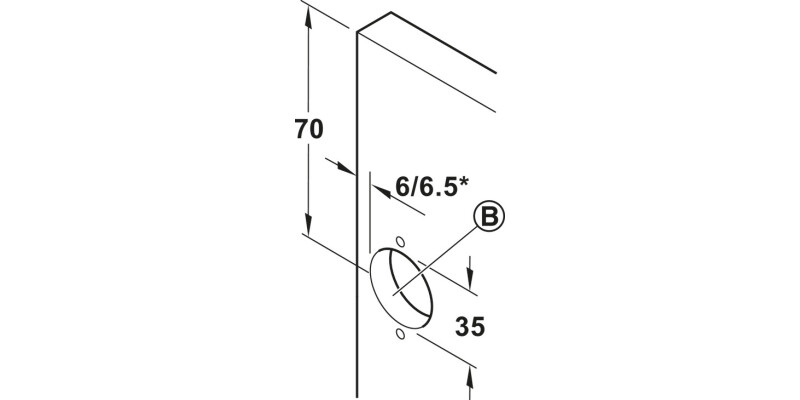

  • Order reference: Hinge 322.17.530 and mounting plate 322.85.750 to be ordered separatelyPlease note hinge carrier strip is not supplied and should be made on site
