Hawa Bifold 30 FitSet 4Door

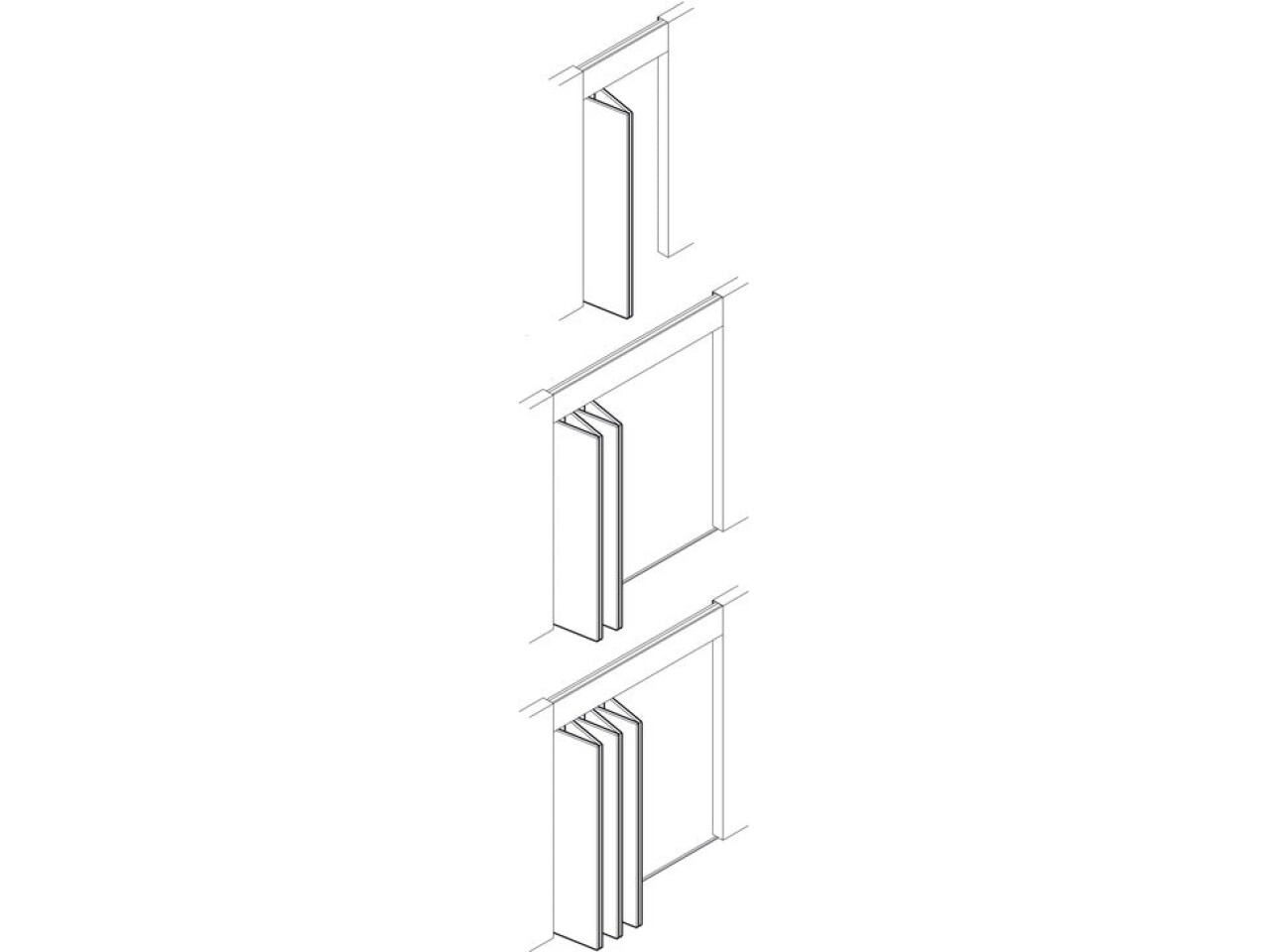

For high quality double folding door applications where a clear threshold is preferredFor 2, 4 or 6 panel suits onlyEqual door widths only\n\nLight duty hinge is included in fitting set but we strongly recommend order either 921.08.122 or 921.08.024 for heavier duty applications
- Application: Inset cabinet and wardrobe doors
- Installation: Screw fixing
- Adjustment facility: Height adjustment +/- 2 mm
- Door weight: Max. 30 kg
- Door height: Max. 2200 mm
- Door width: Max. 600 mm
- Door thickness: 26-45 mm
- Material: AluminiumSteelPlasticRubber
- Order reference: Tracks, channels and accessories to be ordered separately
- Supplied with: Fitting set for 2 doors consists of 1 x Trolley hanger, non-corrosive aluminium housing with twin high quality √ò 34 mm rollers, zinc plated 100 mm mounting bracket, M10 pendant bolt, 1 x Top pivot fixing plate, 26 x 100 mm, fastens to top pivot, height and side adjustable, mounting bracket with steel M10 pivot bolt, 1 x Top pivot, fastens into top track, aluminium support plate with 2 hex screws, 6 x 35 mm to fasten into top track, 1 x Lower hinge, floor mounting, aluminum and steel, 3 x Butt hinge for panel to panel joint, with plastic bearings, galvanised steel, for light duty applications only, 1 x Stop bracket, 15 x 25 mm, with rubber buffer, galvanised steel, Fitting set for 4 doors consists of 2 x Trolley hanger, non-corrosive aluminium housing with twin high quality √ò 34 mm rollers, zinc plated 100 mm mounting bracket, M10 pendant bolt, 1 x Top pivot fixing plate, 26 x 100 mm, fastens to top pivot, height and side adjustable, mounting bracket with steel M10 pivot bolt, 1 x Top pivot, fastens into top track, aluminium support plate with 2 hex screws, 6 x 35 mm to fasten into top track, 1 x Lower hinge, floor mounting, aluminum and steel, 9 x Butt hinge for panel to panel joint, with plastic bearings, galvanised steel, for light duty applications only, 2 x Stop bracket, 15 x 25 mm, with rubber buffer, galvanised steel, 2 x Bottom guide, 28 x 50 x 20 mm, with nylon pilot, steelFitting set for 6 doors consists of 3 x Trolley hanger, non-corrosive aluminium housing with twin high quality √ò 34 mm rollers, zinc plated 100 mm mounting bracket, M10 pendant bolt, 1 x Top pivot fixing plate, 26 x 100 mm, fastens to top pivot, height and side adjustable, mounting bracket with steel M10 pivot bolt, 1 x Top pivot, fastens into top track, aluminium support plate with 2 hex screws, 6 x 35 mm to fasten into top track, 1 x Lower hinge, floor mounting, aluminum and steel, 15 x Butt hinge for panel to panel joint, with plastic bearings, galvanised steel, for light duty applications only, 3 x Stop bracket, 15 x 25 mm, with rubber buffer, galvanised steel, 3 x Bottom guide, 28 x 50 x 20 mm, with nylon pilot, steel
