Hawa Dorado MF FitSet 3Door
Part Number: 406.70.031
Top hung system, For 3 doors
Price:
£1,204.32
Per Item
Sliding door system for top quality joinery and furniture where robust concealed bottom control requiredWith... Read More
Product Information
Product Details

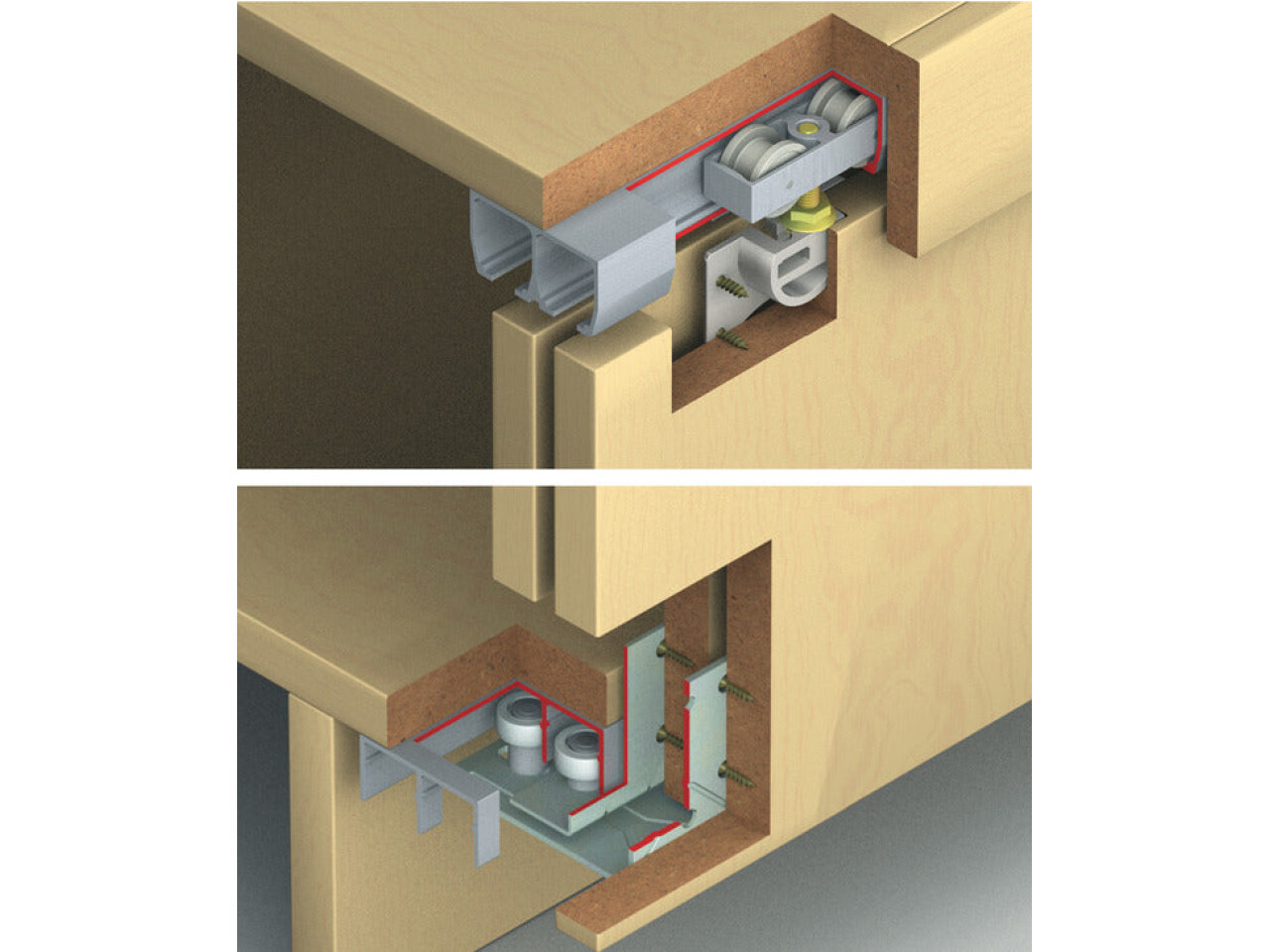

Sliding door system for top quality joinery and furniture where robust concealed bottom control required
With screw fixing running gear

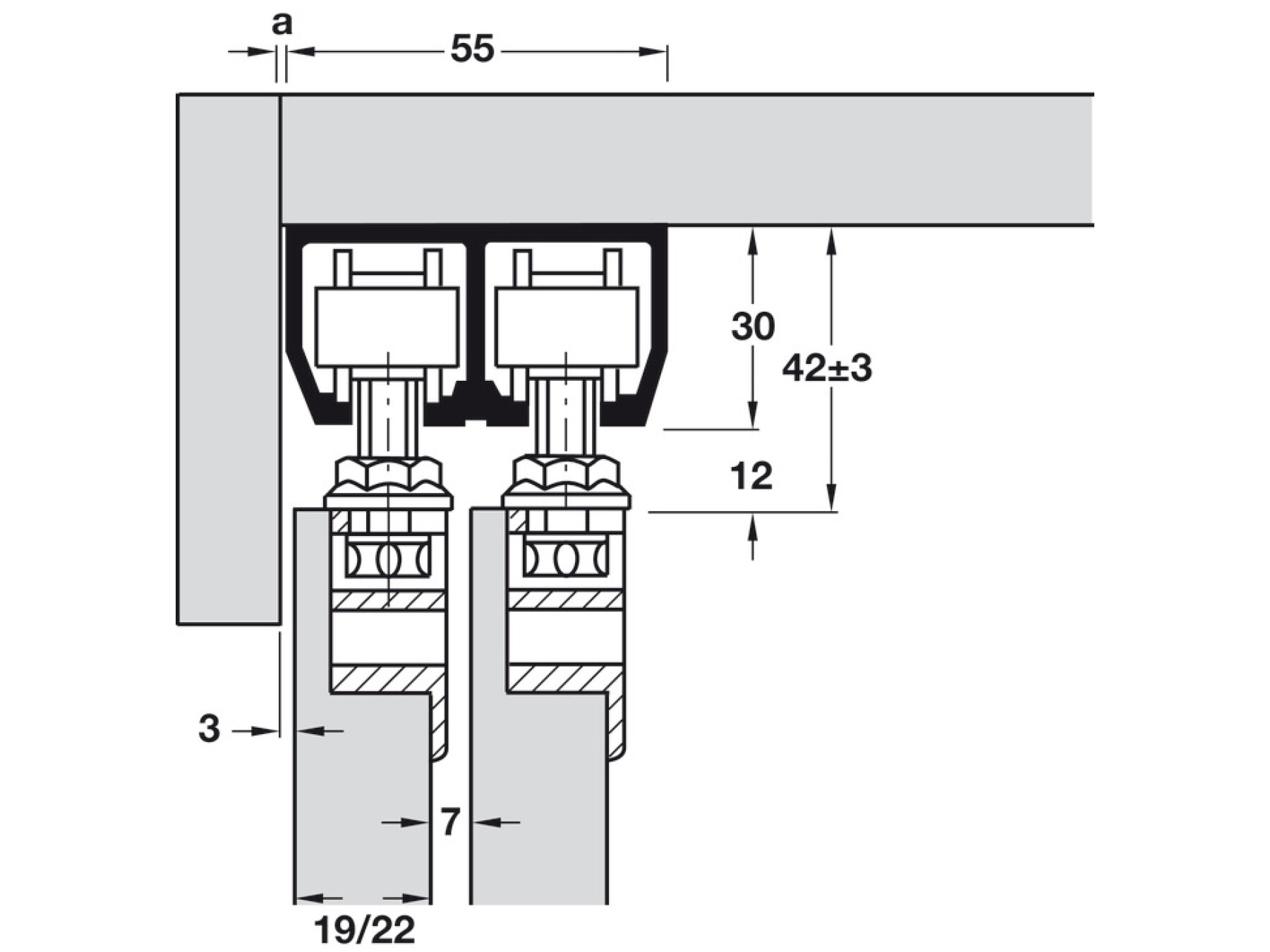

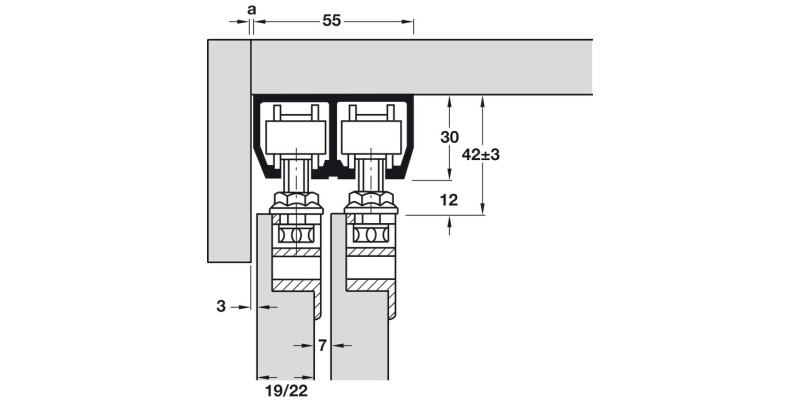

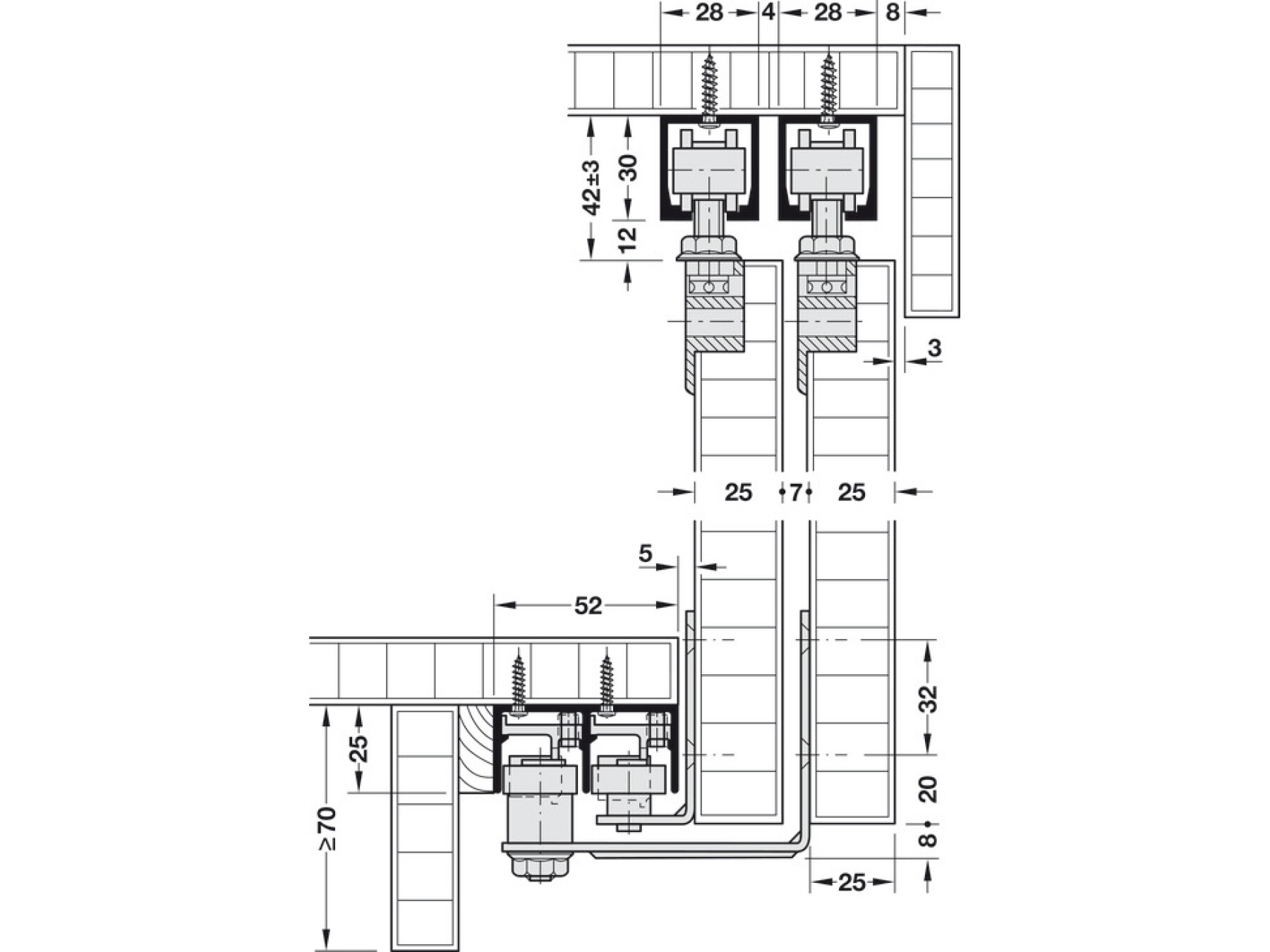

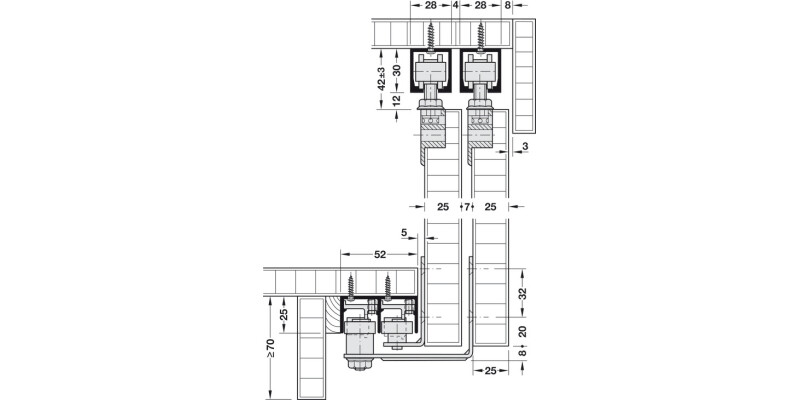

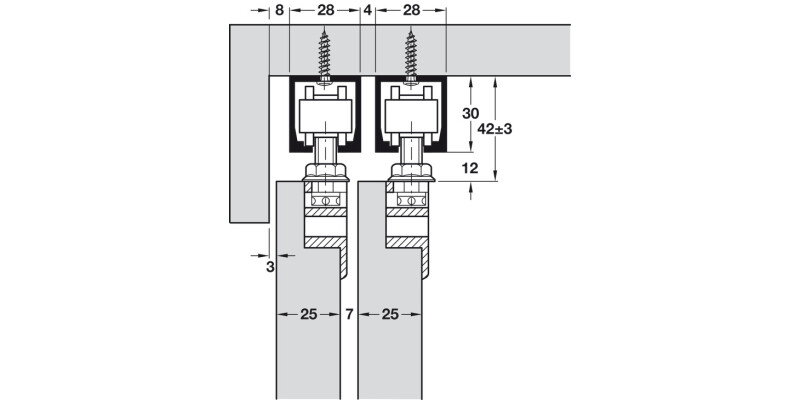

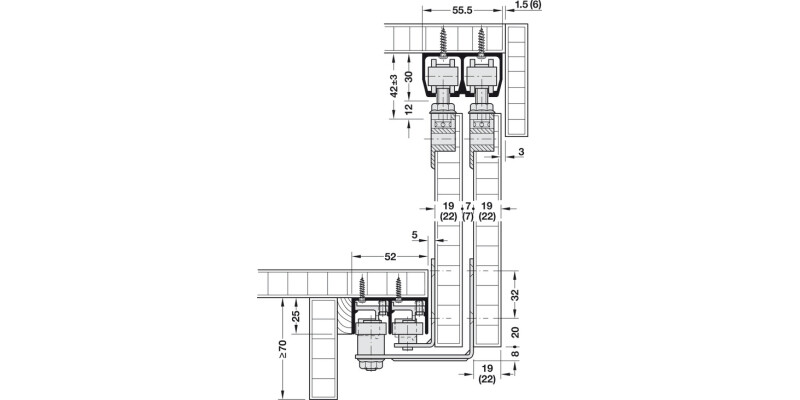

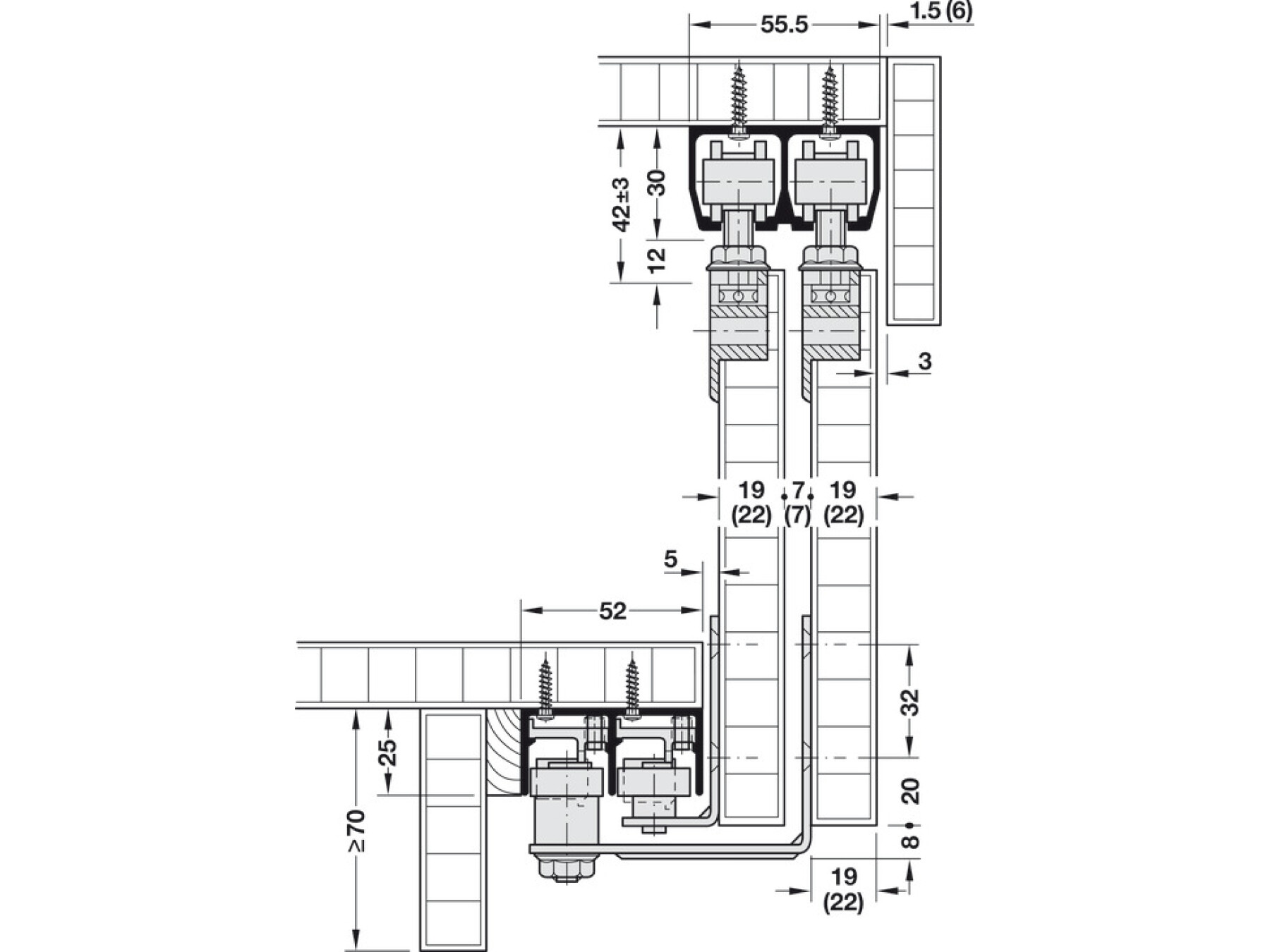

For 19 - 22 mm thick doors use double top track

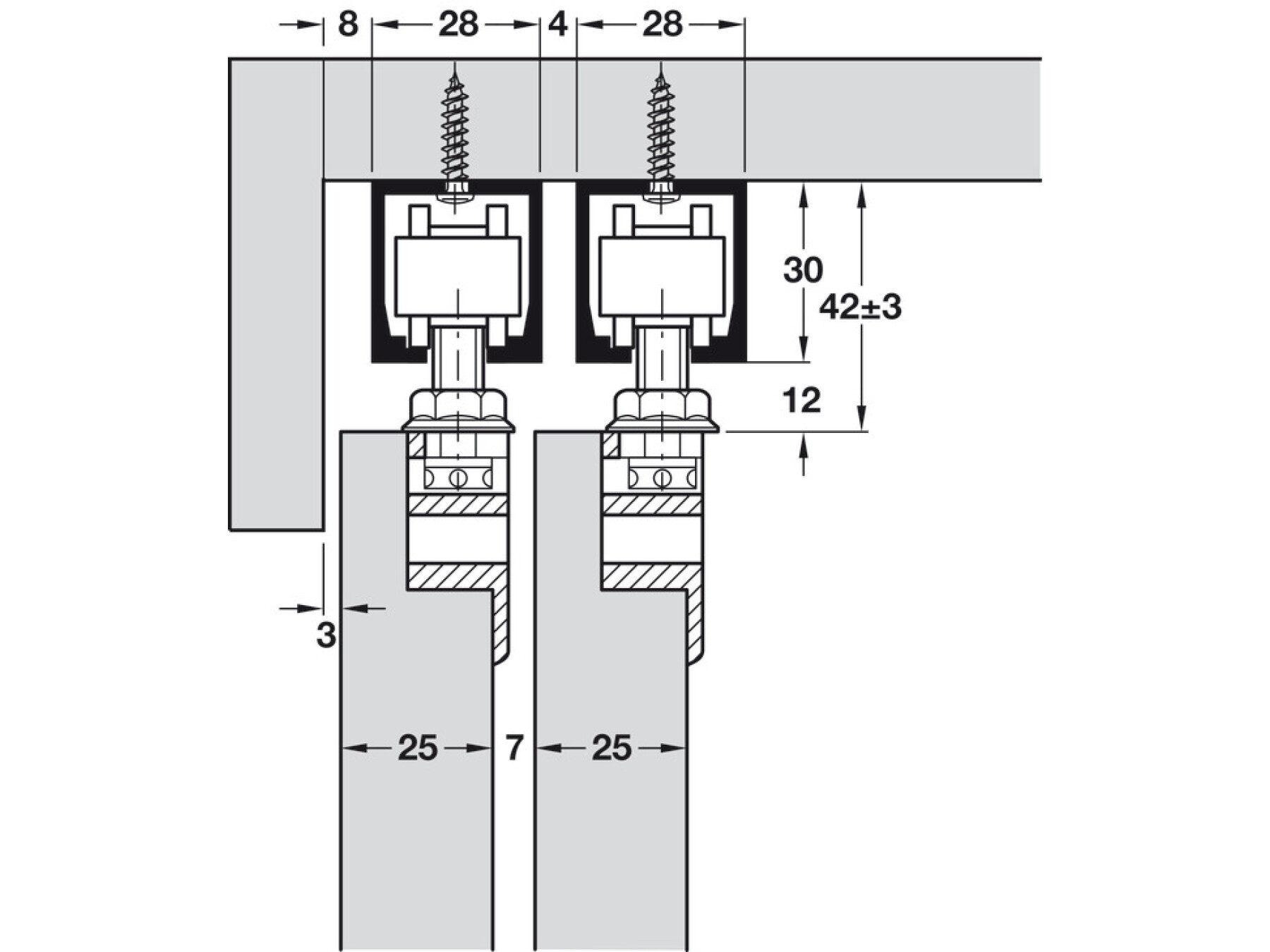

For 23 - 25 mm thick doors use single top tracks
Running gear with back fixing plate
Two white plastic friction bearing mounted tandem runner assemblies
Each fitting set comes with complete with installation drawing ref. 17658, available separately on request
HAWA soft closing system available separately
For multiple door layouts order as follows:
4 doors - 2 sets of 2 door fittings
5 doors - 1 set of 2 door and 1 set of 3 door fittings
Supplied with

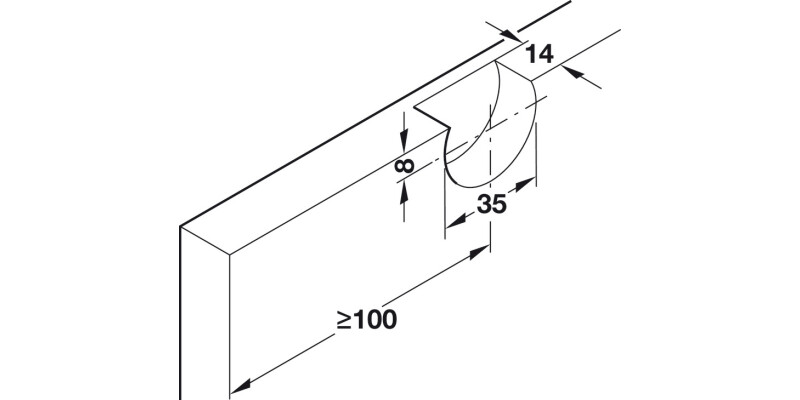

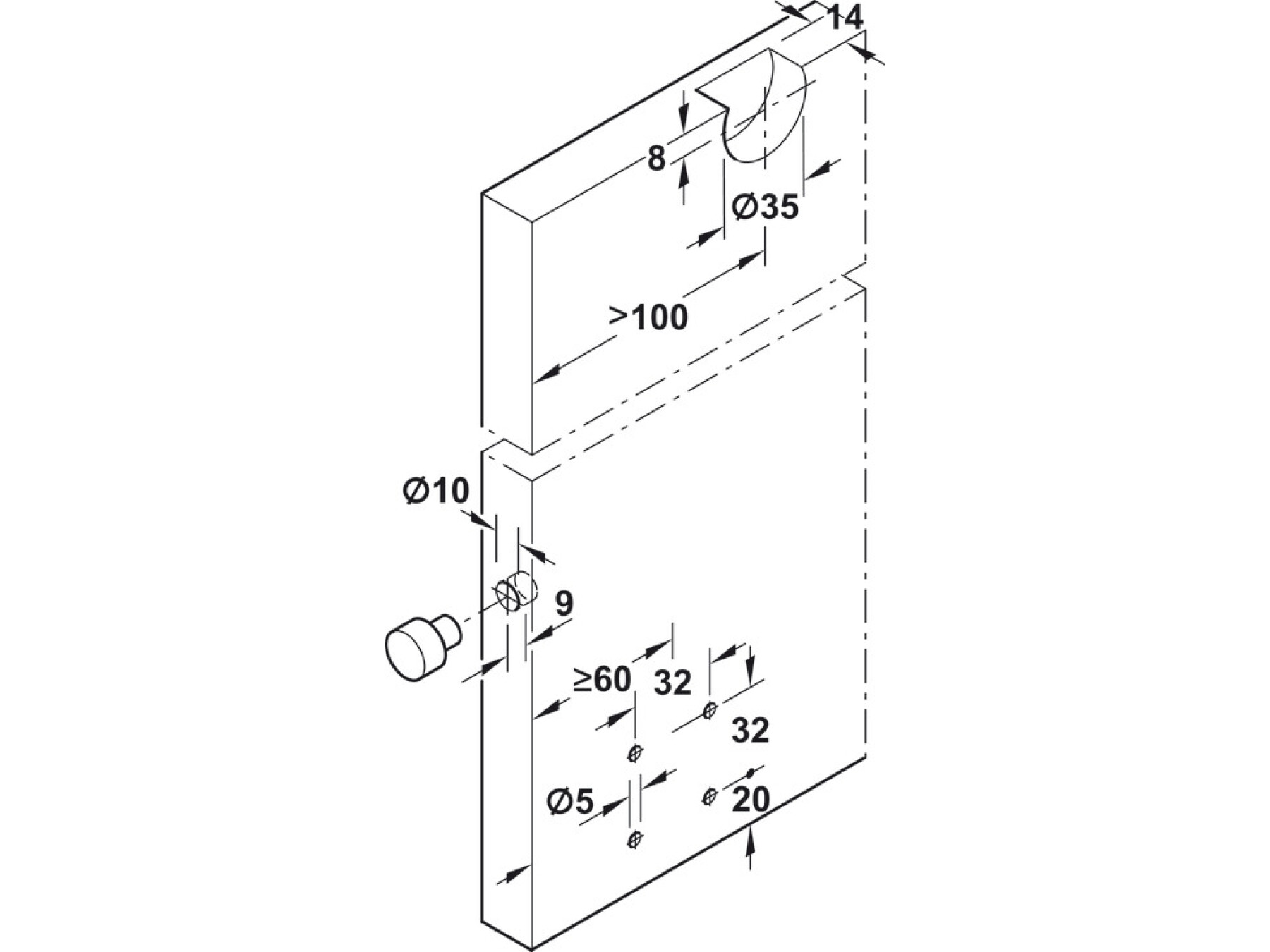

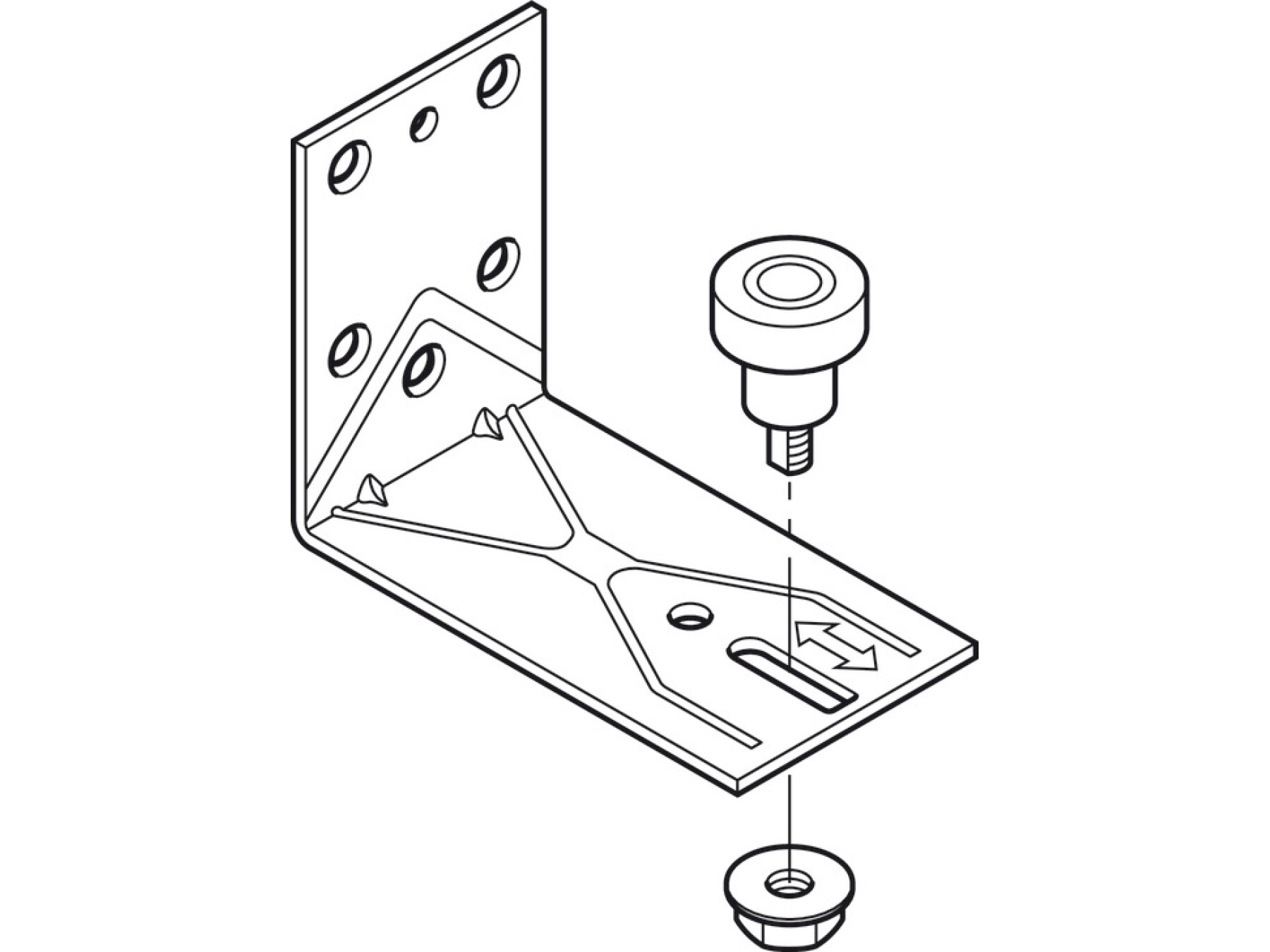

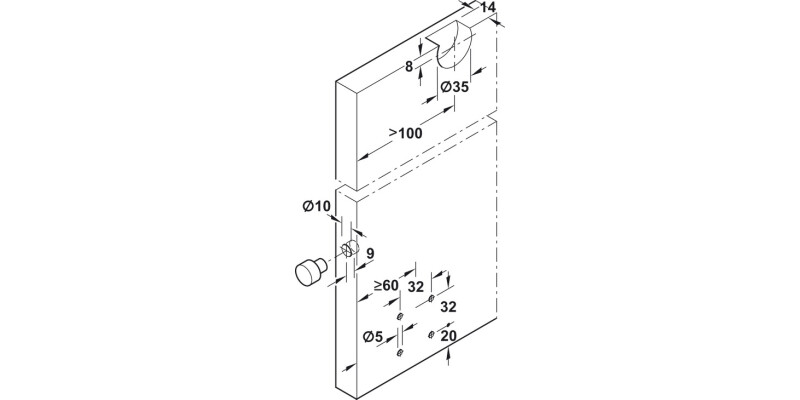

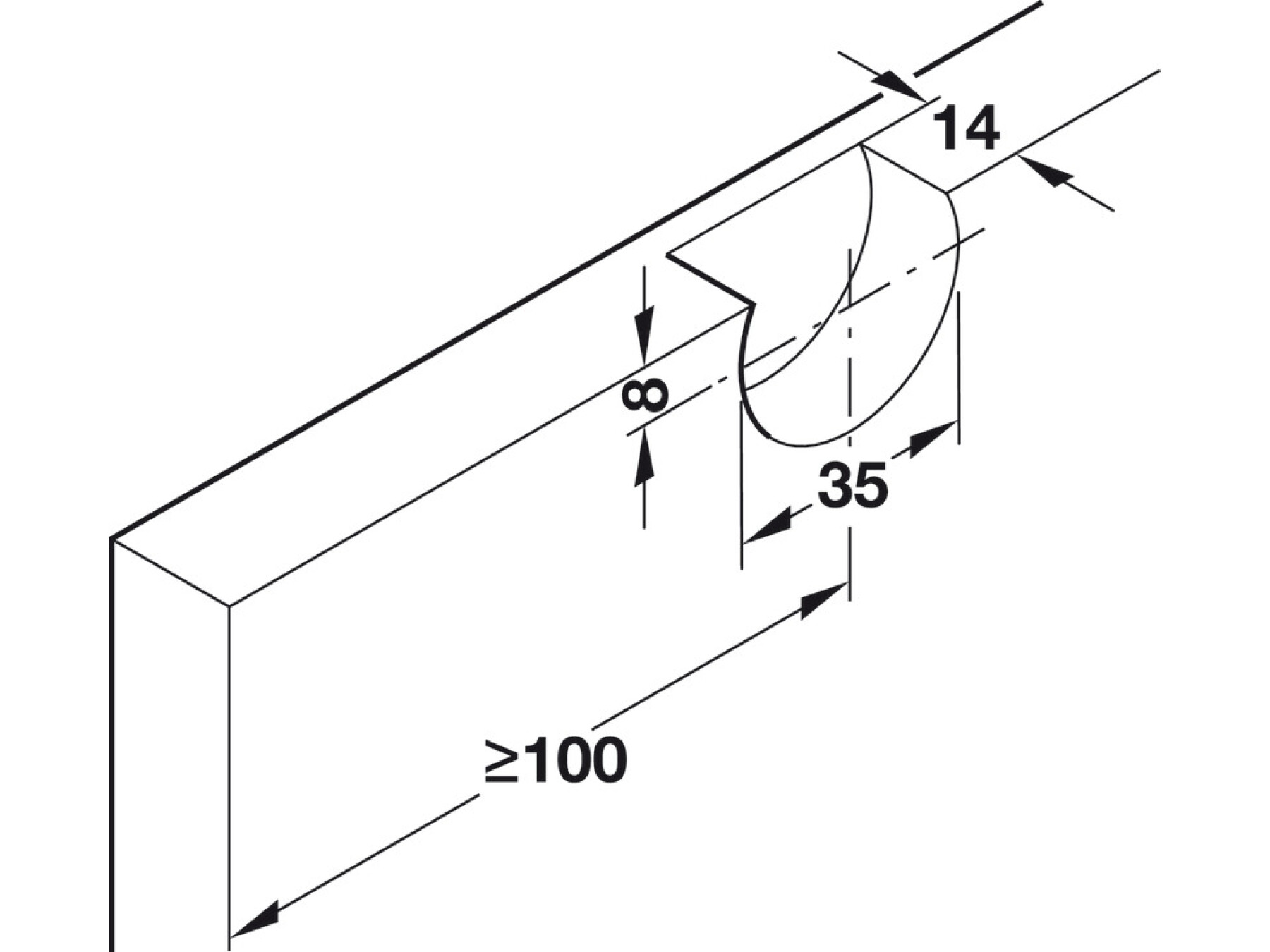

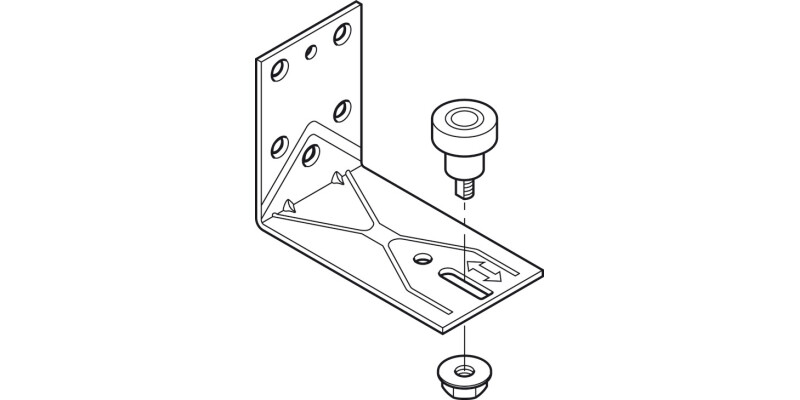

3 x Trolley hanger, right hand, for inner or outer doors, adjustable, nickel plated zinc alloy, 3 x Trolley hanger, left hand, for inner or outer doors, adjustable, nickel plated zinc alloy, 4 x Track stopper, for inner and outer doors, adjustable steel spring and retainer, 18 x 84 x 21 mm, bright zinc alloy, 1 x Allen key, for use to secure track stopper in twin track, steel, 2 x Guide, for outer doors, screw fixing, adjustable plastic guide roller, galvanised steel, 4 x Guide, for inner doors, screw fixing, plastic guide roller, galvanised steel, 4 x Guide stopper, for installation in guide channel adjustable, 26 x 43 mm, bright aluminium, 2 x Rubber buffer, Ø 15 mm recess mounted in edge of door in Ø 10 mm hole, light grey rubber
If a set is ordered with soft and self closing mechanism, then not all clip-in door stoppers of the set are installed.
Specifications

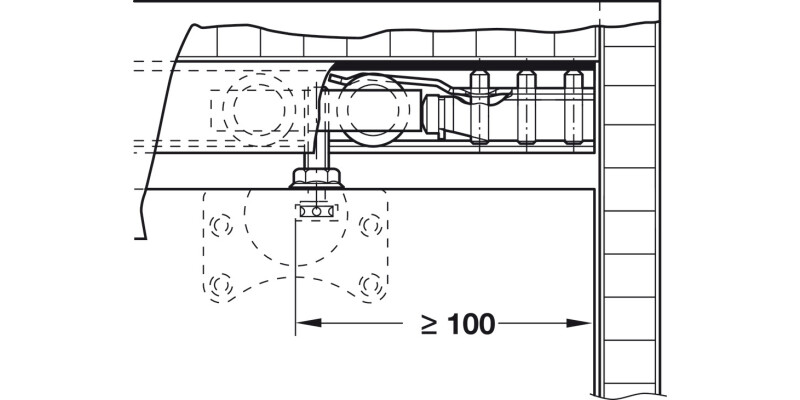

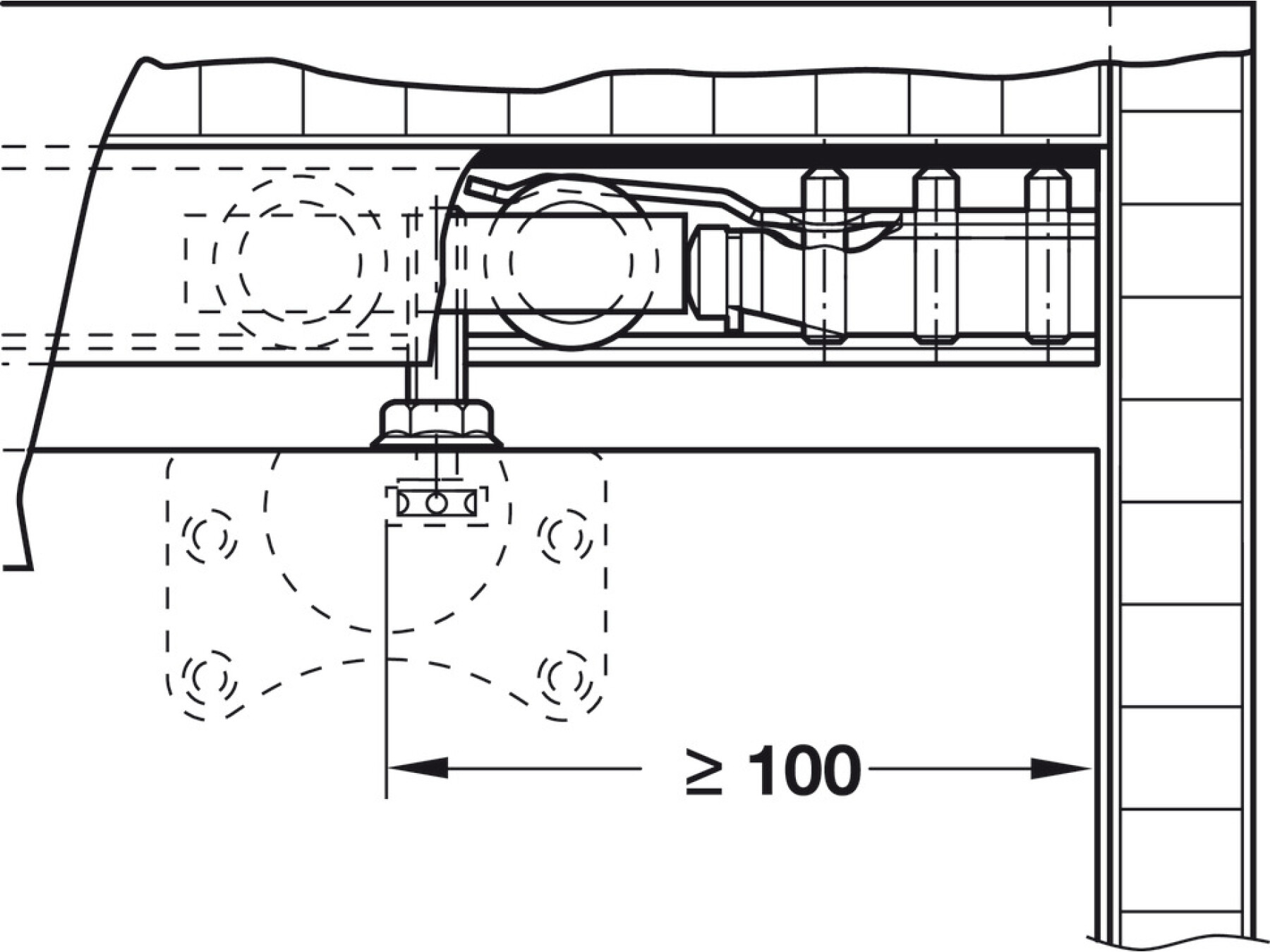

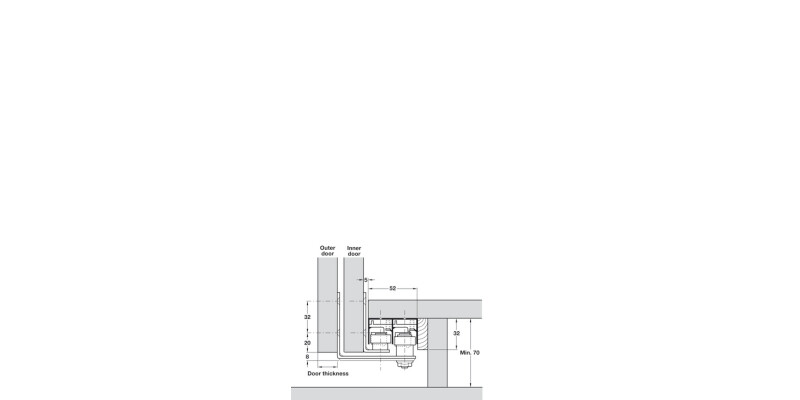

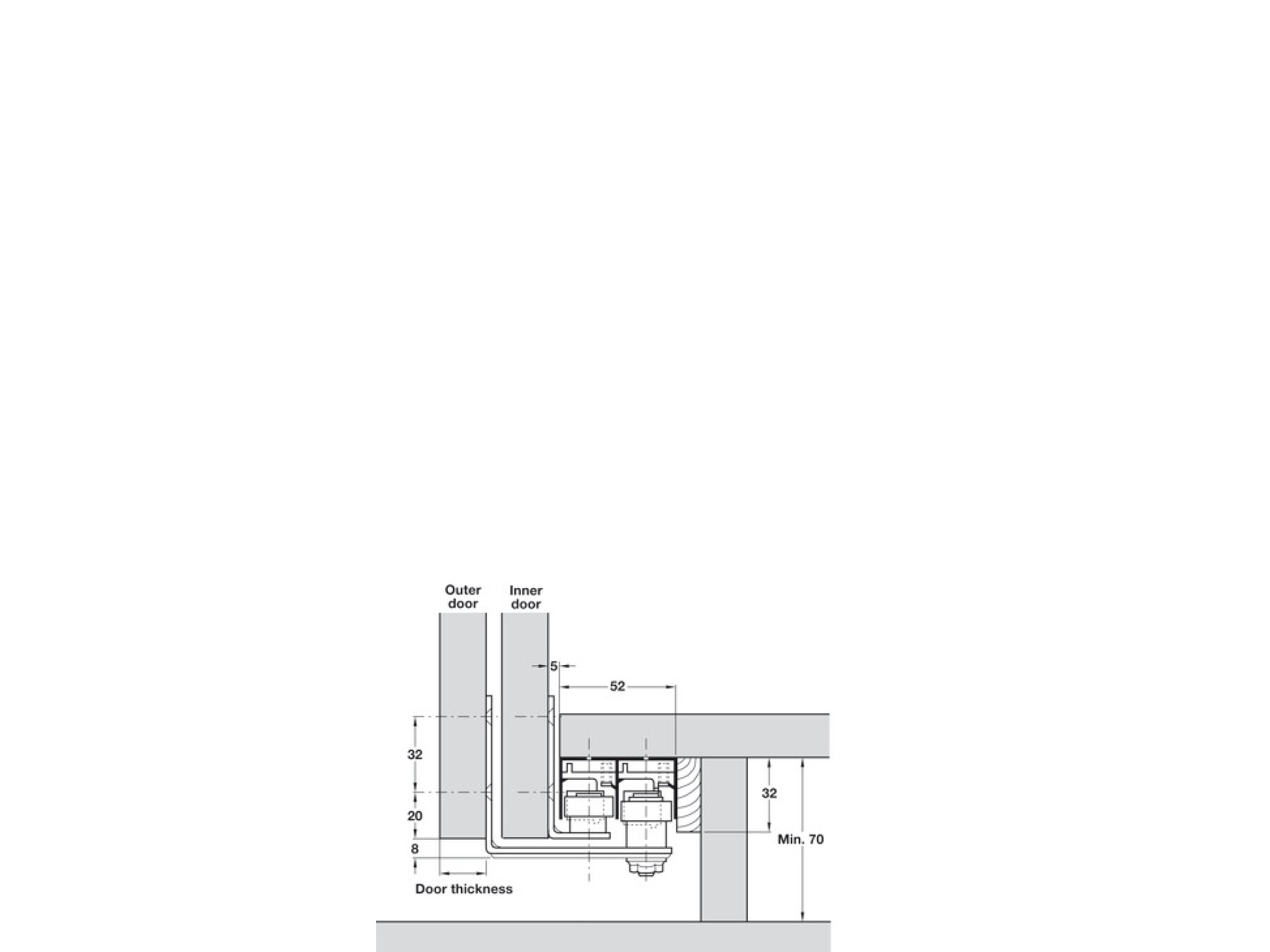

Soft closing mechanism
With clip-in door stopper
For door thickness
19 – 25 mm
For door weight
≤40 kg
Running position
Top
Number of rollers
2.00
Height adjustment
-3 – 3 mm

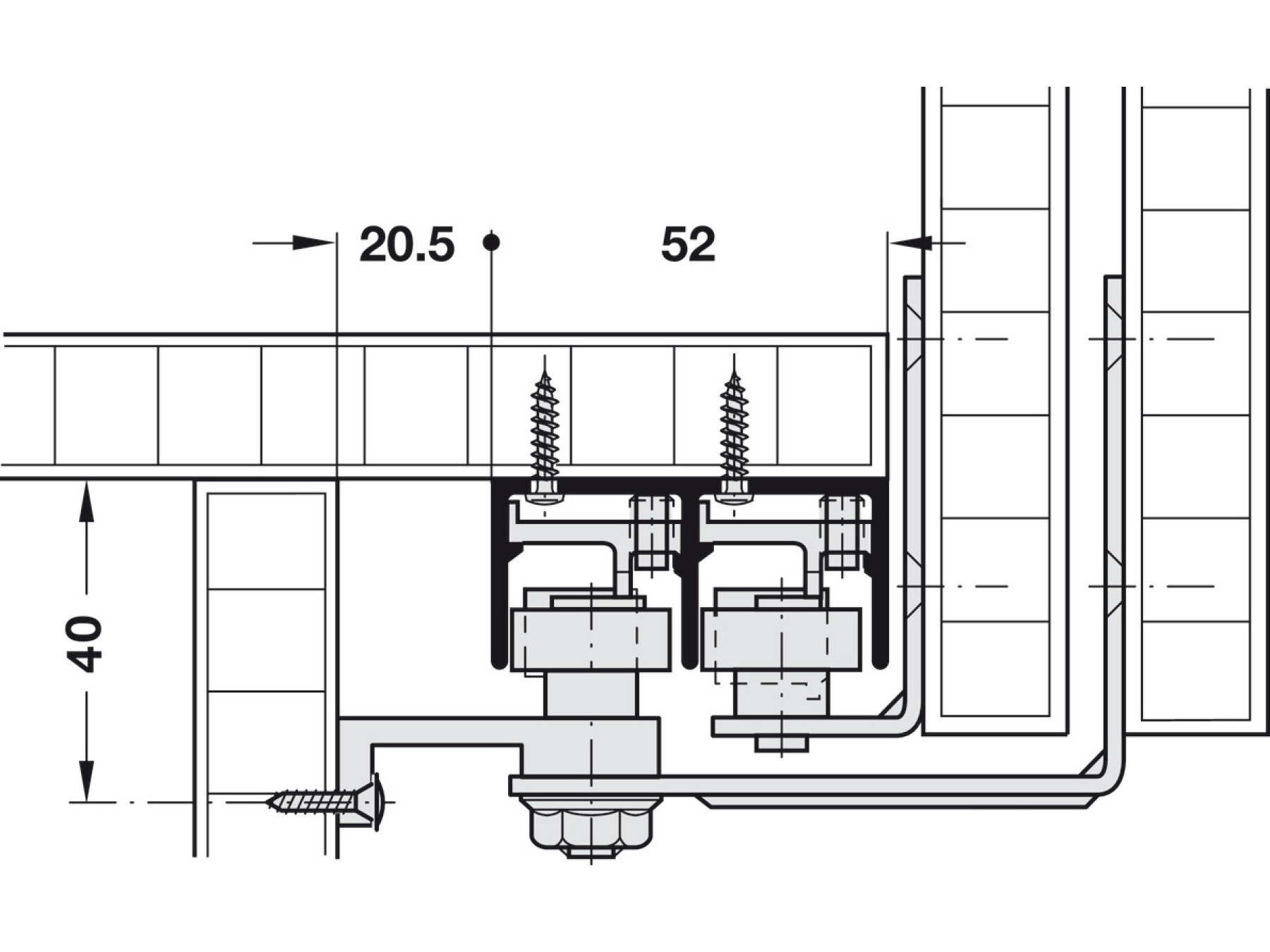

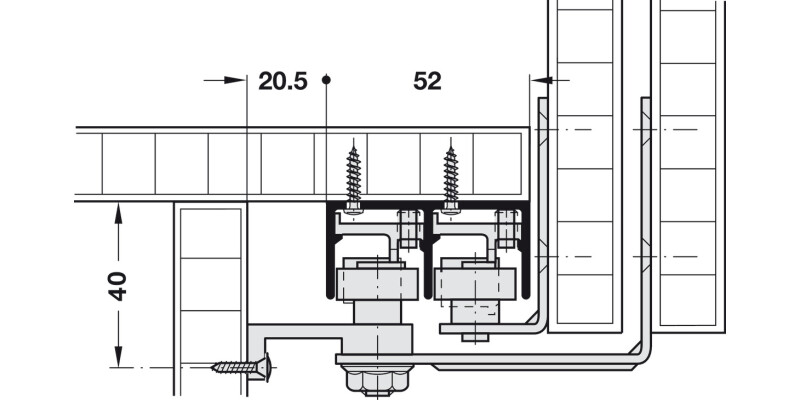

Running gear guided by
Friction bearing
For door material
Wood
Height adjustable
Cabinet version
cabinet structures with panel
Area of application
For 3 doors

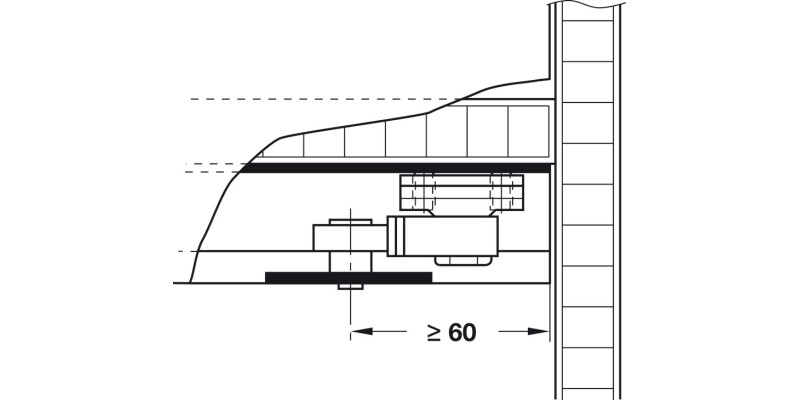

Door stopper
Top clip-in door stopper, bottom stopper
Material/finish
Running gear: Zinc alloyFixing element: Zinc alloyGuide: SteelRollers: Plastic
Adjustment facility
Height adjustment: -3 – 3 mm, on hanger bolt, without removing the doors
Door adjustment via
suspension screw
Installation
Assembly and removal of the door leaves with fixed or detached panel, Running gear and guide for screw fixing
Set
Set without tracks
Number of door wings in a system max.
2 to 3
Order reference
Tracks and channels to be ordered separately
