Hawa Aperto 40/F Complete Track Set 2.5m
Rated 3.5/5 based on 11 customer reviews

Hawa Aperto 40/F Complete Track Set 2.5m

  • Product SKU: 400.71.001
  • Availability: In Stock
£754.71

Price inc. VAT

£754.71
Hurry! only 21 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

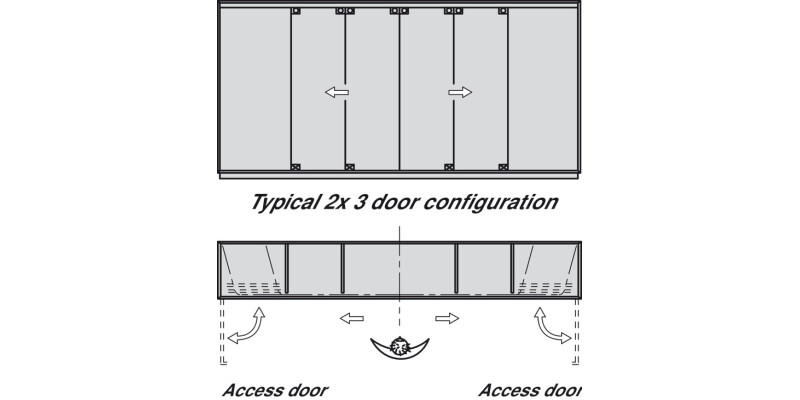

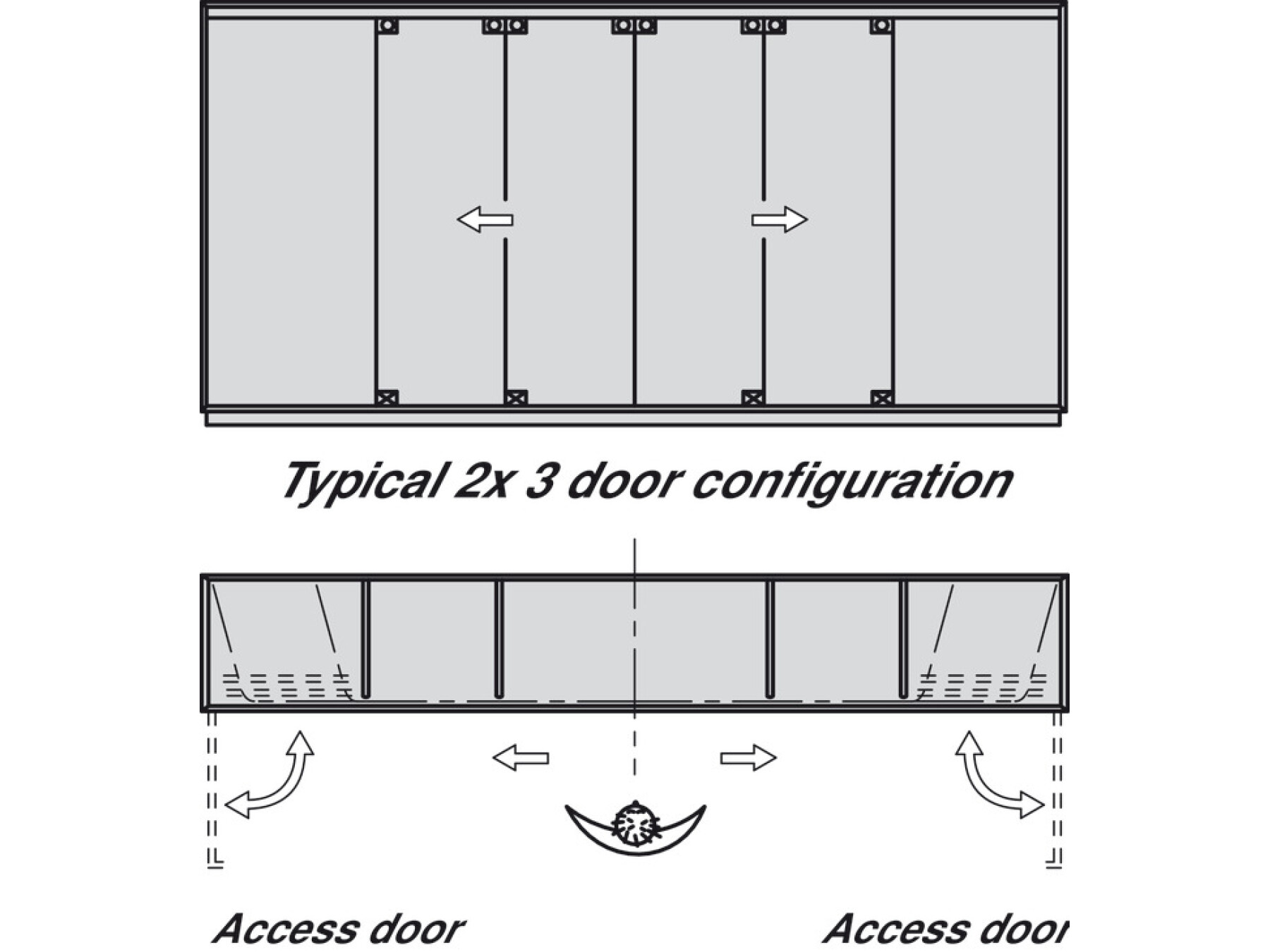

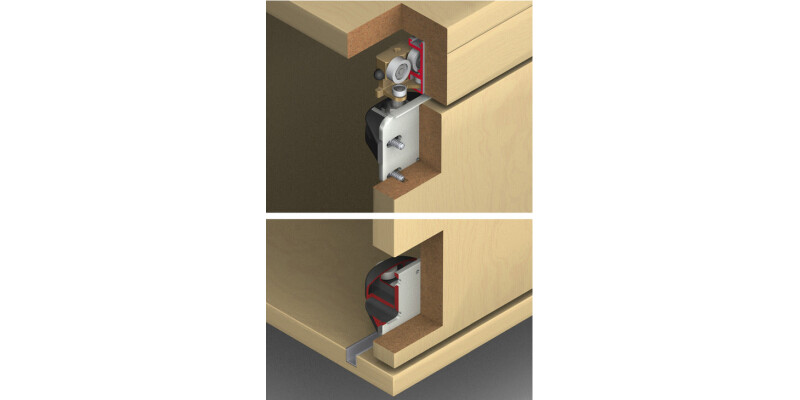

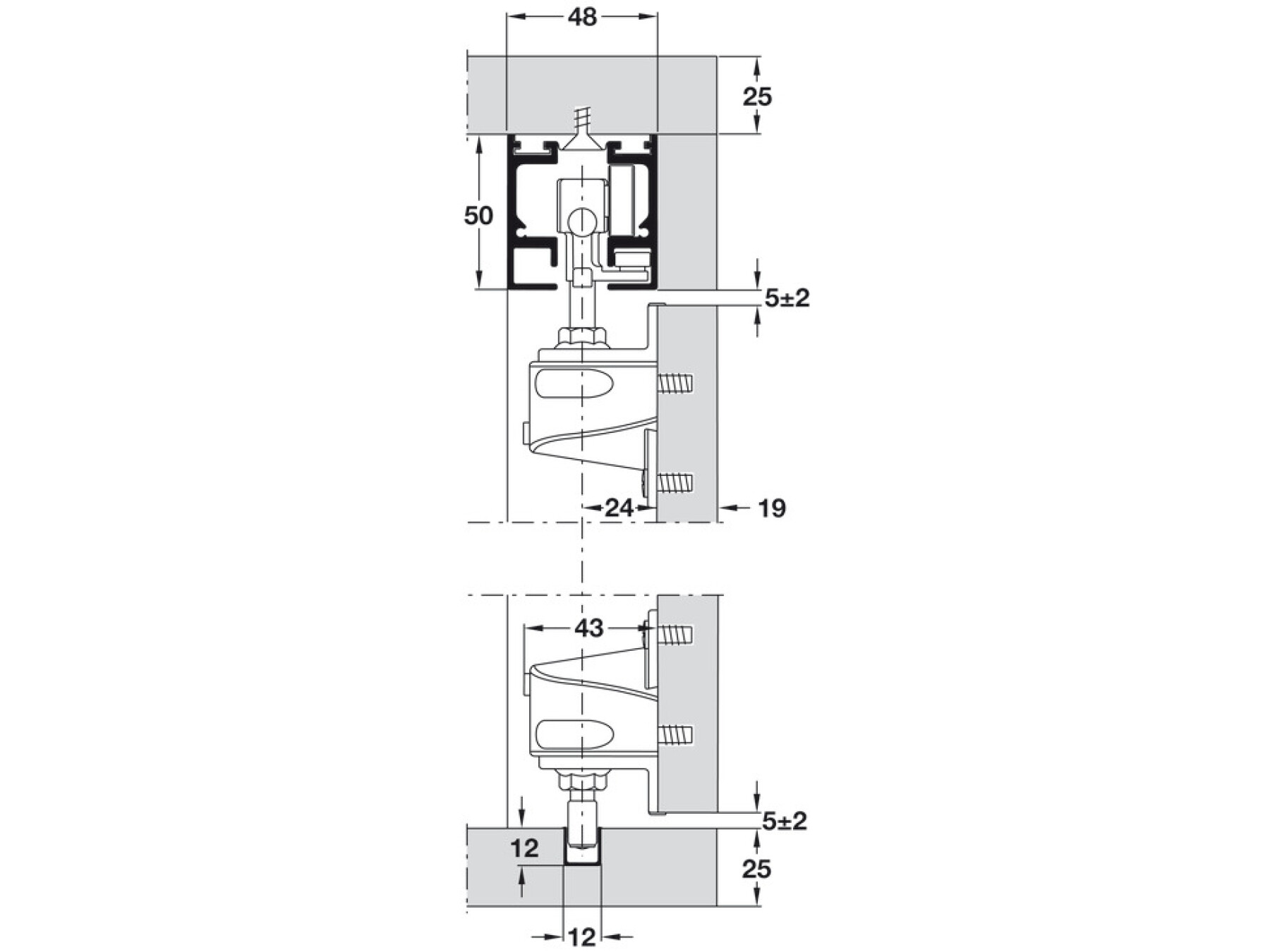

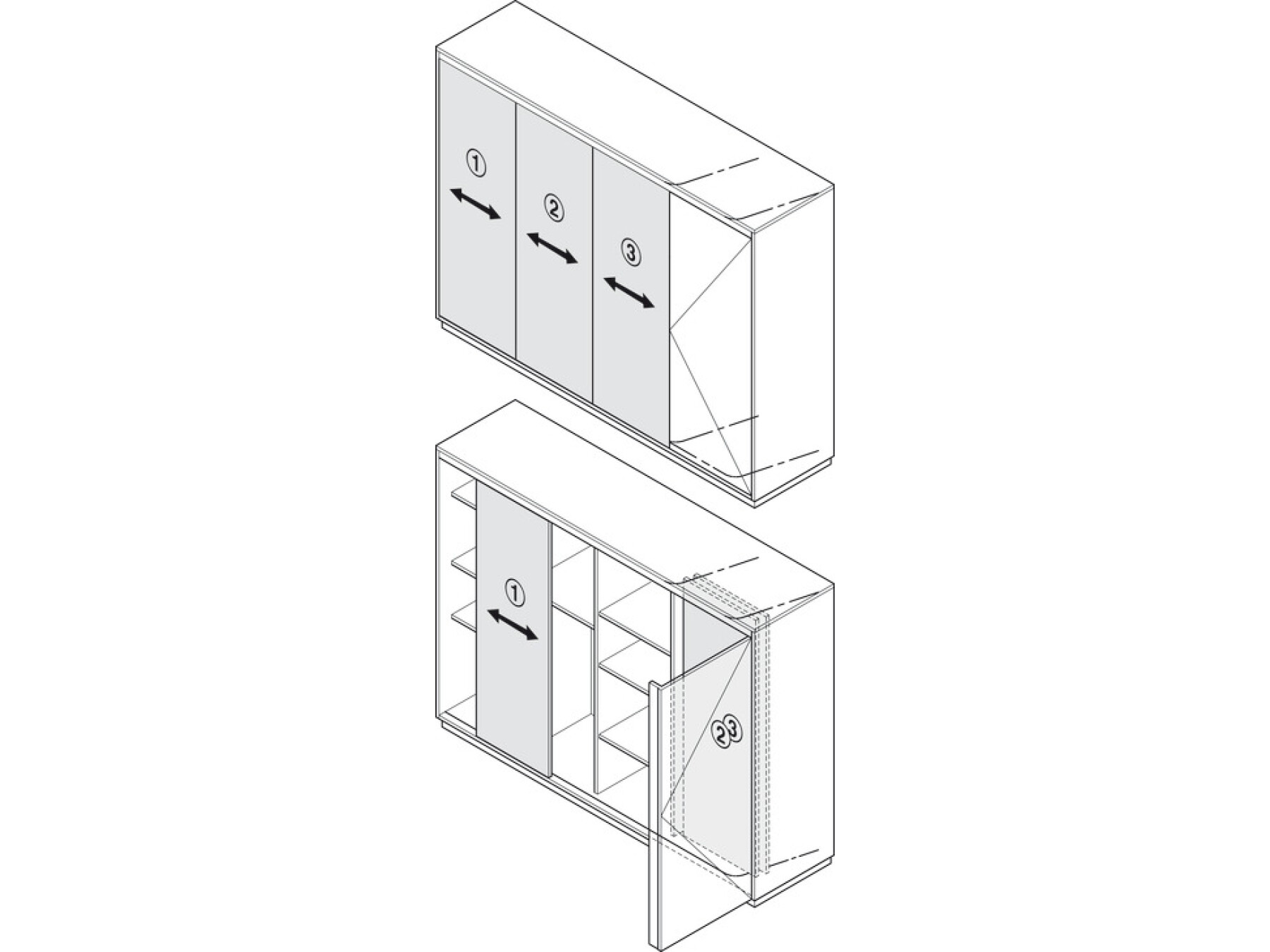

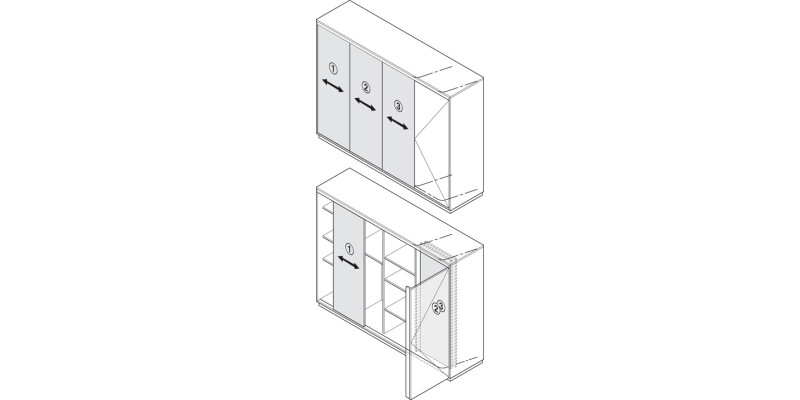

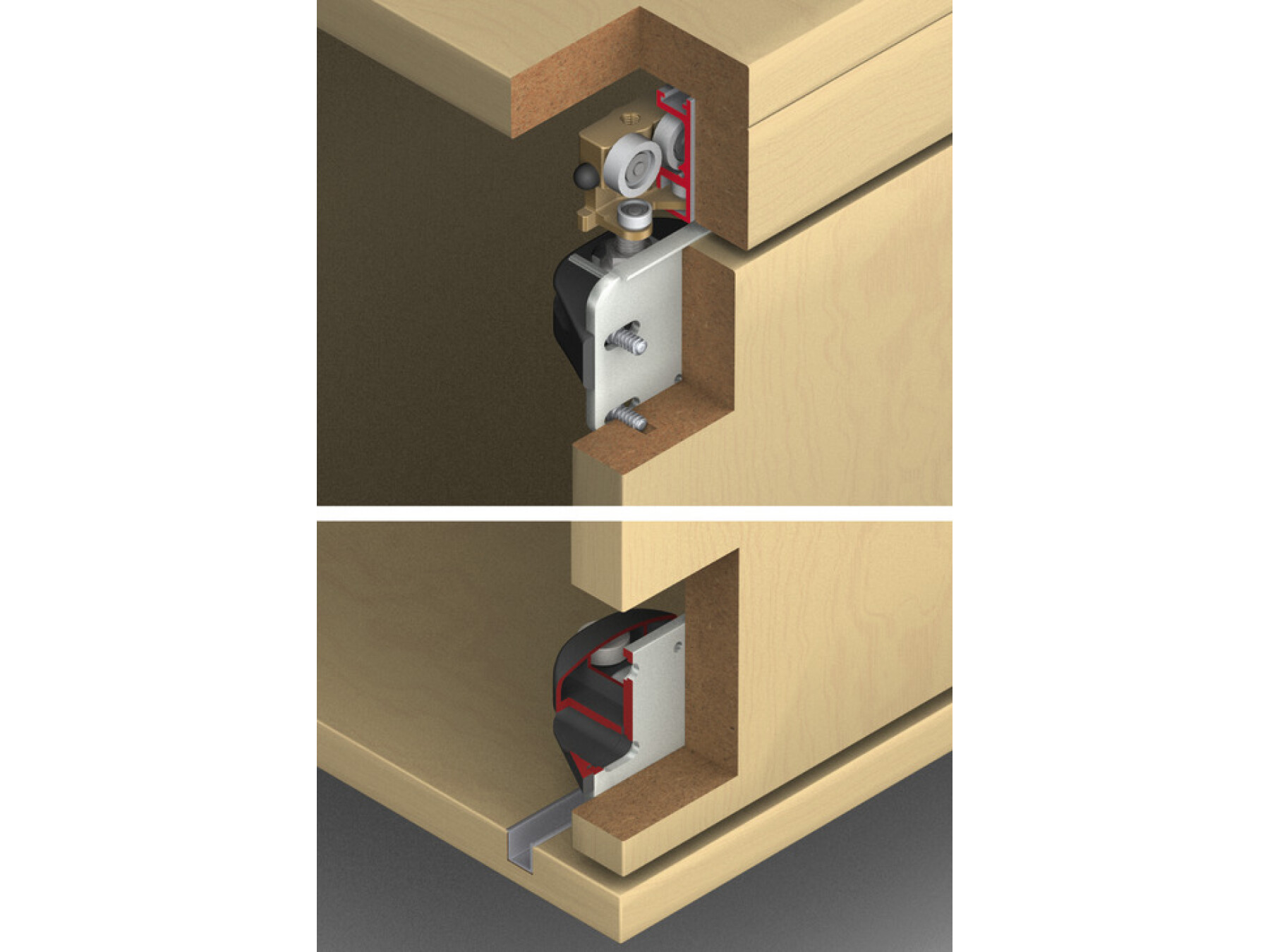

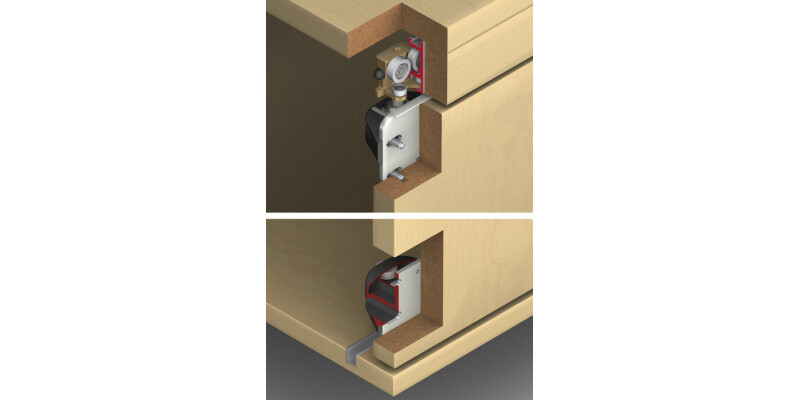

For up to 7 stackable door panels per parking areaTop quality joinery and commercial furniture where a suite of flush doors need to be stored away at one endDoor panels run independantlyIdeal for ‘Media walls’ and wall storage applications, particularly in corridorsStorage area can hold up to 7 panelsOperation:Each of the sliding panels operates on 2 swivel trolley hangers, one in each of the two top tracks with back fixing to the door panel. One bottom guide operates within one black plastic floor channel which follows the line of the longer, upper trackFull system requiresSingle panel fitting setsStorage area track and channel sets with accessoriesStraight track and channel in standard module sets (Top tracks required in pairs) to be cut to size by installerFull installation drilling and recessing details show in data sheet no. 17808 included in fitting setrs and available separately on request
  • Application: Inset cabinet and wardrobe doors
  • Installation: Screw fixing
  • Adjustment facility: Height adjustment ¬¨¬®¬¨¬± 2 mm
  • Door weight: Max. 40 kg
  • Door height: Max. 2600 mm
  • Door width: 400‚Äö√Ñ√∂‚àö√ë‚àö¬®900 mm
  • Door thickness: 19‚Äö√Ñ√∂‚àö√ë‚àö¬®25 mm
  • Supplied with: Complete track set for possible cabinet width 3200 mm includes 2 x Single top track, straight run track, silver anodised aluminium, length 2500 mm, 1 set x Double fixing plates to support and connect single running tracks into pairs, zinc alloy (1 set= 6 pieces), 1 x Bottom guide profile, straight run track
  • Order reference: Supplementary items such as concealed hinges, mounting plates and locks to be ordered separately
