Free Flap 1.7 Comp Set C White 9003

Regular price

£29.75

(ex. VAT)

£35.70

(inc. VAT)
  • SKU:
  • Availability: In stock
  • Product category: Kitchen, Living & Commercial Solutions
  • Vendor: BKSH
  • Visitors:
    1
Uh-oh, only left in stock!
Convenient handling, even with heavy flapsMinimum opening resistanceFlap locks in any position (multi-position stop)Smooth and soft closing actionStylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depthEasy, efficient and time-saving processingStylish cover caps in grey and whiteSustainable: Fitting also available with biologically degradable cover caps (optional)For additional measurements table, please see cat. page

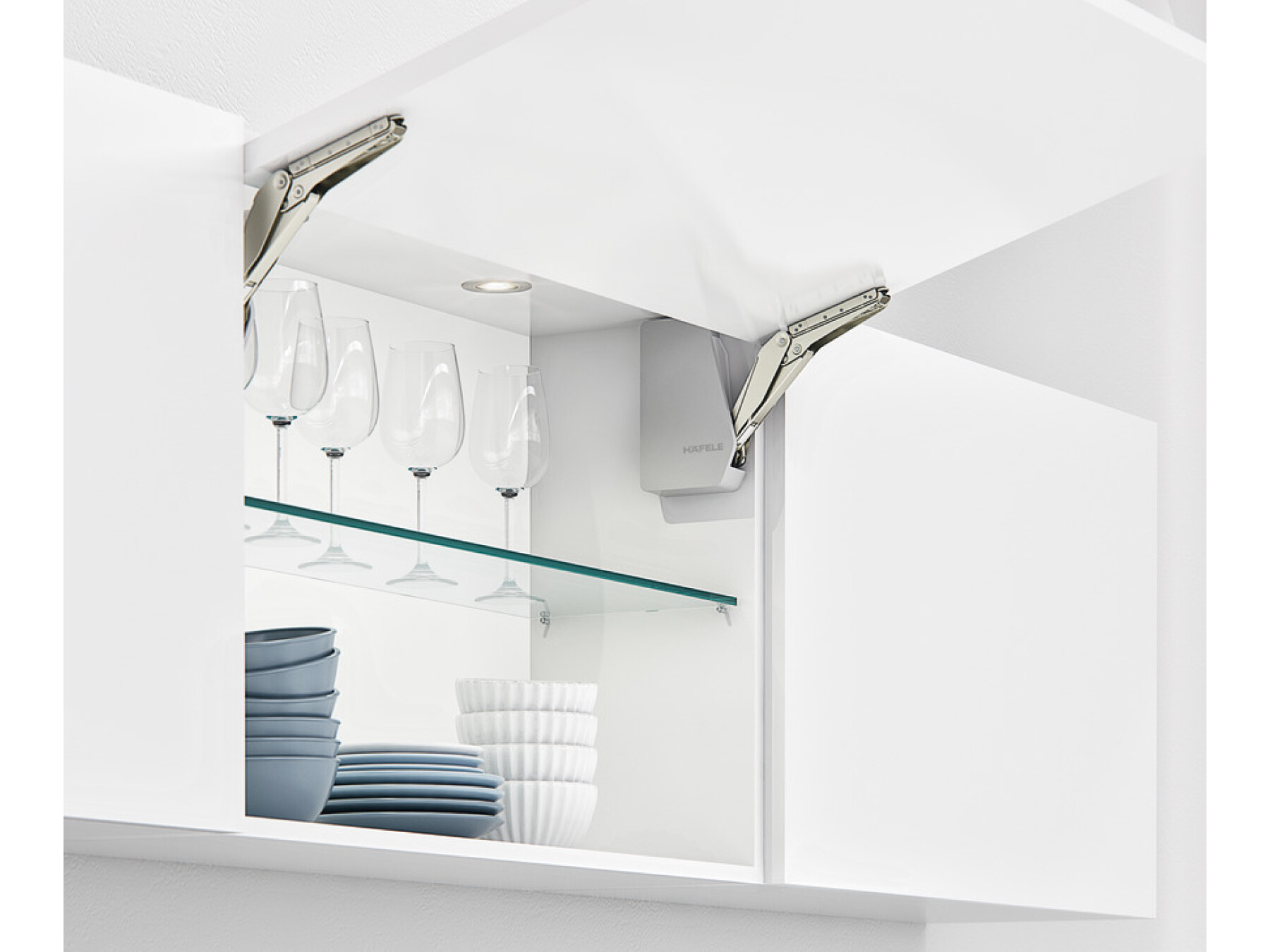

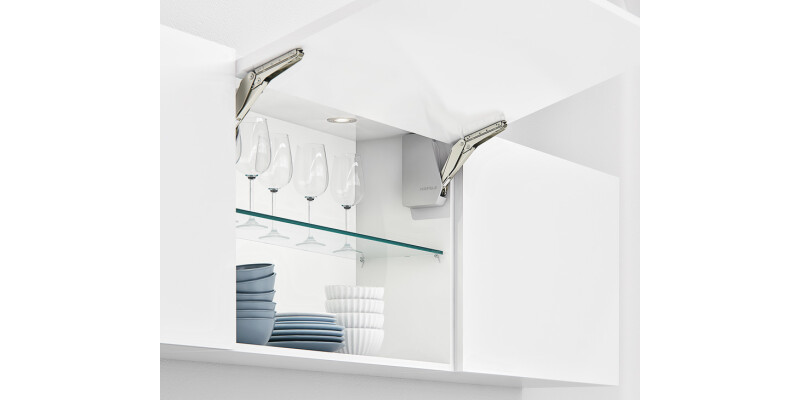

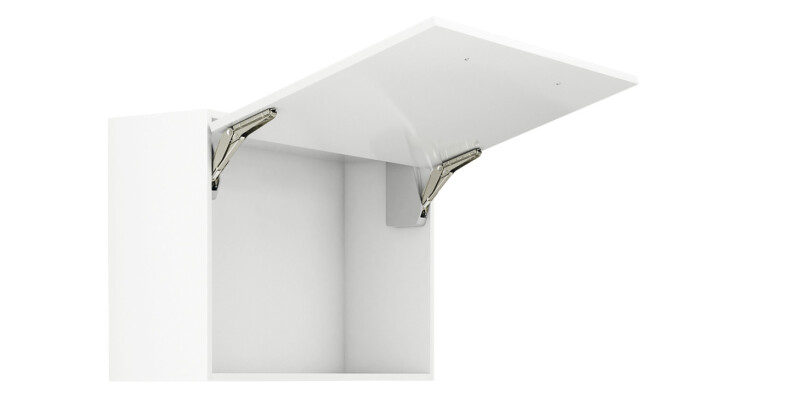

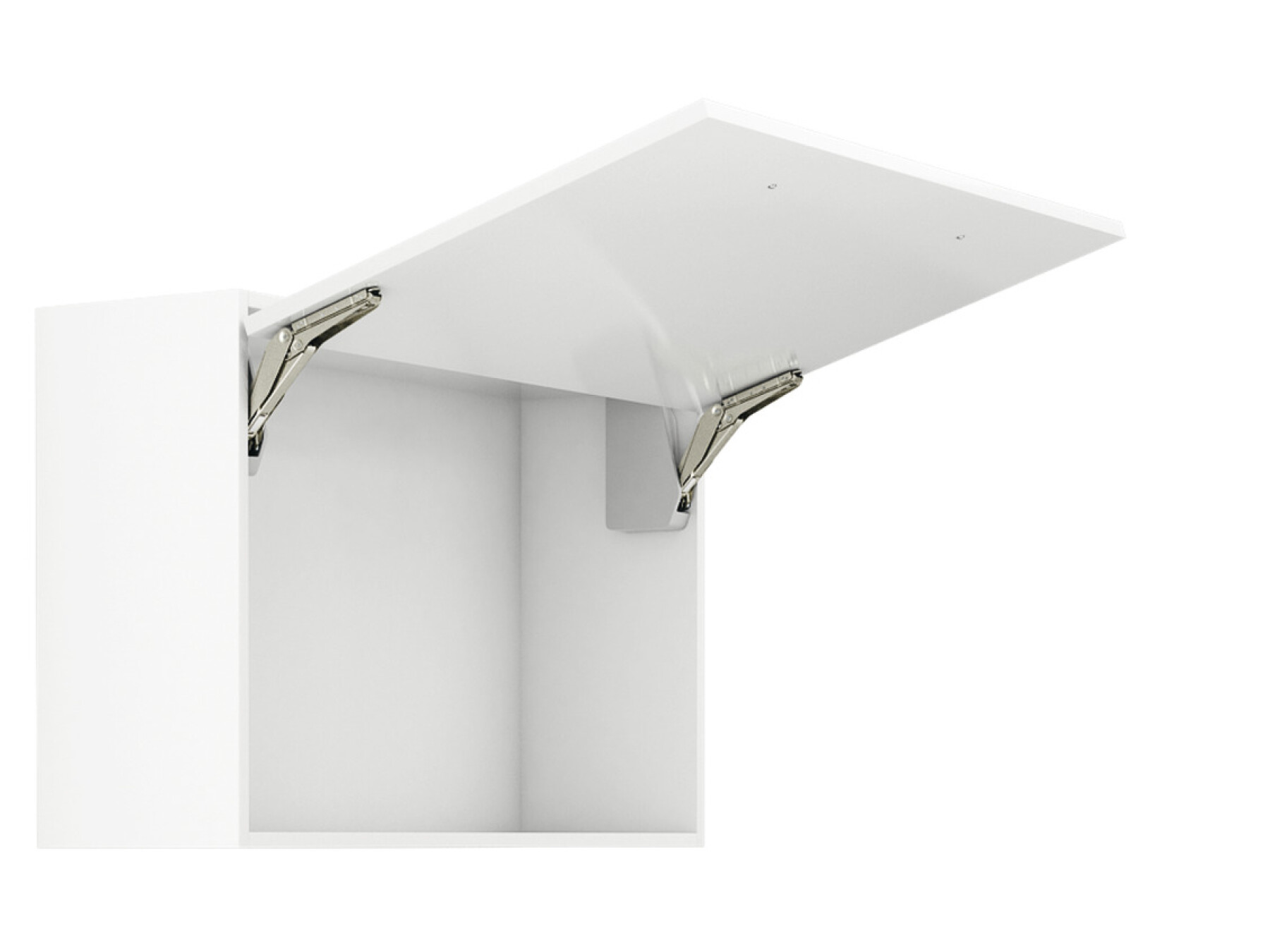

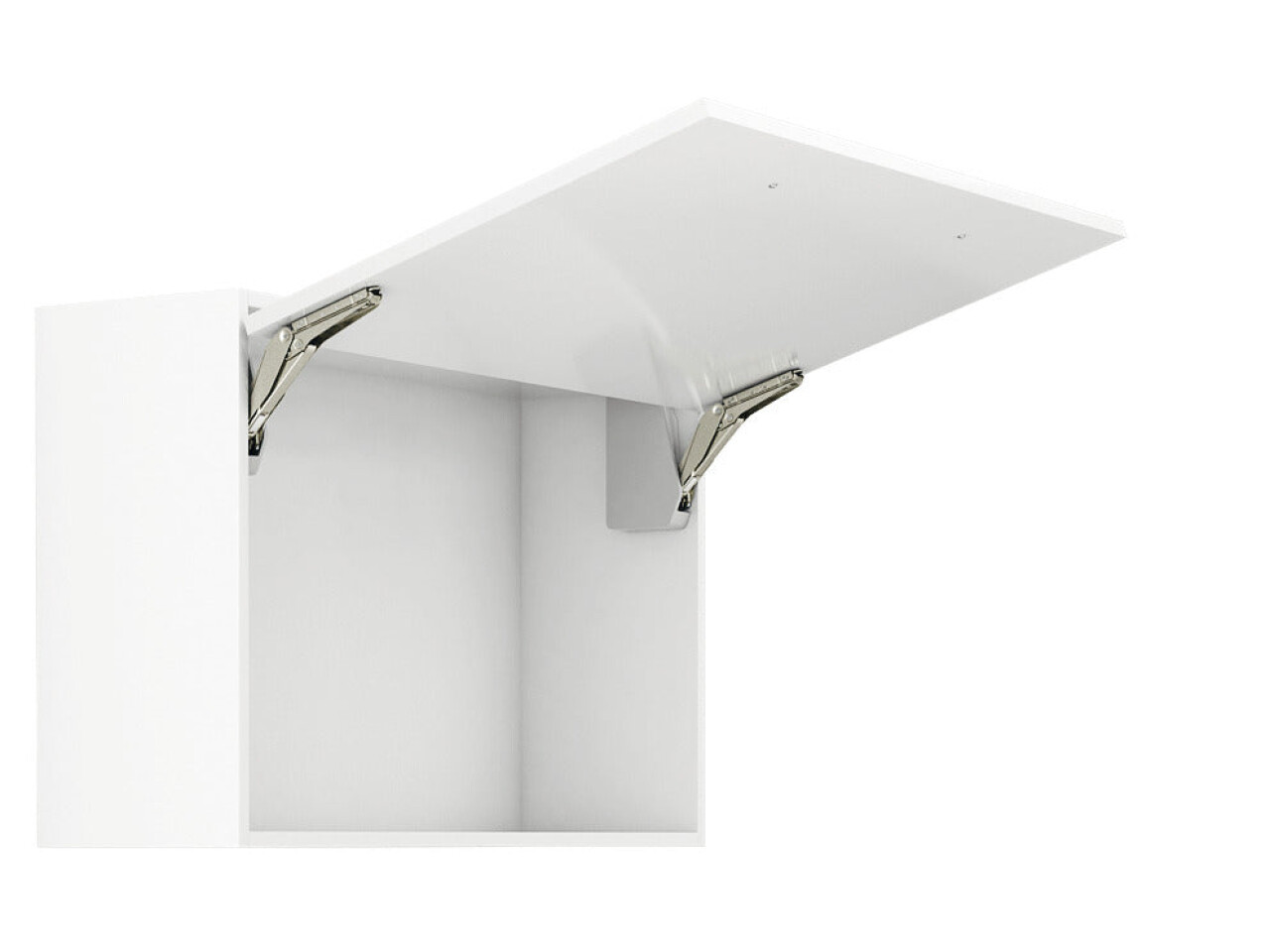

  • Application: For small, one-piece flaps made of wood or with aluminium frame

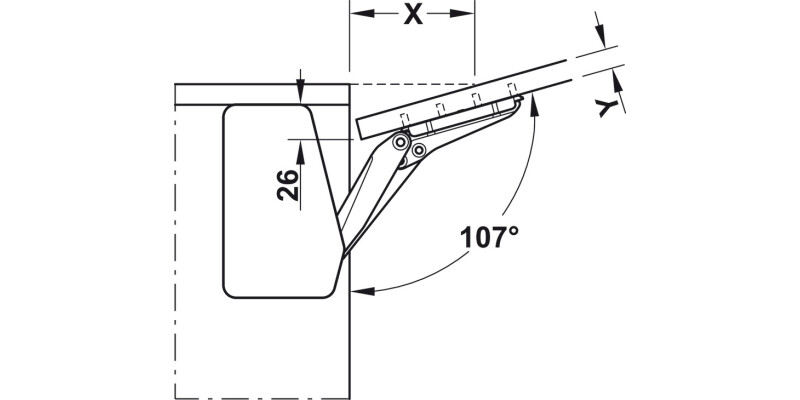

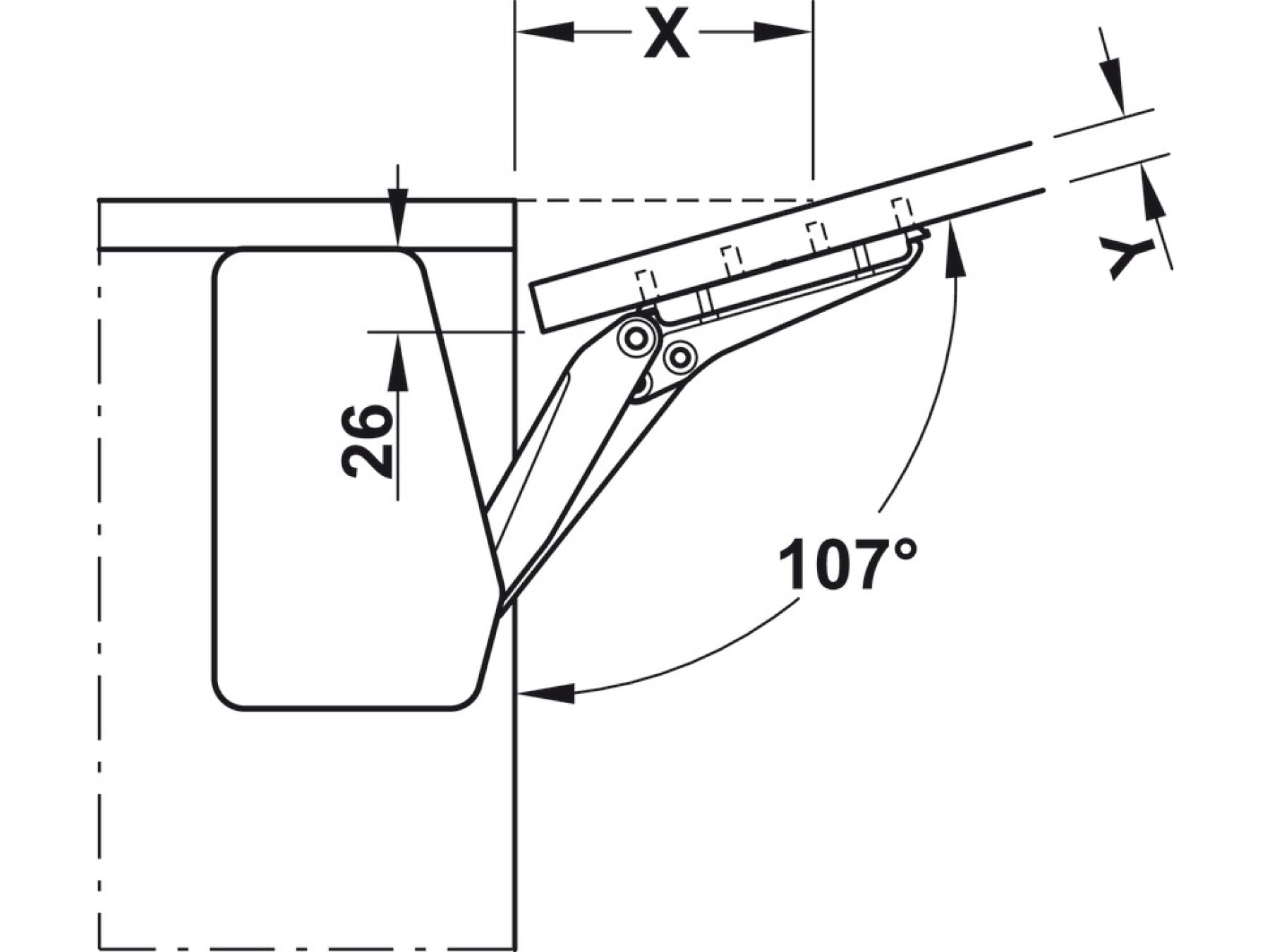

  • Opening angle: 107° (can be reduced to 90° using opening angle restraint)
  • Installation: Fitting for screw fixingFlap clips onto pre-mounted screw on brackets

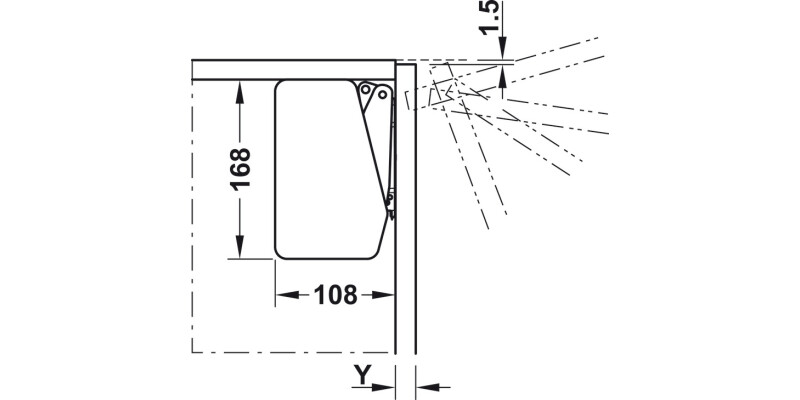

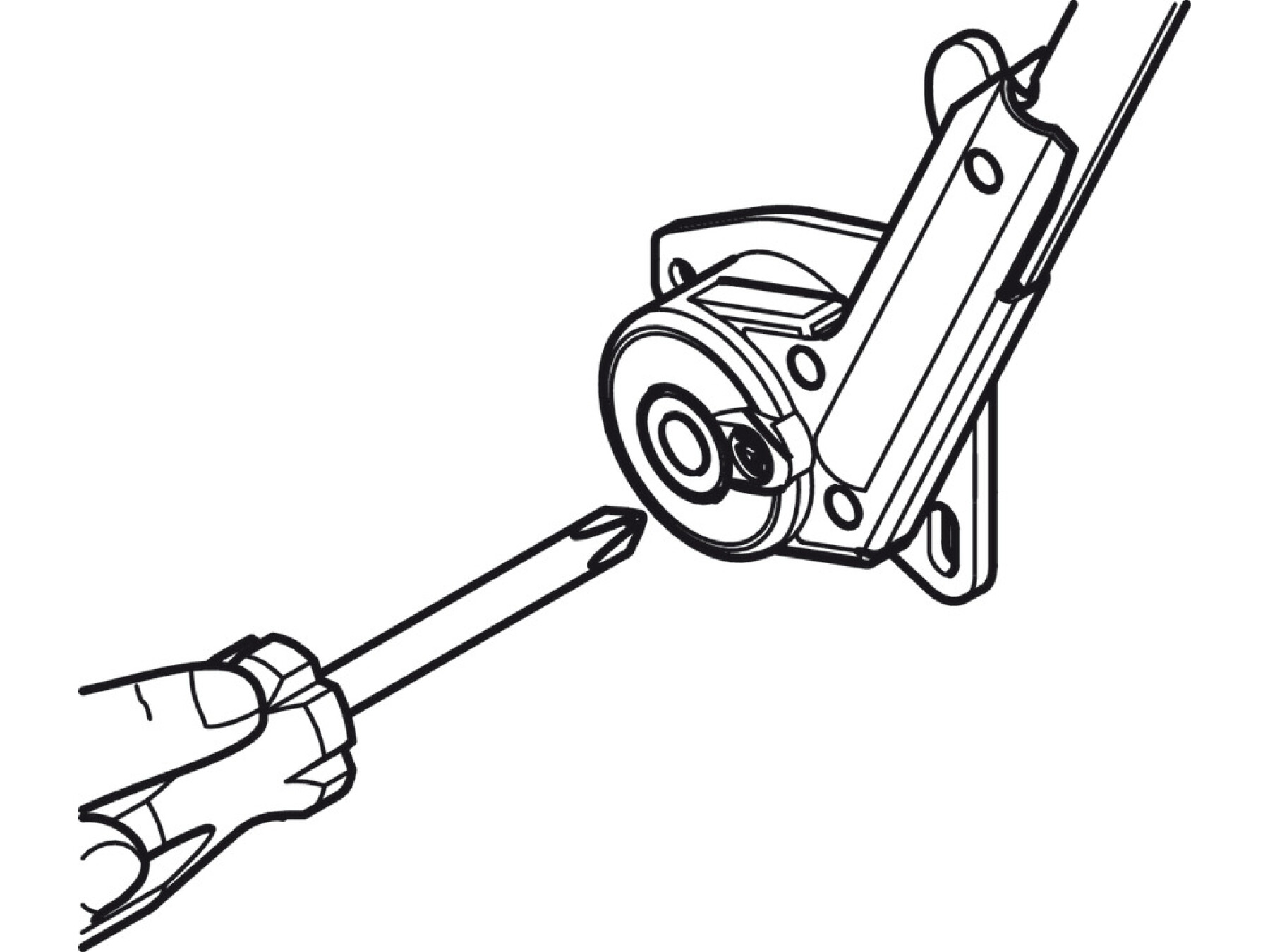

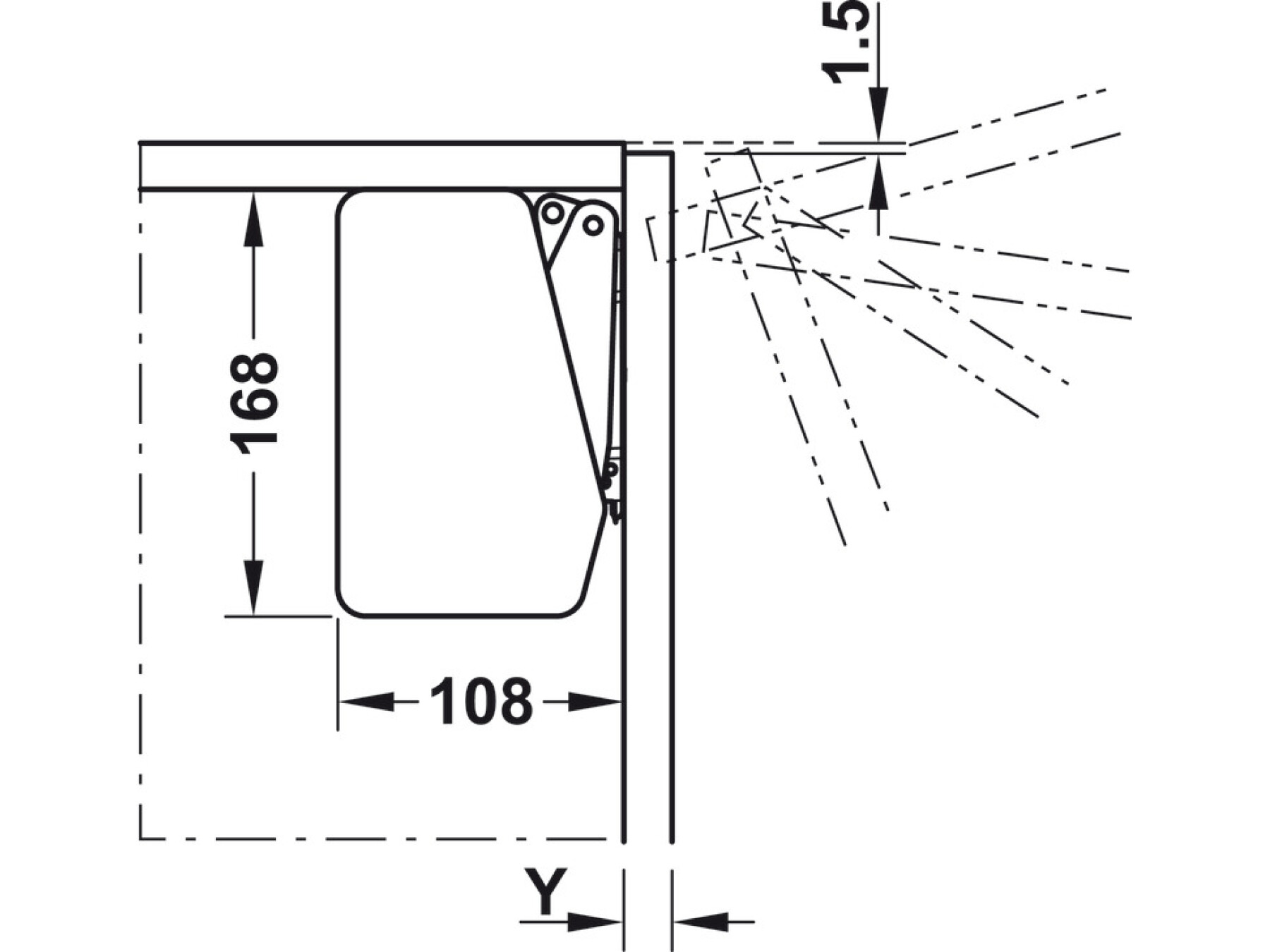

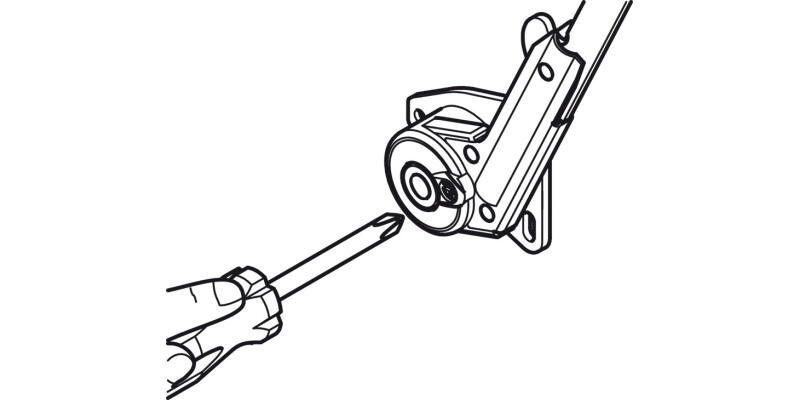

  • Adjustment facility: Height, side and tilting angle adjustment of front ±1.5 mm holding power
  • Guarantee: 25 years
  • Material: Fitting: SteelCover cap: Plastic
  • Finish: Fitting: Nickel plated

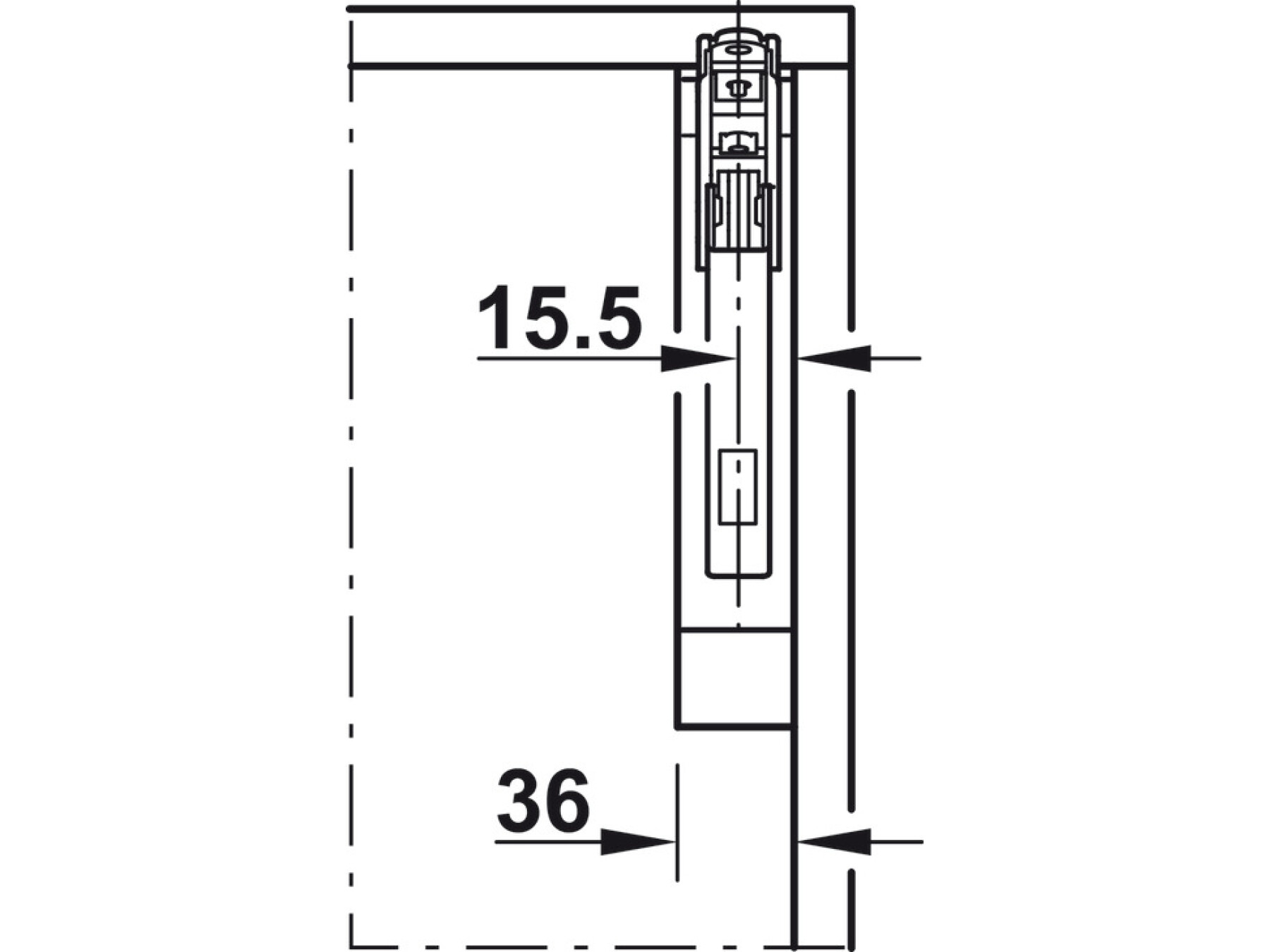

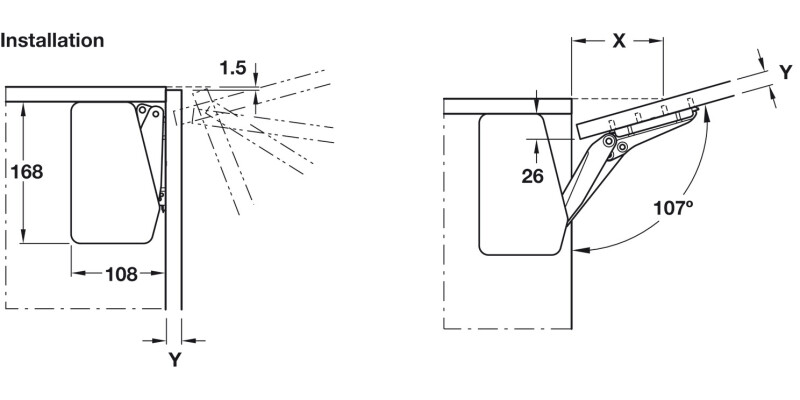

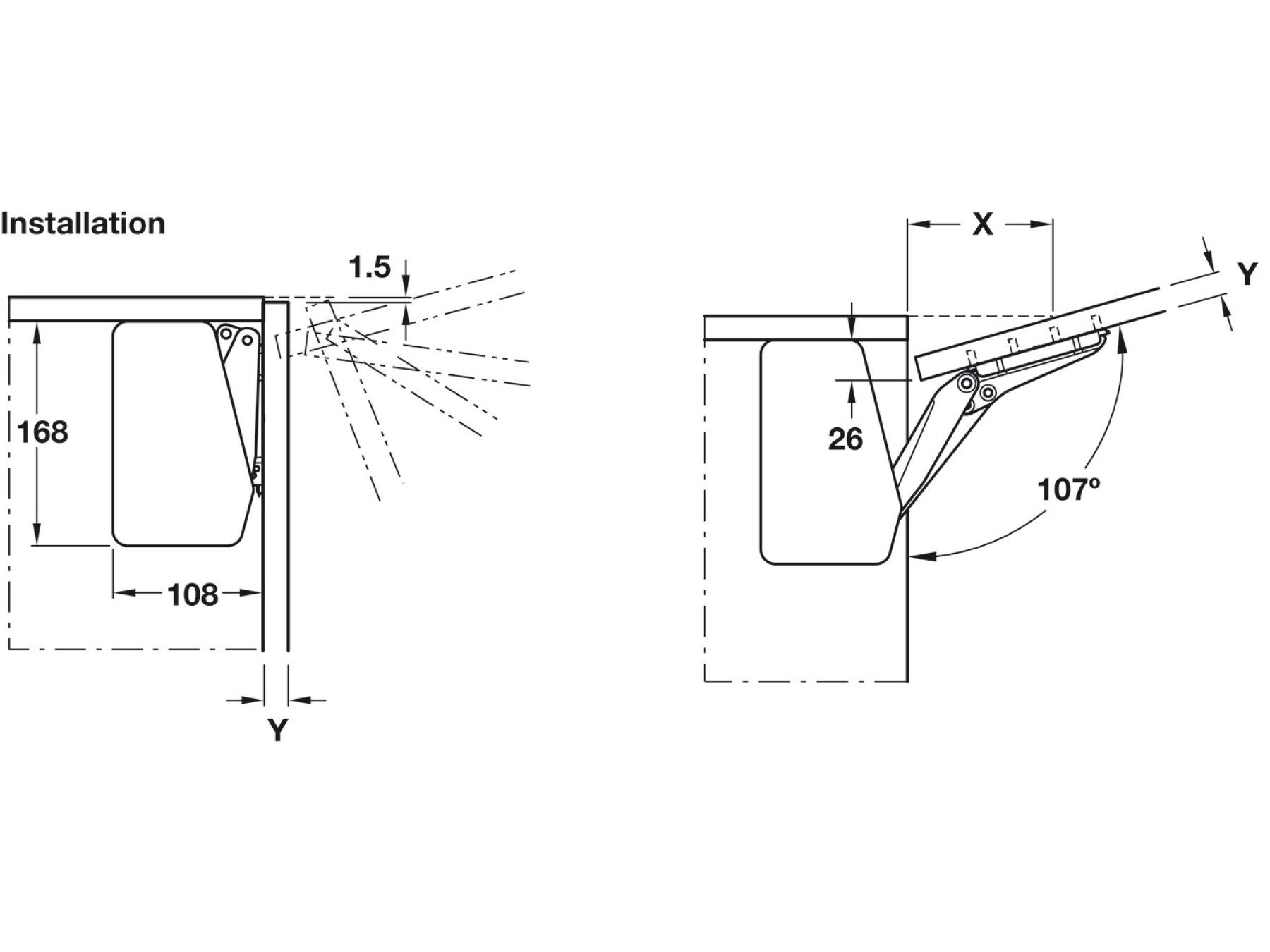

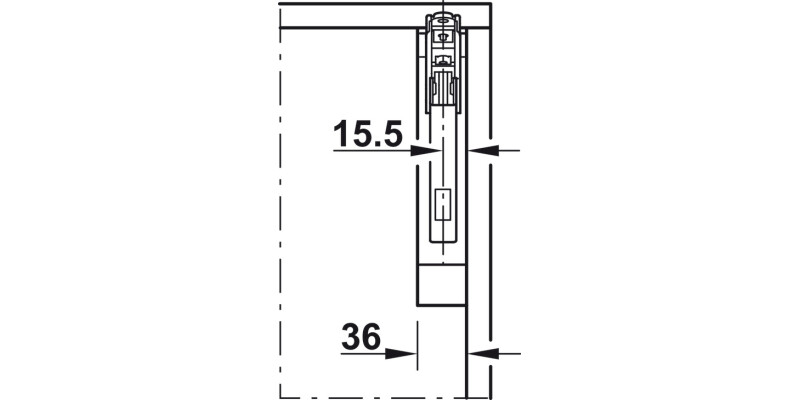

  • Installation:  \n Drilling pattern for cabinetDrilling pattern for front panelFront panel thickness Y mm1619222628Distance X mm(with top panel thickness 16 mm)8374645246
  • Supplied with: Set includes:2x Stay flap fittings2x Cover caps for fitting2x Screw-on brackets for wooden flaps or flaps with aluminium frame, from frame width 45 mm1x Paper drilling templateInstallation instructions
  • Order reference: For flaps with 20 mm aluminium frame, please order adapter separatelyOrder Varianta Ø 5 countersunk screws separately
  • Warranty information: This product is covered under Häfele’s Lifetime Guarantee.All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
