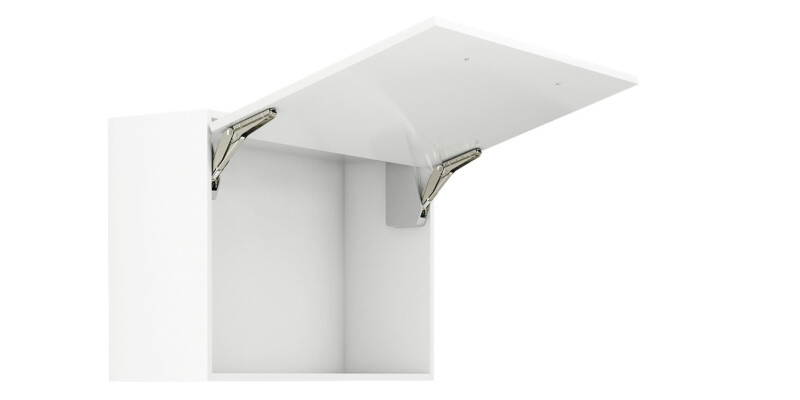

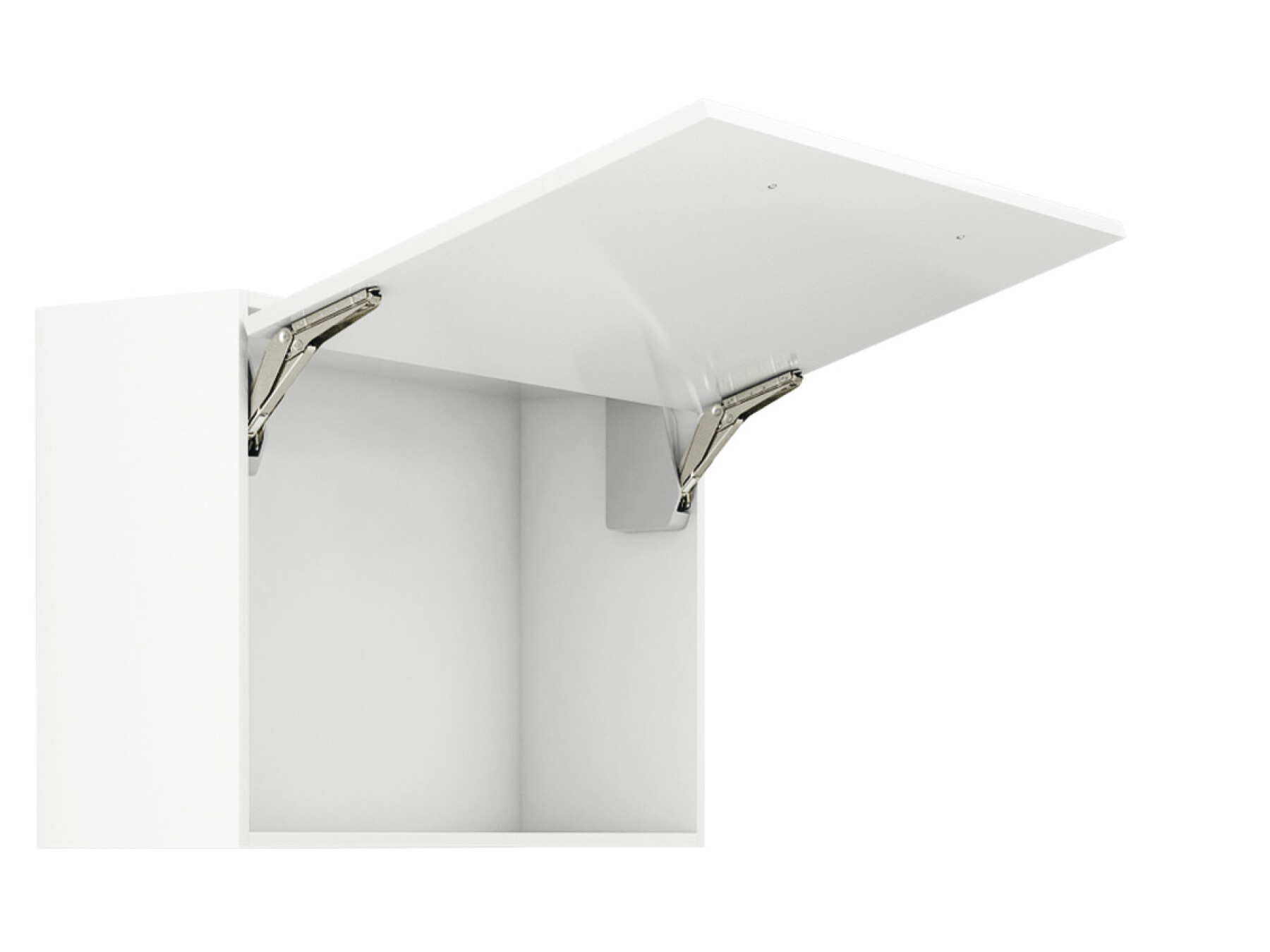

Free Flap 1.7 Comp Set B White 9003
Rated 3.5/5 based on 11 customer reviews

Free Flap 1.7 Comp Set B White 9003

  • Product SKU: 372.91.721
  • Availability: In Stock
£29.93

Price inc. VAT

£29.93
Hurry! only 33 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

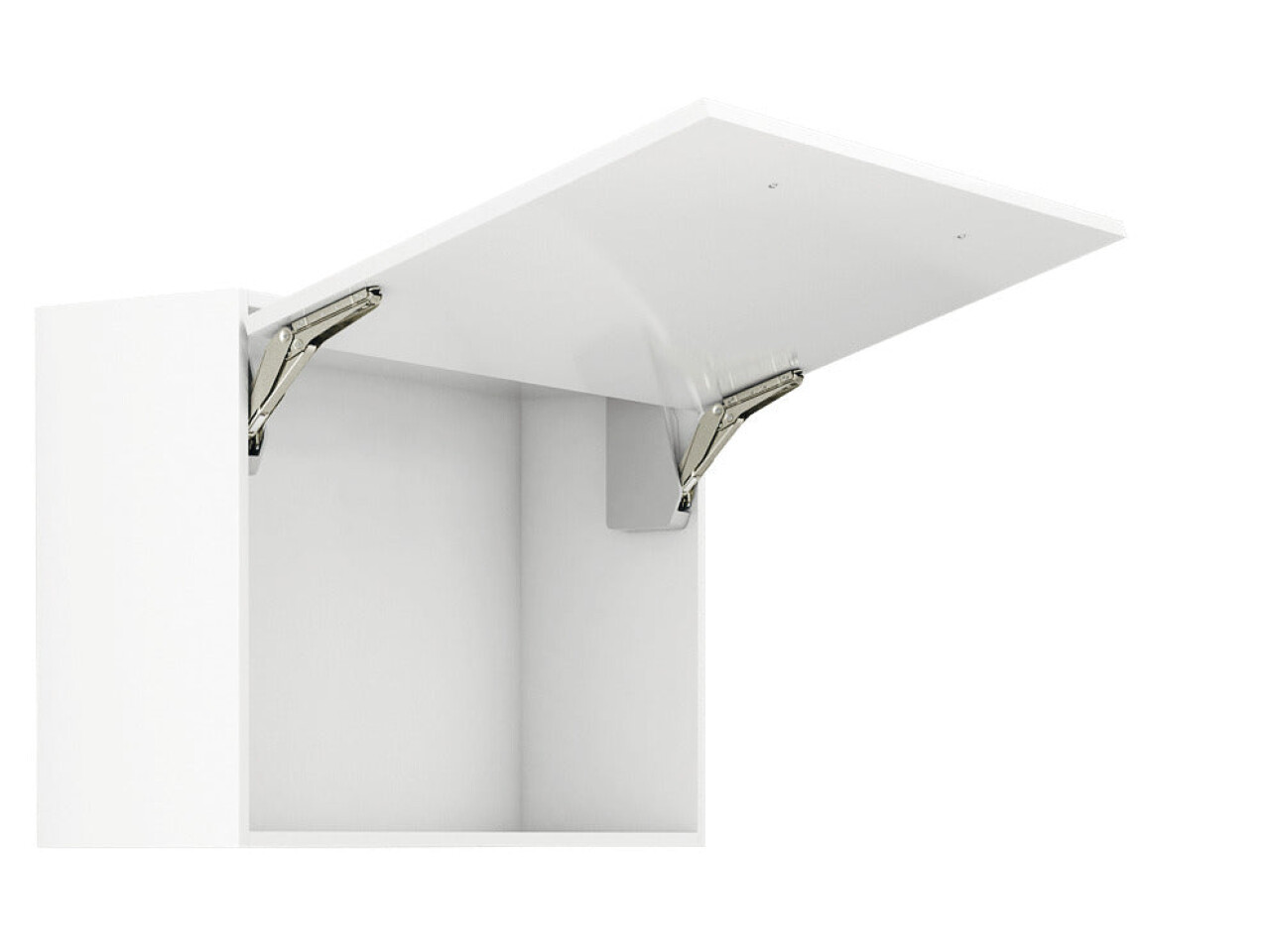

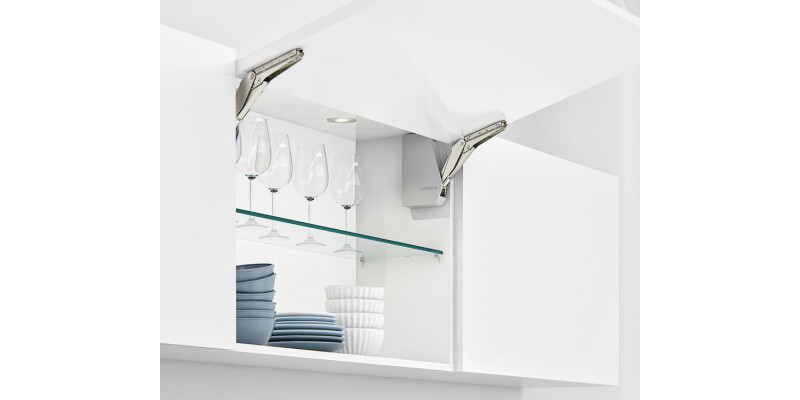

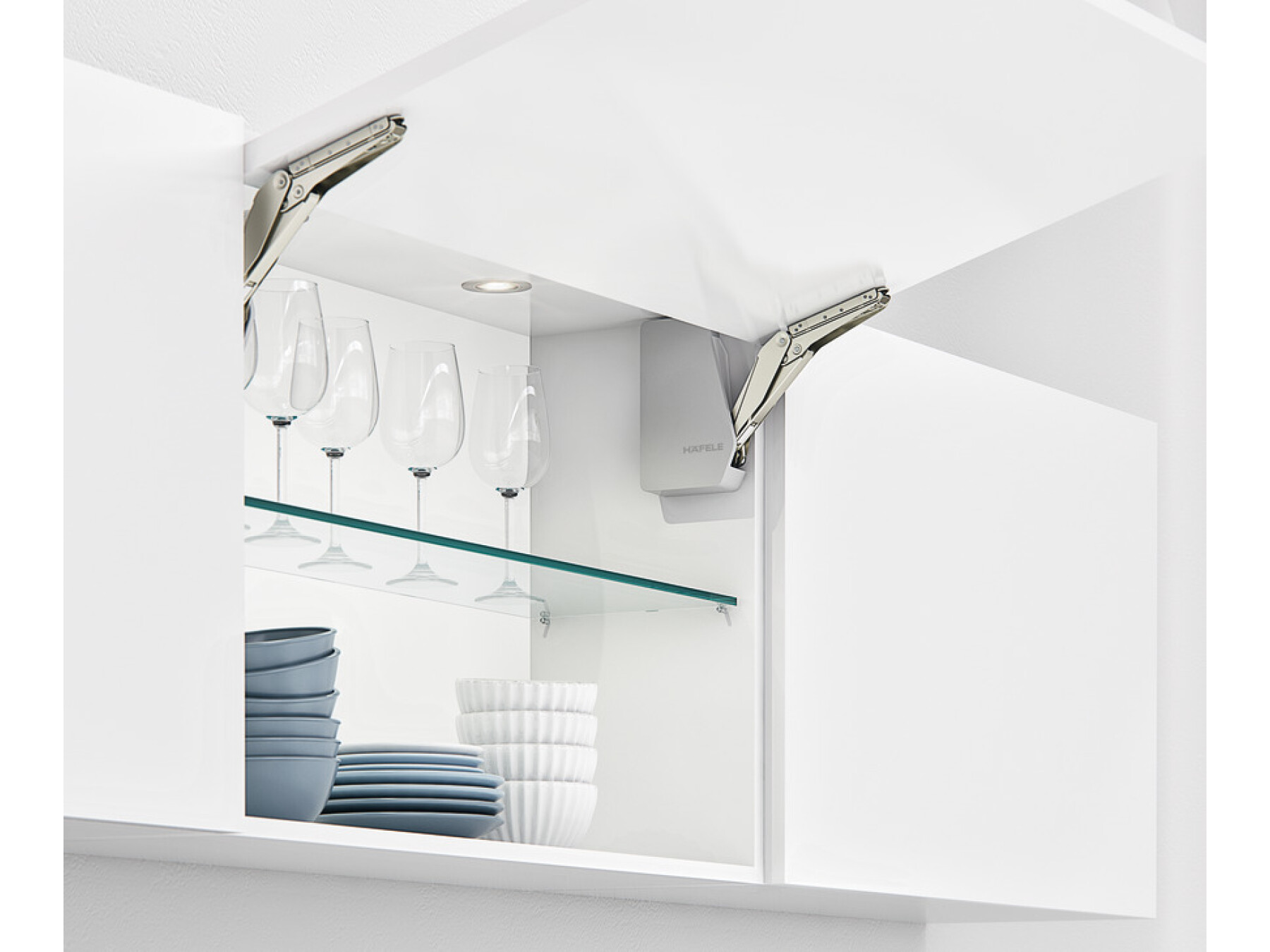

Convenient handling, even with heavy flaps Minimum opening resistance Flap locks in any position (multi-position stop)Smooth and soft closing action Stylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depth Easy, efficient and time-saving processing Stylish cover caps in grey and white Sustainable: Fitting also available with biologically degradable cover caps (optional)For additional measurements table, please see cat. page
  • Application: For small, one-piece flaps made of wood or with aluminium frame

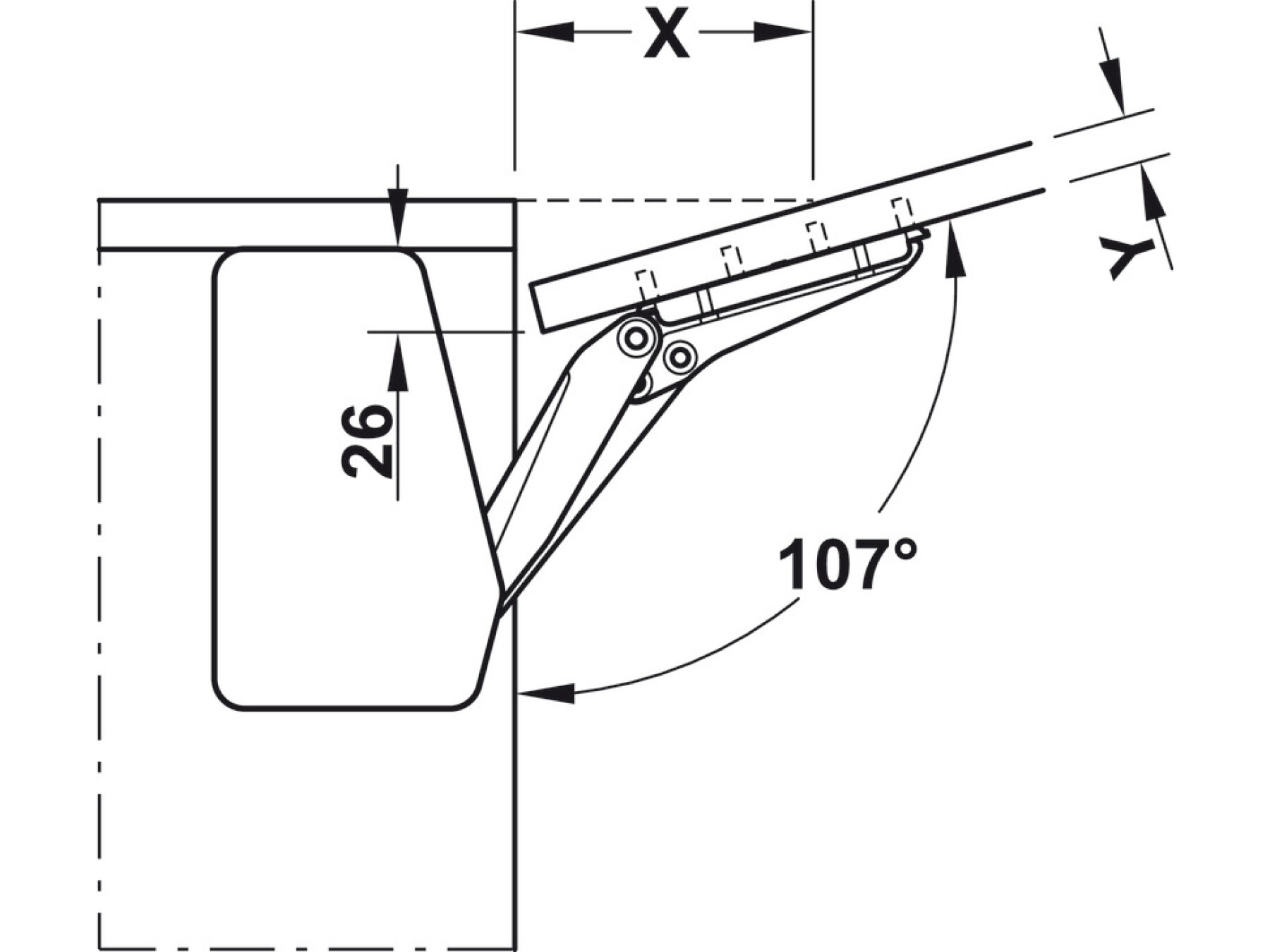

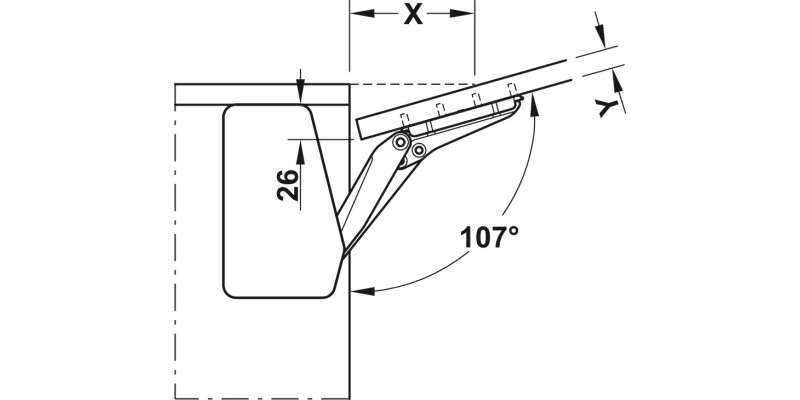

  • Opening angle: 107deg (can be reduced to 90deg using opening angle restraint)
  • Installation: Fitting for screw fixing Flap clips onto pre-mounted screw on brackets

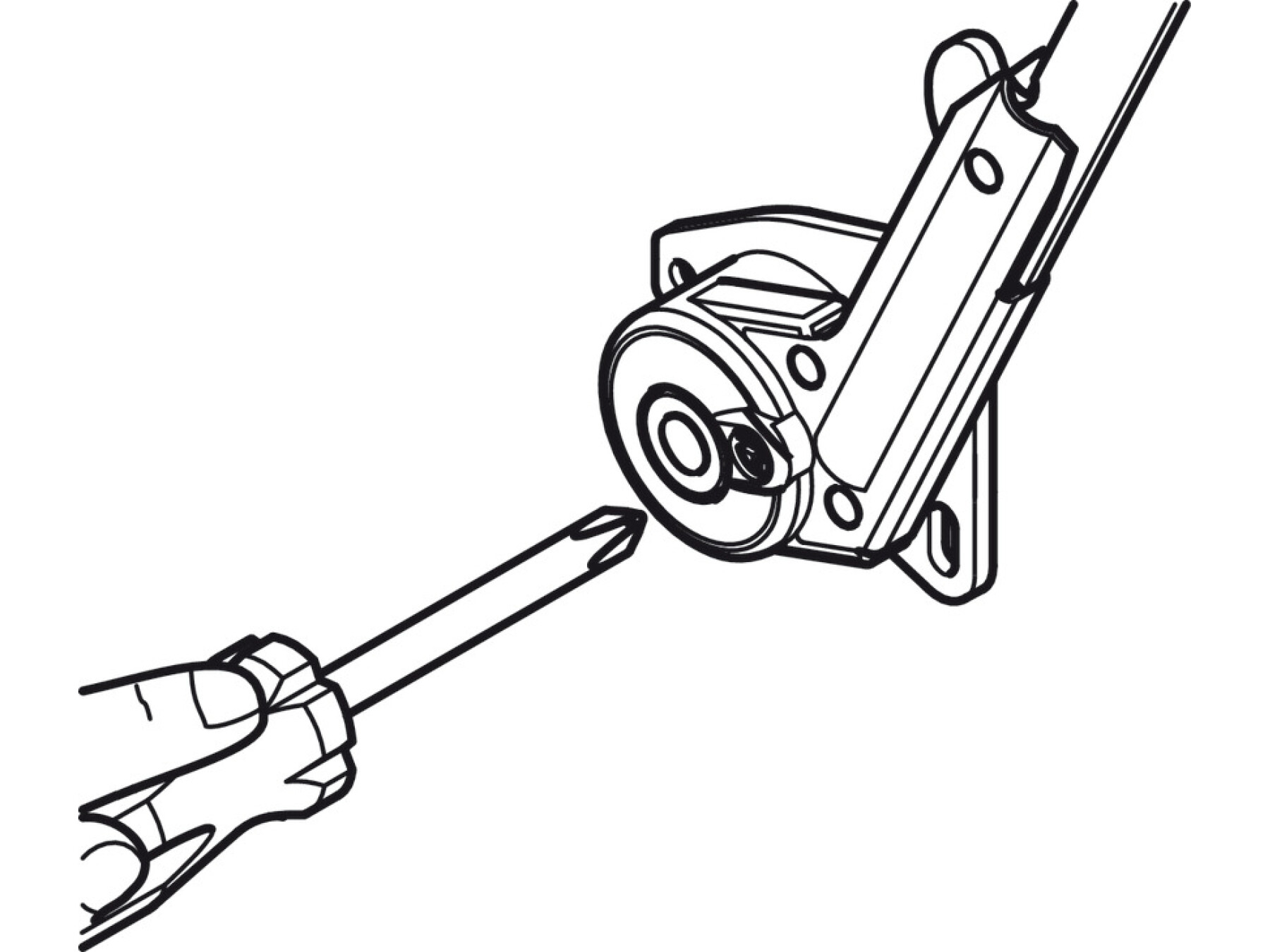

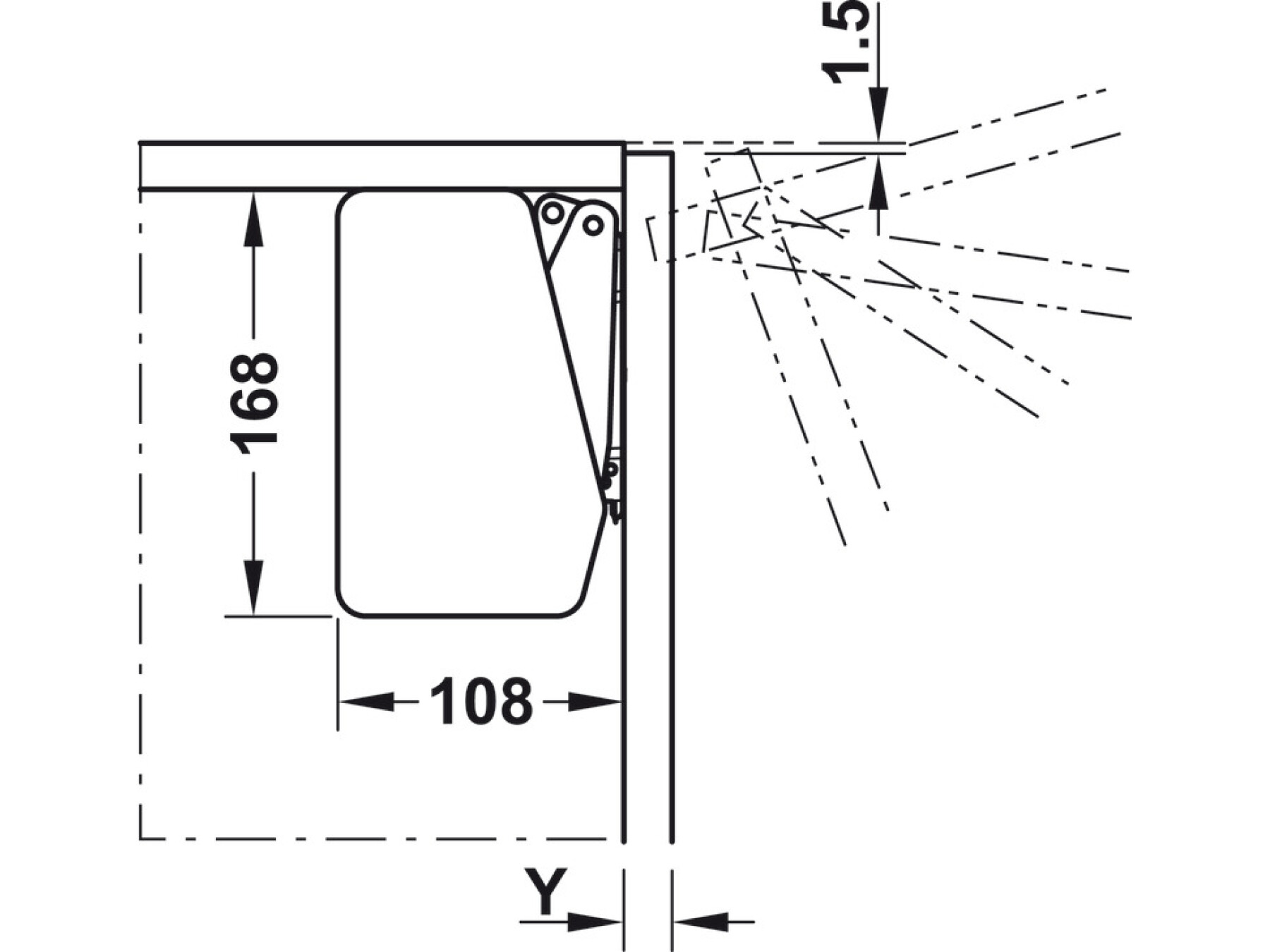

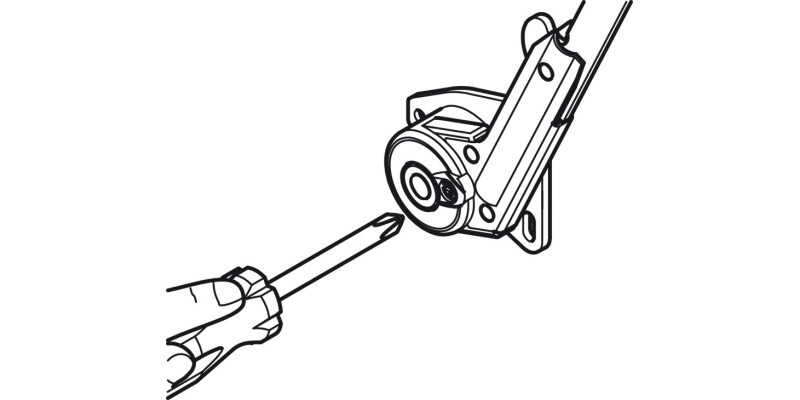

  • Adjustment facility: Height, side and tilting angle adjustment of front ±1.5 mm holding power
  • Guarantee: 25 years
  • Material: Fitting: Steel Cover cap: Plastic
  • Finish: Fitting: Nickel plated

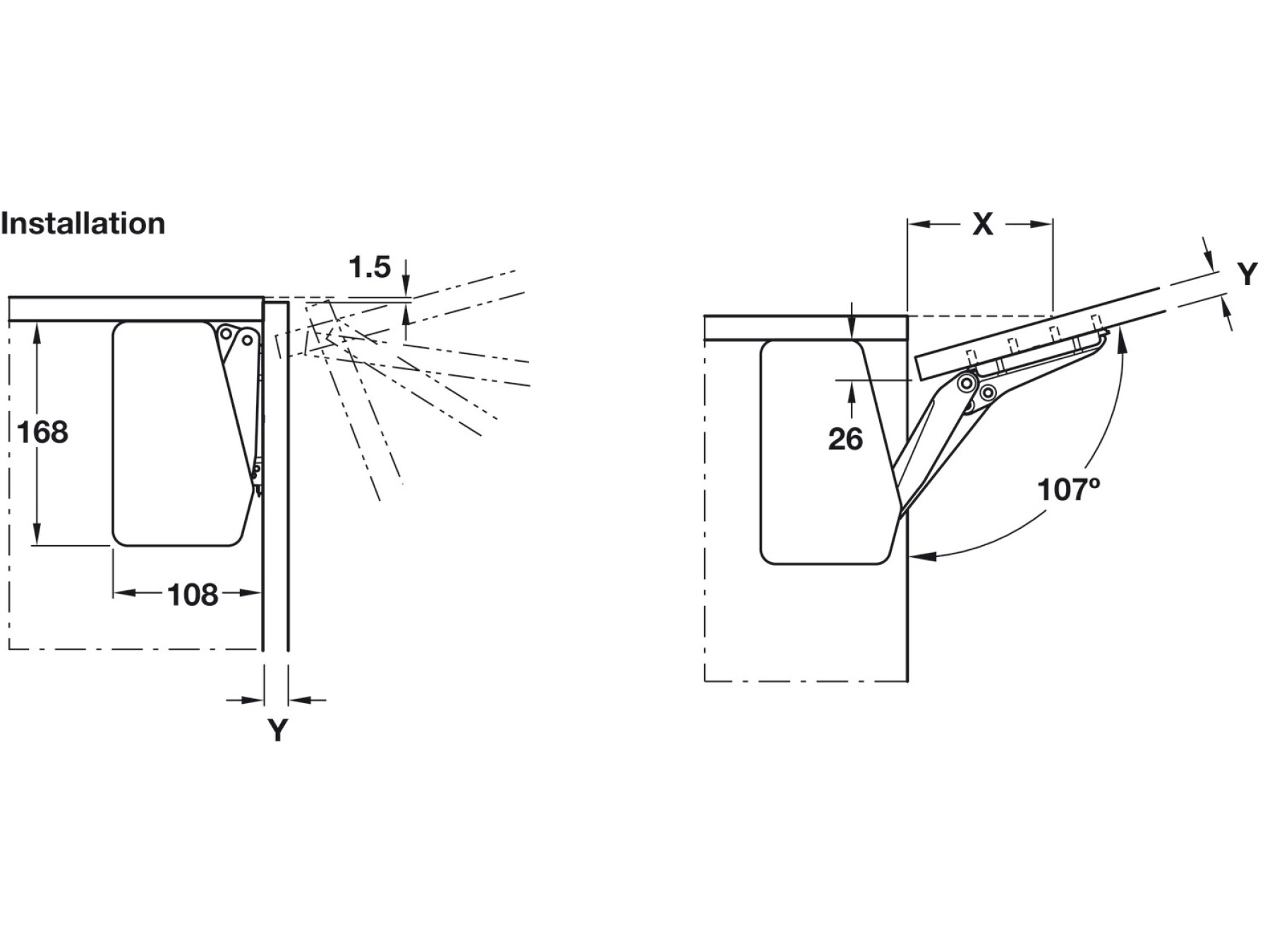

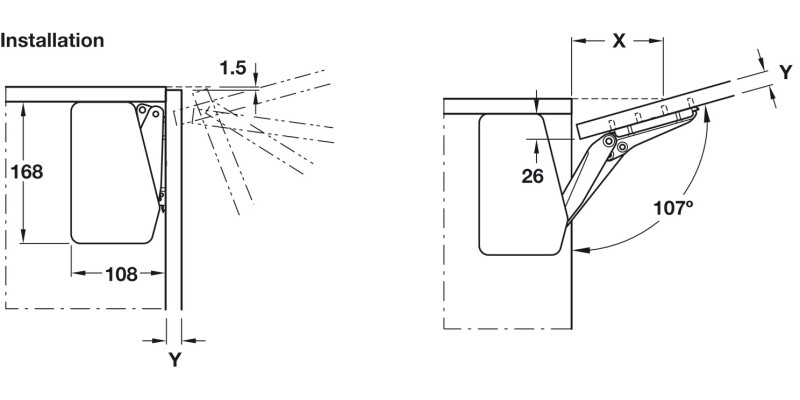

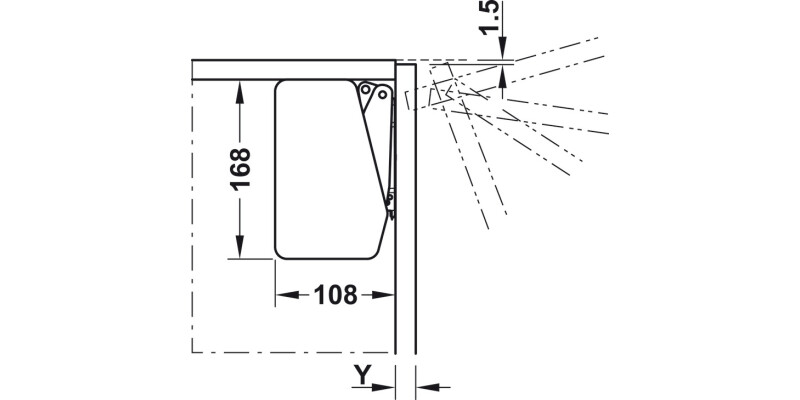

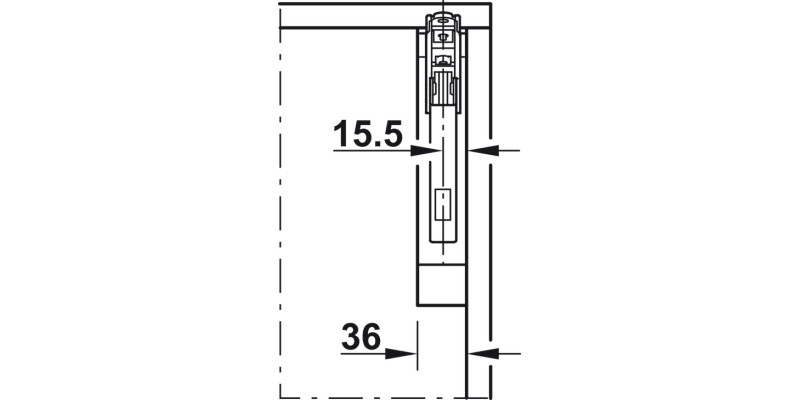

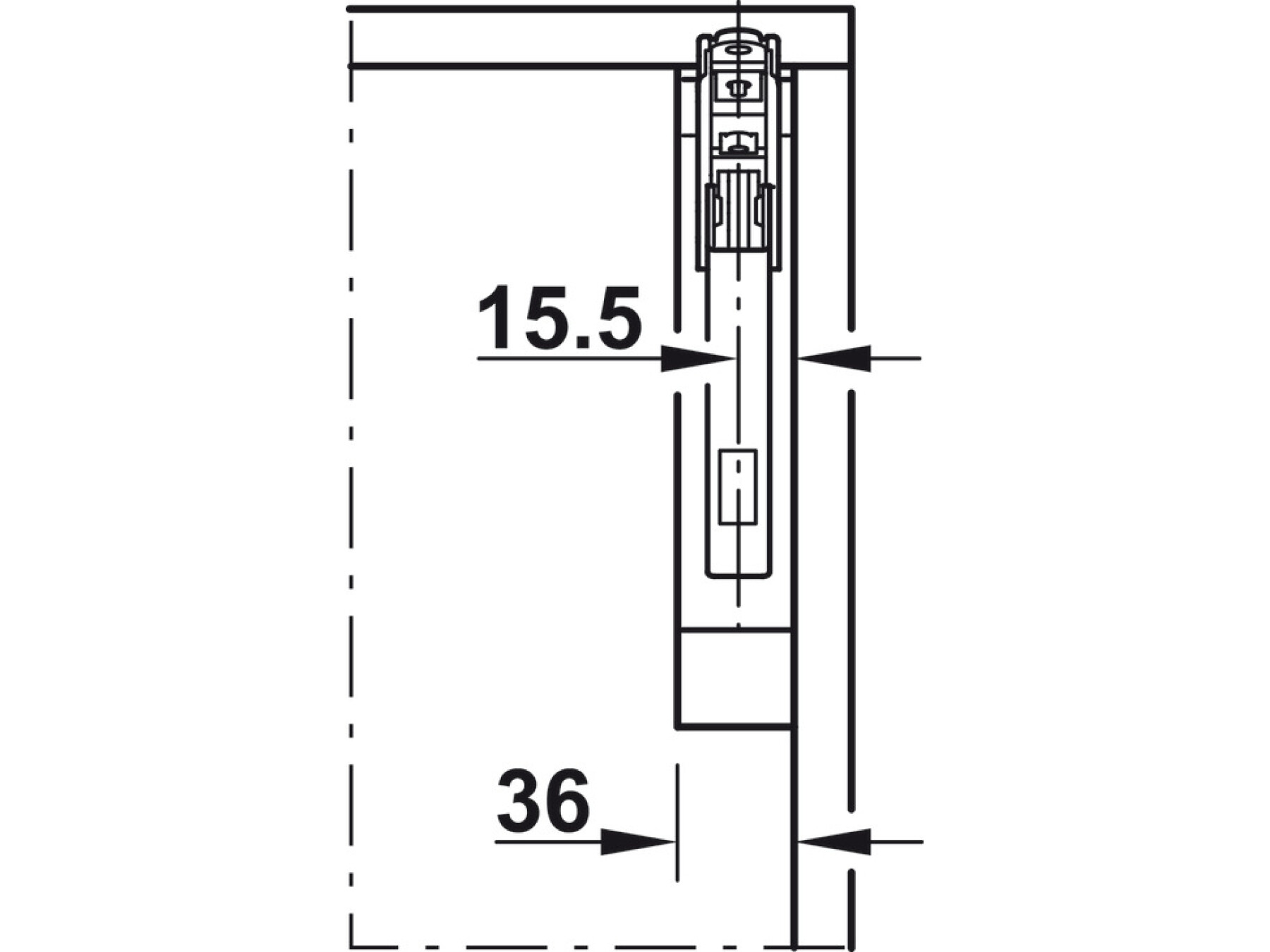

  • Installation:   Drilling pattern for cabinet Drilling pattern for front panel Front panel thickness Y mm 16 19 22 26 28 Distance X mm (with top panel thickness 16 mm 83 74 64 52 46
  • Supplied with: Set includes:2x Stay flap fittings2x Cover caps for fitting2x Screw-on brackets for wooden flaps or flaps with aluminium frame, from frame width 45 mm1x Paper drilling template Installation instructions
  • Order reference: For flaps with 20 mm aluminium frame, please order adapter separately Order Varianta Ø 5 countersunk screws separately
  • Warranty information: This product is covered under Hafele`s Lifetime Guarantee. All products covered under the Hafele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification. All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
