Tiomos 110D Post Hinge Click w SC Imp
Rated 3.5/5 based on 11 customer reviews
Hafele

Tiomos 110D Post Hinge Click w SC Imp

  • Product SKU: 348.37.830
  • Availability: In Stock
£11.35

Price inc. VAT

£11.35
Hurry! only 16 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cupWith integrated soft close
  • Cup fixing: Impresso fixing
  • Type of closing: With soft close

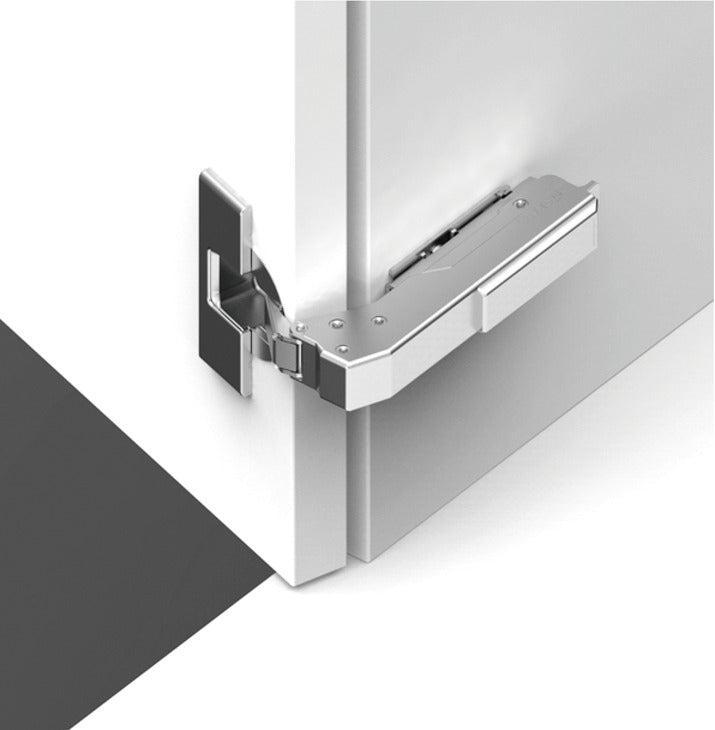

  • Application: For blind corner applications
  • Opening angle: 110 ¬¨¬®‚Äö√†√ª

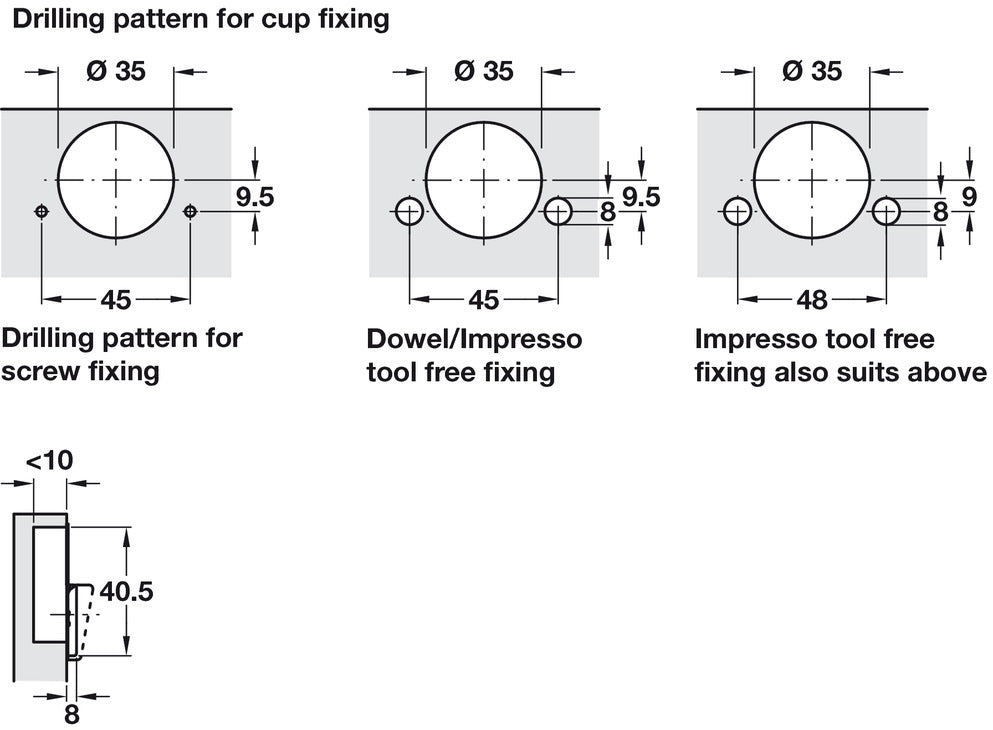

  • Drilling pattern: 45/9.5
  • Drilling depth: Hinge cup 12.6 mm
  • For door thickness: Up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)
  • Hinge arm: Click on
  • Material: Cup: SteelArm: Zinc alloy

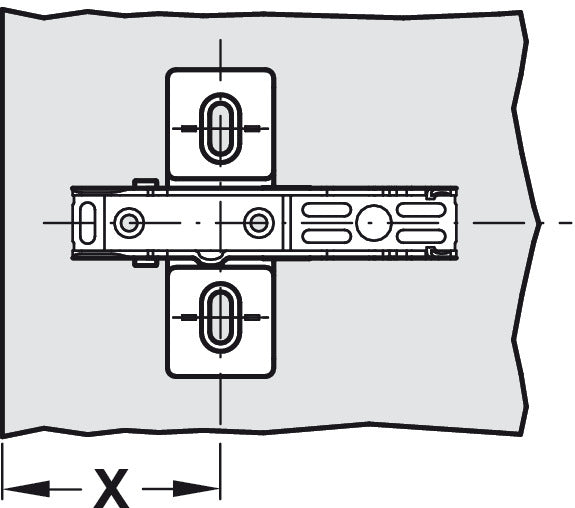

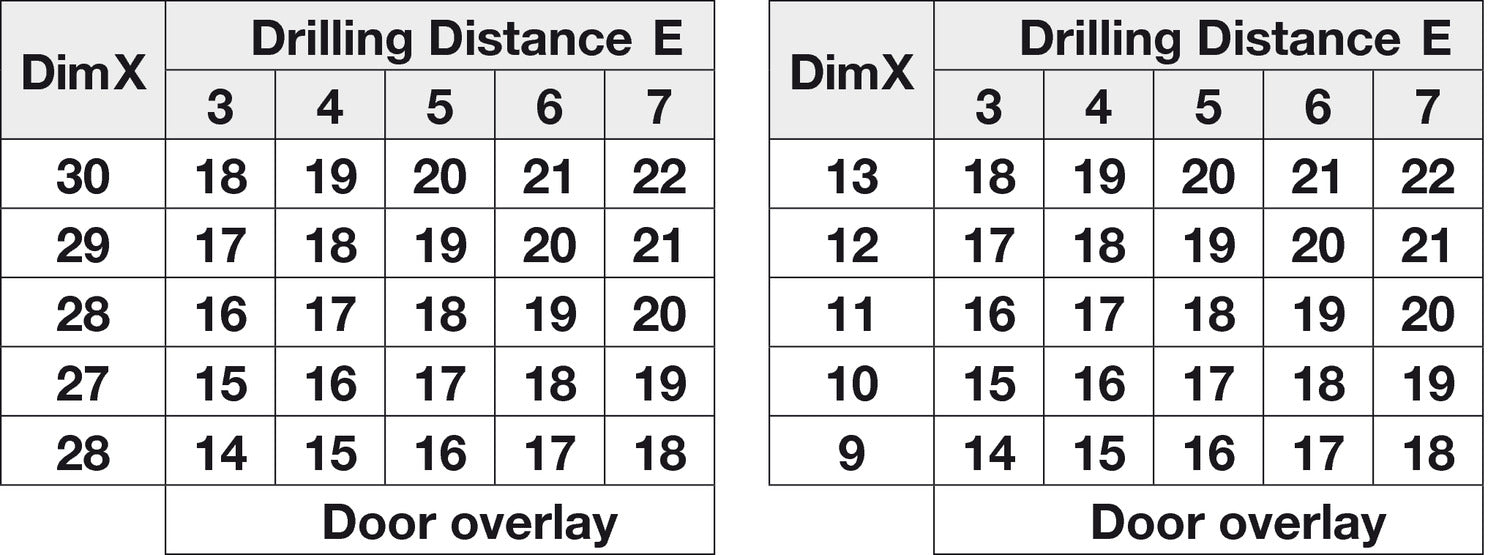

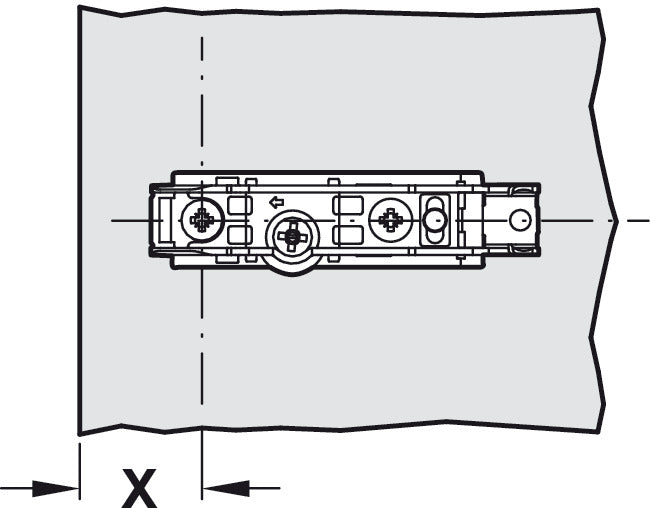

  • Note: Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
