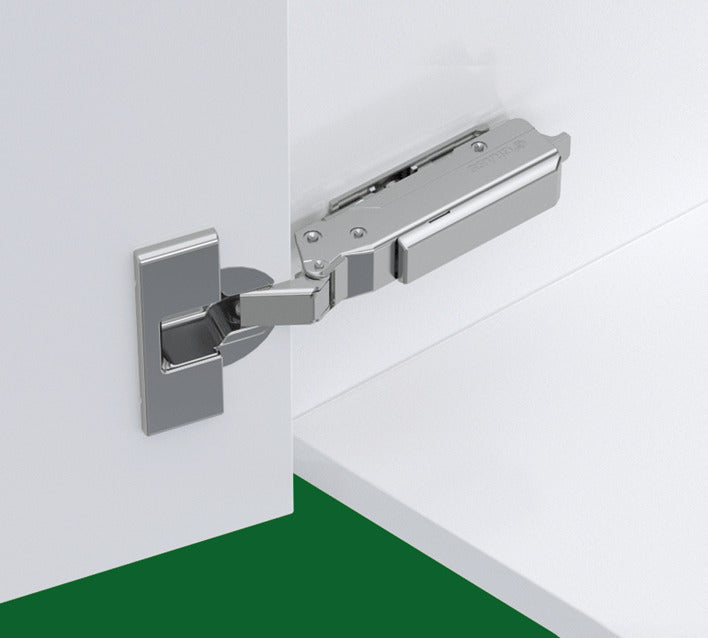

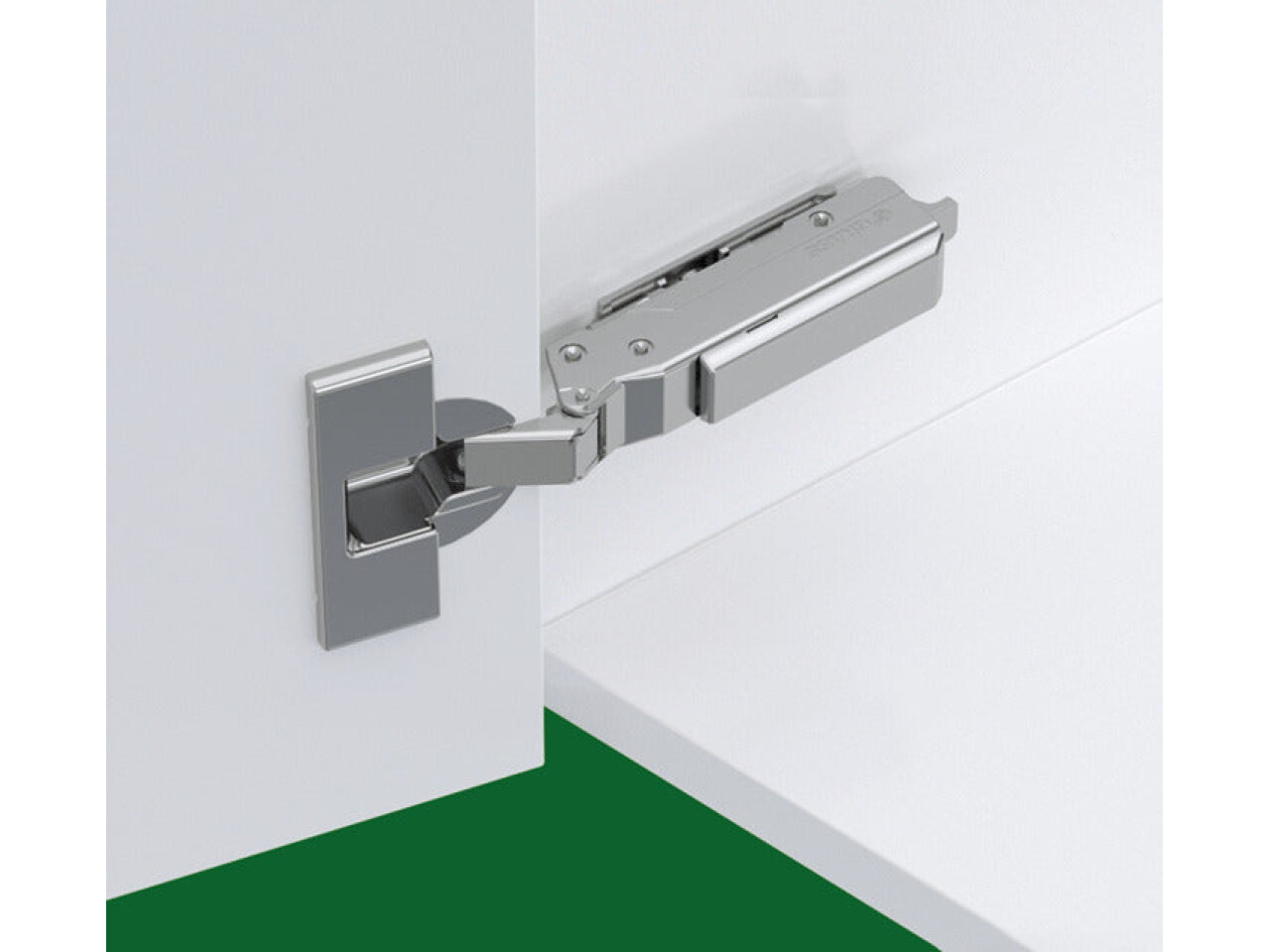

Tiomos 120D Hinge/Plate Set 2prt Hospa

£320.33

Price inc. VAT

£320.33

Ask about this product

Cup fixing: Screw fixing
Sold in packs of 100 sets
Type of closing: With soft close
Drilling depth: Hinge cup 12.6 mm
Opening angle: 120 deg.
Drilling pattern: 45/9.5
Overlay:: Full
For door thickness: Up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)
Application: For standard applications
Hinge arm: Click on
Model: Tiomos
Material: Cup and hinge arm: Steel
Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings. Door thickness mm. Distance to cup Emm3.04.05.06.07.0160.60.60.60.60.6170.60.60.60.60.6180.70.70.70.70.7190.90.90.90.90.9201.11.11.11.11.1211.41.31.31.31.3223.02.01.51.51.5246.45.44.43.42.4Minimum gap F
Supplied with: 1x 120 deg. Tiomos hinge (348.36.801)1 x Mounting plate - choice of three:ECON Cruciform mounting plate, 3 point fixing- Hospa screw fixing - One part plate with ± 2 mm height adjustment by slot- Nickel-plated steel. ECON Cruciform mounting plate, 3 point fixing- Wth pre-mounted Euro screws- One part plate with ± 2 mm height adjustment by slot- Nickel-plated steel. Cruciform mounting plate, 4 point fixing- For TIOMOS Click on fixing hinges only- Hospa screw fixing- Two part plate with ± 2 mm height adjustment via worm screw- Nickel-plated steel
Order reference: Order Hospa 3.5 mm countersunk screws separately
