Tiomos 110/30D Hinge Click w SC Imp Full
Rated 3.5/5 based on 11 customer reviews
Hafele

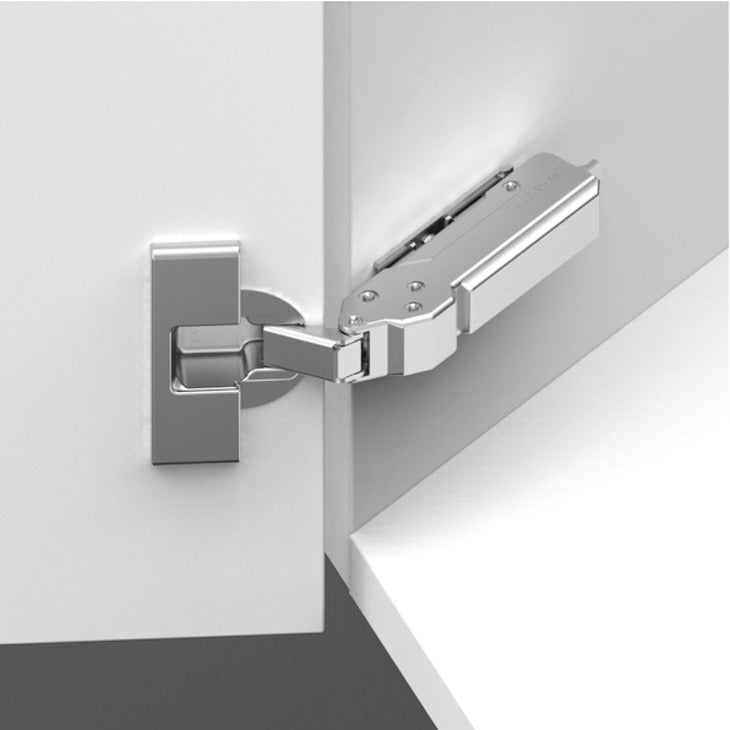

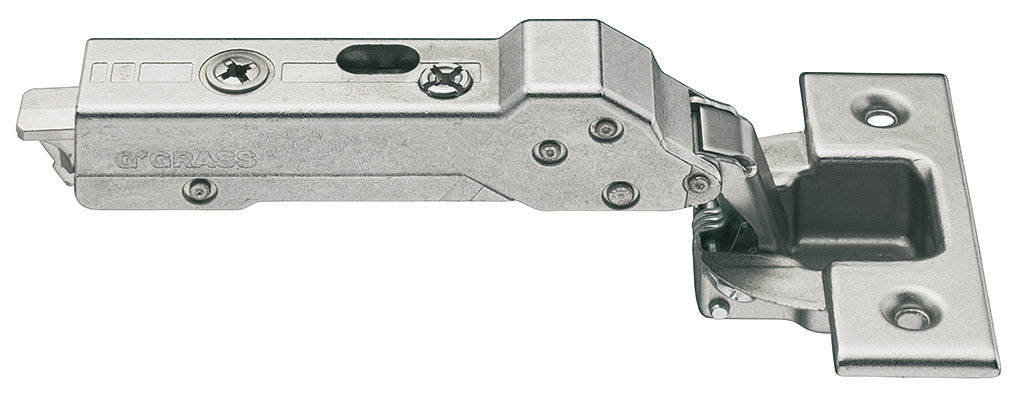

Tiomos 110/30D Hinge Click w SC Imp Full

  • Product SKU: 348.35.831
  • Availability: In Stock
£10.00

Price inc. VAT

£10.00
Hurry! only 25 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cupWith integrated soft close
  • Drilling depth: Hinge cup 12.6 mm
  • Opening angle: 110 ¬¨¬®‚Äö√†√ª
  • For door thickness: Up to 24 mm (for door thicknesses 22 mm and above, a trial fitting is reco mmended)
  • Application: For 30¬¨¬®‚Äö√†√ª angle applications
  • Hinge arm: Click on
  • Model: Grass Tiomos
  • Material: Cup: SteelHinge arm: Steel

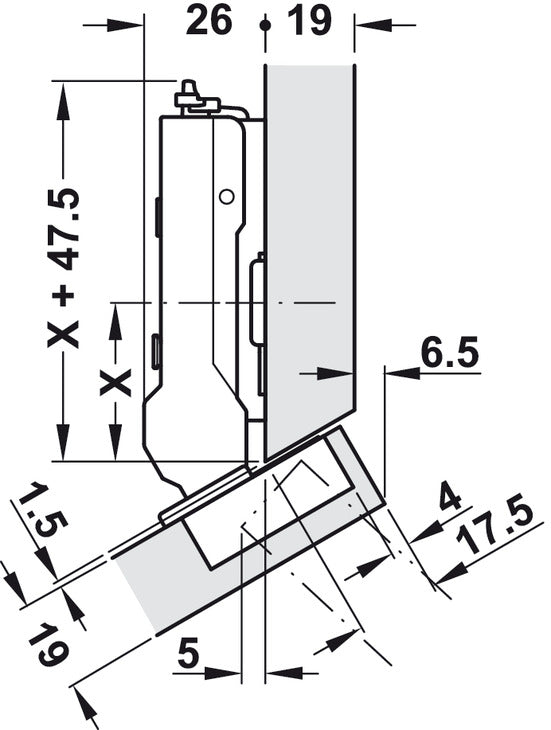

  • Note: Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
  • Order reference: Order mounting plate 348.38.511 separately
