Tiomos 110/45D Hinge Click w SC SF Ins
Rated 3.5/5 based on 11 customer reviews
Hafele

Tiomos 110/45D Hinge Click w SC SF Ins

  • Product SKU: 348.35.806
  • Availability: In Stock
£10.44

Price inc. VAT

£10.44
Hurry! only 58 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cupMinimum reveals
  • Cup fixing: Screw fixing
  • Drilling depth: Hinge cup 12.6 mm
  • Opening angle: 110 ¬¨¬®‚Äö√†√ª
  • Drilling pattern: 45/9.5
  • Overlay:: Inset
  • Application: For 45¬¨¬®‚Äö√†√ª angle cabinet applications
  • Model: Grass Tiomos

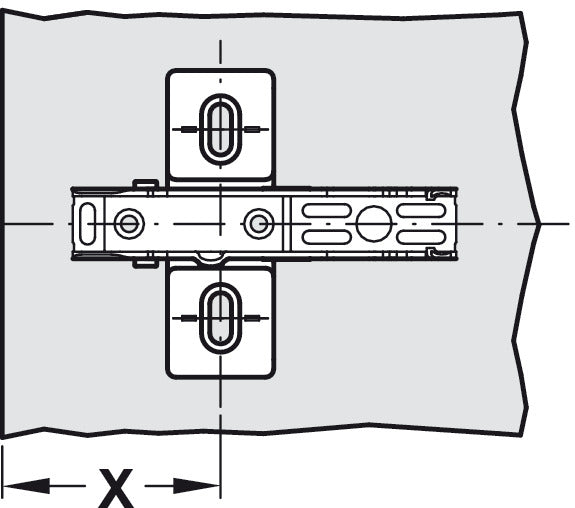

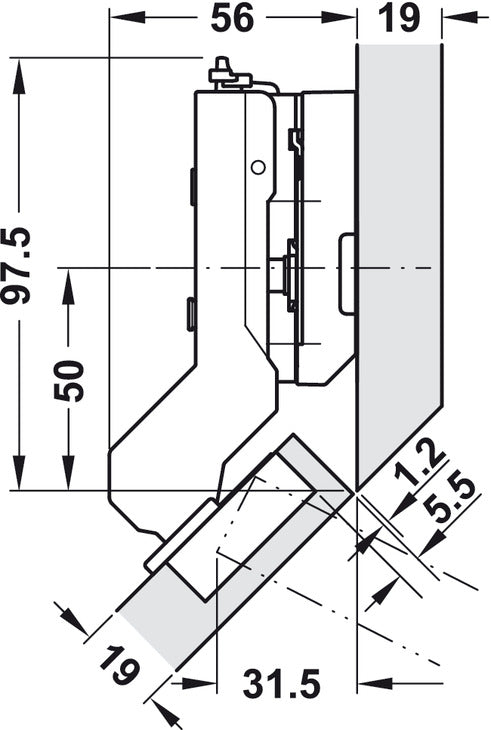

  • Note: Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
