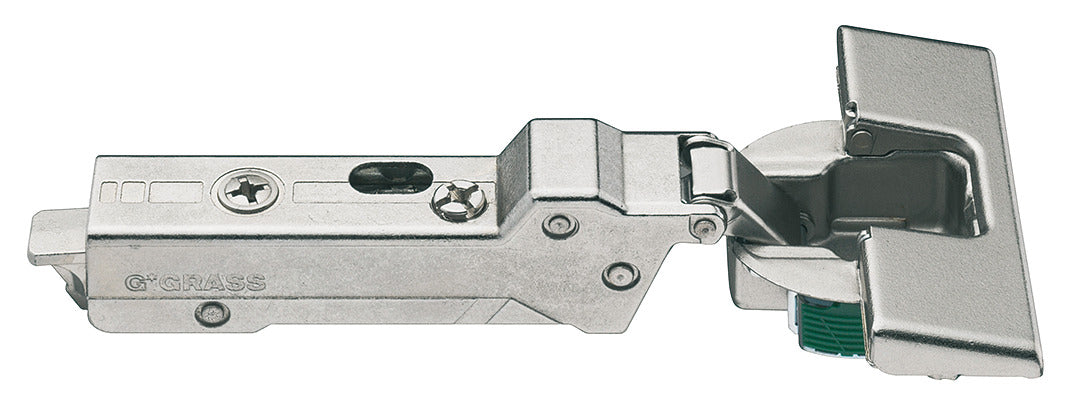

Tiomos 95D Hinge Click wo SC SF Half
Rated 3.5/5 based on 11 customer reviews
Hafele

Tiomos 95D Hinge Click wo SC SF Half

  • Product SKU: 348.34.602
  • Availability: In Stock
£6.56

Price inc. VAT

£6.56
Hurry! only 13 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
With soft closing mechanism integrated in hinge arm, with 3 settingsOptimum gap dimensions up to 28 mm door thickness
  • Cup fixing: Screw fixing
  • Type of closing: Without soft close
  • Application: For standard application
  • Opening angle: 95 ¬¨¬®‚Äö√†√ª
  • Overlay:: Half
  • Hinge arm: Click on
  • For door thickness: Up to 36 mm (for door thicknesses 29 mm and above, a trial fitting is recommended)
  • Drilling pattern: 42/11 or 45/9.5 mm
  • Drilling depth: Hinge cup 12.6 mm
  • Material: Cup: SteelHinge arm: Zinc alloy
  • Finish: Nickel plated
  • Order reference: Order mounting plate and Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm countersunk screws separately
