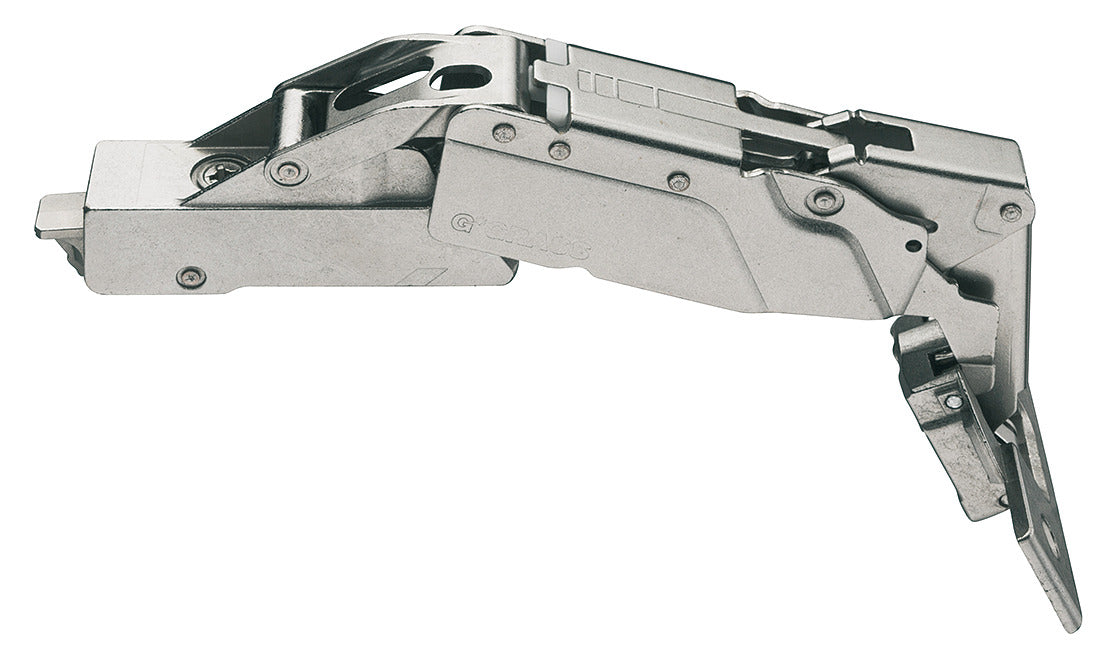

Tiomos 160D Hinge Click w SC Imp Half
Rated 3.5/5 based on 11 customer reviews
Hafele

Tiomos 160D Hinge Click w SC Imp Half

  • Product SKU: 348.32.832
  • Availability: In Stock
£7.68

Price inc. VAT

£7.68
Hurry! only 1 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

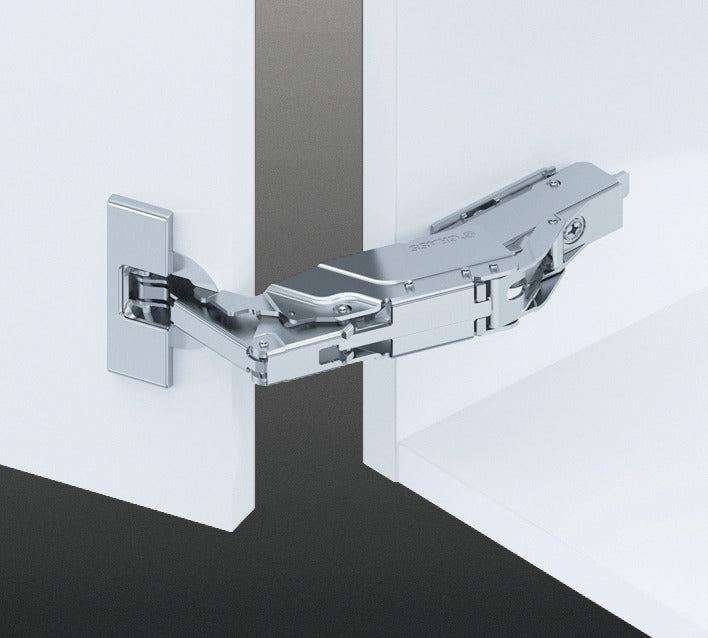

√ò 35 mm cupZero protrusion makes this ideal for cabinets with internal drawer boxes or pull-out shelvesWith finger protectionShallow cup drilling depth only 10 mm
  • Application: For standard applications
  • Opening angle: 160 ¬¨¬®‚Äö√†√ª
  • Overlay:: Half
  • Hinge arm: Click on
  • For door thickness: Up to 32 mm (for door thicknesses over 29 mm, a trial mounting is recommended)

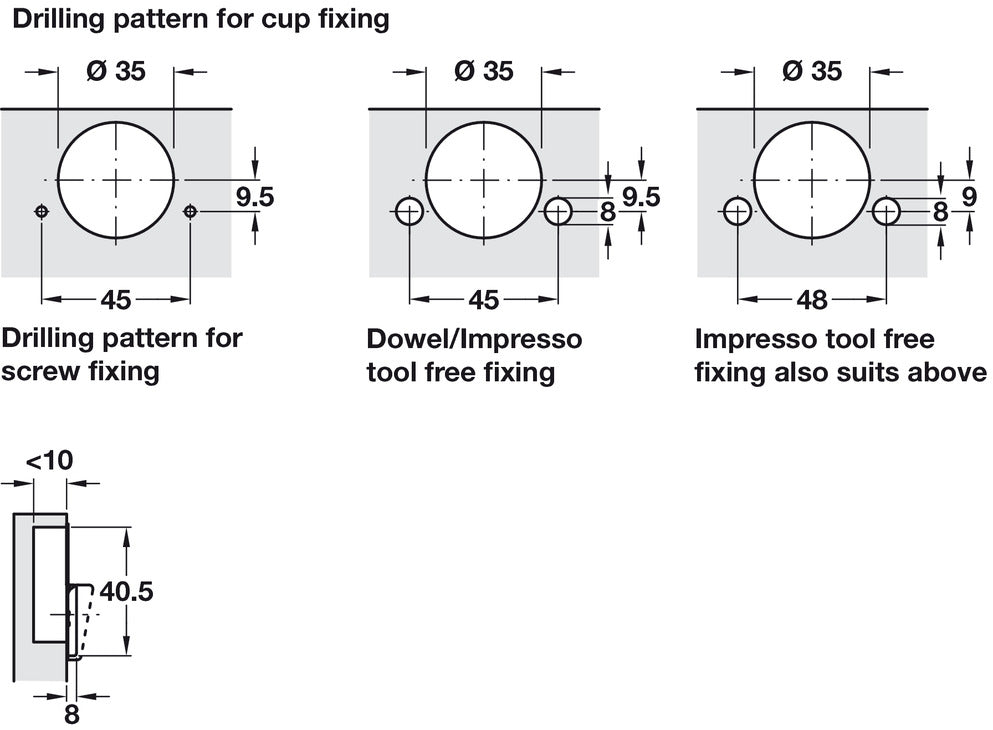

  • Drilling pattern: 45/9.5 mm
  • Drilling depth: Hinge cup 10 mm
  • Material: Cup and hinge arm: Zinc alloy
  • Finish: Nickel plated

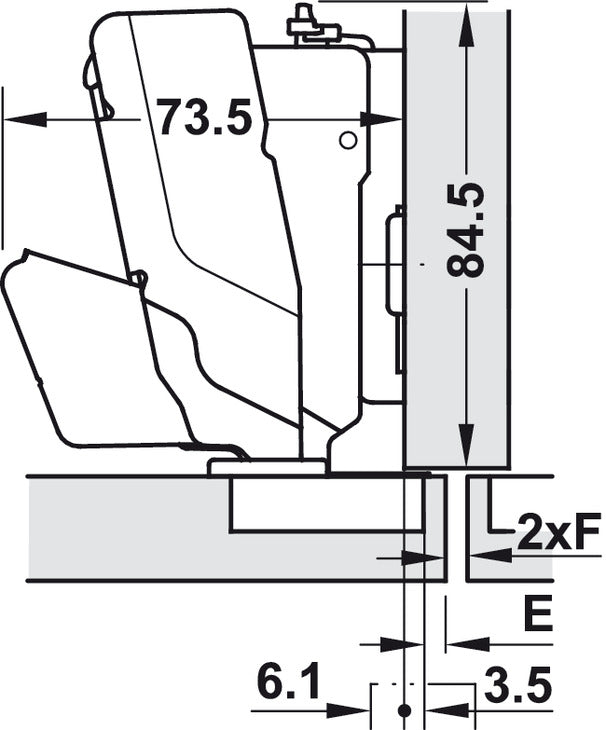

  • : Door overlay mm5.56.57.58.59.510.511.512.513.514.515.516.517.5345678910-2345678910034567891023456789103Distance to cup E¬¨¬®‚Äö√тĆmmMounting plate distance mm
  • Order reference: Order Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm countersunk screws separately
