Nexis 100D Hinge Slide Sprung SF Full
Rated 3.5/5 based on 11 customer reviews
Hafele

Nexis 100D Hinge Slide Sprung SF Full

  • Product SKU: 323.40.500
  • Availability: In Stock
£1.86

Price inc. VAT

£1.86
Hurry! only 540 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cup
  • Opening angle: 100 ¬¨¬®‚Äö√†√ª
  • Overlay:: Full

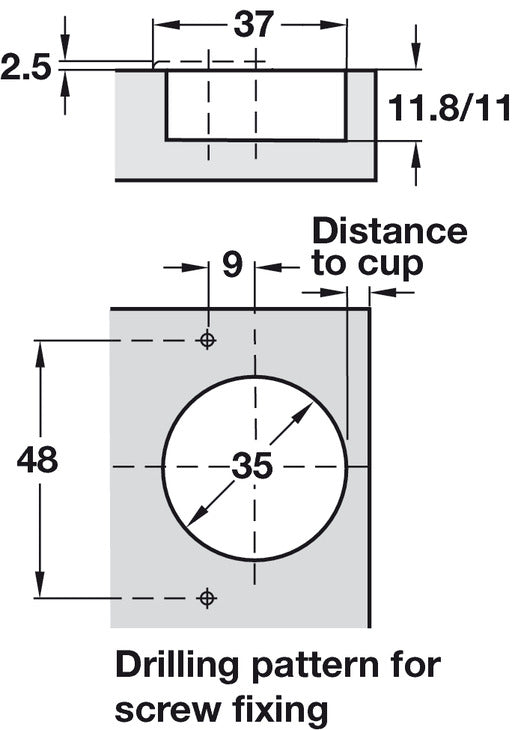

  • Drilling pattern: 48/9 mm
  • Drilling depth: Hinge cup 11 mm
  • Application: For standard applications
  • For door thickness: Up to 24 mm
  • Type of closing: Soft-close compatible
  • Model series: Grass 100¬¨¬®‚Äö√†√ª
  • Material: Cup and hinge arm: Pressed steel
  • Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm raised head countersunk screws separately
