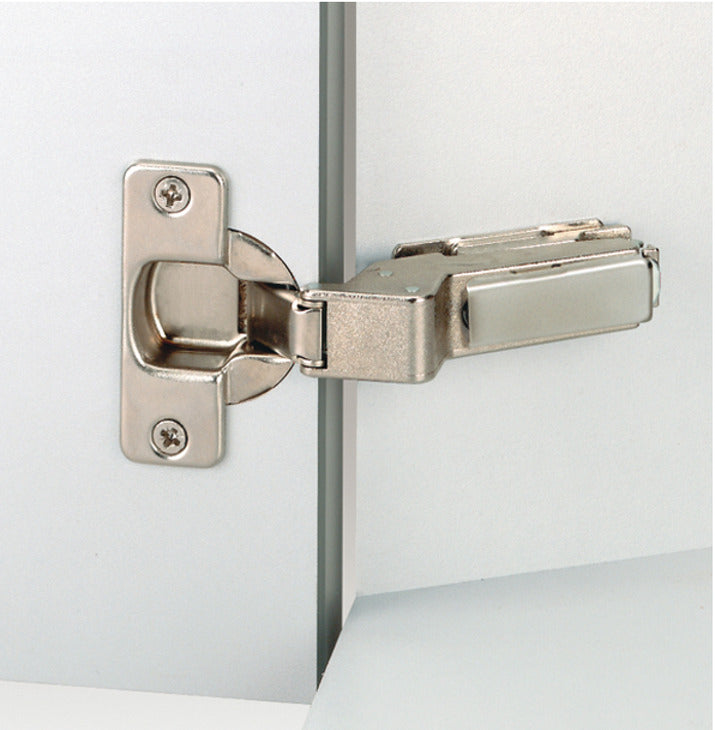

Nexis 95/45D Hinge Sprung Slide SF
Rated 3.5/5 based on 11 customer reviews
Hafele

Nexis 95/45D Hinge Sprung Slide SF

  • Product SKU: 323.29.507
  • Availability: In Stock
£5.35

Price inc. VAT

£5.35
Hurry! only 10 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
Tipmatic Plus compatible : The mechanical opening system for furniture without handles. A light touch is enough for doors to open as if by magic (please order separately)√ò 35 mm cup
  • Opening angle: 95 ¬¨¬®‚Äö√†√ª
  • Cup fixing: Screw fixing

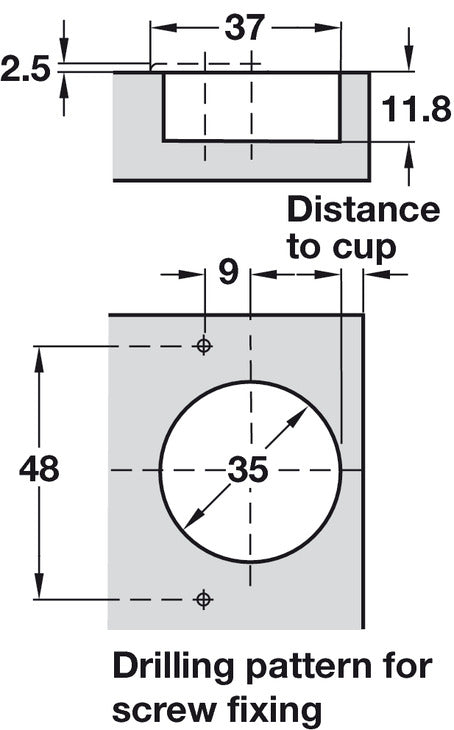

  • Drilling pattern: 48/9 mm
  • Drilling depth: Hinge cup 11.8 mm

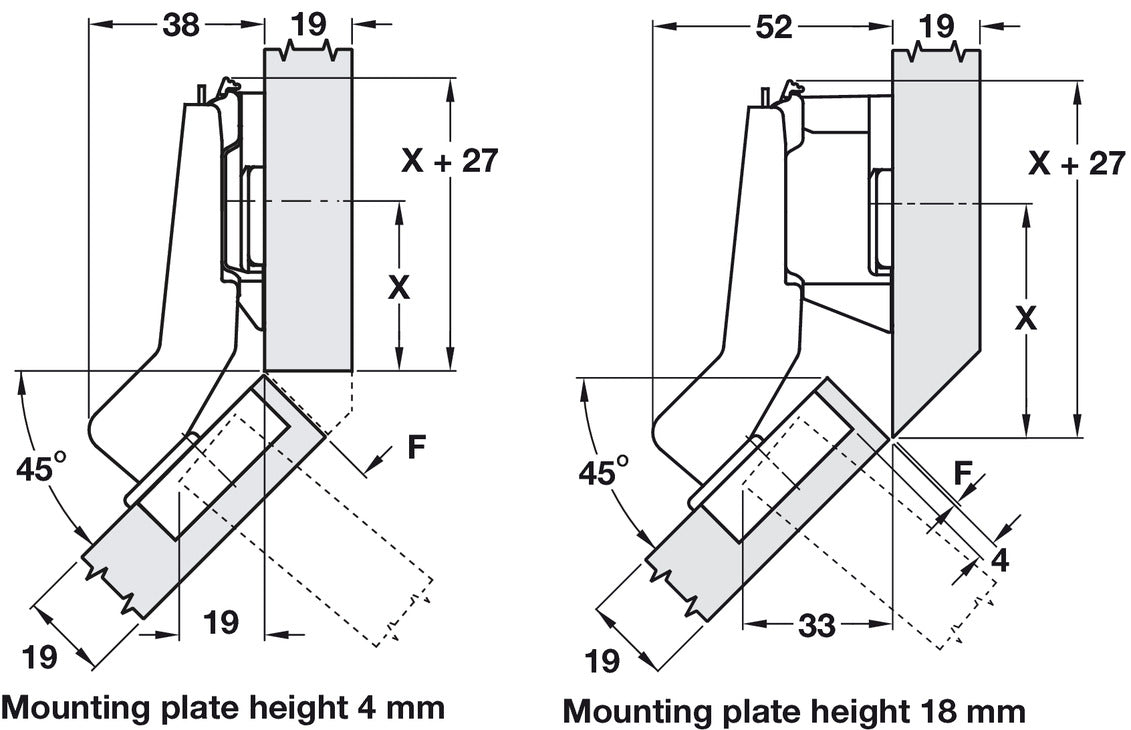

  • Application: For 45¬¨¬®‚Äö√†√ª angled applications
  • Type of closing: Soft-close compatible
  • Model series: Grass 95¬¨¬®‚Äö√†√ª
  • Material: Cup: SteelHinge arm: Zinc alloy
  • Finish: Nickel plated
  • Order reference: Order Tipmatic Plus set for click on hinges separately for touch to open systemWider range of mounting plates available, please order separatelyOrder Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm countersunk screws separately
