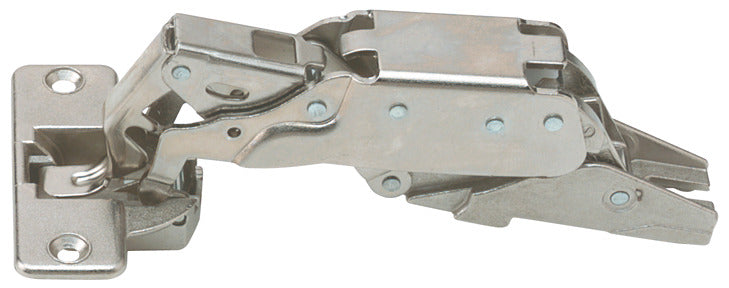

Nexis 170D Hinge Slide Sprung Full/Inset
Rated 3.5/5 based on 11 customer reviews
Hafele

Nexis 170D Hinge Slide Sprung Full/Inset

  • Product SKU: 323.21.609
  • Availability: In Stock
£7.23

Price inc. VAT

£7.23
Hurry! only 14 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cupZero protrusion makes this hinge ideal for cabinets with internal drawer boxes or pull out shelves With finger protectionHeavy duty
  • Cup fixing: Screw fixing
  • Opening angle: 170 ¬¨¬®‚Äö√†√ª

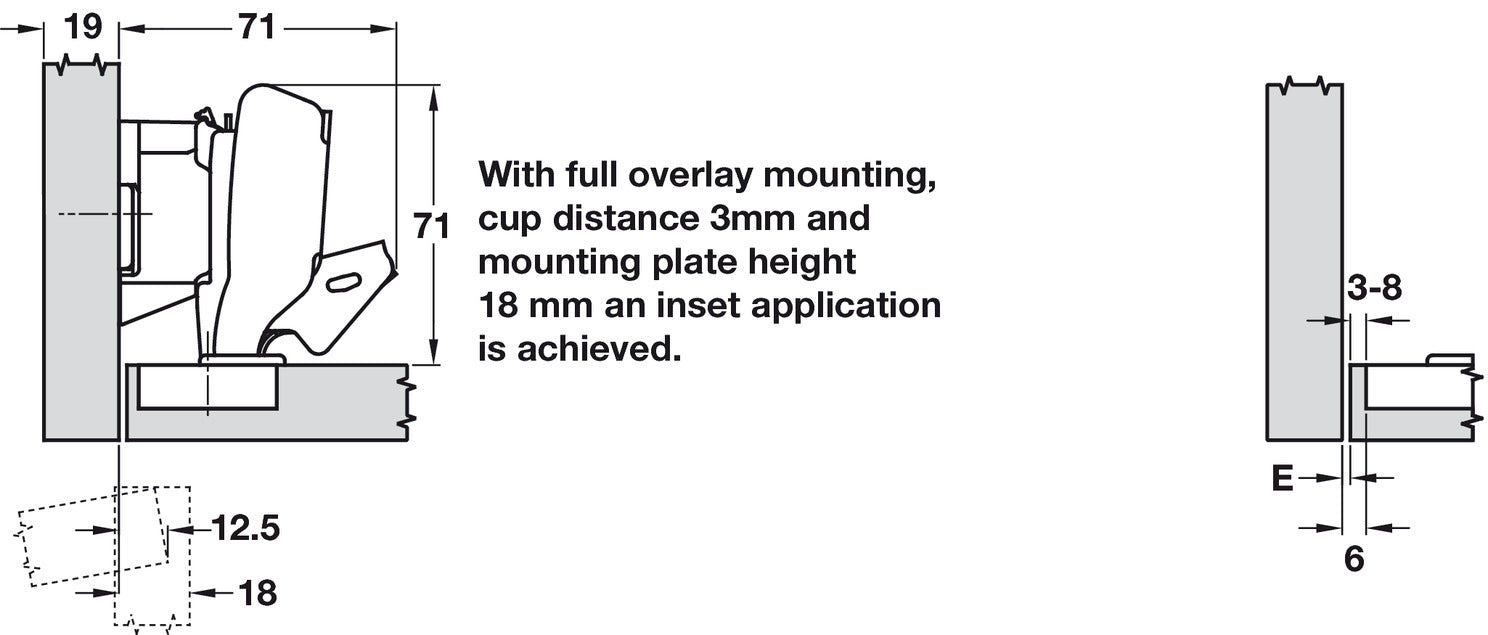

  • Overlay:: Full/Inset

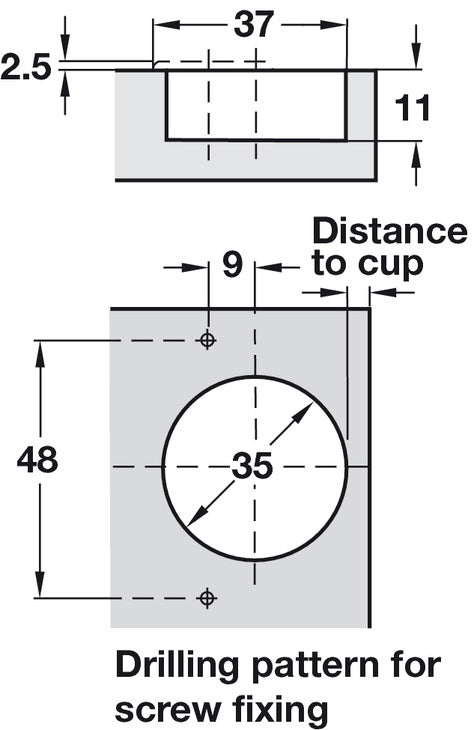

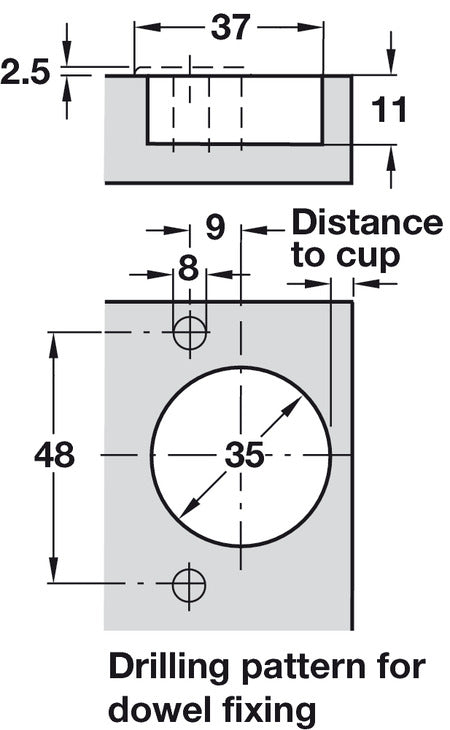

  • Drilling pattern: 48/9 mm
  • Drilling depth: Hinge cup 11 mm
  • Application: For standard applications

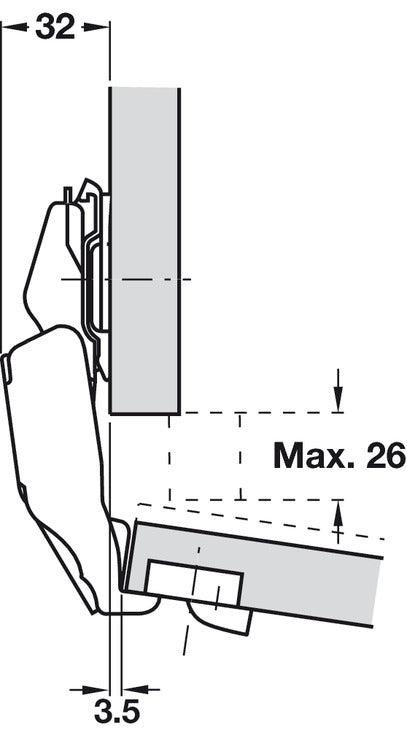

  • For door thickness: Up to 26 mm (for door thicknesses 23.5 mm and above, a trial fitting is recommended)
  • Model series: Grass 170¬¨¬®‚Äö√†√ª
  • Material: Cup and hinge arm: Zinc alloy
  • Type of closing: Soft-close compatible
  • Order reference: Soft close fitting 322.67.170 to be ordered separately (if required)Wider range of mounting plates available, please order separatelyOrder Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm raised head countersunk screws separately
